ABB DC Switching Contactors: Type GAF

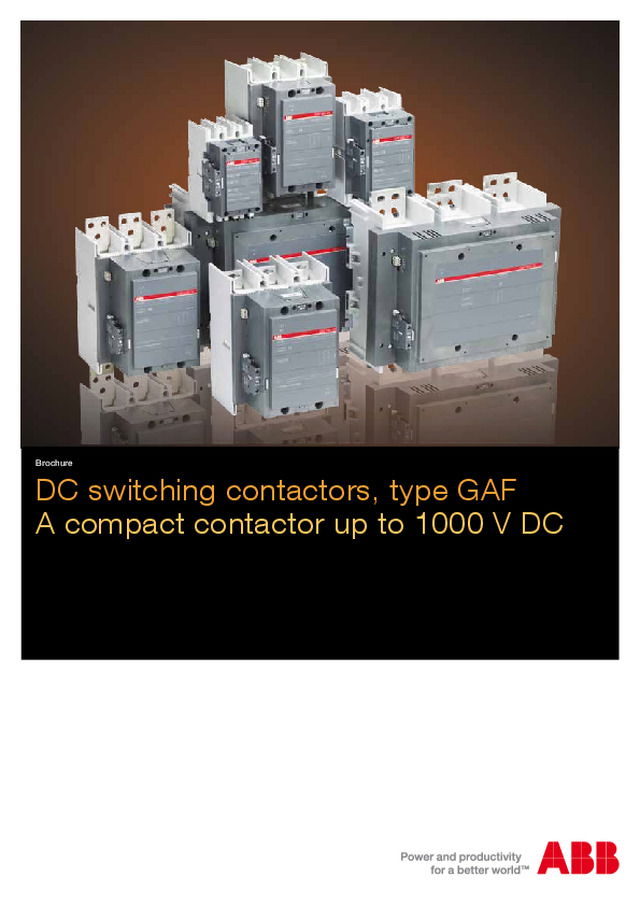

DC switching contactors, type GAF A compact contactor up to 1000 V DC Brochure
2 DC switching contactors | 1SFC101004B0201 The GAF contactor range A compact and efficient way of DC switching The new GAF range contactors are the latest addition to ABB’s well established A/AF range. This further extends our offering of contactors for DC switching at voltages up to 1000 V DC. The GAF contactors utilize all the well known features of the existing A/AF range such as modern and compact design. In addition all the benefits from the AF coil technology and reliability of a proven contactor design. These contactors are rated for DC-1 or DC general purpose applications according to IEC 1000 V DC or cULus 600 V DC. The new GAF contactors share the external dimensions of its corresponding standard AF contactor. The new GAF range, the world‘s first block contactors with ratings up to 2000 A for 1000 V DC
1SFC101004B0201 | DC switching contactors 3 Features and benefits Powerful• 1000 V DC switching ratings (IEC). • UL (508) rated up to 600 V DC. Flexible• Wide control voltage range (e.g. 100-250 V AC/DC) means less versions covering the entire range. • PLC interface with 24 V DC / 100 mA for GAF/AF400...2050. Efficient• The AF electronic coil interface reduces power consumption 5-10 times at holding compared to conventional contactors. Reliable• The GAF contactor is based on the well proven AF contactor. • Less sensitive to voltage drops due to a drop-out voltage of 55% of the lower nominal value along with 20 ms sag and dip immunity. These features avoid the problems with contactor chattering and welding. • Elimination of contact bounce and chattering provides for increased reliability and service life. Silent • DC powered coil makes the contactor virtually noise free. Easy• The external dimensions of the GAF contactors are the same as corresponding AF contactors making it easy to order and install. • Existing add on accessories for A/AF range of three pole contactors will fit the GAF contactors. The GAF contactor’s ability to break DC up to 2000 A at a voltage up to 1000 V derives from the use of permanent magnets in the arc packages. The magnets enable the contactor to extinguish the powerful electrical arcs that arise between the contact surfaces when breaking DC. Normal AF contactors can break DC up to some extent but since they lack the permanent magnets they will not be able to break DC as a corresponding GAF contactor. 1 L1 3 L2 For Ge nera l Use . Max 165 0A, 600 AV A C Ui= 100 0V 5 L3 2 T1 4 T2 6 T3
4 DC switching contactors | 1SFC101004B0201 Applications – solar What is PV power? Photovoltaic (PV) power is a renewable energy source converting sunlight directly into electrical energy using PV cells. Large PV systems often consist of following main components: • PV cells (combined to strings, generating the power). • Inverter (one or several, converting the generated DC voltage into AC 50Hz or 60Hz, also including devices for switching, protection and control). • Combiners (junction boxes, including switching devices, with several cables on input and one cable on output). • Trackers (mechanical structure to move the angle of PV cells to follow the sun, increasing system efficiency, also including motors, PLC, communication, protection). • Switching devices and protection devices (to change PV string configuration, protect from over currents, surge voltages and earth faults etc.). • Distribution transformer (transforming low voltage to high voltage, as grid connection often is done on high voltage level).
1SFC101004B0201 | DC switching contactors 5 What is the future of PV power? Solar energy is today the fastest growing segment in renewable energy and is believed to be one of the major energy sources in the future. Factors that vouch for a bright future of solar energy: • Growing climate awareness brings more focus on renewable energy. • Continuously higher legislative demands on increasing the share of green energy. • Intense research and development of the PV technology in order to make it more efficient and easier to produce. Decreased production costs due to higher volumes and improved production technique make it possible to pro- duce low cost PV cells which in turn will expand the market. Why is DC contactors needed? PV plants contain some major application for DC swit-ching, since the electricity produced by the PV panels is DC. Depending on application requirements, different products can be used for switching. Contactors are typically selected for app-lications with the need for remote control and switching at least once per day. Applications Main applications where contactors are used for DC switching are: • Disconnection of the inverter from the PV strings when the output is too low. • Changing the string configuration, e.g. to increase plant efficiency by diverting one or several PV strings to an opti- mal number of converters at low output. This makes it possible to constantly optimize the efficiency of the system. ∼ Block contactor type GAF Block contactor type AF Bar contactor R series Solar PV central inverter PV strings DC AC Grid side
6 DC switching contactors | 1SFC101004B0201 Applications – other There are several other DC-applications in which ABB’s GAF & AF contactors can be efficiently used. Traction Traction vehicles • Urban traction vehicles such as trams, subways, commuter trains etc. • Diesel locomotives • Heating applications Traction wayside • Signaling • Switchgear • Power distribution Batteries The accelerating need for mobile energy and protection against power disturbances in distribution networks is driving the market of batteries forward. The number of applications where batteries can be used is steadily increasing and with that the need of DC switching. Examples of such applications are charging of vehicle batteries, UPS installations, backup and control solutions, etc. Telecom The telecom industry is today facing a rapid increase of data transmission which demands larger and more efficient transmis-sion stations. Larger stations may require higher currents and an increase of voltage in order to reduce energy losses. In this kind of setup compact, efficient and reliable DC switching is needed. Special industry: • DC Drives in e.g. metal refining plants.
1SFC101004B0201 | DC switching contactors 7 Ordering details DC switching ratings, 3 contacts in series GAF1650, GAF 2050 AF1350 ... AF2050 GAF185 AF145, AF185 GAF750, GAF1250 AF580 ... AF1250 LP185 AC / DC coils with electronic coil interface Contactors GAF185 ... GAF300, AF145 ... AF300 Contactors GAF460 ... GAF1250, AF400 ... AF1250 Voltage Voltage Code Voltage Voltage Code V - 50/60Hz V - DC ■ ■ V - 50/60Hz V - DC ■ ■ — 20 ... 60 7 2 — 24 ... 60 6 8 48 ... 130 48 ... 130 6 9 48 ... 130 48 ... 130 6 9 100...250 100 ... 250 7 0 100 ... 250 100 ... 250 7 0 250 ... 500 250 ... 500 7 1 Contactors GAF1650, GAF2050, AF1350, AF1650, AF2050100 ... 250 100 ... 250 7 0 IEC rated operational current at 1000 V L/R 1 ms, air temperature close to contactor Type Order code Pkg qty Weight (1 pce) kg 40 °C 55 °C 60 °C 65 °C 70 °C A 275 250 230 205 180 GAF185-10-11 1SFL497025R ■ ■ 11 3.60 500 400 375 350 325 GAF300-10-11 1SFL557025R ■ ■ 11 6.20 700 600 560 520 480 GAF460-10-11 1SFL597025R ■ ■ 11 12.00 1050 875 800 760 720 GAF750-10-11 1SFL637025R ■ ■ 11 15.00 1250 1040 970 920 875 GAF1250-10-11 1SFL647025R ■ ■ 11 16.00 1650 1450 1380 1325 1270 GAF1650-10-11 1SFL677025R ■ ■ 11 35.00 2050 1750 1650 1575 1500 GAF2050-10-11 1SFL707025R ■ ■ 11 35.00 cULus general purpose ratings at 600 V and IEC rated operational current at max. 850 V 40 °C UL 40 °C IEC A A 250 GAF185-10-11 1SFL497025R ■ ■ 11 3.60 400 GAF300-10-11 1SFL557025R ■ ■ 11 6.20 See next page for IEC data at different voltages. AF145-10-11 1SFL477001R ■ ■ 11 3.60 AF185-10-11 1SFL497001R ■ ■ 11 3.60 AF210-10-11 1SFL517001R ■ ■ 11 6.20 AF260-10-11 1SFL537001R ■ ■ 11 6.20 AF300-10-11 1SFL597001R ■ ■ 11 6.20 550 AF400-10-11 1SFL637001R ■ ■ 11 12.00 650 AF460-10-11 1SFL597001R ■ ■ 11 12.00 750 AF580-10-11 1SFL617001R ■ ■ 11 15.00 900 AF750-10-11 1SFL637001R ■ ■ 11 15.00 1210 AF1250-10-11 1SFL647001R ■ ■ 11 16.00 AF1350-10-11 1SFL657001R ■ ■ 11 34.00 1350 AF1650-10-11 1SFL677001R ■ ■ 11 35.00 1900 AF2050-10-11 1SFL707001R ■ ■ 11 35.00 Connection bar for contactor GAF185, AF145, AF185 LP185 1SFN074712R1000 2 0.30 GAF300, AF210 ... AF300 LP300 1SFN075112R1000 2 0.40 GAF460, AF400, AF460 LP460 1SFN075712R1000 4 0.55 GAF750, AF580, AF750 LP750 1SFN076112R1000 4 0.95 GAF1250, AF1250 LP1250 1SFN076412R1000 2 1.90 GAF1650, GAF2050, AF1350, AF1650, AF2050 LP2050 1SFN076512R1000 4 2.90 Auxiliary contact blocks, low energy microswitch 0.1 A, N.O or N.C. AF145...AF2050 GAF185...GAF2050 N.C. CEL18-01 1SFN010716R1001 0.05 N.O. CEL18-10 1SFN010716R1010 0.05 GAF300 AF210 ... AF300 GAF460 AF400, AF460 LP2050 1SFC101098F0001 1SFC101099F0001 1SFC101100F0001 1SFC101102F0001 1SFC101104F0001 1SFC101114F0001 1SFC101117F0001
8 DC switching contactors | 1SFC101004B0201 IEC AF145 AF185 AF210 AF260 AF300 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 Utilization category DC-1 A A A A A A A A A A A A A Contacts in series L/R 1 ms 1 contact 110 V 600 700 800 1050 2 contacts 110 V 250 275 350 400 450 600 700 800 1050 3 contacts 220 V 250 275 350 400 450 600 700 800 1050 1250 1350 1650 2050 3 contacts 600 V 600 700 800 1050 1250 1350 1650 2050 3 contacts 850 V 800 1050 1250 1350 1650 2050 Conductor cross-sectional area mm 2 120 150 185 240 300 1) 2x185 2x240 2 x 50x8 2) 1000 3) 2 x 100x5 2) 3 x 100x5 2) 4 x 100x5 2) Utilization category DC-3 Contacts in series L/R 2.5 ms 1 contact 110 V 600 700 800 1050 2 contacts 110 V 250 275 350 400 450 600 700 800 1050 3 contacts 220 V 250 275 350 400 450 600 700 800 1050 3 contacts 600 V 600 700 800 1050 Conductor cross-sectional area mm 2 120 150 185 240 300 1) 2x185 2x240 2 x 50x8 2) 1000 3 2 x 100x5 2) 3 x 100x5 2) 4 x 100x5 2) Utilization category DC-5 Contacts in series L/R 15 ms 1 contact 110 V 600 700 800 1050 2 contacts 110 V 250 275 350 400 450 600 700 800 1050 3 contacts 220 V 250 275 350 400 450 600 700 800 1050 3 contacts 600 V 600 700 800 1050 Conductor cross-sectional area mm 2 120 150 185 240 300 1) 2x185 2x240 2 x 50x8 2) 1000 3 2 x 100x5 2) 3 x 100x5 2) 4 x 100x5 2) 1) For currents above 450 A use 300 mm 2 and terminal extension / enlargement pieces ( LW300: see www.abb.com/lowvoltage or local ABB catalog) 2) Dimension of the bars (mm) 3) Max connection bar width 50 mm cULus AF145 AF185 AF210 AF260 AF300 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 Intended device application general purpose Contacts in series3 contacts 240 V 250 550 650 750 900 1210 1350 1900 3 contacts 600 V 550 650 750 900 1210 1350 1900 Technical data DC switching ratings AF Contactors General• When selecting a contactor for DC switching it is essential to determine the current, the voltage and the L/R time constant of the controlled load. • The loads are defined by the time constant L/R: non inductive loads such as resistance furnaces (L/R ≈ 1 ms), inductive loads such as shunt motors (L/R ≈ 2 ms) or series motors (L/R ≈ 7.5 ms). • In addition to the block contactors shown in this document: 1) ABB also offers bar mounted contactors (R-series). Bar contactors can typically be used for higher amps and voltages or other configurations or number of main poles (contacts). 2) For other DC swtiching contactors e.g. GA/GAE75 see catalog 1SBC100122C0202.
1SFC101004B0201 | DC switching contactors 9 Technical data DC contactors GAF and AF Main Technical data IEC60947-4-1 Contactor type GAF GAF185 GAF300 GAF460 GAF750 GAF1250 GAF1650 GAF2050 Rated operational voltage U e max V DC 1000 IEC 60947-4-1, DC-1, θ ≤ 40 °C A 275 500 700 1050 1250 1650 2050 Conductor cross-sectional area mm 2 150 300 1) 2x240 2 x 50x8 2) 1000 3) 3 x 100x5 2) 4 x 100x5 2) 1) For currents above 450 A use 300 mm 2 and terminal extension / enlargement pieces ( LW300: see www.abb.com/lowvoltage or local ABB catalog) 2) Dimension of the bars (mm) 3) Max connection bar width 50 mm cULus Contactor type GAF GAF185 GAF300 Rated operational voltage U e max V DC 600 Amp-ratings general purpose A 250 400 General Technical data Contactor type GAF185 GAF300 GAF460 GAF750 GAF1250 GAF1650 GAF2050 AF145 AF185 AF210 AF260 AF300 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 Rated making capacity DC-1 1.5 x I e acc. to IEC60947-4-1 Rated breaking capacity DC-1Rated frequency limits Hz 25 ... 400 Short-circuit protection for contactors without thermal O/L relay - Motor protection excluded On request or see www.abb.com/lowvoltage or local ABB catalog Rated short-time withstand current, I cw On request or see www.abb.com/lowvoltage or local ABB catalog Heat dissipation per pole I e /DC-1 W 13 16 18 25 32 30 42 32 50 80 80 125 Rated impulse withstand voltage, U imp kV 8 Ambient temperature close to contactor see ”Conditions for use”, for control voltage limits and authorized mounting - during operation / storage °C -40 to +70 Operating altitude m ≤3000 without derating Magnet system caracteristicsRated control circuit voltage U c - at 50 Hz and 60 Hz V 48 ... 250 48 ... 500 100 ... 250 - d.c. V 20 ... 250 24 ... 500 100 ... 250 Coil operating limits acc. IEC60947-4-1 0.85 x U c min. ... 1.1 x U c max. (at θ ≤ 70 °C) Please also refer to ”Mounting characteristics” Drop-out voltage in % of U c min. % 55 Coil consumption Average pull-in value 50 Hz and 60 Hz VA 430 470 890 850 850 1900 d.c. W 500 520 990 950 950 1700 Average holding value 50 Hz and 60 Hz VA/W 12/3.5 10/2.5 12/4 12/4.5 12/4 48/17 d.c. W 2 2 4 4.5 4 16 Operating time coil supply between A1-A2 On request or see www.abb.com/lowvoltage or local ABB catalog Mounting characteristicsMounting positions - mounting on a vertical plane: any position with a tilt up to ± 30°- mounting on a horizontal plane: any position with a tilt up to ± 30°, except up-side down Fixing - by screws (not supplied) 4 x M5 4 x M6 4 x M8
10 DC switching contactors | 1SFC101004B0201 Points to consider • The above relates to power circuit switching. The SCPD (Short Circuit Protection Device) must comply with applicable protection rules. • The direction of the current must be as shown on the contactor front label. • Connection bars for connecting three contacts in series are not delivered with the contactor as standard, but are available as accessories. For further information regarding connections see Technical paper. Recommended connection All three contacts connected in series without the load in between. This connection is recommended in systems according to the configurations below. Connections + Device equipped with permmanent magnets IEC 60947-4-1 Ui = 1000V DC Ith= 2050A Ue = 1000V DC 1G 1129 Ie DC- 1 = 2050A GAF 2050-10 EN 60947-4-1 All 3 poles must be connected in series Alternative connection The load is placed in between the three contacts in an indirect earhted system or in a fully isolated system. If not connected ac-cording to the configuration below, a fault to earth could result in one or two contacts breaking the full load which the contactor is not approved for. Direct earthed system Load Indirect earthed system (Isolated system) Load Load Indirect earthed system (Isolated system) Load Centre earthed system Load + - + - Load
1SFC101004B0201 | DC switching contactors 11 Dimensions 12 17.5 105 111.5 ø 8.5 35 10 187 E2001D E2002D 160 35.5 196 5 GAF185 AF145, AF185 E2016D 43.75 10.2 219 14 140 12 17.5 E2017D 180.5 5 35.5 227 GAF300 AF210 ... AF300 63 186 25 22.5 11.5 268 ø10.5 ø6.5 E1626D 216 48.5 6 E1627D 278 GAF460 AF400, AF460 72 210 40 22.5 11.5 273 ø12.5 ø6.5 E1632D 242 48.5 6 E1633D 283 GAF750 AF580, AF750 GAF1650, GAF2050 AF1350, AF1650, AF2050 438 80 104 392 312 136 136 136 9 3 244 47 10 5027 72 72 72 210 249 344 O13 O7 242 48,5 8 GAF1250, AF1250 Dimensions in mm Inch converter: 1 mm = 0.0394 in
Contact us Br ochur e 1SFC101004B0201, r ev .B, April 2011. Pr od. ABB AB, Cewe-Contr ol/XM ABB ABCewe-ControlSE-721 61 VÄSTERÅS, SwedenTelephone +46 21 32 07 00Telefax +46 21 12 60 01 www.abb.com/lowvoltage ©Copyright 2010, All rights reserved. Specification sublject to change without notice.
