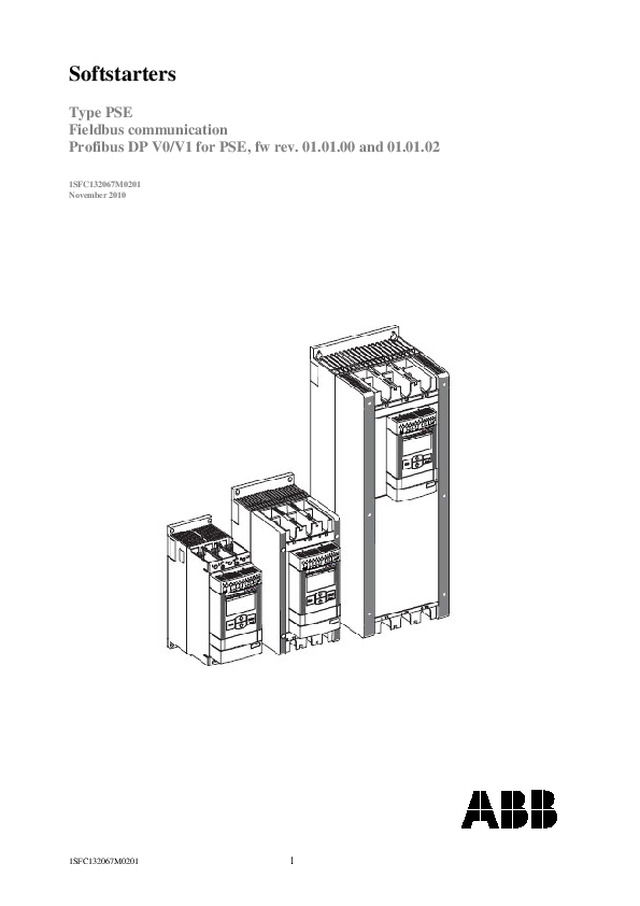

Softstarters Type PSE Fieldbus communication Profibus DP V0/V1 for PSE, fw rev. 01.01.00 and 01.01.02 1SFC132067M0201 November 2010 1SFC132067M0201 1 Profibus DP V0/V1 The Profibus DP V0/V1 protocols are fieldbus protocols that provides full control and status information of the softstarter as well as writing of parameters (read and write for V1). Through the fieldbus it is possible to start and stop the motor, read out currents and frequency, achieve information about protections, warnings, faults and much more. The PSE softstarter is following the PNO profile for Motor Management Starters regarding the cyclic telegram and monitoring telegram. See chapter 8 in the Installation and commissioning manual, document 1SFC132057M0201, for fieldbus related settings available. Before the Profibus DP fieldbus can be taken into operation the following parameters must be set in the softstarter: Parameter FB Enable set to On Parameter FB Address set to a free communication address. For technical data and description of the Profibus DP PDP21-FBP and PDP22-FBP fieldbus plugs, see document 2CDC192001D0209, available at www.abb.com/lowvoltage. For technical data and description of the Profibus DP PDQ22-FBP see document 2CDC192009D0201, available at www.abb.com/lowvoltage. To do the programming of the PLC, the following GSD files are available: GSD file ABB_078F.gsd ABB_082d.gsd ABB0A09.gsd Type of protocol Profibus DP V0 Profibus DP V1 Profibus DP V1 (PDQ22-FBP) Caution! The motor may...
