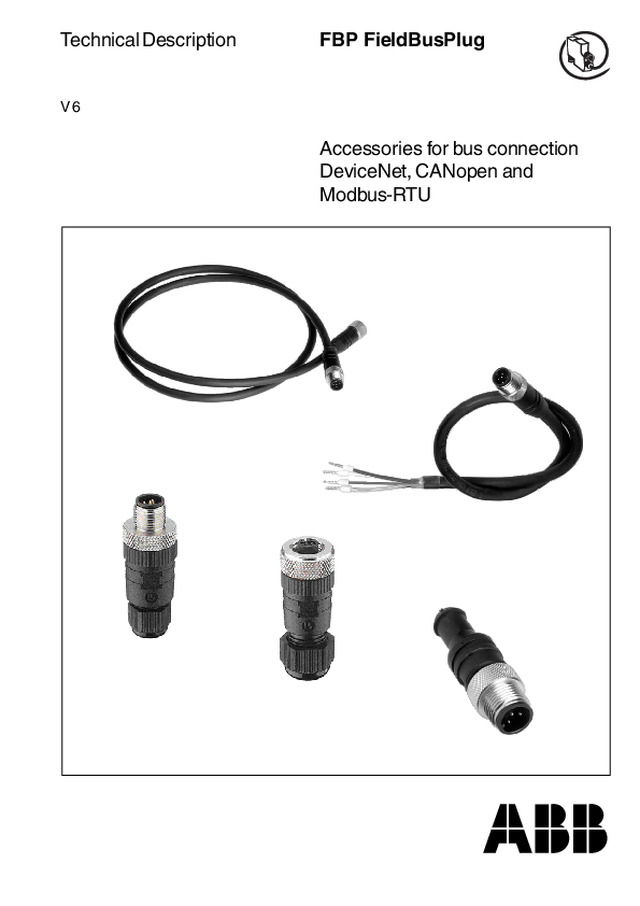

FBP FieldBusPlug Technical Description V6 Accessories for bus connectionDeviceNet, CANopen andModbus-RTU
DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories 3 FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V6 Contents Technical data Page DNX11-FBP.100 Extension cables (lengths 1 m, 3 m, 5 m) ............................. 4 DNF11-FBP.030 Round cable, female plug attached to one end,0.5 m, sheath partially removed,wire-end ferrules attached ..................................................... 5 DNM11-FBP.030 Round cable, male plug attached to one end,0.5 m, sheath partially removed,wire-end ferrules attached ..................................................... 6 DNC11-FBP.999 Round cable 100 m (drop cable) .......................................... 7 DNM11-FBP.0 Round cable male connector ................................................ 8 DNF11-FBP.0 Round cable female connector ............................................. 9 DNR11-FBP.120 Terminating resistor ............................................................. 10 Accessories for bus connectionDeviceNet, CANopen and Modbus-RTU Technical changes reserved
4 DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V 6 DNX11-FBP.100, DNX11-FBP.300, DNX11-FBP.500 Extension cables (lengths 1 m, 3 m, 5 m) Connection cable, socket/plug (M12)with self-locking screwed connection Temperature range -25°C ... + 90°C Materials Moulded body TPU, self-exstinguishing Contact (female) CuSn, pre-nickeled and0.3 µm gold-plated Contact (male) CuZn, pre-nickeled and0.8 µm gold-plated Body TPU, self-exstinguishing Knurled screw, knurled nut CuZn, nickeled O-ring Viton Mechanical data Degree of protection IP 68 (only in fully locked positionwith their plugs) Good resistance to oil and chemicals. Use of this connector range in aggressiveenvironments must be tested in each case. Electrical data Max. current load 4 A (CSA = 3 A) Nominal voltage 30 V AC / 36 V DC Insulation group C acc. to VDE 0110 Test voltage 1.5 kV AC / 60 s Insulation resistance 10 9 Ω Cable data Number of poles 5 Colours of cores 1 = SHIELD (bare flexible lead) 2 = red (+24 V DC) 3 = black (0 V) 4 = white (CAN_H) 5 = blue (CAN_L) Sheath/jacket PUR (free of PVC and halogen) Cable colour black Further cable data see page 7 Order numbers DNX11-FBP.100 1SAJ 923 001 R0010 DNX11-FBP.300 1SAJ 923 001 R0030 DNX11-FBP.500 1SAJ 923 001 R0050 female male
DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories 5 FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V6 DNF11-FBP.050 Round cable with female plug, 0.5 m Female connector with self-locking screwed connectionand integrally extruded cable Difference to standard:Cable end sheath stripped 50 mm in length withshrunk-on insulation sleeving,wire-end ferrules attached to the cores Temperature range -25°C ... + 90°C Materials Moulded body TPU, self-exstinguishing Contact CuZn, pre-nickeled and0.3 µm gold-plated Body TPU, self-exstinguishing Knurled nut CuZn, nickeled O-ring Viton Mechanical data Degree of protection IP 68 (only in fully locked positionwith their plugs) Good resistance to oil and chemicals. Use of this connector range in aggressiveenvironments must be tested in each case. Electrical data Max. current load 4 A (CSA = 3 A) Nominal voltage 30 V AC / 36 V DC Insulation group C acc. to VDE 0110 Test voltage 1.5 kV AC / 60 s Insulation resistance 10 9 Ω Cable data Number of poles 5 Colours of cores 1 = SHIELD (bare flexible lead) 2 = red (+24 V DC) 3 = black (0 V) 4 = white (CAN_H) 5 = blue (CAN_L) Sheath/jacket PUR (free of PVC and halogen) Cable colour black Further cable data see page 7 Order number DNF11-FBP.050 1SAJ 923 002 R0005 female
6 DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V 6 DNM11-FBP.050 Round cable with male plug, 0.5m Male connector with self-locking screwed connectionand integrally extruded cable Difference to standard:Cable end sheath stripped 50 mm in length withshrunk-on insulation sleeving,wire-end ferrules attached to the cores Temperature range -25°C ... + 90°C Materials Moulded body TPU, self-exstinguishing Contact CuZn, pre-nickeled and0.8 µm gold-plated Body TPU, self-exstinguishing Knurled nut CuZn, nickeled O-ring Viton Mechanical data Degree of protection IP 68 (only in fully locked positionwith their plugs) Good resistance to oil and chemicals. Use of this connector range in aggressiveenvironments must be tested in each case. Electrical data Max. current load 4 A (CSA = 3 A) Nomonal voltage 30 V AC / 36 V DC Insulation group C acc. to VDE 0110 Test voltage 1.5kV AC / 60 s Insulation resistance 10 9 Ω Cable data Number of poles 5 Colours of cores 1 = SHIELD (bare flexible lead) 2 = red (+24 V DC) 3 = black (0 V) 4 = white (CAN_H) 5 = blue (CAN_L) Sheath/jacket PUR (free of PVC and halogen) Cable colour black Further cable data see page 7 Order number DNM11-FBP.050 1SAJ 9223 003 R0005 male
DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories 7 FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V6 DNC11-FBP.999 Drop cable 100 m Extension cable (ring) Order number DNC11-FBP.999 1SAJ 923 004 R1000 Technical changes reserved Construction Supply voltageConductors 22 AWG (0.34 mm 2 ), tinned Core insulation TPE Core colours red and black Data linesConductors 24 AWG (0.25 mm 2 ), tinned Core insulation Cell-PE Core colours blue and white Shielding each pair of cores with AL-PT foil,covering 100 %,cores are twisted in pairs Bare flexible lead 22 AWG (0.34 mm 2 ), tinned Common shield C shield, tinned,covering ca. 65 % Sheath/jacket PUR dull, Ø 6.8 mmcolour: black Electrical data Supply voltageTest voltage 1.2 kV AC Conductor resistance ≤ 57.4 Ω/km Insulation resistance ≥ 10 12 Ω/km Data linesTest voltage 1.2 kV AC Conductor resistance ≤ 91.9 Ω/km Insulation resistance ≥ 10 12 Ω/km Capacity in operation 39 pF/m, 0.8 - 1.2 MHz (A/A)79 pF/m, 0.8 - 1.2 MHz (A/S) Attenuation ≤ 9.5 dB/km, 125 kHz ≤ 16.4 dB/km, 500 kHz ≤ 22.9 dB/km, 1 MHz Impedance 120 Ω ± 10 %, 1 MHz Mechanical data can be used as trailing cable,bending radius min. 100 mm,temperature range, static: -40° C / +70° Ctemperature range, under movement: -10° C / +70° C Other data meets DeviceNet specifications,inflammability according to DIN VDE 0472-804 test type B,cable is free of halogen and PVC,good resistance to oil, chemicals, hydrolysis and mikrobes Pair 1 Pair 2
8 DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V 6 DNM11-FBP.0 Male connector for round cable Male connector with screwed connection,for cable Temperature range -25°C ... + 90°C Materials Moulded body PA, self-exstinguishing Contact CuZn, 2-4 µm CuSnZn Body PA, self-exstinguishing Knurled screw CuZn, nickeled O-ring NBR or FKM Mechanical data Degree of protection IP 67 (only in fully locked positionwith their plugs) Good resistance to oil and chemicals. Use of this connector range in aggressiveenvironments must be tested in each case. Electrical data Max. current load 4 A Nominal voltage 30 V AC / 36 V DC Insulation group C acc. to VDE 0110 Test voltage 1.0 kV AC / 60 s Insulation resistance 10 9 Ω Connection data Number of poles 5pin 5 early-closing Connection type screw-type terminals Cond. cross section max. 0.75 mm 2 Cable gland ∅ 4.0 ... 8.0 mm Order number DNM11-FBP.0 1SAJ 923 005 R0001 male SW.. = 19 mm
DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories 9 FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V6 DNF11-FBP.0 Female connector for round cable Female connector with screwed connection,for cable Temperature range -25°C ... + 90°C Materials Moulded body PA, self-extinguishing Contact CuZn, 2-4 µm CuSnZn Body PA, self-exstinguishing Knurled screw CuZn, nickeled O-ring NBR or FKM Mechanical data Degree of protection IP 67 (only in fully locked positionwith their plugs) Good resistance to oil and chemicals. Use of this connector range in aggressiveenvironments must be tested in each case. Electrical data Max. current load 4 A Nominal voltage 30 V AC / 36 V DC Insulation group C acc. to VDE 0110 Test voltage 1.25 kV AC / 60 s Insulation resistance 10 9 Ω Connection data Number of poles 5 Connection type screw-type terminals Cond. cross section max. 0.75 mm 2 Cable gland ∅ 4.0 ... 8.0 mm Order number DNF11-FBP.0 1SAJ 923 006 R0001 SW.. = 19 mm female
10 DeviceNet, CANopen, Modbus-RTU FieldBusPlug Accessories FieldBusPlugDeviceNet-, CANopen-, Modbus-RTU AccessoriesTechnical Description FieldBusPlug / Issued: 02.2005 V 6 DNR11-FBP.120 Terminating resistor Male plug M 12, 5 poles Temperature range -25°C ... + 90°C Materials Moulded body PA, self-exstinguishing Contact CuZn, pre-nickeled and0.8 µm gold-plated Body TPU, self-exstinguishing Knurled screw CuZn, nickeled Mechanical data Degree of protection IP 67 (only in fully locked positionwith their plugs) Good resistance to oil and chemicals. Use of this connector range in aggressiveenvironments must be tested in each case. Connection data Number of poles 5 Pin assignment Pins 1- 3 = unused Order number ASF11-FBP.0 1SAJ 922 006 R0001 Technical changes reserved Pin 4 Pin 5 120 Ohm male
