OPTOTRONIC® Compact LED drivers

Small indoor drivers with big impact: OPTOTRONIC® ECO, FIT and Intelligent DALI

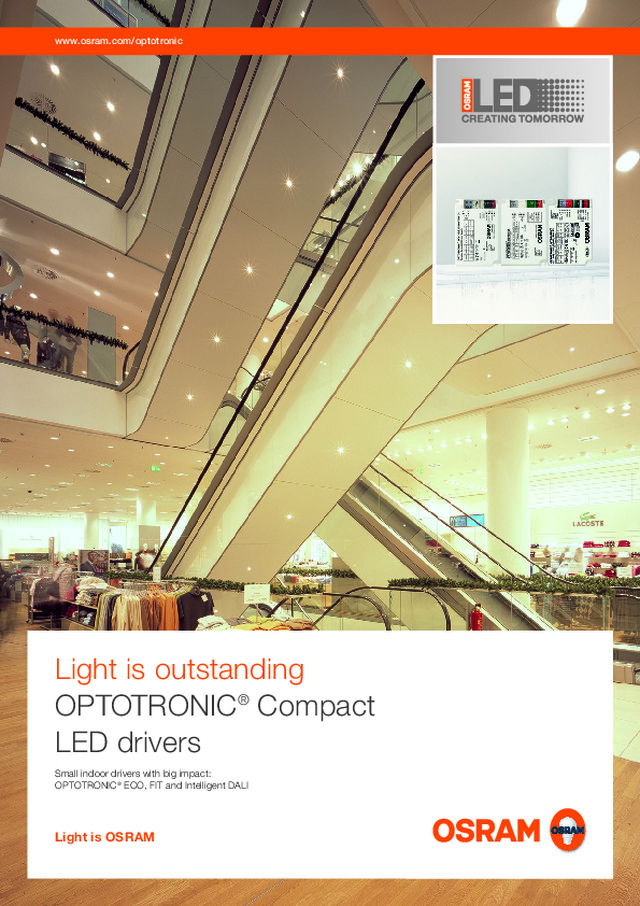

Light is outstanding OPTOTRONIC ® Compact LED drivers Small indoor drivers with big impact: OPTOTRONIC ® ECO, FIT and Intelligent DALI Light is OSRAM www.osram.com/optotronic

Excellent reasons to choose OPTOTRONIC ® drivers With our OPTOTRONIC ® drivers, users beneﬁ t from high-performance products that are characterized by high quality, ﬂ exibility, reliability and efﬁ ciency: 1. Maximum reliability thanks to long experience: Re-use of know-how from well-proven OSRAM ECGs (electronic control gears) such as HALOTRONIC ® , POWERTRONIC ® and QUICKTRONIC ® . 2. High energy efﬁ ciency: Up to 92 % (full load) and further energy saving with proprietary OSRAM light management systems (LMS). 3. Freedom of design: Same driver for built-in and inde- pendent mounting through optional kits, small form fac-tors and similar to ECGs for traditional lamps. 4. Flexibility of application: Suitable for PrevaLED ® modules, CoB (chip-on-board) LEDs and other modules available in the market. 5. Wide product portfolio: Various product families, win- dow drivers, dimmable products and different wattages. Future-proof solutionsUsing OPTOTRONIC ® drivers not only means using durable, high-performance products but also staying ﬂ exible in terms of future application: OPTOTRONIC ® drivers can be perfectly adjusted for their respective tasks and, if required, also be optimized later on by means of top-quality accessories (e.g. cable clamps) from OSRAM. OPTOTRONIC ® Compact | Introduction 2

OPTOTRONIC ® Compact LED drivers OPTOTRONIC ® Compact drivers are the perfect solution for a wide variety of luminaire types and applications. Developed for spotlight and downlight applications, the OPTOTRONIC ® Compact drivers offer you maximum ﬂ exibility in the design of all your LED-based luminaires. Designed for the needs of your customer! Main beneﬁ ts at a glance — Extensive portfolio: The right driver for each application — Compact size for more creative freedom in luminaire design — Housing adapted from well-known and proven traditional ECGs for easy installation into existing luminaires — High level of efﬁ ciency, reliability and safety — Fully programmable and digital platform – see OPTOTRONIC ® Intelligent DALI on pages 12 ff. OPTOTRONIC ® Compact | Introduction 3 Application areas — Ofﬁ ces, e.g. reception areas and boardrooms — Restaurants — Public buildings, e.g. airports, cinemas, theaters, exhibition halls, schools and gyms — High-end shops — Retail outlets, e.g. supermarkets, bakeries, butcher shops and shops for leather goods Where can OPTOTRONIC ® Compact drivers be used? Pendant luminaires (round) Spotlights Wall and ceiling luminaires (round) Downlights Home and decorative lighting

OPTOTRONIC ® Compact | Introduction 4 OPTOTRONIC ® ECO Very compact and cost-efﬁ cient drivers for multiple applications OPTOTRONIC ® FIT High reliability and innovative features for your solutions OPTOTRONIC ® Intelligent DALI Maximum performance and ﬂ exibility OTi DALI OT FIT OTe Our OPTOTRONIC ® Compact portfolio OSRAM is proud to present: Three product families that meet all your requirements

OPTOTRONIC ® Compact | Introduction 5 CABLE CLAMP D-Style CABLE CLAMP B-Style Ceiling installation with cable clamps OPTOTRONIC ® Compact indoor drivers from OSRAM can easily be retroﬁ tted with dedicated cable clamps, if required. This way, in case an independent installation is required, there is no need to buy a completely new driver – just a small accessory. Simply order the suitable cable clamp from OSRAM. OPTOTRONIC ® Compact driver portfolio Fixed output: OPTOTRONIC ® ECO Fixed output: OPTOTRONIC ® FIT Dimmable (DALI): OPTOTRONIC ® Intelligent Dimming Comfort dimming AM+PWM Lowest dimming level 1 % DALI DT6 Touch DIM ® Corridor function DC operation Emergency lighting Fixed DC level Adjustable DC level (by software) Output current Adjustable (CS) (CS) Via resistor Current tolerances [%] ≤ 5 10 ≤ 5 Function and performances Overtemperature protection Hot plug-in CLO Stand-by losses [W] 0.5 Input voltage range [V] 220–240 220–240 220–240 Lifetime [h] 50000 100000 100000 T a range [°C] -20…+50 -25…+50 -20…+50 Suitable for luminaire class I + II I + II I + II According to IEC 61347-2-3 Operating at 10 °C lower than max. T c , maximum failure rate of 10 % AM = Amplitude Modulation PWM = Pulse Width Modulation DT6 = DALI Device Type 6 CS = Current Setting CLO = Constant Lumen Output

OPTOTRONIC ® Compact | Introduction 6

OPTOTRONIC ® Compact | Introduction 7 Nomenclature and marking (example) OTe 35 220-240 700 CS S Other included devices/functionalitiesS: Luminaire integrationFAN: 12 V auxiliary output for active cooling (fan) Control (current)CS: Current settingLT2: LEDset2 Output current (max.)350: 350 mA420: 420 mA500: 500 mA700: 700 mA1A0: 1000 mA1A4: 1400 mA Supply voltage220-240: 220-240 V Power (out) 15: 15 W25: 25 W35: 35 W50: 50 W Product family and dimmingOTe: OPTOTRONIC ® ECO OT FIT: OPTOTRONIC ® FIT OTi DALI: OPTOTRONIC ® Intelligent DALI GuaranteeOSRAM is committed to the high quality of its products. Therefore, OSRAM offers a guarantee for dedicated OPTOTRONIC ® drivers, replacing drivers that fail during the guarantee period. The following guarantee periods apply to the OPTOTRONIC ® Compact drivers: OPTOTRONIC ® ECO 3 years OPTOTRONIC ® FIT 5 years OPTOTRONIC ® Intelligent DALI 5 years All details on relevant guarantees and the general requirements can be found at: www.osram.com/guarantee Guarantee and product identiﬁ cation Applicable guarantee periods and OSRAM nomenclature/marking 5 Year OSRAM Guarantee 3 Year OSRAM Guarantee Annual operating time of no more than 4 000 hours per year, not exceeding max. allowed T c temperature Annual operating time of no more than 5 000 hours per year, not exceeding max. allowed T c temperature For detailed power values, please see product data sheet (www.osram.com)

Product features — Three selectable output currents (CS = current setting) — Suitable for class I and class II luminaires — Lifetime of up to 50 000 hours and high ambient temperature of up to +50/55 °C — Several housing designs for different applications (track lighting, downlights and spotlights) with form factor derived from conventional ECGs — More than 10 different selectable currents for overdriving/underdriving of LEDs Thanks to additional cable clamps, most OTe drivers can be used for built-in as well as independent installation. OPTOTRONIC ® Compact | OTe 8 OPTOTRONIC ® ECO Very compact and cost-efﬁ cient drivers for multiple applications OPTOTRONIC ® ECO driver (OTe 50/220-240/1A0 CS) Housing (B) OPTOTRONIC ® ECO driver (OTe 25/220-240/420 CS) Housing (C) OPTOTRONIC ® ECO driver (OTe 35/220-240/700 CS S) Housing (A) CABLE CLAMP B-Style CABLE CLAMP D-Style Technical data Product reference I out (mA) V out P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTe 50/220-240/1A0 CS FAN 700/900/1050 27-54 22-56 ≥ 88 -20…50 95/85 35k/50k 5 SELV 35 OTe 50/220-240/1A0 CS 800/925/1050 27-54 22-56 ≥ 87 -20…50 85/75 35k/50k 5 SELV 30 OTe 50/220-240/1A4 CS 1150/1250/1400 18-36 21-50 ≥ 87 -20…50 80/70 35k/50k 5 SELV 30 OTe 35/220-240/700 CS S 500/600/700 27-54 13-37 ≥ 87 -20…50 80/70 35k/50k 5 SELV 40 OTe 35/220-240/1A0 CS S 800/925/1050 17-34 14-36 ≥ 87 -20…50 80/70 35k/50k 5 SELV 40 OTe 35/220-240/700 CS 500/600/700 27-54 13-37 ≥ 87 -20…55 75/65 35k/50k 5 SELV 40 OTe 35/220-240/1A0 CS 800/925/1050 17-34 14-36 ≥ 87 -20…55 80/70 35k/50k 5 SELV 40 OTe 25/220-240/420 CS 290/350/420 27-54 8-23 ≥ 85 -20…50 75/65 35k/50k 5 SELV 30 OTe 25/220-240/700 CS 500/600/700 18-36 9-25 ≥ 85 -20…50 80/70 35k/50k 5 SELV 30 OTe Product reference Product number LxWxH (mm) Cable clamp kit Product number Cable clamp kit Packaging (pcs) PrevaLED ® match OTe 50/220-240/1A0 CS FAN 4052899919396 103x67x29.5 (B) OT CABLE CLAMP B-STYLE 4052899077898 20 OTe 50/220-240/1A0 CS 4052899917576 103x67x29.5 (B) OT CABLE CLAMP B-STYLE 4052899077898 20 OTe 50/220-240/1A4 CS 4052899917583 103x67x29.5 (B) OT CABLE CLAMP B-STYLE 4052899077898 20 OTe 35/220-240/700 CS S 4052899917552 110x43x29.5 (A) Built-in installation only – – OTe 35/220-240/1A0 CS S 4052899917651 110x43x29.5 (A) Built-in installation only – – OTe 35/220-240/700 CS 4052899917569 103x67x29.5 (B) OT CABLE CLAMP B-STYLE 4052899077898 20 OTe 35/220-240/1A0 CS 4052899917668 103x67x29.5 (B) OT CABLE CLAMP B-STYLE 4052899077898 20 OTe 25/220-240/420 CS 4052899917538 97x43x29.5 (C) OT CABLE CLAMP D-STYLE 4052899077911 20 OTe 25/220-240/700 CS 4052899917545 97x43x29.5 (C) OT CABLE CLAMP D-STYLE 4052899077911 20 Operating at 10 °C lower than max. T c , maximum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 % Two cable clamps D-Style needed per OTe

Multiple current settingEach OPTOTRONIC ® ECO driver offers three selectable currents. Multiple current setting has two main advantages: It reduces the number of different product versions in the warehouse and steps between currents are kept small (starting from 60 mA), avoiding any need for LED drivers with intermediate currents. Features of the current setting — CS (current setting) of OTe offers the easiest way to choose the output current without the need for acces-sories (resistor, wire etc.) and to avoid typical mistakes when using dip switches — Current setting is provided at the output side, isolated from the mains and at a low safety voltage below 60 V Freedom of LED current setting — Each product offers at least one or two typical currents used in the market — More than 10 different currents are available up to 1.4 A — Two voltage ranges with partial overlapping (18–36 V/27–54 Vor 17–34 V/27–54 V) provide high ﬂ exibility, ensuring that the right driver is used for existing and coming CoB tech-nologies as well as single LED chains OPTOTRONIC ® Compact | OTe 9 Example: OTe 50/220-240/1A0 CS FAN: Voltage: 27–54 VCurrent: 700/900/1050 mA 700 1050 1400 Current [mA] 350 OPTOTRONIC ® ECO operating range OTe 25 Voltage [V] 0 10 40 25 OTe 25/220-240/420 CS OTe 25/220-240/700 CS 700 1050 1400 Current [mA] 350 OPTOTRONIC ® ECO operating range OTe 35 Voltage [V] 0 10 40 25 OTe 35/220-240/700 CS S OTe 35/220-240/1A0 CS S OTe 35/220-240/700 CS OTe 35/220-240/1A0 CS 700 1050 1400 Current [mA] 350 OPTOTRONIC ® ECO operating range OTe 50 Voltage [V] 0 10 40 25 OTe 50/220-240/1A0 CS FAN OTe 50/220-240/1A0 CS OTe 50/220-240/1A4 CS For detailed data, please see product data sheet (www.osram.com) For detailed data, please see product data sheet (www.osram.com) For detailed data, please see product data sheet (www.osram.com)

OPTOTRONIC ® Compact | OT FIT 10 OPTOTRONIC ® FIT High reliability and innovative features for your solutions Technical data Product reference I out (mA) V out P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OT FIT 35/220-240/700 CS 550/600/700 27-54 15-37.5 ≥ 87 -20…50 75/65 50k/100k 10 SELV 5 OT FIT 25/220-240/500 CS 400/450/500 27-54 11-27 ≥ 85 -20…50 75/65 50k/100k 10 SELV 5 OT FIT 15/220-240/350 CS 250/300/350 27-54 7-19 ≥ 83 -20…50 75/65 50k/100k 10 SELV 5 Product features — Three selectable output currents (CS = current setting) — Suitable for class I and class II luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50 °C — Improved protection of LED modules thanks to hot plug-in function — Low ripple of output current for a higher quality of light — Suitable for emergency lighting systems with central battery according to IEC 61347-2-3 Thanks to additional cable clamps, each OT FIT driver can be used for built-in as well as independent installation. OPTOTRONIC ® FIT (OT FIT) driver CABLE CLAMP B-Style OT FIT EL Product reference Product number LxWxH (mm) Cable clamp kit Product number Cable clamp kit Packaging (pcs) PrevaLED ® match OT FIT 35/220-240/700 CS 4052899919402 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899077898 20 OT FIT 25/220-240/500 CS 4052899919419 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899077898 20 OT FIT 15/220-240/350 CS 4052899919426 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899077898 20 Operating at 10 °C lower than max. T c , maximum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 %

OPTOTRONIC ® Compact | OT FIT 11 700 1050 1400 Current [mA] 350 OPTOTRONIC ® FIT operating range Voltage [V] 0 10 40 25 OT FIT 35/220-240/700 CS OT FIT 25/220-240/500 CS OT FIT 15/220-240/350 CS Example: OT FIT 35/220-240/700 CS: Voltage: 27–54 VCurrent: 550/600/700 mA Multiple current settingEach OPTOTRONIC ® FIT driver offers three selectable currents. Multiple current setting has two main advantages: It reduces the number of different product versions in the warehouse and steps between currents are kept small (starting from 50 mA), avoiding any need for LED drivers with intermediate currents. Features of the current setting — CS (current setting) of OT FIT offers the easiest way to choose the output current and to avoid typical mistakes when using dip switches — Each product offers at least one or two typical currents used in the market and, by default, the highest standard current is provided For detailed data, please see product data sheet (www.osram.com)

Thanks to additional cable clamps, each OTi DALI driver can be used for built-in as well as independent installation. EL DALI DALI DALI DALI CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID OPTOTRONIC ® Compact | OTi DALI 12 Product features — Window driver with adjustable output current via resistor, DALI or self-setting in combination with LEDset2 — Suitable for class I and class II luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50 °C — Improved protection of LED modules thanks to hot plug-in function with automatic switch-on of light — Stepless and color-consistent dimming with DALI (from 100 % to 1 %, hybrid dimming) — Programmable features: CLO (constant lumen output), corridor function, Touch DIM ® (Sensor), emergency lighting — Suitable for emergency lighting systems with central battery according to IEC 61347-2-3 OPTOTRONIC ® Intelligent DALI Maximum performance and ﬂ exibility Technical data Product reference I out (mA) V out P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation Ripple at 100 Hz (%) OTi DALI 50/220-240/1A4 LT2 FAN 600-1400 15-54 22-55 92 -20…50 75/65 50k/100k 5 SELV 2 OTi DALI 35/220-240/1A0 LT2 450-1050 15-54 15-35 87 -20…50 75/65 50k/100k 5 SELV 2 OTi DALI 25/220-240/700 LT2 250-700 12-54 10-27 86 -20…50 75/65 50k/100k 5 SELV 2 OPTOTRONIC ® Intelligent (OTi) DALI driver CABLE CLAMP A-Style OTi DALI CABLE CLAMP B-Style Product reference Product number LxWxH (mm) Cable clamp kit Product number Cable clamp kit Packaging (pcs) PrevaLED ® match OTi DALI 50/220-240/1A4 LT2 FAN 4052899919433 110x75x25.5 OT CABLE CLAMP A-STYLE 4052899089587 20 OTi DALI 35/220-240/1A0 LT2 4052899919440 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899077898 20 OTi DALI 25/220-240/700 LT2 4052899919457 103x67x29.5 OT CABLE CLAMP B-STYLE 4052899077898 20 Operating at 10 °C lower than max. T c , maxi- mum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 %

OPTOTRONIC ® Compact | OTi DALI 13 700 1050 1400 Current [mA] 350 OPTOTRONIC ® Intelligent operating range Voltage [V] 0 10 40 25 OTi DALI 50/220-240/1A4 LT2 FAN OTi DALI 35/220-240/1A0 LT2 OTi DALI 25/220-240/700 LT2 Example: OTi DALI 50/220-240/1A4 LT2 FAN: Voltage: 15–54 VCurrent: 600–1400 mA Individual DALI programmingOTi DALI Compact drivers offer wide operating windows and thus ensure a high degree of ﬂ exibility. Therefore, LED gener-ation upgrades can be easily managed, allowing for future-proof solutions, and the number of different product versions in the warehouse can be reduced. Adjustment of the current is possible in three different ways: — Programming by OSRAM software — Use of a simple resistor — Automatic recognition via the LEDset2 interface when connected to PrevaLED ® or other LED modules Various operating windows are optimized for different general lighting applications and target lumen packages. Please ﬁ nd out more about the programming feature on page 14. For detailed data, please see product data sheet (www.osram.com)

EL CLO CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID OPTOTRONIC ® Compact | OTi DALI 14 New ﬂ exibility thanks to programmable DALI LED driversThe DALI LED drivers of the second generation (DALI GII)allow for full digital programming via the DALI magic hard-ware and a speciﬁ c free OEM software: — OPTOTRONIC ® tool (for OEMs): Output current and constant lumen output — No need for an external resistor to set the current in case of digital programming — Settings can be locked to prevent unauthorized changes — DALI Wizard 2.1 software: All DALI settings plus the GII features (corridor function, Touch DIM ® conﬁ guration, “Fit for emergency”, monitoring etc.) For download of DALI Wizard 2.1, please go to: www.osram.com/software Fit for SMART GRIDThe DALI GII drivers can monitor the power consumption, the lamp operating hours (resettable) and the operating tem-perature of the driver. Additional advantage: “Fit for SMART GRID” can also provide better analysis of the lighting, thus ensuring safe operation of the system. Touch DIM ® function The Touch DIM ® function offers simple and cost-effective dimming of up to 20 drivers via commercially available switches or sensors. This allows free parameterization of the light value and the switch-on time via DALI Wizard 2.1 and DALI magic. Advantage: Dimming is cost-effective be-cause of the small number of components and can easily be implemented. In addition to the dimming effect, the Touch DIM ® (Sensor) function can automatically switch off the LED modules at a sufﬁ cient lighting level. This is controlled via light or presence detection and leads to a further increase of the energy savings. Corridor functionThe corridor function provides direct connection to commer-cially available motion sensors. A pre-installed program runs “out of the box” in the device. It can be individually adjusted via DALI magic and DALI Wizard 2.1. Three dimming levels and the associated overrun times can be adjusted individually as required. Advantage: Simple and energy-efﬁ cient lighting in application areas such as stairwells, corridors and parking blocks. Fit for emergency (according to IEC 61347-2-3)The driver can automatically switch to the emergency lighting mode. Alongside the system failure level (fractionation of the control line), used in accordance with the DALI standard, there is an optional automatic detection of the DC supply that sets a luminous ﬂ ux between 0 and 100 %.This variably adjustable luminous ﬂ ux value is protected from inadvertent overwriting by a locking bit. The operating range is 176–276 V with 0 Hz DC (pulsating). In DC mode, the thermal manage-ment can be disabled, i.e. the full power of lamps/LED mod-ules is available in case of an emergency. The DC mode also has higher priority than the system failure level. The setting can be carried out either via DALI Wizard 2.1 and DALI magic or within the Building Management System (BMS). The emergency mode can be switched on and off. If it is switched on, the AC mode will automatically be reimplemented without any additional device. CLO (constant lumen output)The CLO functionality is an essential part of OSRAM DALI LED drivers. Activating this function provides stable lighting conditions over the entire lifetime of LED modules. Year by year, the lumen output of LED modules decreases due to the loss of phosphoric components. In order to balance this out, the CLO function increases the output current smoothly over the entire lifetime of the modules – it typically starts with 85 % of the LED power. This not only ensures stable lighting but also saves energy and increases the lifetime of the LEDs. OPTOTRONIC ® Intelligent DALI Special OTi features go way beyond the normal DALI standard OTi DALI

LEDset 2nd Generation licensing programWith the experience gained from the LEDset technology and as a reaction to the growing demand of OEMs to introduce a standardized multi-vendor electrical interface for SSL sys-tems, OSRAM now presents an enhanced version of LEDset with plenty of new features: LEDset 2nd Generation. A smart electrical interface between the LED driver and the LED modules is the missing link essential to the maturity of the SSL components business. With the new licensing pro-gram for the LEDset 2nd Generation standardized electrical interface for SSL systems, OSRAM offers a technology that closes this link and fully matches the requirements: — Cost-efﬁ cient — Reliable — Easy and ready to use LEDset 2nd Generation is an analog 3-wire interface, includ-ing LED supply, allowing basic communication between an LED driver and one or more LED modules. The interface supports the following main functions: — Output current setting of constant-current drivers to sin-gle LED modules as well as to series/parallel-connected LED modules — Best matching of driver and modules working point (e.g. lm/W) — Self-conﬁ guration according to system structure, auto-matic tracking of technology development (future-proof) — Easy mode of operation (plug & play) — Additional monitoring and protection features (e.g. ther-mal protection of the LED modules) — Added value for OEMs: reliable TCO proposition, reduced structural costs Several OSRAM LED modules, e.g. PrevaLED ® Cube and PrevaLED ® Core Z3, support the LEDset 2nd Generation and therefore offer huge advantages in system combinations (see next page). Hybrid (comfort) dimming technologyOPTOTRONIC ® Intelligent DALI LED drivers are dimmable from 100 % to 1 %. In order to achieve optimum dimming, e.g. by ensuring that it is not visible and by avoiding strobo-scopic effects, OSRAM combines two dimming methods: amplitude modulation and pulse width modulation (PWM). From 100 % to 25 %, the drivers are dimmed by amplitude modulation. This is done by the adjustment of the current amplitude: the amplitude is decreased to dim the lighting down. The dimming levels between 1 % and 25 % are con-trolled by pulse width modulation (PWM). This combination offers the best way to ensure a smooth, non-ﬂ icker dimming behavior. OPTOTRONIC ® Compact | OTi DALI 15 25 100 PWM 1 Luminous ﬂ ux [%] Amplitude modulation Hybrid dimming Output current [%] 0 50 Integral current value (PWM with ~ 500 Hz) For detailed data, please see product data sheet (www.osram.com)

OPTOTRONIC ® Compact | System solutions 16 System solutions with OSRAM OPTOTRONIC ® drivers and LED modules OSRAM always offers you the perfect match of light source and driver Optimum lighting does not only depend on the performance of the single components but also on the clever combination of these components to create a unique system solution. By combining OPTOTRONIC ® Compact drivers with PrevaLED ® modules from OSRAM, you can rest assured that you have found the perfect match for your lighting solution. OSRAM OPTOTRONIC ® drivers in combination with OSRAM LED modules offer you unique added value: — Perfect system match, tested by OSRAM — Simpliﬁ ed claim management thanks to just one provider for your system solution — LEDset2 functionality with PrevaLED ® Core Z3 and PrevaLED ® Cube (see page 15) For further details regarding driver and module compatibility, please contact your local OSRAM sales representative. PrevaLED ® Coin PrevaLED ® Core PrevaLED ® Cube

OPTOTRONIC ® Compact | System solutions 17 Driver compatibility – PrevaLED ® Coin Drivers Modules PL COIN 50 700 lm PL COIN 50 900 lm PL COIN 50 1100 lm PL COIN 111 1200 lm PL COIN 111 1800 lm PL COIN 111 2700 lm OTe 25/420 CS OTe 25/700 CS OTe 35/700 CS OTe 50/1A0 CS OTe 50/1A0 CS FAN OT FIT 15/350 CS OT FIT 35/700 CS OTi DALI 25/700 LT2 OTi DALI 35/1A0 LT2 OTi DALI 50/1A4 LT2 FAN Driver compatibility – PrevaLED ® Cube Drivers Modules PL-CUBE-1100-830-0.35A-G1 PL-CUBE-1100-840-0.35A-G1 PL-CUBE-2000-830-0.5A-G1 PL-CUBE-2000-840-0.5A-G1 PL-CUBE-3000-830-0.7A-G1 PL-CUBE-3000-840-0.7A-G1 OTe 25/420 CS OTe 35/700 CS OT FIT 15/350 CS OT FIT 25/500 CS OT FIT 35/700 CS OTi DALI 25/700 LT2 OTi DALI 35/1A0 LT2 Driver compatibility – PrevaLED ® Core Drivers Modules PL-CORE-1100-830 PL-CORE-1100-840 PL-CORE-2000-830 PL-CORE-2000-840 PL-CORE-2000-930 PL-CORE-3000-830 PL-CORE-3000-840 PL-CORE-3000-930 PL-CORE-5000-830 PL-CORE-5000-840 PL-CORE-5000-930 OTe 25/420 CS OTe 35/700 CS OTe 50/1A0 CS OTe 50/1A0 CS FAN OT FIT 15/350 CS OT FIT 25/500 CS OT FIT 35/700 CS OTi DALI 25/700 LT2 OTi DALI 35/1A0 LT2 OTi DALI 50/1A4 LT2 FAN

OPTOTRONIC ® Compact | System solutions 18 System solutions with OSRAM OPTOTRONIC ® drivers and light management systems (LMS) For higher levels of efﬁ ciency, ﬂ exibility and customization Combining OSRAM OPTOTRONIC ® LED drivers and light management systems (LMS) allows you to create unique lighting solutions that offer plenty of beneﬁ ts to your custom-ers. Your ﬂ exibility during projects is increased tremendously as the LMS provide a simple way to address OTi DALI LED drivers for easy dimming and setting of the desired lighting level. And the best thing about it: You also save huge amounts of energy. With LMS from OSRAM, you will always ﬁ nd the ideal solution – for various applications, luminaires and customer demands. OPTOTRONIC ® and Touch DIM ® The Touch DIM ® functionality, integrated in all OTi DALI LED drivers, is as easy as it gets. Just use your existing pushbuttons to dim your light up and down, store one scene and use sensors for additional convenience. With the new Touch DIM ® version, you can control up to 20 OTi DALI LED drivers simultaneously without any hassle. Touch DIM ® LS LI and LS/PD LI (sensors)

OPTOTRONIC ® Compact | System solutions 19 OPTOTRONIC ® and DALIeco ® When used together with OTi DALI LED drivers, DALIeco ® offers the most simple way to achieve high energy savings in combination with ﬂ exible control. Via two DALI lines and with an intuitive remote control, you can control up to 32 OTi DALI LED drivers and six sensors or pushbutton couplers – ideal for ofﬁ ces, classrooms and meeting rooms. OPTOTRONIC ® and EASY Color Control This intuitive system has been developed particularly for the control and integration of all common control signals (DALI, 1...10 V and DMX). Controlling one room (e.g. a meeting room) by just one device, combined with OTi DALI, OT FIT or OTe LED drivers in a single system, has never been that easy. OPTOTRONIC ® and DALI Professional The combination of OPTOTRONIC ® LED drivers and DALI Professional is the perfect choice for anyone looking for maximum ﬂ exibility in the control of multiple luminaires, groups or scenes. Via 4 DALI lines and with one controller, you can directly address and control up to 256 OTi DALI LED drivers in 4 x 16 groups and up to 50 sensors or pushbutton couplers. Via the DALI switch, OTe and OT FIT LED drivers can also be controlled. Dedicated to ﬂ oors, open-plan ofﬁ ces or industrial areas, DALI Professional offers you a wide selection of sensors, user interfaces and software, making it ideal for larger DALI-controlled areas. DALIeco ® Control DALI PRO CONT-4 (controller) DALI PRO Touch Panel LS/PD MULTI3 (sensor) Master Remote EASY Touch Panel
