Optimum solutions, in particular for the functional buildings sector – high detection quality and special comfort functions.
ABB, the market leader in the sector for electrica l installation technology, has developed a new generation of 5 KNX presence and movement detectors, especially for functional buildings.
ABB, the market leader in the sector for electrica l installation technology, has developed a new generation of 5 KNX presence and movement detectors, especially for functional buildings.
- Busch-presence detector KNX
- Busch-presence detector Premium KNX
- Busch-presence detector Mini KNX
- Busch-presence detector Mini Premium KNX
- Busch-watchdog Sky KNX
All the models have an excellent detection quality and an enormous range, despite being extremely flat – the installation depth for flush-mounting on the ceiling is merely 16 or 23 mm depending on the type. Not only the technology is innovative, but also the design. Due to their quadratic shape with rounded corners, the new models have an unobtrusive elegant appearance and resemble a lamp rather than a classical movement and presence detector.
Presence and movement detectors make a valuable contribution towards more comfort and energy efficiency, as they switch the light on or off as required, for example, when entering or leaving the room again.
The types, Mini Premium KNX and Premium KNX offer four channels altogether and are additionally equipped with a temperature sensor. In this way they are not only able to be used as presence or movement detectors, but also as indoor thermostats.
As a particular comfort function, it is possible with both Premium types for the light to be switched off in two stages.
Similar to the Busch-presence detector KNX (length 91 mm and surface mounting height 23 mm), the particularly compact Busch-presence detector, Mini KNX, with a length of
only 80 mm and a surface mounting height of merely 16 mm has two channels, as a movement detector or constant light switch (presence detector). These two models differ mainly with respect to their detection range. When mounted at a height of three metres the presence detector, Mini KNX, covers a maximum diameter of
8 metres, and the presence detector, KNX, a maximum diameter of 12 metres.
The Busch-watchdog Sky KNX version was developed for installations at airports, in sports facilities and warehouses, and designed particularly for high buildings. When mounted at a height of 6 metres, this model is in the position to detect persons who are moving
within a detection ranged of 18 metres, and at a height of 12 metres even within a diameter of 24 metres.
With the new product line, ABB is presenting an innovative range of models for high-performance KNX presence and movement detectors that offers perfect solutions for almost every field of application, particularly in functional buildings.

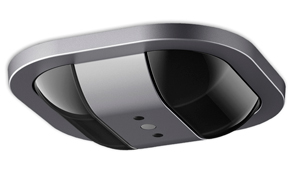

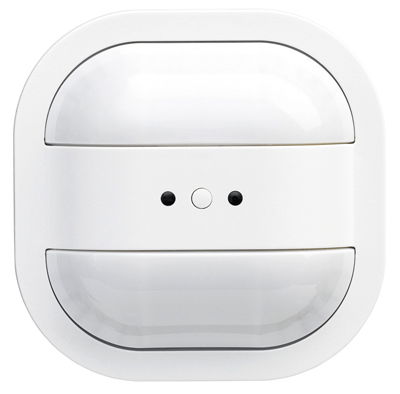

Due to their quadratic shape with rounded corners the design of ABB’s new presence detectors have an unobtrusive, elegant appearance

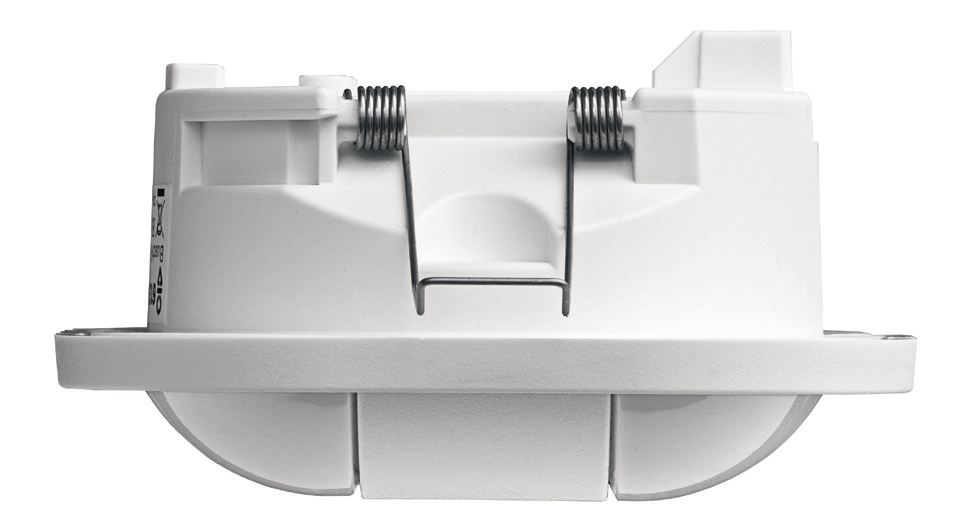

The new generation of presence detectors is outstanding due to its extremely flat shape – particularly where concealed, flush installation is required. For surface- mounting special housings are available
Product advantages
- State-of-the-art detection quality
- Five different models for different fields of installation
- Unobtrusive, elegant design and very small height of the surface-mounting
- Simple installation and start-up
- Can be installed as presence and as movement detectors
- Premium models with temperature sensor also function as indoor thermostats
- Operation start-up is also possible using infrared remote control
- Special comfort function switches light off in two stages
