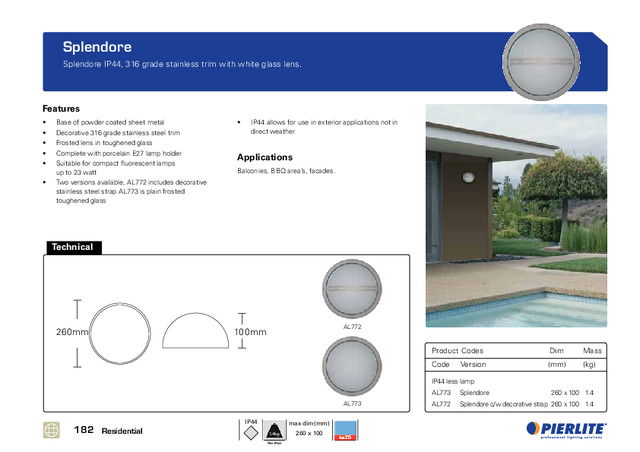

Technical 182 Residential max dim(mm) • IP44 allows for use in exterior applications not in direct weather Applications Balconies, BBQ area’s, facades. Product Codes Dim Mass Code Version (mm) (kg) Splendore IP44, 316 grade stainless trim with white glass lens. Splendore Features • Base of powder coated sheet metal • Decorative 316 grade stainless steel trim • Frosted lens in toughened glass • Complete with porcelain E27 lamp holder • Suitable for compact fluorescent lamps up to 23 watt • Two versions available, AL772 includes decorative stainless steel strap AL773 is plain frosted toughened glass IP44 less lampAL773 Splendore 260 x 100 1.4 AL772 Splendore c/w decorative strap 260 x 100 1.4 IP44 1.4kg 260 x 100 260 100 100mm AL772 AL773 260mm 101

Technical 183 Residential max dim(mm) Stanza glass ceiling light with acid white glass and chrome clips. Stanza Features • Decorative toughened glass diffuser in acid white finish • Three chrome clips support the diffuser and allow for easy removal • Metal base powder coated white for increased performance • Low profile of only 76mm ceramic E27 lamp holder Stanza suitable for max 11 watt CFL/I lamps Product Codes Dim Mass Code Version (mm) (kg) CF602 Max 11W CFL-I less lamp 300 x 76 1.7 IP20 1.7kg 300 x 76 Applications Residential, units, stairwells, foyers, modern homes, kitchens, dining rooms, living areas, bed rooms. Areas with low ceiling heights. Glass Diameter 310mm Base Diameter: 300mm Base Height: 20mm 310 90 300mm 76mm Diffuser Diameter: 300mm Base Height: 20mm 102

Technical 184 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) High quality T8 circular luminaire, suitable for interior use. BCS Circular Features • Durable polycarbonate opal diffuser • Twist lock attachment for easy lamp change • Durable metal base • Two wattages for a wide range of uses, including 22 watt and 32 watt T8 circular fluorescent. • Energy efficient Low Loss ballast assisting in BCA compliance • Includes colour 840 lamp BCS2001 22W Circular luminaire 290 x 96 0.41BCS3101 32W Circular luminaire 395 x 86 0.41 IP20 0.4kg 395 x 86 Applications Aged care, residential, units, stairwells, bed rooms, living rooms, kitchens, nursing homes, hallways. Glass Diameter 400mm Base Diameter: 245mm Base Height: 24mm 86mm 395mm Glass Diameter 400mm Base Diameter: 245mm Base Height: 24mm 86mm 395mm 290mm BCS2001 395mm BCS3101 96mm 86mm 103

Technical 185 Residential max dim(mm) Slim line T8 circular luminaire, IP54, suitable for both indoor and outdoor applications. BCW Weatherproof Features • Durable polycarbonate opal diffuser • Twist lock attachment for easy lamp change • Durable metal base • Two wattages for a wide range of uses, including 22 watt and 32 watt T8 circular fluorescent. • Energy efficient Low Loss ballast assisting in BCA compliance • Includes colour 840 lamp Product Codes Dim Mass Code Version (mm) (kg) BCW2102 22W Circular T8 290 x 96 0.41 BCW3201 32W circular T8 395 x 109 0.41 IP54 0.4kg 395 x 109 Applications Balconies, BBQ area’s, walkways, decks, lobbies, carports, nursing homes, aged care facilities, hallways. Glass Diameter 400mm Base Diameter: 245mm Base Height: 24mm 86mm 395mm Glass Diameter 400mm Base Diameter: 245mm Base Height: 24mm 86mm 395mm 109mm 96mm 395mm BCW3201 BCW2102 290mm 104

Technical 186 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) With its simple yet stylish appearance, this economy interior or exterior bulkhead blends unobtrusively into almost any environment. TR31 Features • Completely smooth and clean white exterior for ease of maintenance • TR31 is the appropriate solution where aesthetics and functionality are the main considerations • Body and diffuser made of high impact UV stabilised opal polycarbonate • Diffuser securely snap locks onto body to provide a well sealed fit preventing the ingress of contaminants • Provision for cable entry through opening in rear of body • BC lamp holder for a 23 watt CFL-I lamp version TR31 BC Lamp-holder 23W CFL-I less lamp 250 x 103 0.8 TR329 2 x 9W TC-L9W-840 250 x 103 1.4 TR322 22W T8 Circ c/w lamp 250 x 103 1.5 TR322NM 22W T8 Circ c/w lamp Non Maintained 250 x 103 1.5 IP43 1.5kg 250 x 103 • Polycarbonate construction affords a high degree of impact and vandal resistance Applications Designed for interior and exterior use out of direct weather effected areas such as stairwells, change rooms, apartment buildings, amenity facilities, hotels, clubs as well as under eaves and awnings. 250mm 103mm 105

187 Residential

Technical 188 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) Comprehensive range of IP65 Oysters utilising the latest energy efficient lamp and gear technology. Polo Features • Available in two sizes, small 350mm diameter and large 430mm diameter • Made from PMMA plastic with metal gear tray • Opal diffuser increasing lamp obscuration • Small version up to 1 x 22 watt T5 circular and large up to 40 watt T5 circular • Three captive clips allowing for positive diffuser attachment, while allowing for easy lamp access PLS122T5E4 22WT5 EL Circ 840 350 x 130 1.55 PLL140T5E4 40W T5 EL Circ 840 430 x 150 1.95 IP65 1.95kg 430 x 150 • White powder coated gear tray optimises luminaire efficiency • Utilises energy efficient electronic control gear Applications Aged care facilities, nursing homes, residential and commercial. Integral control gear Secure IP65 clips 106

189 Residential

Technical 190 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) The TKB Series is an architectural wall wash range offering the designer a variety of options. TKB Series Features • Body of zinc steel powder coated silver • Reflector of matt aluminium for low glare performance • Asymmetric reflector for even illumination • Internal frosted glass diffuser • Spring metal clips for easy installation • Easy lamp replacement • Variety of sizes and wattages Square w/washer less lamp and gearTKB35 50W LV 90 x 90 x 90 ( 80 x 80) 0.6 Rectangular w/washer less lamp and gearTKB49 50W LV 80 x 236 x 90 (70 x 220) 3.0 TKB50 150W DE TH 180 x 260 x 90 (170 x 230) 4.0 TKB55 18W PLC 230 x 160 x 90 (195 x 130) 4.0 TKB54 26W PLC 250 x 230 x 90 (215 x 200) 4.0 IP20 4.0kg 250 x 230 x 90 Applications Boardrooms, lobbies, office, foyers, reception areas and hotels. TKB35 TKB49 TKB50 TKB55 TKB54 107

Technical 191 Residential max dim(mm) Product Codes Dim Code Version (mm) Esterno IP44 die-cast aluminium wall lights suitable for exterior walls. Esterno Features • Die cast aluminium housing • Powder coated black ceramic E27 lamp holder • Two versions for a variety of applications • Suitable for exterior applications • CFL lamps up to 23 watt AL140 Up to 23W CFL less lamp 260 x 215 x 115 AL150 Up to 23W CFL less lamp 190 x 135 x 110 IP44 0.8kg 260 x 215 x 115 Applications Balconies, porches, suitable for exterior locations. 215mm 135mm 260mm 190mm AL150 AL140 108

Technical 192 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) A stylish architectural die-cast aluminium bulkhead available in a variety of shapes and colours. Stelle Bulkhead Features • Die cast aluminium body • Powder coated for increased protection • Available in white and black finish • Frosted toughened glass lens • Complete with porcelain E27 lamp holder • Available in Round or Oval shape • Choice of decorative eyelid or cage for a range of applications • Suitable for CFL/I lamps. WhiteAL236SW Open cage oval 210 x 110 x 90 0.90AL232SW Eyelid oval 210 x 110 x 95 0.90 AL301SW Open cage round 180 x 180 x 90 0.90AL306SW Eyelid round 180 x 180 x 95 0.90 BlackAL236SB Open cage oval 210 x 110 x 90 0.90AL232SB Eyelid oval 210 x 110 x 95 0.90 AL301SB Open cage round 180 x 180 x 90 0.90 AL306SB Eyelid round 180 x 180 x 95 0.90 IP44 0.9kg 210 x 110 x 95 Applications Balconies, porches, facades, decks, walkways. 180 100 180 180 95 180 210 90 110 210 95 110 90 109

193 Residential Stelle AL232SB Stelle AL236SB Stelle AL306SB Stelle AL301SB 193 Residential

Technical 194 Residential max dim(mm) Product Codes Dim Code Version (mm) Recessed low voltage downlights supplied with Energy Saving 35 watt IRC lamp, Guardian heat cover and dimmable transformer. Pierlite ELV Downlight Features • Pressure die-cast aluminium body available in white (fixed and gimble) and satin chrome (gimble) • Secure twist lock lamp retaining assembly • Complete with dimmable electronic transformer • Supplied with 5000hr 35 watt IRC 60 degree lamp • Versions available in both hard wired & flex & plug • Completely assembled for ease of installation Fixed - Cutout 70mm c/w lamp gear and heat canFLGW35/E White 80 x 80 FLGW35FP/E White c/w F&P 80 x 80 Gimble - Cut Out 92mm c/w lamp gear and heat canGLGW35/E White 105 x 80 GLGW35FP/E White c/w F&P 105 x 80 GLGCS35/E Satin Chrome 105 x 80 GLGCS35FP/E Satin Chrome c/w F&P 105 x 80 IP20 0.3kg 105 x 80 • Guardian heat cover allows for 25mm clearance from insulation and combustible material at an ambient temperature of up to 70° C • 500mm LH leads included Applications Residential, retail, commercial. Ambient Temp Min Space Note20°C to 70°C 25mm not to be installed in wooden ceiling above ambient of 40°C 70°C and above 50mm Not to be installed in wooden ceiling 110

195 Residential

Technical 196 Residential max dim(mm) Product Codes Dim Code Version (mm) Ambient Temp Space Note 20°C to 70°C 25mm not to be installed in wooden ceiling above ambient of 40°C 70°C and above 50mm Not to be installed in wooden ceiling Recessed low voltage downlights supplied with pre-wired 50W FNV lamp, heat cover and dimmable transformer. Luxalite ELV Downlight Features • Pressure die-cast aluminium body available in white (fixed and gimble) and satin chrome (gimble) • Secure twist lock lamp retaining assembly • Available in fixed and gimble • Complete with dimmable electronic transformer • Supplied with 3000hr 50 watt 60 degree lamp • Versions available in both hard wired & flex & plug • Completely assembled for ease of installation Fixed - Cut out 70mm c/w lamp gear and heat canLLFGW50/E White 80 x 85 LLFGW50FP/E White c/w F&P 80 x 85 Gimble - Cut Out 92mm c/w lamp gear and heat canLLGW50/E White 105 x 85 LLGW50FP/E White c/w F&P 105 x 85 LLGCS50/E Satin Chrome 105 x 85 LLGCS50FP/E Satin Chrome c/w F&P 105 x 85 IP20 0.3kg 105 x 85 • Heat cover allows for 25mm clearance from insulation and combustible material • 500mm LH leads included Applications Residential, retail, commercial. 111

Technical 197 Residential max dim(mm) Product Codes Dim Code Version (mm) The Elite range offers high quality, low voltage downlights. Elite Features • Constructed from die cast aluminium and high tensile steel spring retention clips • Easy to install luminaire simple lamp change with a twist lock lamp replacement feature on the fixed and adjustable version • The adjustable and rotatable versions allow the body to be removed from the separate mounting ring • Available in white or brushed chrome 75mm cutout, Round Fixed - low voltageELT16CFW MR16 50W 12V White 85 x 23 ELT16CFBC MR16 50 12V B/Chrome 85 x 23 86 mm cutout, Round Adjustable - low voltage ELT16CAW MR16 50w 12V White 94 x 40 ELT16CABC MR16 50w 12V B/Chrome 94 x 40 90mm cutout, Round adjustable - low voltageELT16CTRW MR16 50W 12V White 103 x 40 ELT16CTRBC MR16 50W 12V B/Chrome 103 x 40Note - Supplied less lamp, lamp holder and transformer IP20 0.3kg 103 x 40 Applications Apartments, foyers, retail stores and shopping centres. ELT adjustable ELT fixed ELT adjustable and rotatable 112

Technical 198 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) A compact lightweight halogen flood made of die-cast aluminium in powder coated black finish. Apollo Features • Shovel faced floodlight • Die cast aluminium body • Aluminium alloy reflector • Toughened safety glass • Adjustable head • Quality porcelain lamp holder • Supplied with 240v 500 watt T.H lamp A500 500W halogen flood c/w lamp 310 x 165 x 60 0.60 IP23 0.6kg 310 x 165 x 60 • Suitable for indoor and protected exterior applications Applications Gardens, BBQ Area’s, outdoor pools. 310 165 170 60 Base (wall mount) dimensions: Length to head: 145mm Diameter: 70mm Base (wall mount) Dimensions Length to Head: 310mm Diameter: 18mm 113

Technical 199 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) New modern design suitable for indoor or outdoor mounting under eaves or on walls in protected areas. Force Flood Eco Features • Ceramic E27 lamp holder • Complete with 120 watt PAR38 lamp or 23 watt energy efficient PAR38 CFL (Force Flood Eco) • Base suitable for 66mm round junction box • Force Flood Eco complete with 23 watt CFL PAR38 lamp • 6000 hours rated average life (23 watt CFL PAR23) c/w lampFFP120 120W PAR38 180 x 105 0.56 FFP120SFP 120W PAR38 c/w stand, F&P 170 x 165 x 220 0.56FFP23 23W PAR38 CFL-I 180 x 105 0.56 IP44 0.56kg 180 x 105 • Energy consumption reduced by 80% compared to 120 watt PAR38 equivalent Applications BBQ Area’s, Pools, Garden Area’s. 100 Head dimensions (no lamp): 120(l)mm x 65(w)mm Base diameter: 65 mm 0 8 1 180mm 105mm 115mm Head dimensions (no lamp): 115(l)mm x65(w)mm Base Diameter: 65mmm 220 165 170 Base Width: 100mm Head Width: 62mm 170mm 165mm 220mm Base Width: 100mm Head Width: 62mmm FFP120 / FFP23 FFP120SFP 114

Technical 200 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) Securipar a compact and flexible security light which can be mounted on walls and under eaves. Securipar Features • PAR 38 twin floodlight • UV stabilised flame retardant black plastic body • Two weatherproof lamp holders with high temperature silicon rubber gasket • PIR detector, controls for both time and day light sensitivity • Detection zone 12m with a radius of 110° • Ceramic lamp holders c/w PIR IP44 less lampQHF560 E27 lamp holder 105 x 115 0.39 IP44 0.39kg 105 x 115 • Lamp holders rotate 160° and pivot through 250° • Supplied less lamps Applications Residential, security and passageways. 105mm 18mm 11 5mm 97mm 105mm Head Dimensions (no lamp) 97mm x 55mm Sensor Dimensions: 18mm 115

Technical 201 Residential max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) The Minilux is a stylish luminaire ideal for restricted spaces, such as cupboards and walk in wardrobes. Minilux Features • Lamps 8 watt T5, 13 watt T5 • One piece injection moulded white polycarbonate body and gear cover complete with lamp holder end caps • Snap on internally frosted polycarbonate diffuser • Gear cover retained by two Philips head self-cutting screws for positive fixing Hard WiredMLC108 c/w 8W T5 322 x 45 x 72 0.70 MLC113 c/w 13W T5 547 x 45 x 72 0.80 SwitchMLC108SW c/w 8W T5 322 x 45 x 72 0.70 MLC113SW c/w 13W T5 547 x 45 x 72 0.80 MLC108SWF&P c/w 8W T5, F&P 322 x 45 x 72 0.80MLC113SWF&P c/w 13W T5, F&P 547 x 45 x 72 0.90 IP20 0.9kg 547 x 45 x 72 • 20mm cable entry through the rear of the body • Large 6mm² (two way) terminal block Applications Cupboards, Walk in robe’s, kitchen benches. 550 60 37 547mm 13 watt 8 watt 322mm 45mm 72mm 72mm 45mm 116

Technical 202 Residential max dim(mm) Product CodesCode Version Weather resistant bulkhead for a range of applications. Julux Features • Tough single piece polycarbonate body • 16mm knock out cable entry • Gasket is easily replaceable • Single piece, clear prismatic polycarbonate lens or translucent opal lens • Both diffusers have smooth exteriors for easy maintenance Clear Prismatic DiffuserJL100 ES Lamp holder Max 23W CFL-I less lamp JL109 1 x TC-L9W/840 c/w lamp JL209 2 x TC-L9W/840 c/w lamp JL113 1 x TC-D13W/840 c/w lamp JL118 1 x TC-D18W/840 c/w lamp JL126 1 x TC-D26W/840 c/w lamp Translucent Opal DiffuserJLT100 ES Lamp holder Max 23W CFL-I less lamp JLT109 1 x TC-L9W/840 c/w lamp JLT209 2 x TC-L9W/840 c/w lamp JLT126 1 x TC-D26W/840 c/w lamp IP20 1.2kg 246 x 125 x 111 • Supplied standard with high temperature porcelain ES lamp holder • Fluorescent models fully wired Applications Stairwells, walkways, general security, commercial, industrial, domestic lighting, under eaves and awnings. 246mm 125mm 111mm 117

Technical 203 Residential max dim(mm) 203 Residential
