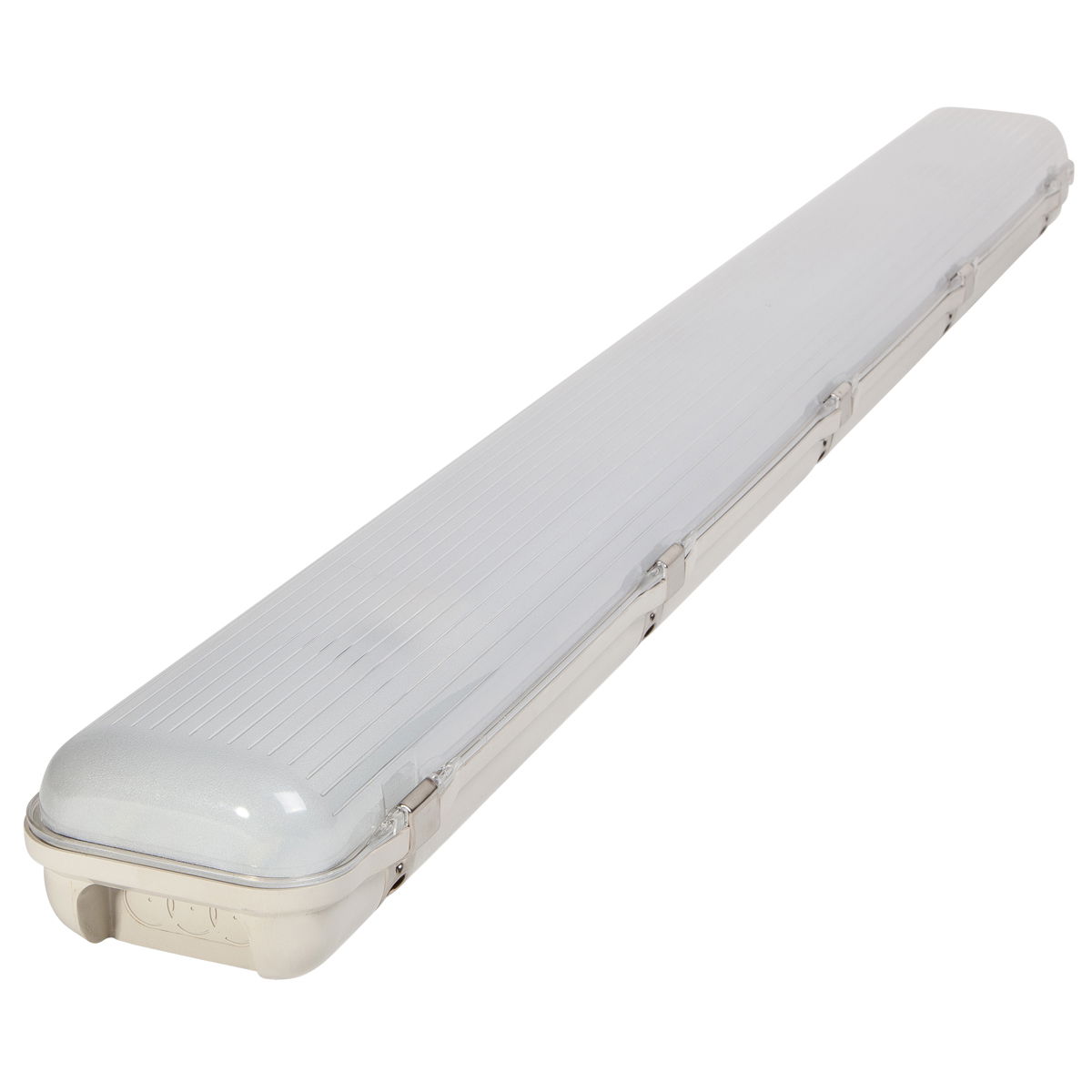

The new IP65 Batten LED Weatherproof has been designed with high lumen output for superior emergency classification.
The polycarbonate diffuser has been shaped to conceal the individual LED lamps which results in an aesthetically pleasing finish similar to traditional product. The complete range includes AC, stand alone and monitored emergency versions – all with motion detect options. The IP65 Batten LED Weatherproof fits within the Stanilite s-Range portfolio and comes complete with 3 year warranty.
AC/EM Unit:
- 3 year warranty
- 4,500 Lumens on mains AC operation, 350 Lumens in emergency operation
- Weatherproof rating IP65
- IK08 impact rating
- Ceiling, wall mount or suspension mounting (wall mount requires 45 degree mounting brackets)
- High wall mount classification using wall mount brackets
- Long LED life 50,000 hours
- Colour temperature 4,000k
- High colour rendering index CRI >80
- Mains terminal block accepts up to 2.5mm2 cable and has provision for looping
- High temperature NiCad battery for longer life
- Cable entry at either end of base
- External mounting clips for ease of installation
- Stainless steel diffuser clips
- High efficiency frosted polycarbonate diffuser
- Standard or Nexus® monitored, either cabled or wireless
Motion Detect Option:
- Microwave Motion Detect sensor with settings for delay time, detection range and light value function
- Luminaire is not switched on if there is adequate ambient illumination in the area sensed
-
Maximum installation height 5m with variable range (0.5 - 5.0m)
Download the techincal datasheet of model SBLW45L from here and model SBLWLX45L from here
