Published: 22 August 2014
Category: Manufacturer News

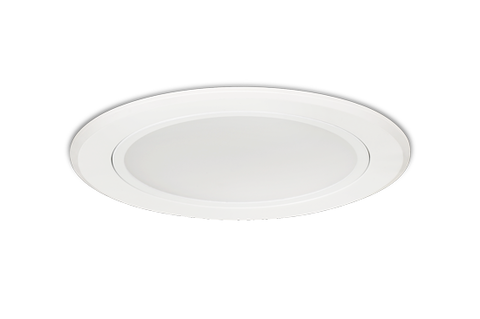

The Essential LED downlight is the latest offering in the Philips 90mm downlight portfolio. Offering energy savings of up to 75%, long lifetime and dimmability, this simple retrofit solution is perfect for both residential and commercial applications. With a low profile, and flush finish, the product is easy to install, and will look subtle in the ceiling space.
Product Features
- Fit the application - 3000K/ 4000K CCT, CRI80, high consistency
- White Rim - Fused with white ceiling
- Bright - 800 lm
- Saving - Only 12W power consumption, vs 50W halogen
- Longer lasting - 25k hours lifetime vs 3k hours of halogen
- Integrated LED Driver – No need for a remote transformer
- 90mm cutout - Easily replace your halogen spotlight
- Plug and Play - Prewired with 1.5m flex and 3-pin plug
- High compatibility - Can work with selected leading/trailing edge dimmers
Product Specifications
| Family Name: | Essential Downlight LED |
| Model | DN105B |
Lumen/ Watt | 800lm/ 12W |
| Lamp Colour | 3000K, 4000K |
| Colour Rendering Index | (CRI) 80 |
| Flex and Plug | Yes |
| Lifetime | (L70@25°C) 25,000 hrs |
| Unified Glare Ratio (UGR): | n/a |
| Optics | 100D |
| Driver | Integrated driver |
| Dimmable | Selected Universal, Trailing/ Leading edge dimmers. Please refer to www.philips.com.au for dimming details. |
| Installation | Recessed |
| IP rating | IP20 |
| Colour of housing | White |
| Application | Residential, Retail, Hospitality, Commercial |
| Customer Code | Philips Part Number | Description |
| DN105B12W3KDIM | 911401589111 | DN105B 1xDLED/830 WH 100D |
| DN105B12W4KDIM | 911401589211 | DN105B 1xDLED/840 WH 100D |
