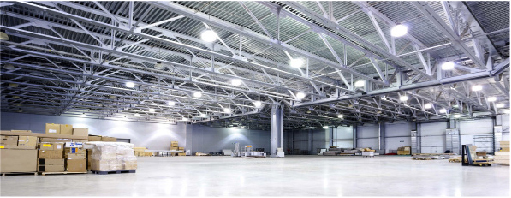

New to EYE Lighting’s high bay/low bay line-up is the Koa range, a professional LED series suited for warehouses, industrial buildings and many other indoor applications.
Featuring an IP66 rating and made from pre-treated and powder coated cast aluminium, the luminaire is also suitable for outdoor installations.

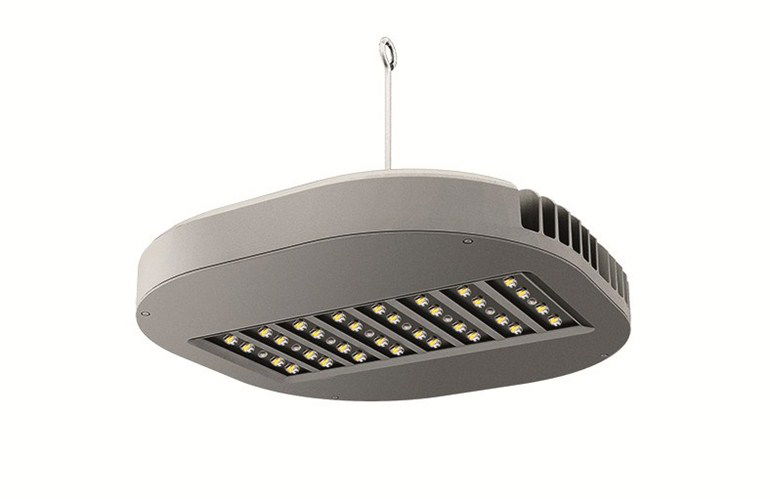

The range is comprised of the Koa Maxi (high bay) and Koa Mini (low bay). While the Koa Maxi is designed to deliver maximum lumen output for efficient operation, the Koa Mini is more compact and delivers an appropriate balance between performance and overall dimensions.
Both versions are available with two different optic types: a symmetrical extra wide beam or an elliptical beam distribution to suit the application requirement.
Typical Specifications
- Wattage range - 70W to 270W
- Real lumen output – 6,953 to 29,111
- Colour temperature – 4,000K (other available on request)
- Electrical connection - quick connect IP66 plug
- 1-10V dimming as standard
- Diffuser – high transparency polycarbonate lens for best light transmission
- Body – pre-treated and powder coated cast aluminium
- Fixings – stainless steel screws
Useful Accessories
Both the Koa Maxi and Koa Mini have a range of accessories to aid performance and extend usage ability. They include:
Flat Glass – the protective flat glass lens is ideal where polycarbonate is unsuitable such as outdoor installations or industrial environments where dirt, grit corrosive chemicals are prevalent.
Double hook suspension – a particularly useful accessory when using the elongated elliptical optics where the direction of light output is important.
Bell diffuser – available for focused task lighting and acts as a sideways glare shield.
For more details on the Koa Maxi and Koa Mini, talk to your local EYE Lighting representative.
