ABB NextMove e100 real-time Ethernet motion controller

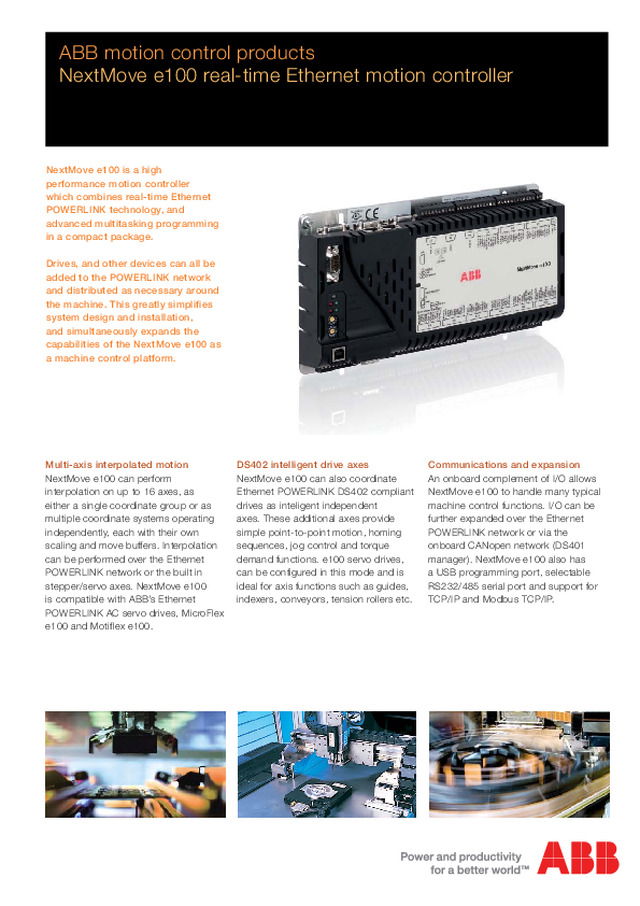

ABB motion control products NextMove e100 real-time Ethernet motion controller Multi-axis interpolated motion NextMove e100 can perform  interpolation on up to 16 axes, as  either a single coordinate group or as  multiple coordinate systems operating  independently, each with their own  scaling and move buffers. Interpolation  can be performed over the Ethernet  POWERLINK network or the built in  stepper/servo axes. NextMove e100  is compatible with ABB’s Ethernet  POWERLINK AC servo drives, MicroFlex  e100 and Motiflex e100.  DS402 intelligent drive axes  NextMove e100 can also coordinate  Ethernet POWERLINK DS402 compliant  drives as inteligent independent  axes. These additional axes provide  simple point-to-point motion, homing  sequences, jog control and torque  demand functions. e100 servo drives,  can be configured in this mode and is  ideal for axis functions such as guides,  indexers, conveyors, tension rollers etc.  Communications and expansion An onboard complement of I/O allows  NextMove e100 to handle many typical  machine control functions. I/O can be  further expanded over the Ethernet  POWERLINK network or via the  onboard CANopen network (DS401  manager). NextMove e100 also has  a USB programming port, selectable  RS232/485 serial port and support for  TCP/IP and Modbus TCP/IP.  NextMove e100 is a high  performance motion controller  which combines real-time Ethernet  POWERLINK technology, and  advanced multitasking programming  in a compact package. Drives, and other devices can all be  added to the POWERLINK network  and distributed as necessary around  the machine. This greatly simplifies  system design and installation,  and simultaneously expands the  capabilities of the NextMove e100 as  a machine control platform.

3AUA0000116020 REV A EN 16.2.2012 #16137 CANopen port - simple expansion   − CANopen network manager   − System I/O expansion   − Communicate with HMI panels   − Peer to peer communications Anolog axes - encoder inputs   − 3 x incremental encoder inputs   − 3 x analog outputs  ± 10 V 12-bit   − Or use the encoders and analog  signals for application purposes  separately  USB and serial - communications   − USB for configuration    − Customer PC application interfaces  (supported by free ActiveX  components)    − RS485 serial for PLC, HMI or other  device communications. Modbus RTU  support Steppers - auxiliary axes   − 4 x stepper drive interfaces   − Differential or open collector interfaces  available (factory order)   − A range of stepper motors with  integrated drives are available   − Linear stepper motors also available Ethernet - POWERLINK and TCP/IP   − Network manager or controlled node (CN)   − Integrated 2 port hub - ease of connection    − Real-time Ethernet performance   − Modbus TCP/IP and TCP/IP modes of  operation (non real-time) with ActiveX support  or RAW Ethernet I/O - digital/analog     − 20 x digital inputs (4 fast inputs 1µS latency,  ideal for registration functions)   − 12 x digital outputs   − 1 x relay output   − 2 x analog inputs  ± 10 V 12-bit   − 1 x auxiliary analog output  ± 10 V 12-bit  MotiFlex e100 and MicroFlex e100 The e100 drive family have integrated  Ethernet POWERLINK and provide rotary  and linear servo motor control with  support for many feedback types such  as EnDat 2.2, incremental and SinCos  encoders as standard. MotiFlex e100  operates from 180 to 528 V AC three- phase and offers DC bus energy sharing  and expansion options including fieldbus  systems. MicroFlex e100 operates from  single phase 105 to 250 V AC. PC tool offers simple and intuitive  commissioning Mint Workbench PC tool offers fast  and simple setup, commissioning and  monitoring in a single software tool. In  addition to a step by step configuration  wizard, oscilloscope graphing, parameter  view/edit/compare it also includes  motion programming, integrated help  and a support tool to package a single  concise email to streamline technical  support when you need it. Powerful machine control ABB’s e100 motion control solutions  provide all the benefits of an Ethernet  based technology combined with  traditional analog, stepper and  distributed drives and I/O devices to  control an array of different applications.  Applications include over-wrappers,  vertical form fill seal, tray sealers and  markets such as metal forming, material  handling and more.  For more information please contact  your local ABB representative or visit:  www.abbmotion.com www.abb.com/drives www.abb.com/drivespartners © Copyright 2012 ABB. All rights reserved.  Specifications subject to change without notice.
