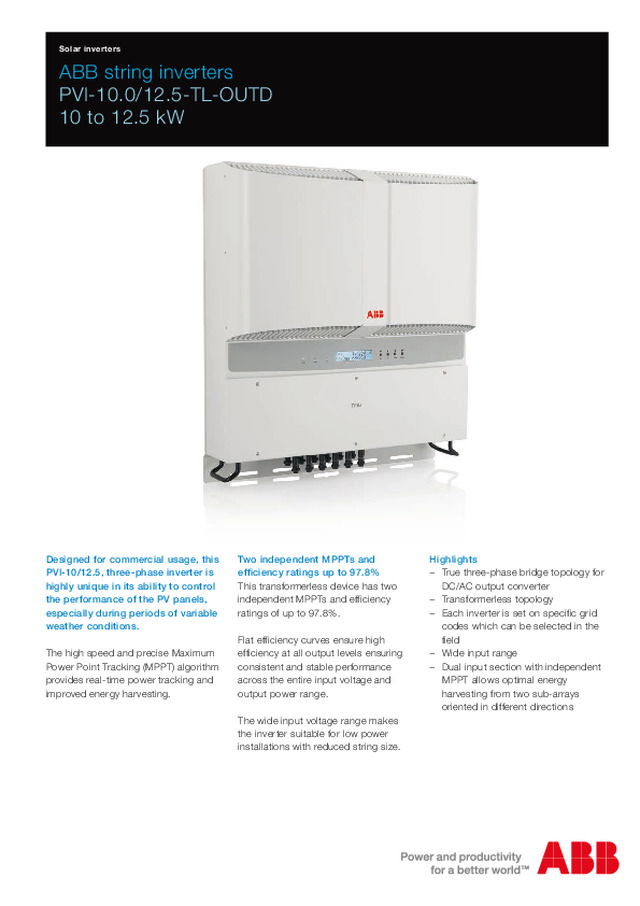

ABB PVI-10.0/12.5-TL-OUTD 10 to 12.5 kW

Solar inverters  ABB string inverters PVI-10.0/12.5-TL-OUTD 10 to 12.5 kW Designed for commercial usage, this PVI-10/12.5, three-phase inverter is highly unique in its ability to control the performance of the PV panels, especially during periods of variable weather conditions.  The high speed and precise Maximum Power Point Tracking (MPPT) algorithm provides real-time power tracking and improved energy harvesting. Two independent MPPTs and efficiency ratings up to 97.8%  This transformerless device has two independent MPPTs and efficiency ratings of up to 97.8%.  Flat efficiency curves ensure high efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range. The wide input voltage range makes the inverter suitable for low power installations with reduced string size.  Highlights   − True three-phase bridge topology for  DC/AC output converter   − Transformerless topology   − Each inverter is set on specific grid  codes which can be selected in the field   − Wide input range   − Dual input section with independent  MPPT allows optimal energy harvesting from two sub-arrays oriented in different directions

2  ABB solar inverters | Product flyer for PVI-10.0/12.5-TL-OUTD Additional highlights   − ‘Electrolyte-free’ power converter to  further increase the life expectancy and long term reliability   − Integrated DC disconnect switch  in compliance with international standards (-S and -FS versions)   − Natural convection cooling for  maximum reliability   − Outdoor enclosure for unrestricted  use under any environmental conditions   − RS-485 communication interface (for  connection to laptop or datalogger) Technical data and types Type code PVI-10.0-TL-OUTD PVI-12.5-TL-OUTD Input side Absolute maximum DC input voltage (V max,abs ) 900 V Start-up DC input voltage (V start ) 360 V  (adj. 250...500 V) Operating DC input voltage range (V dcmin ...V dcmax ) 0.7 x V start ...850 V Rated DC input voltage (V dcr ) 580 V Rated DC input power (P dcr ) 10300 W 12800 W Number of independent MPPT  2 Maximum DC input power for each MPPT (P MPPTmax ) 6500 W 8000 W DC input voltage range with parallel configuration of  MPPT at P acr 300...750 V 360...750 V DC power limitation with parallel configuration of MPPT Linear derating from max to null [750V ≤V MPPT ≤850V] DC power limitation for each MPPT with independent  configuration of MPPT at P acr  , max unbalance example 6500 W  [380V ≤V MPPT ≤750V]   the other channel: P dcr -6500W   [225V ≤V MPPT ≤750V]  8000 W  [445V ≤V MPPT ≤750V]   the other channel: P dcr -8000W   [270V ≤V MPPT ≤750V]  Maximum DC input current (I dcmax ) / for each MPPT  (I MPPTmax ) 34.0 A / 17.0 A 36.0 A / 18.0 A Maximum input short circuit current for each MPPT 22.0 A Number of DC inputs pairs for each MPPT 2 (-S version) 3 (Standard or -FS version) DC connection type  Tool Free PV connector WM / MC4  Input protection Reverse polarity protection  Inverter protection only, from limited current source, for standard and -S versions,  and for -FS version when max 2 strings are connected Input over voltage protection for each MPPT - varistor 2 Photovoltaic array isolation control According to local standard DC switch rating for each MPPT (version with DC switch)  25 A / 1000 V  Fuse rating (versions with fuses ) 12 A / 1000 V Output side AC grid connection type Three phase 3W or 4W+PE Rated AC power (P acr  @cos φ=1 ) 10000 W 12500 W Maximum AC output power (P acmax  @cos φ=1) 11000 W  (3) 13800 W  (4) Maximum apparent power (S max ) 11500 VA 13800 VA Rated AC grid voltage (V ac,r ) 400 V AC voltage range 320...480 V  (1) Maximum AC output current (I ac,max ) 16.6 A 20.0 A Contributory fault current 19.0 A 22.0 A Rated output frequency (f r ) 50 Hz / 60 Hz Output frequency range (f min ...f max ) 47...53 Hz / 57…63 Hz (2) Nominal power factor and adjustable range 0.995, adj. ± 0.9 with P acr  =10.0 kW,  ± 0.8 with max 11.5 kVA 0.995, adj. ± 0.9 with P acr  =12.5 kW,  ± 0.8 with max 13.8 kVA Total current harmonic distortion 2% AC connection type Screw terminal block, cable gland M40 Output protection Anti-islanding protection According to local standard Maximum AC overcurrent protection 19.0 A 22.0 A Output overvoltage protection - varistor 3 plus gas arrester Operating performance Maximum efficiency ( η max ) 97.8% Weighted efficiency (EURO/CEC) 97.1% / - 97.2% / - Feed in power threshold 30.0 W Stand-by consumption 10.0  W

IN1 + - MPPT 1 (DC/DC) IN2 + - MPPT 2 (DC/DC) Bulk caps Inverter (DC/AC) Line filter DC/DC DSP contr. DC/AC DSP contr. µP Control circuit Grid parallel relay L1 L2 L3 N PE IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN1 IN2 + - + - IN2.1(+) IN2.2(+) IN2.1(-) IN2.2(-) Standard version IN1 IN2 + - + - -S version RS485 + T/R - T/R RTN Remote control + R - R Alarm N.CN.OC IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN2.1(+) IN2.2(+) IN2.1(-) IN2.2(-) IN1 IN2 + - + - -FS version IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN1.3(+) IN1.3(-) IN2.1(+) IN2.2(+) IN2.1(-) IN2.2(-) IN2.3(+) IN2.3(-) IN1.3(+) IN1.3(-) IN2.3(+) IN2.3(-) Product flyer for PVI-10.0/12.5-TL-OUTD | ABB solar inverters  3 Block diagram of PVI-10.0/12.5-TL-OUTD Technical data and types Type code PVI-10.0-TL-OUTD PVI-12.5-TL-OUTD Communication Wired local monitoring  PVI-USB-RS232_485 (opt.) Remote monitoring VSN300 Wifi Logger Card (5)  (opt.), PVI-AEC-EVO (opt.), VSN700 Data Logger (opt.) Wireless local monitoring VSN300 Wifi Logger Card (5)  (opt.) User interface 16 characters x 2 lines LCD display Environmental Ambient temperature range -25...+60°C (-13...+140°F)  with derating above 55°C (131°F) -25...+60°C (-13...140°F)  with derating above 50°C (122°F) Relative humidity 0...100% condensing Noise emission 50 dB(A) @ 1 m Maximum operating altitude without derating 2000 m / 6560 ft Physical  Environmental protection rating IP 65 Cooling Natural Dimension (H x W x D) 716mm x 645mm x 224mm / 28.2” x 25.4” x 8.8” Weight  41.0 kg / 90.4 lb Mounting system Wall bracket Safety Isolation level Transformerless Marking CE (50 Hz only) Safety and EMC standard EN62109-1, EN62109-2, AS/NZS3100, AS/NZS 60950, EN61000-6-2,  EN61000-6-3, EN61000-3-11, EN61000-3-12 Grid standard (check your sales channel for availability) CEI 0-21, CEI 0-16, VDE 0126-1-1, VDE-AR-N  4105, G59/3, C10/11, EN 50438  (not for all  national appendices), RD1699, RD 1565, AS  4777, BDEW, ABNT NBR 16149, CLC/FprTS  50549, PEA, MEA CEI 0-21, CEI 0-16, VDE 0126-1-1, VDE-AR-N  4105, G59/3, C10/11, EN 50438  (not for all  national appendices), RD1699, RD 1565, AS  4777, BDEW, ABNT NBR 16149, CLC/FprTS  50549 Available products variants Standard PVI-10.0-TL-OUTD PVI-12.5-TL-OUTD With DC switch PVI-10.0-TL-OUTD-S PVI-12.5-TL-OUTD-S With DC switch and fuse PVI-10.0-TL-OUTD-FS PVI-12.5-TL-OUTD-FS 1. The AC voltage range may vary depending on specific country grid standard 4. Limited to 12500 W for Germany 2. The Frequency range may vary depending on specific country grid standard 5. Check availability before to order 3. Limited to 10000 W for Belgium and Germany Remark. Features not specifically listed in the present data sheet  are not included in the product

90 91 92 93 94 95 96 97 98 99 0% 6% 13% 19% 25% 31% 38% 44% 50% 56% 63% 69% 75% 81% 88% 94% 100% Efficiency [%]  % of rated Output Power 300 Vdc 580 Vdc 750 Vdc Efficiency curves of PVI-10.0-TL-OUTD Efficiency curves of PVI-12.5-TL-OUTD 90 91 92 93 94 95 96 97 98 99 Efficiency [%]  0% 10% 20% 30% 50% 70% 100% % of rated Output Power 80% 90% 60% 40% 360 Vdc 580 Vdc 750 Vdc BCD.00378 EN 14.04.2014 Support and service ABB supports its customers with dedicated, global service organization in more than 60 countries and strong regional and national technical partner networks providing complete range of life cycle services. For more information please contact  your local ABB representative or visit:   www.abb.com/solarinverters www.abb.com © Copyright 2014 ABB. All rights reserved. Specifications subject to change without notice.
