ABB PVI-3.0/3.6/4.2-TL-OUTD 3 to 4.2 kW

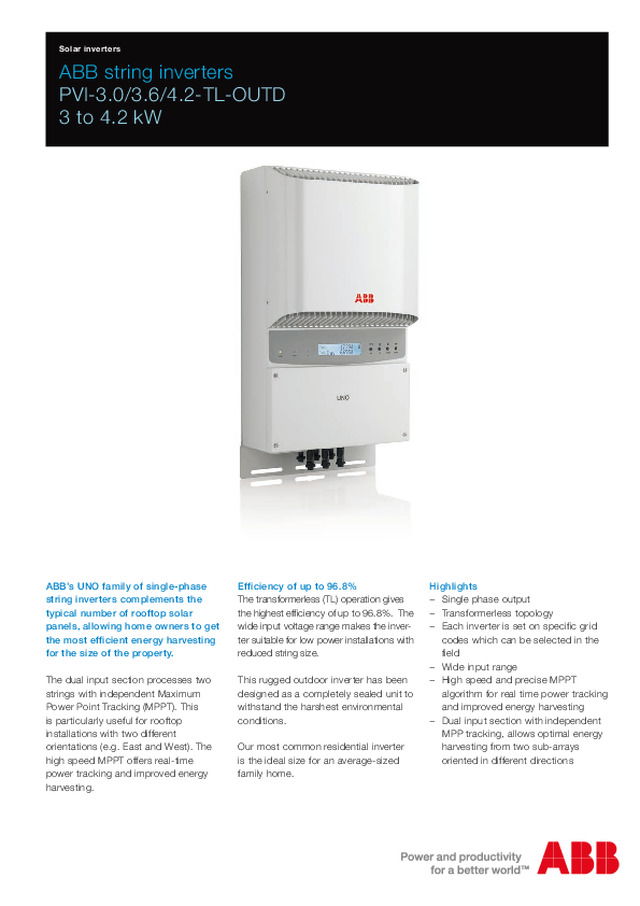

Solar inverters  ABB string inverters PVI-3.0/3.6/4.2-TL-OUTD 3 to 4.2 kW ABB’s UNO family of single-phase string inverters complements the typical number of rooftop solar panels, allowing home owners to get the most efficient energy harvesting for the size of the property.  The dual input section processes two strings with independent Maximum Power Point Tracking (MPPT). This is particularly useful for rooftop installations with two different orientations (e.g. East and West). The high speed MPPT offers real-time power tracking and improved energy harvesting.  Efficiency of up to 96.8%  The transformerless (TL) operation gives the highest efficiency of up to 96.8%.  The wide input voltage range makes the inver-ter suitable for low power installations with reduced string size. This rugged outdoor inverter has been designed as a completely sealed unit to withstand the harshest environmental conditions. Our most common residential inverter is the ideal size for an average-sized family home. Highlights   − Single phase output   − Transformerless topology   − Each inverter is set on specific grid  codes which can be selected in the field   − Wide input range   − High speed and precise MPPT  algorithm for real time power tracking and improved energy harvesting   − Dual input section with independent  MPP tracking, allows optimal energy harvesting from two sub-arrays oriented in different directions

2  ABB solar inverters | Product flyer for PVI-3.0/3.6/4.2-TL-OUTD Additional highlights   − Flat efficiency curves ensure high  efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range   − Integrated DC disconnect switch  in compliance with international standards (-S version)   − Natural convection cooling for  maximum reliability   − Outdoor enclosure for unrestricted  use under any environmental conditions   − RS-485 communication interface (for  connection to laptop or datalogger) Technical data and types Type code PVI-3.0-TL-OUTD PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD Input side Absolute maximum DC input voltage (V max,abs ) 600 V Start-up DC input voltage (V start ) 200 V  (adj. 120...350 V) Operating DC input voltage range (V dcmin ...V dcmax ) 0.7 x V start ...580 V Rated DC input voltage (V dcr ) 360 V Rated DC input power (P dcr ) 3120 W 3750 W 4375 W Number of independent MPPT  2 Maximum DC input power for each MPPT (P MPPTmax ) 2000 W 3000 W 3000 W DC input voltage range with parallel configuration of  MPPT at P acr 160...530 V 120...530 V 140...530 V DC power limitation with parallel configuration of MPPT Linear derating from max to null [530V ≤V MPPT ≤580V] DC power limitation for each MPPT with independent  configuration of MPPT at P acr  , max unbalance example 2000 W  [200V ≤V MPPT ≤530V]    the other channel: P dcr -2000W   [112V ≤V MPPT ≤530V] 3000 W  [190V ≤V MPPT ≤530V]    the other channel: P dcr -3000W  [90V ≤V MPPT ≤530V]  Maximum DC input current (I dcmax ) / for each MPPT  (I MPPTmax ) 20.0 A / 10.0 A 32.0 A / 16.0 A Maximum input short circuit current for each MPPT 12.5 A 20.0 A Number of DC inputs pairs for each MPPT 1 1 2 for MPPT1 and 1 for MPPT2 DC connection type  Tool Free PV connector WM / MC4  Input protection Reverse polarity protection  Yes, from limited current source Input over voltage protection for each MPPT - varistor 2 Photovoltaic array isolation control According to local standard DC switch rating for each MPPT (version with DC switch)  25 A / 600 V Output side AC grid connection type Single phase Rated AC power (P acr  @cos φ=1 ) 3000 W 3600 W 4200 W Maximum AC output power (P acmax  @cos φ=1) 3300 W  (4) 4000 W  (5) 4600 W  (6) Maximum apparent power (S max ) 3330 VA 4000 VA 4670 VA Rated AC grid voltage (V ac,r ) 230 V AC voltage range 180...264 V (1) Maximum AC output current (I ac,max ) 14.5 A 17.2 A  (2) 20.0 A Contributory fault current 16.0 A 19.0 A 22.0 A Rated output frequency (f r ) 50 Hz / 60 Hz Output frequency range (f min ...f max ) 47...53 Hz / 57…63 Hz (3) Nominal power factor and adjustable range 0.995, adj. ± 0.9 with  P acr  =3.0 kW 0.995, adj. ± 0.9 with  P acr  =3.6 kW 0.995, adj. ± 0.9 with  P acr  =4.2 kW Total current harmonic distortion 3.5 %  3.5 %  3.5 %  AC connection type Screw terminal block, cable gland M25 Output protection Anti-islanding protection According to local standard Maximum AC overcurrent protection 16.0 A 19.0 A  22.0 A Output overvoltage protection - varistor 2 (L - N / L - PE)

IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN1 IN2 + - + - IN2.1(+) IN2.1(-) Standard version IN1 IN2 + - + - -S version IN1 + - MPPT 1 (DC/DC) IN2 + - MPPT 2 (DC/DC) Bulk caps Inverter (DC/AC) Line filter Grid parallel relay L N PE Residual current detection DC/DC DSP contr. DC/AC DSP contr. µP Control circuit RS485 + T/R - T/R RTN Remote Control + R - R Alarm N.CN.OC ( )Not available in PVI-3.0-TL-OUTD IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN2.1(+) IN2.1(-) Product flyer for PVI-3.0/3.6/4.2-TL-OUTD | ABB solar inverters  3 Block diagram of PVI-3.0/3.6/4.2-TL-OUTD Technical data and types Type code PVI-3.0-TL-OUTD PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD Operating performance Maximum efficiency ( η max ) 96.8%  Weighted efficiency (EURO/CEC) 96.0% / - Feed in power threshold 10.0 W Stand-by consumption 8.0 W Communication Wired local monitoring  PVI-USB-RS232_485 (opt.) Remote monitoring VSN300 Wifi Logger Card (7)  (opt.), PVI-AEC-EVO (opt.), VSN700 Data Logger (opt.) Wireless local monitoring VSN300 Wifi Logger Card (7)  (opt.) User interface 16 characters x 2 lines LCD display Environmental Ambient temperature range -25...+60°C /-13...140°F with  derating above 50°C/122°F -25...+60°C /-13...140°F with  derating above 55°C/131°F -25...+60°C /-13...140°F with  derating above 50°C/122°F Relative humidity 0...100 % condensing Noise emission 50 dB(A) @ 1 m Maximum operating altitude without derating 2000 m / 6560 ft Physical  Environmental protection rating IP 65 Cooling Natural Dimension (H x W x D) 618mm x 325mm x 222mm / 24.3” x 12.8” x 8.7” Weight  17.5 kg / 38.5 lb Mounting system Wall bracket Safety Isolation level Transformerless Marking CE (50 Hz only) Safety and EMC standard EN62109-1, EN62109-2,  AS/NZS3100, AS/NZS 60950,  EN61000-6-1, EN61000-6-3,  EN61000-3-2, EN61000-3-3 EN62109-1, EN62109-2,  AS/NZS3100, AS/NZS 60950,  EN61000-6-1, EN61000-6-3,  EN61000-3-11, EN61000-3-12 EN62109-1, EN62109-2,  AS/NZS3100, AS/NZS 60950,  EN61000-6-1, EN61000-6-3,  EN61000-3-11, EN61000-3-12 Grid standard (check your sales channel for availability) CEI 0-21, VDE 0126-1-1,  VDE-AR-N 4105, G83/2,  EN 50438  (not for all national  appendices), RD1699,  AS 4777, C10/11, IEC 61727,   ABNT NBR 16149, CLC/FprTS  50549 CEI 0-21, VDE 0126-1-1,  VDE-AR-N 4105, G83/2,  G59/3, EN 50438  (not for all  national appendices), RD1699,  AS 4777, C10/11, IEC 61727,   ABNT NBR 16149, CLC/FprTS  50549, PEA, MEA CEI 0-21, VDE 0126-1-1,  VDE-AR-N 4105,  G59/3,  EN 50438  (not for all national  appendices), RD1699,  AS 4777, C10/11, IEC 61727,   ABNT NBR 16149, CLC/FprTS  50549 Available products variants Standard PVI-3.0-TL-OUTD PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD With DC switch PVI-3.0-TL-OUTD-S PVI-3.6-TL-OUTD-S PVI-4.2-TL-OUTD-S 1. The AC voltage range may vary depending on specific country grid standard 5. Limited to 3600 W for Germany 2.  For UK G83/2 setting, maximum output current limited to 16A up to a maximum output power of 3.68kW. 6. Limited to 4200 W for Germany 3. The Frequency range may vary depending on specific country grid standard 7. Check availability before to order 4. Limited to 3000 W for Germany Remark. Features not specifically listed in the present data sheet  are not included in the product

Efficiency curves of PVI-3.0-TL-OUTD Efficiency curves of PVI-4.2-TL-OUTD 85  86  87  88  89  90  91  92  93  94  95  96  97  98  99  0%  10%  20%  30%  40%  50%  60%  70%  80%  90%  100%  Efficiency [%]  % of rated Output Power 215Vdc  360Vdc  480Vdc  85 87 89 91 93 95 97 99 0% 10% 20% 30% 50% 70% 100% Efficiency [%]  % of rated Output Power 200Vdc  360Vdc  480Vdc  80% 90% 60% 40% BCD.00374 EN 14.04.2014 Support and service ABB supports its customers with dedicated, global service organization in more than 60 countries and strong regional and national technical partner networks providing complete range of life cycle services. For more information please contact  your local ABB representative or visit:   www.abb.com/solarinverters www.abb.com © Copyright 2014 ABB. All rights reserved. Specifications subject to change without notice.
