ABB PVI-5000/6000-TL-OUTD 5 to 6 kW

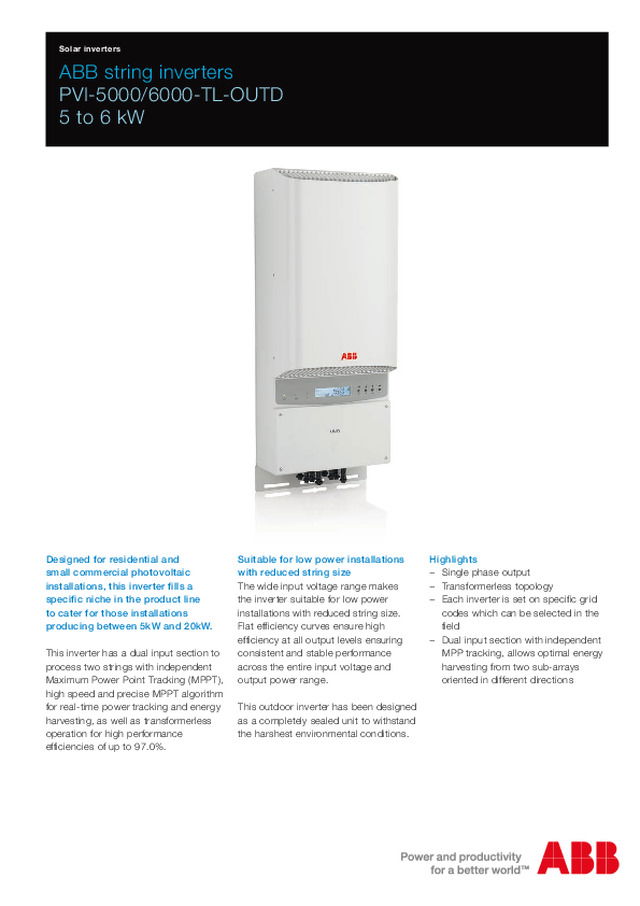

Solar inverters  ABB string inverters PVI-5000/6000-TL-OUTD 5 to 6 kW Designed for residential and small commercial photovoltaic installations, this inverter fills a specific niche in the product line to cater for those installations producing between 5kW and 20kW.  This inverter has a dual input section to process two strings with independent Maximum Power Point Tracking (MPPT), high speed and precise MPPT algorithm for real-time power tracking and energy harvesting, as well as transformerless operation for high performance efficiencies of up to 97.0%.  Suitable for low power installations with reduced string size The wide input voltage range makes the inverter suitable for low power installations with reduced string size.Flat efficiency curves ensure high efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range. This outdoor inverter has been designed as a completely sealed unit to withstand the harshest environmental conditions. Highlights   − Single phase output   − Transformerless topology   − Each inverter is set on specific grid  codes which can be selected in the field   − Dual input section with independent  MPP tracking, allows optimal energy harvesting from two sub-arrays oriented in different directions

2  ABB solar inverters | Product flyer for PVI-5000/6000-TL-OUTD Additional highlights   − Wide input range   − Natural convection cooling for  maximum reliability   − Outdoor enclosure for unrestricted  use under any environmental conditions   − RS-485 communication interface (for  connection to laptop or datalogger) Technical data and types Type code PVI-5000-TL-OUTD PVI-6000-TL-OUTD Input side Absolute maximum DC input voltage (V max,abs ) 600 V Start-up DC input voltage (V start ) 200 V  (adj. 120...350 V) Operating DC input voltage range (V dcmin ...V dcmax )  0.7 x V start ...580 V Rated DC input voltage (V dcr ) 360 V Rated DC input power (P dcr ) 5150 W 6200 W Number of independent MPPT  2 Maximum DC input power for each MPPT (P MPPTmax ) 4000 W DC input voltage range with parallel configuration of  MPPT at P acr 150...530 V 180...530 V DC power limitation with parallel configuration of MPPT Linear derating from max to null [530V ≤V MPPT ≤580V] DC power limitation for each MPPT with independent  configuration of MPPT at P acr  , max unbalance example 4000 W  [220V ≤V MPPT ≤530V]  the other channel: P dcr -4000W   [90V ≤V MPPT ≤530V]  4000 W  [220V ≤V MPPT ≤530V]  the other channel: P dcr -4000W   [120V ≤V MPPT ≤530V]  Maximum DC input current (I dcmax ) / for each MPPT  (I MPPTmax ) 36.0 A / 18.0 A Maximum input short circuit current for each MPPT 22.0 A Number of DC inputs pairs for each MPPT 2 DC connection type  Tool Free PV connector WM / MC4  Input protection Reverse polarity protection  Yes, from limited current source Input over voltage protection for each MPPT - varistor 2 Photovoltaic array isolation control According to local standard DC switch rating for each MPPT (version with DC switch)  25 A / 600 V  Output side AC grid connection type Single phase Rated AC power (P acr  @cos φ=1 ) 5000 W 6000 W Maximum AC output power (P acmax  @cos φ=1) 5000 W 6000 W Maximum apparent power (S max ) 5560 VA 6670 VA Rated AC grid voltage (V ac,r ) 230 V AC voltage range 180...264 V  (1) Maximum AC output current (I ac,max ) 25.0 A 30.0 A Contributory fault current 32.0 A 40.0 A Rated output frequency (f r ) 50 Hz / 60 Hz Output frequency range (f min ...f max ) 47...53 Hz / 57…63 Hz (2) Nominal power factor and adjustable range 0.995, adj. ± 0.9 with P acr  =5.0 kW 0.995, adj. ± 0.9 with P acr  =6.0 kW Total current harmonic distortion 3.5% AC connection type Terminal block, cable glande M32

IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN2.1(+) IN2.2(+) IN2.1(-) IN2.2(-) IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN1 IN2 + - + - IN2.1(+) IN2.2(+) IN2.1(-) IN2.2(-) Standard version IN1 IN2 + - + - -S version IN1 + - MPPT 1 (DC/DC) IN2 + - MPPT 2 (DC/DC) Bulk caps Inverter (DC/AC) Line filter Grid parallel relay L N PE Residual current detection DC/DC DSP contr. DC/AC DSP contr. µP Control circuit RS485 + T/R - T/R RTN Remote control + R - R Alarm N.CN.OC Product flyer for PVI-5000/6000-TL-OUTD | ABB solar inverters  3 Block diagram of PVI-5000/6000-TL-OUTD Technical data and types Type code PVI-5000-TL-OUTD PVI-6000-TL-OUTD Output protection Anti-islanding protection According to local standard Maximum AC overcurrent protection 32.0 A 40.0 A Output overvoltage protection - varistor 2 (L - N / L - PE) Operating performance Maximum efficiency ( η max ) 97.0% Weighted efficiency (EURO/CEC) 96.4% / - Feed in power threshold 10.0 W Stand-by consumption 8.0 W 8.0 W Communication Wired local monitoring  PVI-USB-RS232_485 (opt.) Remote monitoring VSN300 Wifi Logger Card (3)  (opt.), PVI-AEC-EVO (opt.), VSN700 Data Logger (opt.) Wireless local monitoring VSN300 Wifi Logger Card (3)  (opt.) User interface 16 characters x 2 lines LCD display Environmental Ambient temperature range -25...+60°C (-13...+ 140°F)  -25...+60°C (-13...+ 140°F) with derating  above 50°C (122°F) Relative humidity 0...100% condensing Noise emission 50 dB(A) @ 1 m Maximum operating altitude without derating 2000 m / 6560 ft Physical  Environmental protection rating IP 65 Cooling Natural Dimension (H x W x D) 810mm x 325mm x 222mmm / 31.9” x 12.8” x 8.7” Weight  26.0 kg / 57.3 lb  Mounting system Wall bracket Safety Isolation level Transformerless Marking CE (50 Hz only) Safety and EMC standard EN62109-1, EN62109-2, AS/NZS3100, AS/NZS 60950, EN61000-6-1,  EN61000-6-3, EN61000-3-11, EN61000-3-12 Grid standard (check your sales channel for availability) CEI 0-21, VDE 0126-1-1, G59/3, EN 50438   (not for all national appendices), RD1699, AS  4777, C10/11, IEC 61727, ABNT NBR 16149,  CLC/FprTS 50549, PEA, MEA CEI 0-21, VDE 0126-1-1, G59/3, EN 50438   (not for all national appendices), RD1699, AS  4777, C10/11, IEC 61727, ABNT NBR 16149,  CLC/FprTS 50549 Available products variants Standard PVI-5000-TL-OUTD PVI-6000-TL-OUTD With DC switch PVI-5000-TL-OUTD-S PVI-6000-TL-OUTD-S 1. The AC voltage range may vary depending on specific country grid standard 3. Check availability before to order 2. The Frequency range may vary depending on specific country grid standard Remark. Features not specifically listed in the present data sheet  are not included in the product

Efficiency curves of PVI-5000-TL-OUTD Efficiency curves of PVI-6000-TL-OUTD 90  91  92  93  94  95  96  97 98 99  100  0%  10%  20%  30%  40%  50%  60%  70%  80%  90%  100%  Efficiency [%]  % of Rated Output Power  250 Vdc  360 Vdc  480 Vdc  90  91 92  93  94  95 96  97  98  99  100  0%  10%  20%  30%  40%  50%  60%  70%  80%  90%  100%  Efficiency [%]  % of Rated Output Power  250 Vdc  360 Vdc  480 Vdc  BCD.00375 EN 14.04.2014 Support and service ABB supports its customers with dedicated, global service organization in more than 60 countries and strong regional and national technical partner networks providing complete range of life cycle services. For more information please contact  your local ABB representative or visit:   www.abb.com/solarinverters www.abb.com © Copyright 2014 ABB. All rights reserved. Specifications subject to change without notice.
