ABB TRIO-5.8/7.5/8.5-TL-OUTD 5.8 to 8.5 kW

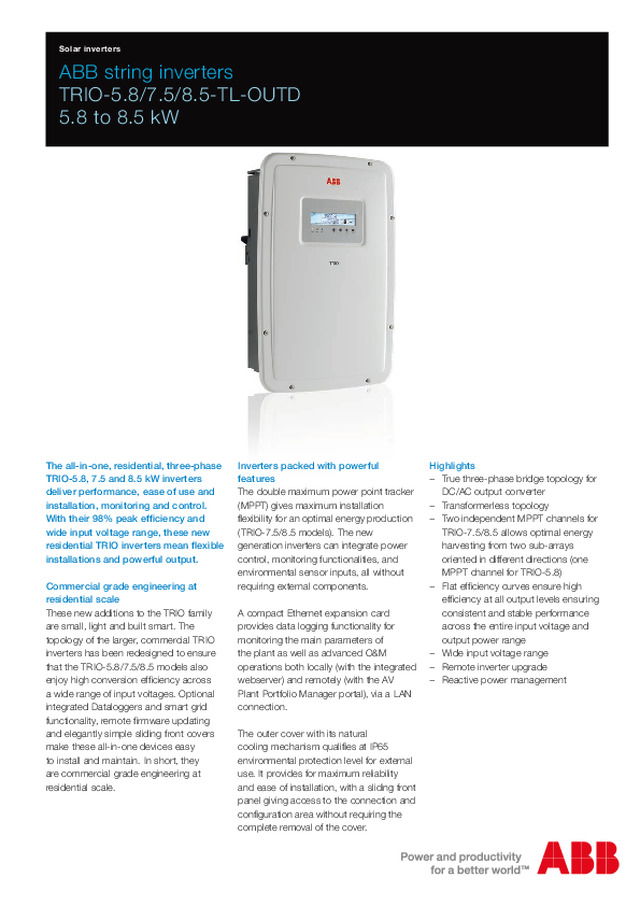

Solar inverters  ABB string inverters TRIO-5.8/7.5/8.5-TL-OUTD 5.8 to 8.5 kW The all-in-one, residential, three-phase TRIO-5.8, 7.5 and 8.5 kW inverters deliver performance, ease of use and installation, monitoring and control. With their 98% peak efficiency and wide input voltage range, these new residential TRIO inverters mean flexible installations and powerful output. Commercial grade engineering at residential scale  These new additions to the TRIO family are small, light and built smart. The topology of the larger, commercial TRIO inverters has been redesigned to ensure that the TRIO-5.8/7.5/8.5 models also enjoy high conversion efficiency across a wide range of input voltages. Optional integrated Dataloggers and smart grid functionality, remote firmware updating and elegantly simple sliding front covers make these all-in-one devices easy to install and maintain. In short, they are commercial grade engineering at residential scale. Inverters packed with powerful features The double maximum power point tracker (MPPT) gives maximum installation flexibility for an optimal energy production (TRIO-7.5/8.5 models). The new generation inverters can integrate power control, monitoring functionalities, and environmental sensor inputs, all without requiring external components.  A compact Ethernet expansion card provides data logging functionality for monitoring the main parameters of the plant as well as advanced O&M operations both locally (with the integrated webserver) and remotely (with the AV Plant Portfolio Manager portal), via a LAN connection. The outer cover with its natural cooling mechanism qualifies at IP65 environmental protection level for external use. It provides for maximum reliability and ease of installation, with a sliding front panel giving access to the connection and configuration area without requiring the complete removal of the cover. Highlights   − True three-phase bridge topology for  DC/AC output converter   − Transformerless topology   − Two independent MPPT channels for  TRIO-7.5/8.5 allows optimal energy harvesting from two sub-arrays oriented in different directions (one MPPT channel for TRIO-5.8)   − Flat efficiency curves ensure high  efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range   − Wide input voltage range    − Remote inverter upgrade   − Reactive power management

2  ABB solar inverters | Product flyer for TRIO-5.8/7.5/8.5-TL-OUTD Additional highlights   − DC switch version option (-S)    − Natural convection cooling for  maximum reliability   − Outdoor enclosure for unrestricted  use under any environmental conditions (IP65)   − Sliding cover for the easiest  installation and maintenance   − Datalogger and smart grid  functionalities integrated on expansion cards:   − PMU expansion card option,  with external sensor inputs for monitoring environmental conditions and additional RS-485 for Modbus protocol   − Ethernet expansion card option  with integrated web server and remote monitoring capability via web portal (Modbus/TCP supported)   − Availability of auxiliary DC output  voltage (24V, 100mA) Technical data and types Type code TRIO-5.8-TL-OUTD TRIO-7.5-TL-OUTD TRIO-8.5-TL-OUTD Input side Absolute maximum DC input voltage (V max,abs ) 1000 V Start-up DC input voltage (V start ) 350 V  (adj. 200...500 V) Operating DC input voltage range (V dcmin ...V dcmax ) 0.7 x V start ...950 V Rated DC input voltage (V dcr ) 620 V Rated DC input power (P dcr ) 5950 W 7650 W 8700 W Number of independent MPPT  1 2 2 Maximum DC input power for each MPPT (P MPPTmax )  6050 W   Linear derating from max to  null [800V ≤V MPPT ≤950V] 4800 W 4800 W MPPT  input DC voltage range (V MPPTmin  ... V MPPTmax ) at P acr 320…800 V - - DC input voltage range with parallel configuration of  MPPT at P acr - 320…800 V 320…800 V DC power limitation with parallel configuration of MPPT - Linear derating from max to null [800V ≤V MPPT ≤950V] DC power limitation for each MPPT with independent  configuration of MPPT at P acr  , max unbalance example - 4800 W  [320V ≤V MPPT ≤800V]    the other channel: P dcr -4800W   [215V ≤V MPPT ≤800V] 4800 W  [320V ≤V MPPT ≤800V]    the other channel: P dcr -4800W   [290V ≤V MPPT ≤800V] Maximum DC input current (I dcmax ) / for each MPPT  (I MPPTmax ) 18.9 A 30.0 A / 15.0 A 30.0 A / 15.0 A Maximum input short circuit current for each MPPT 24.0 A  20.0 A  20.0 A  Number of DC inputs pairs for each MPPT 2 (-S version) DC connection type  Tool Free PV connector WM / MC4 (Screw terminal block on standard version) Input protection Reverse polarity protection  Yes, from limited current source Input over voltage protection for each MPPT - varistor 2 Photovoltaic array isolation control According to local standard DC switch rating for each MPPT (version with DC switch)  16 A /1000 V, 25 A / 800 V Output side AC grid connection type Three phase 3W or 4W+PE Rated AC power (P acr  @cos φ=1 ) 5800 W 7500 W 8500 W Maximum apparent power (S max ) 5800 VA 7500 VA 8500 VA Rated AC grid voltage (V ac,r ) 400 V AC voltage range 320...480 V  (1) Maximum AC output current (I ac,max ) 10.0 A 12.5 A 14.5 A Contributory fault current 12.0 A 14.5 A 16.5 A Rated output frequency (f r ) 50 Hz / 60 Hz Output frequency range (f min ...f max ) 47...53 Hz / 57…63 Hz (2) Nominal power factor and adjustable range 0.995, adj. ± 0.9 with  P acr  =5.22 kW,    ± 0.8 with max 5.8 kVA 0.995, adj. ± 0.9 with  P acr  =6.75 kW,    ± 0.8 with max 7.5 kVA 0.995, adj. ± 0.9 with  P acr  =7.65 kW,    ± 0.8 with max 8.5 kVA Total current harmonic distortion 2% AC connection type Screw terminal block, cable gland M32 Output protection Anti-islanding protection According to local standard Maximum AC overcurrent protection 10.5 A  13.0 A  15.0 A  Output overvoltage protection - varistor 4 plus gas arrester Operating performance Maximum efficiency ( η max ) 98.0% Weighted efficiency (EURO/CEC) 97.4% / - 97.5% / - 97.5% / - Feed in power threshold 32 W 36 W 36 W Stand-by consumption 15W 15W 15W

IN1 + - MPPT 1 (DC/DC) IN2 + - MPPT 2 (DC/DC) Bulk caps Inverter (DC/AC) Line filter DC/DC DSP contr. DC/AC DSP contr. Control circuit Grid parallel relay L1 L2 L3 N PE IN1.1(-) IN1 IN2 + - + - IN2.1(-) Standard version IN1 IN2 + - + - -S version IN1.1(+) IN1.2(+) IN1.1(-) IN1.2(-) IN2.1(+) IN2.2(+) IN2.1(-) IN2.2(-) IN1.1(+) IN2.1(+) µP Supervisor  board Service pc_RS485 + T/R - T/R GND Remote control 1 + R GND Alarm N.CN.OC Remote control 2  + R GND PMU analog input I1 I2 GND analog input AN2 AN2 COM 24V-100mA 24V GND Termal sensor PT100/PT1000 PT1 PT2 PT3 analog input AN1 AN1 COM PMU digital input K1 K3 K4 MODBUS/PMU RS485 + T/R - T/R GND K2 Service board (opt.) ( ) Not available in TRIO-5.8-TL-OUTD versions Ethernet board (opt.) RJ_45 Product flyer for TRIO-5.8/7.5/8.5-TL-OUTD | ABB solar inverters  3 Block diagram of TRIO-5.8/7.5/8.5-TL-OUTD Technical data and types Type code TRIO-5.8-TL-OUTD TRIO-7.5-TL-OUTD TRIO-8.5-TL-OUTD Communication Wired local monitoring  Ethernet card with webserver (opt.), PVI-USB-RS232_485 (opt.) Remote monitoring Ethernet card (opt.), VSN300 Wifi Logger Card (3)  (opt.), PVI-AEC-EVO (opt.),  VSN700 Data Logger (opt.) Wireless local monitoring VSN300 Wifi Logger Card (3)  (opt.) User interface Graphic display Environmental Ambient temperature range -25...+60°C /-13...140°F with derating above 50°C/122°F Relative humidity 0...100% condensing Noise emission 45 dB(A) @ 1 m Maximum operating altitude without derating 2000 m / 6560 ft Physical  Environmental protection rating IP 65 Cooling Natural Dimension (H x W x D) 641mm x 429mm x 220mm/  25.2” x 16.9” x 8.7”  (855mm x 429mm x 237mm/ 33.7” x 16.9” x 9.3”with open front cover) Weight   25.0 kg / 55.1 lb  28.0 kg / 61.7 lb   28.0 kg / 61.7 lb  Mounting system Wall bracket Safety Isolation level Transformerless Marking CE (50 Hz only) Safety and EMC standard EN62109-1, EN62109-2, AS/NZS3100, AS/NZS 60950, EN61000-6-2, EN61000-6-3,  EN61000-3-2, EN61000-3-3 Grid standard (check your sales channel for availability) CEI 0-21, CEI 0-16, VDE 0126-1-1, VDE-AR-N 4105, G83/2, C10/11, EN 50438 (not for all  national appendices), RD1699, RD 1565, ABNT NBR 16149, NRS-097-2-1, CLC/FprTS 50549 Available products variants Standard TRIO-5.8-TL-OUTD-400 TRIO-7.5-TL-OUTD-400 TRIO-8.5-TL-OUTD-400 With DC switch TRIO-5.8-TL-OUTD-S-400 TRIO-7.5-TL-OUTD-S-400 TRIO-8.5-TL-OUTD-S-400 1. The AC voltage range may vary depending on specific country grid standard 3. Check availability before to order 2. The Frequency range may vary depending on specific country grid standard Remark. Features not specifically listed in the present data sheet  are not included in the product

Efficiency curves of TRIO-5.8-TL-OUTD Efficiency curves of TRIO-8.5-TL-OUTD 90  91  92  93  94  95  96  97  98  99  100  Efficiency [%]  % of Rated Output Power  320 Vdc  620 Vdc  800 Vdc  0%  10%  20%  30%  40%  50%  60%  70%  80%  90%  100%  90 91 92  93 94  95 96  97 98 99  100  Efficiency [%]  % of Rated Output Power  320 Vdc  620 Vdc  800 Vdc  0%  10%  20%  30%  40%  50%  60%  70%  80%  90%  100%  BCD.00376 Rev . A  EN 20.05.2014 Support and service ABB supports its customers with dedicated, global service organization in more than 60 countries and strong regional and national technical partner networks providing complete range of life cycle services. For more information please contact  your local ABB representative or visit:   www.abb.com/solarinverters www.abb.com © Copyright 2014 ABB. All rights reserved. Specifications subject to change without notice.
