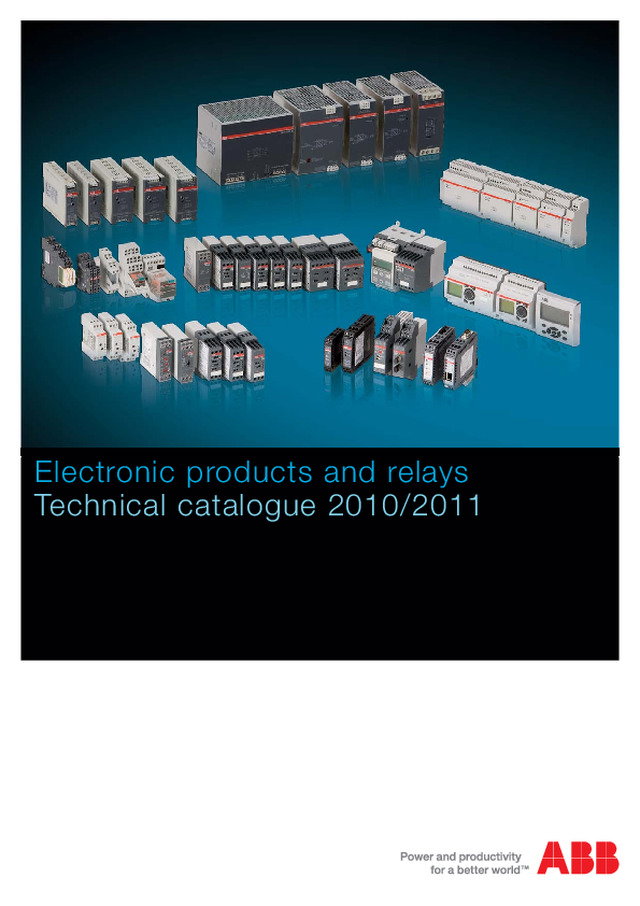

ABB Electronic products and relays, Technical Catalogue 2010/2011

ABB

ABB Electronic products and relays, Technical Catalogue 2010/2011

Published: 23 May 2013 · Category: Product Catalogues

From this document

Electronic products and relays Technical catalogue 2010/2011 NEW News Electronic Products and Relays Extended range of power supplies CP range The CP-T range of three-phase power supply units is the youngest member of ABBs power supply family. In terms of design and functionality, the new range perfectly supplements the existing products and extends the range appropriately. The devices can be supplied with a three phase voltage as well as with two-phase mains. Here, ABB offers power supply units with 24 V DC and 48 V DC outputs with 5 A, 10 A, 20 A and 40 A and efciency of up to 92 %. As in the case of all products, they are designed for an ambient temperature of up to 70 C. Primary switch mode power supplies CP range New Insulation monitors CM-IWx ABB developed a totally new range of insulation monitoring relays. With this new generation of measuring and monitoring relays of the CM range ABB consolidates its strengths in innovative control products. The new products are in accordance to IEC/EN61557-1 and to IEC/EN 61557-8. That means the monitoring relays can be used directly to measure the insulation resistance in unearthed AC and DC mains with a voltage up to 690 V AC and 1000 V DC! Furthermore the products feature a new measuring principle which decreases the measuring and response time to a minimum. Insulation Monitoring Relays CM range Grid feeding monitoring relays CM-UFS When a decentralized micro power station is connected to the grid, safe operation must be...
