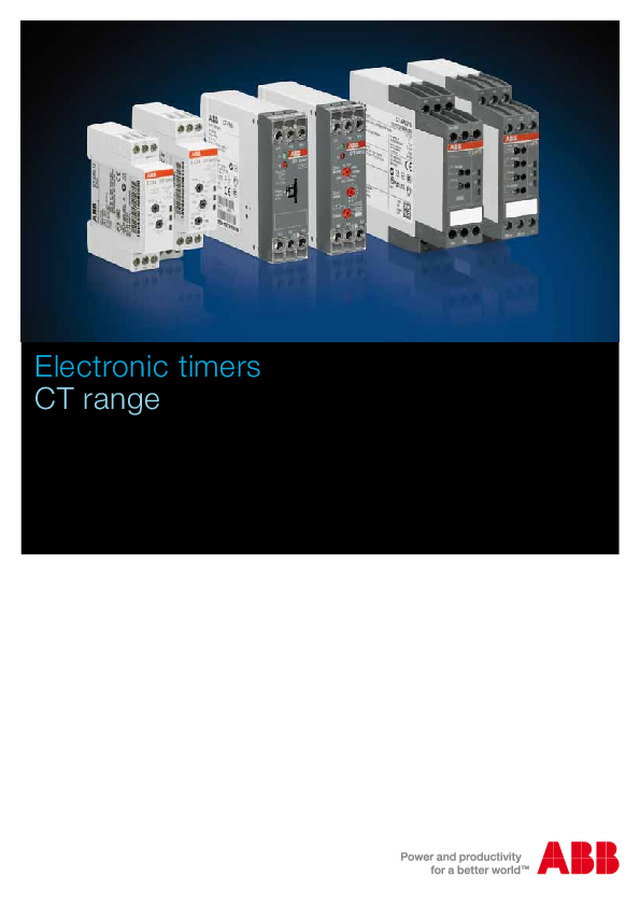

ABB Electronic Timers, CT range

ABB

ABB Electronic Timers, CT range

Published: 23 May 2013 · Category: Product Catalogues

From this document

Electronic timers CT range ABB electronic timers CT range For many years, ABBs CT range electronic timers has been used in applications worldwide and has proven its excellent functionality in daily use even under the toughest conditions. Three ranges of electronic timers provide timing functions for all applications. CT-D The CT-D range with MDRC design (modular DIN rail components) in an enclosure with a width of only 17.5 mm fits into all domestic installation and distribution panels. CT-S The highly sophisticated CT-S range in ABBs new S-range enclosure offers two different types of connection terminals and is ideally suited for universal use. CT-E The CT-E range offers an excellent price/performance ratio and is an ideal solution for serial applications. Accessories The CT-S range offers the possibility of using accessories such as a remote potentiometer to adjust the time delay or a sealable transparent cover to protect against unauthorized changes in time and threshold values. 2 2CDC111110B0203 General news and benefits LEDs for status indication All actual operational states are displayed by front-face LEDs, thus simplifying commissioning and troubleshooting. Direct reading scales Direct setting of the time delay without any additional calculation allows accurate time delay adjustment. Connection screws in M3 (pozidrive) Easy tightening and release of the connection screws using a pozidrive, panhead or crosshead screwdriver. Double-chamber cage connection terminals...
