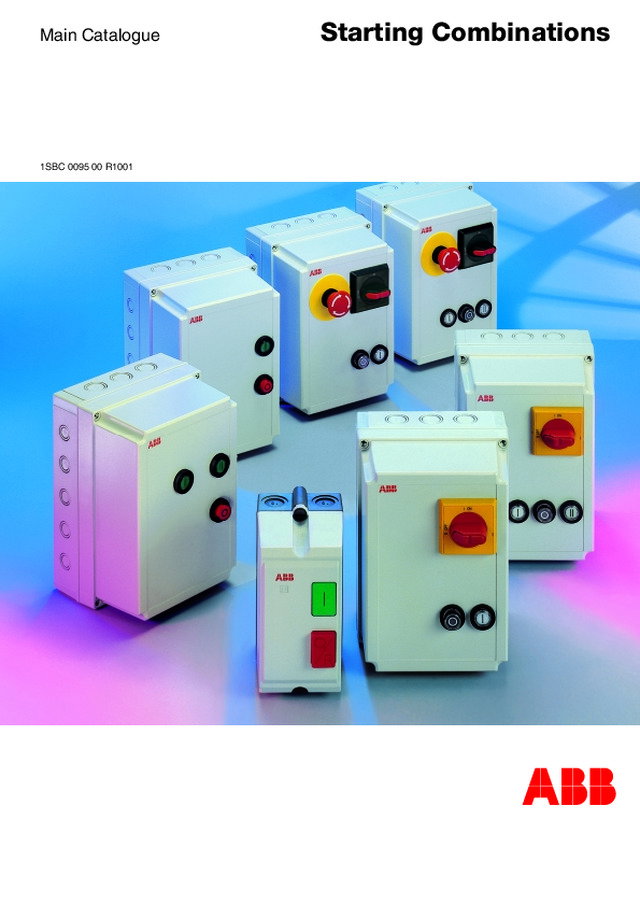

Main Catalogue 1SBC 0095 00 R1001 Starting Combinations Motor Nominal Powers and Currents The currents given below concern standard, 1 500 r.p.m. 50 Hz, three-phase cage motors. These values are for your information and may vary according to the motor manufacturer and depending on the number of poles. Motor power Motor nominal current at: kW 380 V 380-400 V A PS = hp 415 V 440 V 500 V 600 V 660-690 V A A A A A 0.06 0.09 0.12 0.18 0.25 1/12 1/8 1/6 1/4 1/3 0.22 0.33 0.42 0.64 0.88 0.20 0.30 0.40 0.60 0.85 0.19 0.28 0.37 0.55 0.76 0.16 0.24 0.33 0.46 0.59 0.12 0.21 0.27 0.40 0.56 0.37 0.55 0.75 1.1 1.5 1/2 3/4 1 1.5 2 1.22 1.50 2.00 2.60 3.50 1.15 1.40 2.00 2.50 3.50 1.06 1.25 1.67 2.26 3.03 0.85 1.20 1.48 2.10 2.60 0.77 1.02 1.22 1.66 2.22 0.7 0.9 1.1 1.5 2.0 2.2 2.5 3 3.7 4 3 3.4 4 5 5.5 5.0 5.7 6.6 8.2 8.5 5.0 5.5 6.5 7.5 8.4 4.31 4.90 5.80 7.10 7.60 3.8 4.3 5.1 6.2 6.5 3.16 3.59 4.25 5.20 5.60 2.9 3.3 3.5 4.4 4.9 5 5.5 6.5 7.5 8 6.8 7.5 8.8 10 11 10.5 11.5 13.8 15.5 16.7 10.0 11.0 12.5 14.0 15.4 9.4 10.3 12.0 13.5 14.4 8.1 8.9 10.4 11.9 12.7 6.9 7.5 8.7 9.9 10.6 6.0 6.7 8.1 9.0 9.7 9 11 12.5 15 18.5 12.5 15 17 20 25 18.3 22.0 25.0 30.0 37.0 17 21 23 28 35 15.8 19.3 21.9 26.3 32.0 13.9 16.7 19.0 22.5 28.5 11.6 14.1 16.1 19.3 23.5 10.6 13.0 15.0 17.5 21.0 20 22 25 30 37 27 30 34 40 50 40 44 50 60 72 37 40 47 55 66 34.6 37.1 42.1 50.1 61.9 30.6 33.0 38.0 44.0 54.0 25.4 27.2 30.9 37.1 45.4 23 25 28 33 42 40 45 51 55 59 54 60 70 75 80 79 85 97 105 112 72 80 90 96 105 67.0 73.9...
