ABB Thermal overload relay TF42

ABB

ABB Thermal overload relay TF42

Published: 23 May 2013 · Category: Product Catalogues

From this document

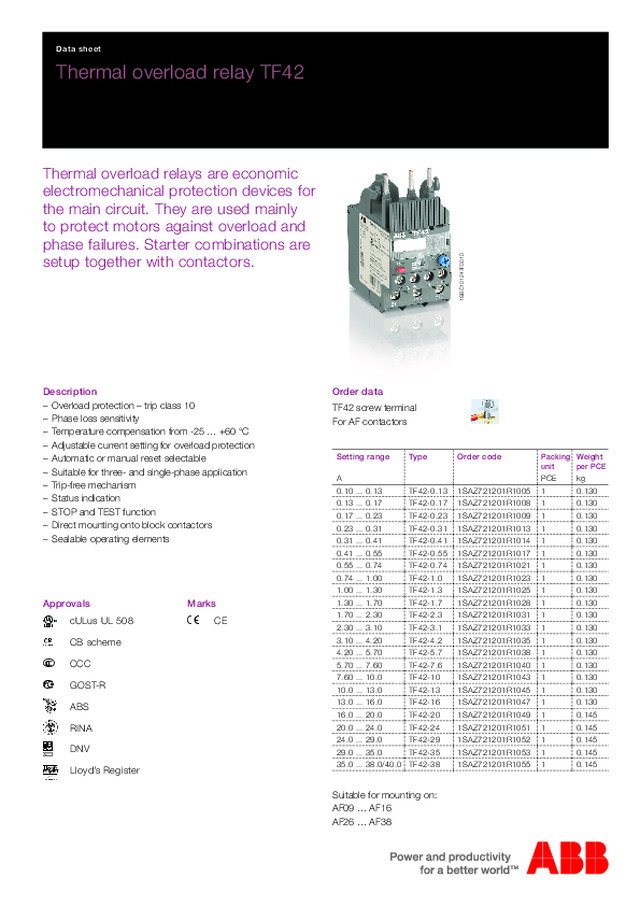

Data sheet Thermal overload relay TF42 Description Overload protection trip class 10 Phase loss sensitivity Temperature compensation from -25 +60 C Adjustable current setting for overload protection Automatic or manual reset selectable Suitable for three- and single-phase application Trip-free mechanism Status indication STOP and TEST function Direct mounting onto block contactors Sealable operating elements Approvals Marks Order data TF42 screw terminal For AF contactors Setting range Type Order code PCE kg 0.10 ... 0.13 TF42-0.13 1SAZ721201R1005 1 0.130 0.13 ... 0.17 TF42-0.17 1SAZ721201R1008 1 0.130 0.17 ... 0.23 TF42-0.23 1SAZ721201R1009 1 0.130 0.23 ... 0.31 TF42-0.31 1SAZ721201R1013 1 0.130 0.31 ... 0.41 TF42-0.41 1SAZ721201R1014 1 0.130 0.41 ... 0.55 TF42-0.55 1SAZ721201R1017 1 0.130 0.55 ... 0.74 TF42-0.74 1SAZ721201R1021 1 0.130 0.74 ... 1.00 TF42-1.0 1SAZ721201R1023 1 0.130 1.00 ... 1.30 TF42-1.3 1SAZ721201R1025 1 0.130 1.30 ... 1.70 TF42-1.7 1SAZ721201R1028 1 0.130 1.70 ... 2.30 TF42-2.3 1SAZ721201R1031 1 0.130 2.30 ... 3.10 TF42-3.1 1SAZ721201R1033 1 0.130 A Packing Weight unit per PCE A cULus UL 508 K CB scheme 3.10 ... 4.20 TF42-4.2 1SAZ721201R1035 1 0.130 4.20 ... 5.70 TF42-5.7 1SAZ721201R1038 1 0.130 E CCC 5.70 ... 7.60 TF42-7.6 1SAZ721201R1040 1 0.130 7.60 ... 10.0 TF42-10 1SAZ721201R1043 1 0.130 10.0 ... 13.0 TF42-13 1SAZ721201R1045 1 0.130 ABS 13.0 ... 16.0 TF42-16 1SAZ721201R1047 1 0.130 16.0 ... 20.0 TF42-20 1SAZ721201R1049 1 0.145 RINA 20.0 ... 24.0...
