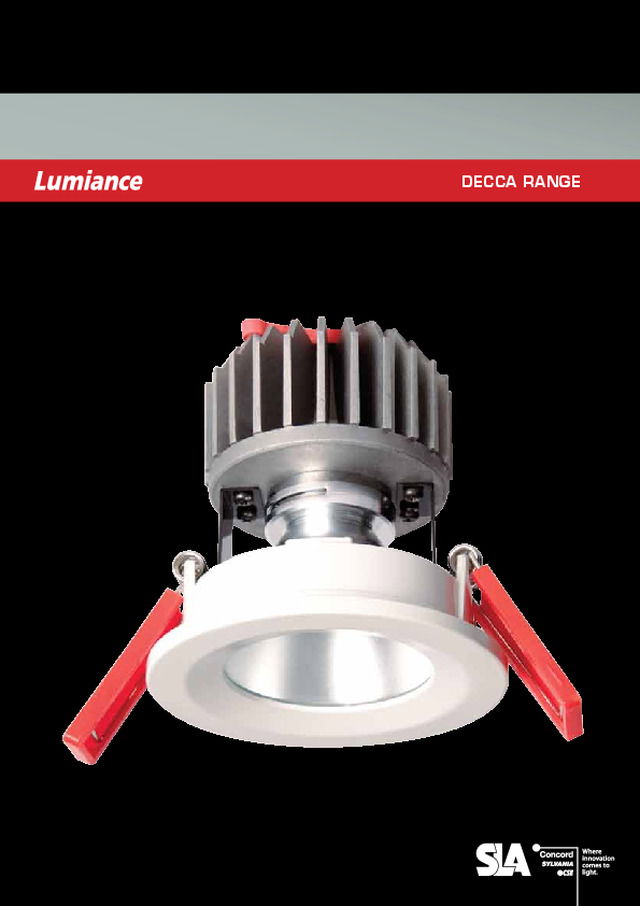

Decca Catalogue
DECCA RANGE
22 DOWnLIgHT / ACCEnT & WALL WASHERS 112mm Ø90mm Cut out 85mm DeccA pin hole Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 10w 800lm ¨ 25° ‘pin hole’ beam distribution ¨ Extremely low glare ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1816834 • • • 1816834D • • • • order code 10W 800lm 3000k Dimming White Trim DeccA Decca ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º 3000 Offset Illuminance Cone Width h (m) Emax (lx) 3344 836 372 209 134 93 0.21m 0.41m 0.62m 0.83m 1.04m 1.24m 0.5 1.0 1.5 2.0 2.5 3.0
23 DOWnLIgHT / ACCEnT & WALL WASHERS 30° Decca DeccA ADJUSTABle Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 10w 800lm ¨ 38° adjustable ‘pin hole’ beam distribution ¨ Extremely Low glare ¨ 30° tilt ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1816934 • • • 1816934D • • • • order code 10W 800lm 3000k Dimming White Trim DeccA Ø90mm 112mm Tilt 30° Cut out 85mm ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º 2400 Offset Illuminance Cone Width h (m) Emax (lx) 2947 737 327 184 118 82 0.33m 0.65m 0.98m 1.31m 1.63m 1.96m 0.5 1.0 1.5 2.0 2.5 3.0
24 DOWnLIgHT / ACCEnT & WALL WASHERS h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 1474 0.39m 0.78m 1.18m 1.57m 1.96m 2.35m 368 164 92 59 41 Offset Illuminance Cone Width DeccA cloSeD cone 90 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 13w 850lm ¨ 43° beam distribution ¨ Low glare spill ring ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1816734 • • • 1816734D • • • • order code 13W 850lm 3000k Dimming White Trim DeccA Decca 133mm Ø90mm Cut out 85mm 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1200 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM
25 DOWnLIgHT / ACCEnT & WALL WASHERS ip44 DeccA cloSeD cone 135 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k & 4000k ¨ 3000k 24w 1360lm ¨ 4000k 24w 1610lm ¨ 51° beam distribution ¨ Low glare spill ring ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1816534 • • • 1816544 • • • 1816534D • • • • 1816544D • • • • order code 24W 1360lm 24W 1610lm 3000k 4000k Dimming White Trim DeccA 155mm Ø135mm Cut out124mm Decca 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1400 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 1728 0.48m 1.96m 1.44m 1.93m 2.41m 2.89m 432 192 108 69 48 Offset Illuminance Cone Width DiM
26 DOWnLIgHT / ACCEnT & WALL WASHERS h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 1060 0.47m 0.95m 1.42m 1.89m 2.36m 2.84m 265 118 66 42 29 Offset Illuminance Cone Width DeccA ip54 111 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 13w 850lm ¨ 50° beam distribution ¨ Front glass gasket IP54 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1817334 • • • 1817334D • • • • order code 13W 850lm 3000k Dimming White Trim DeccA 133mm Ø111mm Cut out 95mm Decca 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1000 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip54 DiM
27 DOWnLIgHT / ACCEnT & WALL WASHERS h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 1539 0.51m 1.03m 1.54m 2.06m 2.57m 3.08m 385 171 96 62 43 Offset Illuminance Cone Width 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1000 DeccA ip54 138 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k & 4000k ¨ 3000k 24w 1360lm ¨ 4000k 24w 1610lm ¨ 55° beam distribution ¨ Front glass gasket IP54 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life DeccA 1817234 • • • 1817244 • • • 1817234D • • • • 1817244D • • • • order code 24W 1360lm 24W 1610lm 3000k 4000k Dimming White Trim Decca 140mm 138mm Cut out 124mm ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip54 DiM
28 DOWnLIgHT / ACCEnT & WALL WASHERS h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 1597 0.40m 0.79m 1.19m 1.58m 1.98m 2.38m 399 177 100 64 44 Offset Illuminance Cone Width Decca DeccA open cone 90 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 13w 850lm ¨ 43° beam distribution ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1816634 • • • 1816634D • • • • order code 13W 850lm 3000k Dimming White Trim DeccA 133mm Ø90mm Cut out 85mm 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 900 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM
29 DOWnLIgHT / ACCEnT & WALL WASHERS h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 1738 0.37m 0.74m 1.12m 1.49m 1.86m 2.23m 434 193 109 70 48 Offset Illuminance Cone Width DeccA open cone 108 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 13w 850lm ¨ 41° beam distribution ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1817134 • • • 1817134D • • • • order code 13W 850lm 3000k Dimming White Trim DeccA Decca 130mm Ø108mm Cut out 95mm 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1400 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM
30 DOWnLIgHT / ACCEnT & WALL WASHERS h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 2468 0.42m 0.84m 1.26m 1.68m 2.10m 2.52m 617 274 154 99 69 Offset Illuminance Cone Width DeccA open cone 135 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k & 4000k ¨ 3000k 24w 1360lm ¨ 4000k 24w 1610lm ¨ 46° beam distribution ¨ Enclosed LED IP44 ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life DeccA 1817034 • • • 1817044 • • • 1817034D • • • • 1817044D • • • • order code 24W 1360lm 24W 1610lm 3000k 4000k Dimming White Trim Decca 152mm Ø135mm Cut out 124mm 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 800 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM
31 DOWnLIgHT / ACCEnT & WALL WASHERS 30° 355° DeccA ADJUSTABle WAll WASher 108 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k ¨ 3000k 13w 850lm ¨ Wall washer ¨ Tilt 30° and rotate 355° ¨ Symmetrical glass IP44. Optional Elongation lens accessory available ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life 1817534 • • • 1817534D • • • • order code 13W 850lm 3000k Dimming White Trim DeccA 122mm Tilt 30° Ø108mm Cut out 95mm Decca 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1000 h (m) 0.5 1.0 1.5 2.0 2.5 3.0 2.01 .0 01 .0 2.0 diameter (m) Emax (lx) 1933 483 215 121 77 54 cone 43.4º 606 lm ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 DiM
32 DOWnLIgHT / ACCEnT & WALL WASHERS 30° DeccA ADJUSTABle WAll WASher 135 Decca combines all that is required for a simple yet effective architectural lighting design solution with freedom from compromise.It encompasses most lighting fundamentals to allow continuity in the overall design process without impacting on performance or appearance. Features ¨ Available LED colour temperature 3000k & 4000k ¨ 3000k 24w 1360lm ¨ 4000k 24w 1610lm ¨ Wall washer ¨ Tilt 30° and rotate 355° ¨ Symmetrical glass IP44. Optional Elongation lens accessory available ¨ One of a family of 3 trim sizes including IP54 and wall wash versions ¨ Die cast aluminium trim stoved powder coated white finish ¨ Available with Non dim & Dimmable – Dimmable DALi 1-10v & push to dim (PTD) ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug ¨ Suitable for ceiling thickness up to 30mm ¨ 50,000hr rated life DeccA order code 24W 1360lm 24W 1610lm 3000k 4000k Dimming White Trim 1817434 • • • 1817444 • • • 1817434D • • • • 1817444D • • • • Decca Ø135mm 165mm Cut out 124mm 355° 180º 120º 90º 60º 30º 0º 30º 60º 90º 120º cd/klm 1200 ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / RESIDEnTIAL / HEALTHCARE ip44 Tilt 30° DiM
