EYE Lighting - Control Gear

Eye Lighting

EYE Lighting - Control Gear

Published: 16 May 2014 · Category: Product Catalogues

From this document

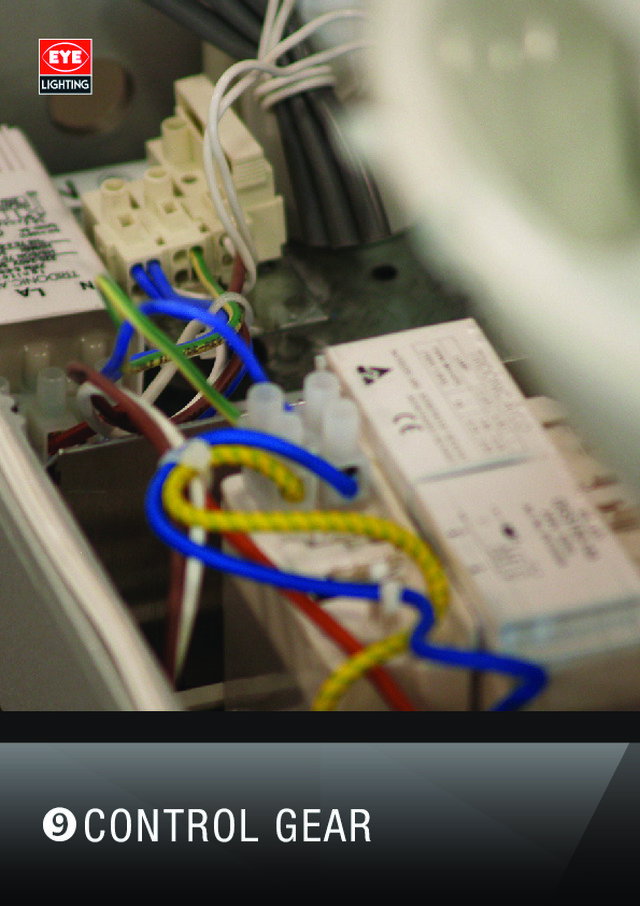

CONTROL GEAR 9.1 9.2 9.3 Control Gear Accessories 9.7 9.5 EYE Ignitron Lamps High Pressure Sodium EYE Sunlux Lamps High Pressure Sodium High Pressure Sodium EYE Sunlux Ace Lamps 9.4 EYE Multi-Metal Lamps Metal Halide EYE MH Ace Lamps Metal Halide Mercury Vapour Mercury Vapour Lamps 9.6 MERCURY VAPOUR MERCURY VAPOUR CONTROL GEAR EYE Lighting has a range of Mercury Vapour Control Gear products (IEC 60188) that are suitable for operating Mercury Vapour lamps Versions are available in Gear Tray, Cast Box and Sturdigear configurations. Mercury Vapour Control Gear FIG. 1 FIG. 4 140 140 315 265 265 For industrial and exterior applications ferromagnetic types are commonly used due to their ability to withstand heat and vibration. 290 290 188 (H) - Max. 95* Gear Tray - (GTS) Gear Trays (GTS) are designed to be easily installed inside poles, walls, cabinets and other structures away from weather and other potential hazards. FIG. 2 FIG. 5 188 188 140 315 315 345 425 290 265 308 181 Cast Box - (CB) Cast Box (CB) types are IP65 rated and are fully enclosed in a cast aluminium casing allowing fitment in exterior locations that are exposed to the weather. 345 Requirements Mercury Vapour (MV) Control Gear consists of: a reactor ballast (also called a choke) and a capacitor to adjust the high power factor within acceptable parameters. No ignitor is included. Conforms to IEC 60188 performance specification. Sturdigear Sturdigear types are like Cast Boxes but with the added protection of...
