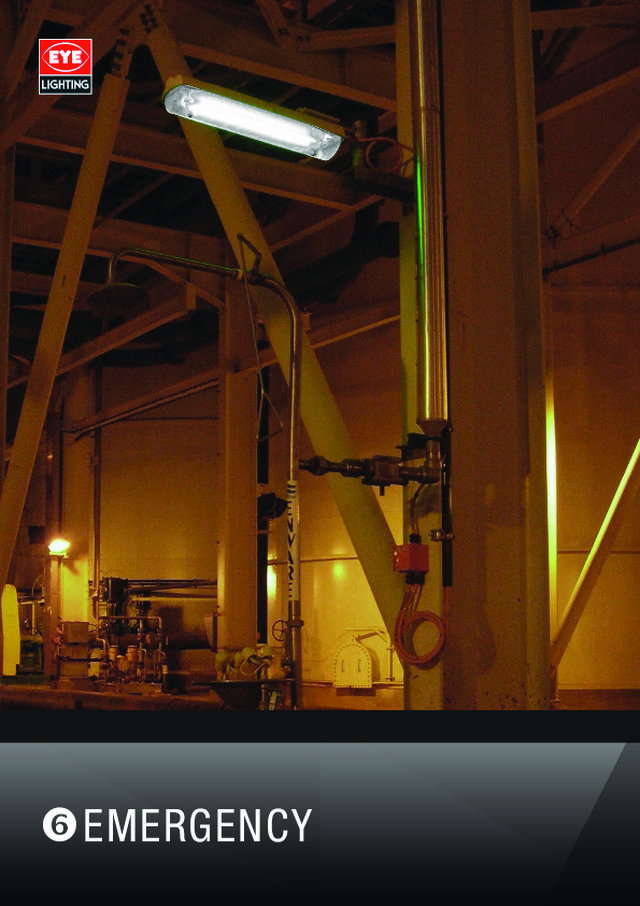

EYE Lighting | Volume 6 Catalogue EMERGENCY Coulomb Emlux Mini 8 Emergency A-Line Emergency 6.1 6.2 6.3 Twin Spot Volta Emergency Samson Emergency 6.5 6.6 6.7 6.4 A-LINE EMERGENCY The A-Line Emergency is a high quality, low maintenance emergency luminaire providing up to 3 hours back-up. IP65 Class I A-Line Emergency Specification Special Features Body - extruded aluminium with die-cast ends and powder coated (white) Fixings - nickel plated brass screws Lens - high impact and UV stabilised acrylic Reflector - powder coated aluminium (white) Beam type - symmetrical wide beam Control gear - integral Mounting - pole (34mm spigot) Installation - tapped entry for 20mm gland Terminal block - fused Maintenance - gear tray is retained Applications Construction materials, smooth exterior and Ideal for emergency back-up in heavy industrial captive assembly ideal for food industries or mining locations, typical applications include conveyor lighting, corridors and walkways Aluminium body dissipates heat in high (40) ambient operating conditions Mounting option - surface mount accessories available on special requests via lanyards Emergency back-up - 3 hours Conforms to AS/NZS 2293 Measurements & Weights 14 698 28 1298 34mm 34 L Length 158mm 158 6.1 M20x1.5 M20 x 1.5 10 - 14 10 - 14 6.1 kg Max. EYE.VOL6.EME.v1 Length (mm) 121 Wattage (W) EYE Lighting | Volume 6 Catalogue Product Range Description Lamp Gear Distribution 145116 A-Line Emergency 214 (combined maintained) 2 x 14W T5 Integral...
