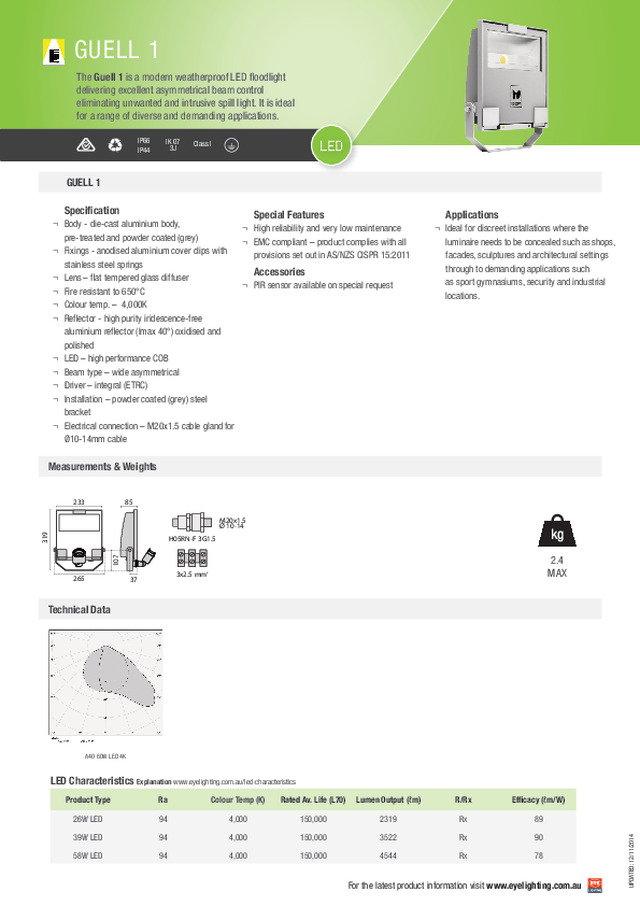

Eye Lighting - Guell 1 - Modern Weatherproof LED Floodlight
The Guell 1 is a modern weatherproof LED floodlight delivering excellent asymmetrical beam control eliminating unwanted and intrusive spill light. It is ideal for a range of diverse and demanding applications.
Measurements & Weights Technical Data UPDA TED: 12/11/2014 For the latest product information visit www.eyelighting.com.au GUELL 1 A40 60W LED 4K LED Characteristics Explanation www.eyelighting.com.au/led-characteristics Product Type Ra Colour Temp (K) Rated Av. Life (L70) Lumen Output (ℓm) R/Rx Efficacy (ℓm/W) 26W LED 94 4,000 150,000 2319 Rx 89 39W LED 94 4,000 150,000 3522 Rx 90 58W LED 94 4,000 150,000 4544 Rx 78 The Guell 1 is a modern weatherproof LED floodlight delivering excellent asymmetrical beam control eliminating unwanted and intrusive spill light. It is ideal for a range of diverse and demanding applications. GUELL 1 Specification ¬ Body - die-cast aluminium body, pre-treated and powder coated (grey) ¬ Fixings - anodised aluminium cover clips with stainless steel springs ¬ Lens – flat tempered glass diffuser ¬ Fire resistant to 650°C ¬ Colour temp. – 4,000K ¬ Reflector - high purity iridescence-free aluminium reflector (Imax 40°) oxidised and polished ¬ LED – high performance COB ¬ Beam type – wide asymmetrical ¬ Driver – integral (ETRC) ¬ Installation – powder coated (grey) steel bracket ¬ Electrical connection – M20x1.5 cable gland for Ø10-14mm cable Special Features ¬ High reliability and very low maintenance ¬ EMC compliant – product complies with all provisions set out in AS/NZS CISPR 15:2011 Accessories ¬ PIR sensor available on special request Applications ¬ Ideal for discreet installations where the luminaire needs to be concealed such as shops, facades, sculptures and architectural settings through to demanding applications such as sport gymnasiums, security and industrial locations. 2.4 MAX Ø 10-14 M20x1.5 H05RN-F 3G1.5 3x2.5 mm 2 233 85 319 107 37 265 Class I IK 07 3J IP66 IP44
EYE Lighting | Volume 6 Catalogue Product Range Accessories Floodlights UP ATED: 12/11/2014 UPDA TED: 12/11/2014 For the latest product information visit www.eyelighting.com.au Guell 1 DETEK Guell 1 A/W Code Description Output ℓ m LED Driver Distribution 173000 ELI Guell 1 A/W LED 26W 840 2319 26W LED Integral Asymmetrical Wide Beam LED 173005 ELI Guell 1 A/W LED 39.5W 840 3522 39W LED Integral Asymmetrical Wide Beam 173010 ELI Guell 1 A/W LED 57.5W 840 4544 58W LED Integral Asymmetrical Wide Beam Code Description 173080 Wire guard galvanised steel (A0650) 173082 Internal raster for Guell 1 Asymmetrical (A0652) Pictorial is representative only. Specifications may change without notice. Code Description Output ℓ m LED Driver Distribution LED 173060 ELI Guell 1 Detek A/W LED 58W 840 IP44 4544 58W LED Integral Asymmetrical Wide Beam
Eye Lighting
Eye Lighting - Guell 1 - Modern Weatherproof LED Floodlight
Published: 15 December 2014 · Category: Product Catalogues
The Guell 1 is a modern weatherproof LED floodlight delivering excellent asymmetrical beam control eliminating unwanted and intrusive spill light. It is ideal for a range of diverse and demanding applications.
Measurements & Weights Technical Data UPDA TED: 12/11/2014 For the latest product information visit www.eyelighting.com.au GUELL 1 A40 60W LED 4K LED Characteristics Explanation www.eyelighting.com.au/led-characteristics Product Type Ra Colour Temp (K) Rated Av. Life (L70) Lumen Output (ℓm) R/Rx Efficacy (ℓm/W) 26W LED 94 4,000 150,000 2319 Rx 89 39W LED 94 4,000 150,000 3522 Rx 90 58W LED 94 4,000 150,000 4544 Rx 78 The Guell 1 is a modern weatherproof LED floodlight delivering excellent asymmetrical beam control eliminating unwanted and intrusive spill light. It is ideal for a range of diverse and demanding applications. GUELL 1 Specification ¬ Body - die-cast aluminium body, pre-treated and powder coated (grey) ¬ Fixings - anodised aluminium cover clips with stainless steel springs ¬ Lens – flat tempered glass diffuser ¬ Fire resistant to 650°C ¬ Colour temp. – 4,000K ¬ Reflector - high purity iridescence-free aluminium reflector (Imax 40°) oxidised and polished ¬ LED – high performance COB ¬ Beam type – wide asymmetrical ¬ Driver – integral (ETRC) ¬ Installation – powder coated (grey) steel bracket ¬ Electrical connection – M20x1.5 cable gland for Ø10-14mm cable Special Features ¬ High reliability and very low maintenance ¬ EMC compliant – product complies with all provisions set out in AS/NZS CISPR 15:2011 Accessories ¬ PIR sensor available on special request Applications ¬ Ideal for discreet installations where the luminaire needs to be concealed such as shops, facades, sculptures and architectural settings through to demanding applications such as sport gymnasiums, security and industrial locations. 2.4 MAX Ø 10-14 M20x1.5 H05RN-F 3G1.5 3x2.5 mm 2 233 85 319 107 37 265 Class I IK 07 3J IP66 IP44
EYE Lighting | Volume 6 Catalogue Product Range Accessories Floodlights UP ATED: 12/11/2014 UPDA TED: 12/11/2014 For the latest product information visit www.eyelighting.com.au Guell 1 DETEK Guell 1 A/W Code Description Output ℓ m LED Driver Distribution 173000 ELI Guell 1 A/W LED 26W 840 2319 26W LED Integral Asymmetrical Wide Beam LED 173005 ELI Guell 1 A/W LED 39.5W 840 3522 39W LED Integral Asymmetrical Wide Beam 173010 ELI Guell 1 A/W LED 57.5W 840 4544 58W LED Integral Asymmetrical Wide Beam Code Description 173080 Wire guard galvanised steel (A0650) 173082 Internal raster for Guell 1 Asymmetrical (A0652) Pictorial is representative only. Specifications may change without notice. Code Description Output ℓ m LED Driver Distribution LED 173060 ELI Guell 1 Detek A/W LED 58W 840 IP44 4544 58W LED Integral Asymmetrical Wide Beam
From this document
GUELL 1 The Guell 1 is a modern weatherproof LED floodlight delivering excellent asymmetrical beam control eliminating unwanted and intrusive spill light. It is ideal for a range of diverse and demanding applications. IP66 IP44 IK 07 3J Class I GUELL 1 Specification Special Features Body - die-cast aluminium body, High reliability and very low maintenance pre-treated and powder coated (grey) EMC compliant product complies with all Fixings - anodised aluminium cover clips with provisions set out in AS/NZS CISPR 15:2011 stainless steel springs Accessories Lens flat tempered glass diffuser PIR sensor available on special request Fire resistant to 650C Colour temp. 4,000K Reflector - high purity iridescence-free aluminium reflector (Imax 40) oxidised and polished LED high performance COB Beam type wide asymmetrical Driver integral (ETRC) Installation powder coated (grey) steel bracket Electrical connection M20x1.5 cable gland for 10-14mm cable Applications Ideal for discreet installations where the luminaire needs to be concealed such as shops, facades, sculptures and architectural settings through to demanding applications such as sport gymnasiums, security and industrial locations. Measurements & Weights 233 85 319 M20x1.5 10-14 H05RN-F 3G1.5 107 2.4 MAX 265 3x2.5 mm 37 2 Technical Data A40 60W LED 4K Product Type Ra Colour Temp (K) Rated Av. Life (L70) Lumen Output (m) R/Rx Efficacy (m/W) 26W LED 94 4,000 150,000 2319 Rx 89 39W LED 94 4,000 150,000 3522 Rx 90 58W LED 94...
