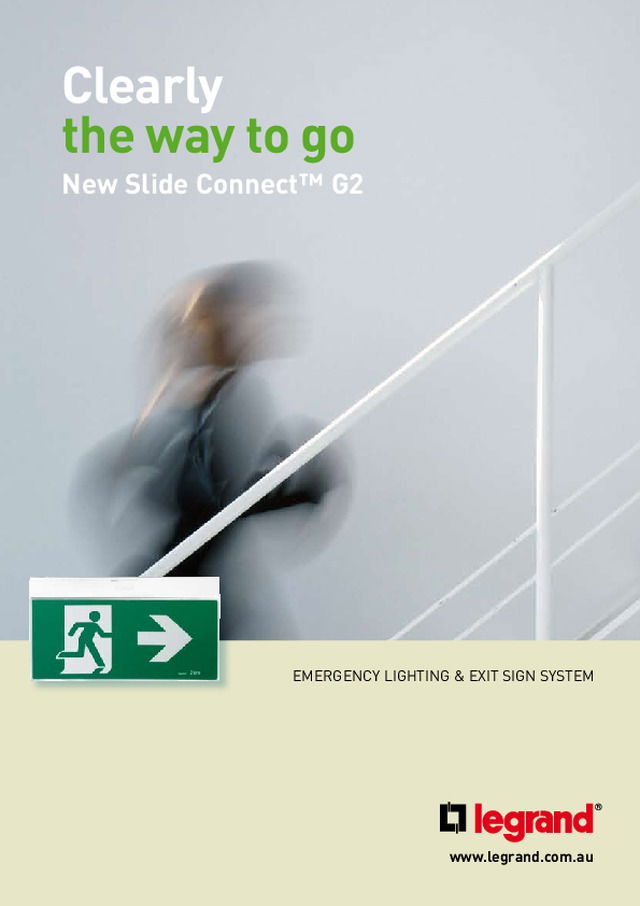

EmErgEncy Lighting & Exit sign systEm www.legrand.com.au New Slide Connect™ G2 Clearly the way to go

The new Slide Connect™ G2 is our greenest most energy efficient exit sign yet. in a giant leap forward from conventional light sources, the new slide connect™ g2 uses a single HB-LED (High Brightness Light Emitted Diode) delivering a high efficiency in lumens per watt. the result is a revolutionary energy efficient exit sign, which uses up to 70% less energy than a conventional slide connect fluorescent solution.  As energy efficiency equates to significant cost saving, the new Slide Connect™ G2 is clearly the way to go. Clearly green Clearly energy efficient 3 watt hB-LED single  Light source

in creating the new Slide Connect™ G2 we adopted a minimalistic clear design with a combination of straight lines and a unique pure glass effect for the diffuser.  the result is a discrete exit sign, which becomes highly visible only when needed. A design without concession, which does not forget functionality. silver and black body colour variations are also available. the new Slide Connect™ G2 is the perfect solution for any environment. Discrete by nature

Save time and cost on  Installation & Maintenance the new slide connect™ g2 is a simple “all in one box” solution. All ‘running man’ variations are included. One Box Solution Left Exit (6862 18) straight Exit(6862 17) right Exit (6862 19) A moving person known as ‘running man’ is used to  indicate exit sign. 3 variations cover all possibilites the g2 retrofits to the previous generation slide connect bracket. One click to replace an existing product. Ease of Installation the LED lamp source lasts up to 5 years, delivering low cost maintenance. Long Life Lamp step 1 step 2 step 3 (6862 00) Clearly easier Clearly time saving

the new slide connect™ g2 offers a version fully compatible with the Axiom wireless computer monitored system. the slide connect™ g2 Axiom option enables 2-way wireless communication to the WAc (Wireless Area controller) and other Axiom enabled fittings such as satellites, battens, etc eliminating the need to run communication cables. Axiom provides a robust and versatile solution enabling building managers to monitor and perform diagnostics and discharge tests, locally, over a Local Area network (LAn) or remotely via a modem to modem. Slide Connect™ G2 Axiom Option Facilities Office connection  via dedicated  or ethernet  cat5 cable AREA 1 CIU up to  80 units per area WAc (Wireless Area controller) communications interface Unit to other WAcs no communication cables, easy to install, low energy consumption, no more lamp changes, the slide connect™  g2 Axiom clearly guarantees the lowest total cost of ownership. To get more information, please call1300 legrand (1300 534 726) Axiom™ Aeema Excellence Awards Best new Product in  Electronics/hardware Clearly Axiom Clearly Wireless Clearly the way to go

Slide Connect G2Unique single LED Maintained Exit sign (Patent Pending) Super Long-Life LED replaceable light source. Universal design for ‘One Box Solution’ Clamshell construction using composite PC/ABS blend materials for increased robustness. Retrofits to previous generation Minitronics Slide Connect bracket. Large terminal block for ease of connection. Switched-Mode Power Supply (SMPS) and Pulse Width Modulation (PWM) driver for extremely low energy consumption and heat discipation. The LED Slide Connect series can be wall, ceiling or cantilever mounted. Pack Cat No. Body, Bracket & Diffusers SPU Standard NiCd two rate charge  (Rate 150mA high - 40mA Low) 1 6862 00 White body  LSC102RM c/w Running Man sheets (set of 4) 1 6862 01 White body  (set of 3) LSC102X c/w EXIT sheets, Peel-Off-Arrow 1 6862 08 Silver body  (set of 4) LSC102SRM c/w Running Man sheets 1 6862 09 Silver body  LSC102SX c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 06 Black body  LSC102B less diffuser sheets (no downward lens) Computer Monitored SPU’s AXIOM Wireless NiCd two rate charge  (Rate 150mA high - 40mA Low) 1 6862 03 White body  AXLSC102RM c/w Running Man sheets (set of 4) 1 6862 04 White body  AXLSC102X c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 11 Silver body  AXLSC102SRM c/w Running Man sheets (set of 4) 1 6862 12 Silver body  AXLSC102SX c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 07 Black body less diffuser sheets AXLSC102B (no downward lens)COMMANDER Wired NiCd two rate charge  (Rate 150mA high - 40mA Low) 1 6862 03 White body  AXLSC102RM c/w Running Man sheets (set of 4) 1 6862 04 White body  AXLSC102X c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 11 Silver body  AXLSC102SRM c/w Running Man sheets (set of 4) 1 6862 12 Silver body  AXLSC102SX c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 07 Black body less diffuser sheets (no downward lens) AXLSC102B (no downward lens) Slide Connect G2 – Diffuser Sheets The high efficiency diffuser sheets are made of polycarbonate for long life, optimum colour, uniformity and excellent light transmission. Pack Cat No. Diffusers Prod code 1 6862 17 Running Man straight ahead G2RM 1 6862 18 Running Man Left G2RML 1 6862 19 Running Man Right G2RMR 1 6862 21 Running Man set  (1xRM,1xRML, 1xRMR, 1x Opaque) G2RM4 1 6862 20 Running Man straight ahead, Green On Black G2RMGB 1 6862 22 EXIT Peel-Off-Arrows G2POA 1 6862 27 EXIT Peel-Off-Arrows, Green On Black G2POAGB 1 6862 29 Blank (Opal) Blank 1 6862 28 Opaque (No light transmitted) G2OPAQUE 1 6862 30 Custom Printing G2CUSTOM Accessories 1 6862 15 Cantilever Bracket, White acrylic G2BRKT 1 6862 16 Wire Suspension Kit, Silver Pair of 2 G2SUSPN 1 6862 31 Mounting Bracket G2MNTBRK 6862 00 NEW Slide Connect Single LED light source / Exit signs

NEW Slide Connect Single LED light source / Exit signs Photometric Report Ceiling Mount Wall Mount Catalogue No. Product Installation Ceiling mount Wall mount Cable Management 372mm  84mm  215mm  Dimensions Maximum spacing between luminaires Classification Mounting height (Metres) 2.1 2.4 2.7 3 3.3 3.6 4 A1.25 2.5 2.4 2.2 1.9 1.3 A1.6 2.8 2.8 2.7 2.5 2.2 1.8 D1.25 4.0 3.8 3.4 2.9 2.0 E1.6 4.8 4.8 4.8 4.4 4.0 4.2 3.8 2 metres or less mounting heights are considered impractical, and are not included in the table. maximum spacings for mounting heights between the values given in the table may be obtained by interpolation. 686200686201686203686204686208686209686211686212 c D1.25D1.25D1.25D1.25D1.25D1.25D1.25D1.25 c A1.25A1.25A1.25A1.25A1.25A1.25A1.25A1.25 c E1.6E1.6E1.6E1.6E1.6E1.6E1.6E1.6 c E1.6E1.6E1.6E1.6E1.6E1.6E1.6E1.6 classification metres Diffuser Installation 0 90 0 90 Slide Connect G2Unique single LED Maintained Exit sign (Patent Pending) Super Long-Life LED replaceable light source. Universal design for ‘One Box Solution’ Clamshell construction using composite PC/ABS blend materials for increased robustness. Retrofits to previous generation Minitronics Slide Connect bracket. Large terminal block for ease of connection. Switched-Mode Power Supply (SMPS) and Pulse Width Modulation (PWM) driver for extremely low energy consumption and heat discipation. The LED Slide Connect series can be wall, ceiling or cantilever mounted. Pack Cat No. Body, Bracket & Diffusers SPU Standard NiCd two rate charge  (Rate 150mA high - 40mA Low) 1 6862 00 White body  LSC102RM c/w Running Man sheets (set of 4) 1 6862 01 White body  (set of 3) LSC102X c/w EXIT sheets, Peel-Off-Arrow 1 6862 08 Silver body  (set of 4) LSC102SRM c/w Running Man sheets 1 6862 09 Silver body  LSC102SX c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 06 Black body  LSC102B less diffuser sheets (no downward lens) Computer Monitored SPU’s AXIOM Wireless NiCd two rate charge  (Rate 150mA high - 40mA Low) 1 6862 03 White body  AXLSC102RM c/w Running Man sheets (set of 4) 1 6862 04 White body  AXLSC102X c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 11 Silver body  AXLSC102SRM c/w Running Man sheets (set of 4) 1 6862 12 Silver body  AXLSC102SX c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 07 Black body less diffuser sheets AXLSC102B (no downward lens)COMMANDER Wired NiCd two rate charge  (Rate 150mA high - 40mA Low) 1 6862 03 White body  AXLSC102RM c/w Running Man sheets (set of 4) 1 6862 04 White body  AXLSC102X c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 11 Silver body  AXLSC102SRM c/w Running Man sheets (set of 4) 1 6862 12 Silver body  AXLSC102SX c/w EXIT sheets, Peel-Off-Arrow (set of 3) 1 6862 07 Black body less diffuser sheets (no downward lens) AXLSC102B (no downward lens) Slide Connect G2 – Diffuser Sheets The high efficiency diffuser sheets are made of polycarbonate for long life, optimum colour, uniformity and excellent light transmission. Pack Cat No. Diffusers Prod code 1 6862 17 Running Man straight ahead G2RM 1 6862 18 Running Man Left G2RML 1 6862 19 Running Man Right G2RMR 1 6862 21 Running Man set  (1xRM,1xRML, 1xRMR, 1x Opaque) G2RM4 1 6862 20 Running Man straight ahead, Green On Black G2RMGB 1 6862 22 EXIT Peel-Off-Arrows G2POA 1 6862 27 EXIT Peel-Off-Arrows, Green On Black G2POAGB 1 6862 29 Blank (Opal) Blank 1 6862 28 Opaque (No light transmitted) G2OPAQUE 1 6862 30 Custom Printing G2CUSTOM Accessories 1 6862 15 Cantilever Bracket, White acrylic G2BRKT 1 6862 16 Wire Suspension Kit, Silver Pair of 2 G2SUSPN 1 6862 31 Mounting Bracket G2MNTBRK 6862 00 NEW Slide Connect Single LED light source / Exit signs

Designed and Print ed in Aus tr alia 204515 - v2   HPM Legrand Head Office99 st hilliers road Auburn nsW 2144 tel: 02 8748 0333 Fax: 02 8748 0345 Web: www.legrand.com.au
