Published: 23 May 2013 · Category: Product Catalogues

From this document

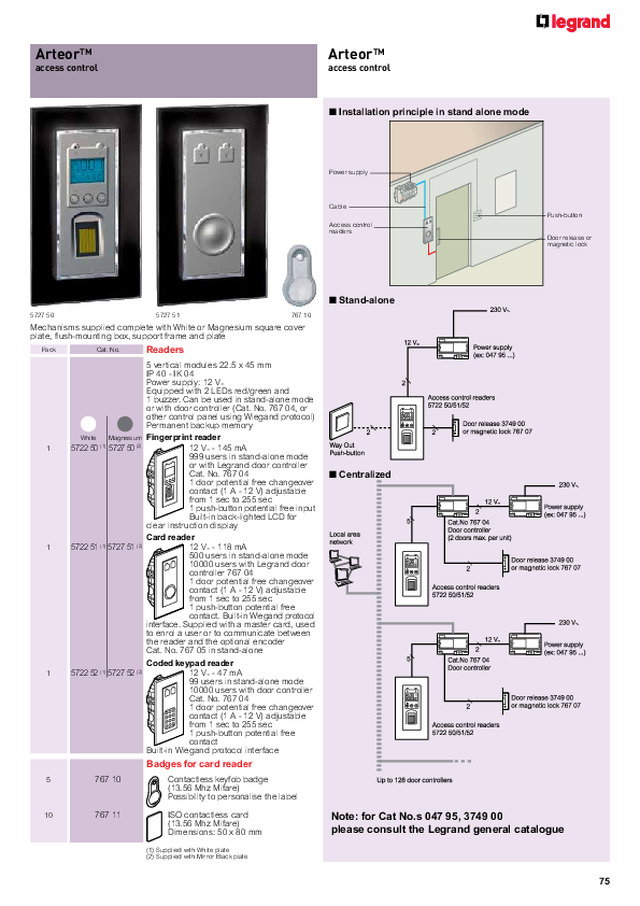

TM Arteor pour exemple : xxxxxxx ArteorTM xxxxxxxx access control access control n Installation principle in stand alone mode Power supply Cable Push-button Access control readers Door release or magnetic lock n Stand-alone 5727 50 5727 51 767 10 Mechanisms supplied complete with White or Magnesium square cover plate, flush-mounting box, support frame and plate Pack Cat. No. Readers 5 vertical modules 22.5 x 45 mm IP 40 - IK 04 Power supply: 12 V= Equipped with 2 LEDs red/green and 1 buzzer. Can be used in stand-alone mode or with door controller (Cat. No. 767 04, or other control panel using Wiegand protocol) Permanent backup memory White Magnesium Fingerprint reader 1 5722 50 (1) 5727 50 (2) 12 V= - 145 mA 999 users in stand-alone mode or with Legrand door controller Cat. No. 767 04 1 door potential free changeover contact (1 A - 12 V) adjustable from 1 sec to 255 sec 1 push-button potential free input Built-in back-lighted LCD for clear instruction display Card reader 1 5722 51 (1) 5727 51 (2) 12 V= - 118 mA 500 users in stand-alone mode 10000 users with Legrand door controller 767 04 1 door potential free changeover contact (1 A - 12 V) adjustable from 1 sec to 255 sec 1 push-button potential free contact. Built-in Wiegand protocol interface. Supplied with a master card, used to enrol a user or to communicate between the reader and the optional encoder Cat. No. 767 05 in stand-alone Coded keypad reader 1 5722 52 (1) 5727 52 (2) 12 V= - 47 mA 99 users in stand-alone mode...
