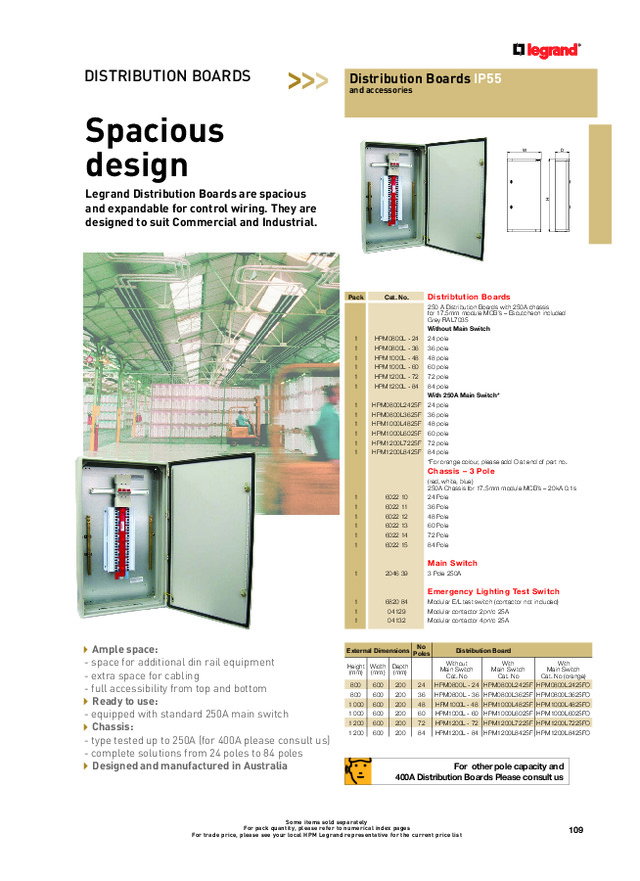

Legrand Distribution Boards
109 Some items sold separately For pack quantity, please refer to numerical index pages For trade price, please see your local HPM Legrand representative for the current price list Distribution Boards IP55 and accessories Pack Cat. No. Distribtution Boards 250 A Distribution Boards with 250A chassis for 17.5mm module MCB’s – Escutcheon included Grey RAL7035Without Main Switch 1 HPM0800L - 24 24 pole 1 HPM0800L - 36 36 pole 1 HPM1000L - 48 48 pole 1 HPM1000L - 60 60 pole 1 HPM1200L - 72 72 pole 1 HPM1200L - 84 84 poleWith 250A Main Switch 1 HPM0800L2425F 24 pole 1 HPM0800L3625F 36 pole 1 HPM1000L4825F 48 pole 1 HPM1000L6025F 60 pole 1 HPM1200L7225F 72 pole 1 HPM1200L8425F 84 pole For orange colour, please add O at end of part no. Chassis – 3 Pole (red, white, blue) 250A Chassis for 17.5mm module MCB’s – 20kA 0.1s 1 6022 10 24 Pole 1 6022 11 36 Pole 1 6022 12 48 Pole 1 6022 13 60 Pole 1 6022 14 72 Pole 1 6022 15 84 Pole Main Switch 1 2046 39 3 Pole 250A Emergency Lighting Test Switch 1 6820 84 Modular E/L test switch (contactor not included) 1 04129 Modular contactor 2pn/c 25A 1 04132 Modular contactor 4pn/c 25A External Dimensions No Poles Distribution Board Height (mm) Width (mm) Depth (mm) Without Main Switch Cat. No With Main Switch Cat. No With Main Switch Cat. No (orange) 800 600 200 24 HPM0800L - 24 HPM0800L2425F HPM0800L2425FO 800 600 200 36 HPM0800L - 36 HPM0800L3625F HPM0800L3625FO 1 000 600 200 48 HPM1000L - 48 HPM1000L4825F HPM1000L4825FO 1 000 600 200 60 HPM1000L - 60 HPM1000L6025F HPM1000L6025FO 1 200 600 200 72 HPM1200L - 72 HPM1200L7225F HPM1200L7225FO 1 200 600 200 84 HPM1200L - 84 HPM1200L8425F HPM1200L8425FO H D W For other pole capacity and 400A Distribution Boards Please consult us Ample space: - space for additional din rail equipment - extra space for cabling - full accessibility from top and bottom Ready to use: - equipped with standard 250A main switch Chassis: - type tested up to 250A (for 400A please consult us) - complete solutions from 24 poles to 84 poles Designed and manufactured in Australia DISTRIBUTION BOARDS Spacious design Legrand Distribution Boards are spacious and expandable for control wiring. They are designed to suit Commercial and Industrial.
Legrand
Legrand Distribution Boards
Published: 23 May 2013 · Category: Product Catalogues
109 Some items sold separately For pack quantity, please refer to numerical index pages For trade price, please see your local HPM Legrand representative for the current price list Distribution Boards IP55 and accessories Pack Cat. No. Distribtution Boards 250 A Distribution Boards with 250A chassis for 17.5mm module MCB’s – Escutcheon included Grey RAL7035Without Main Switch 1 HPM0800L - 24 24 pole 1 HPM0800L - 36 36 pole 1 HPM1000L - 48 48 pole 1 HPM1000L - 60 60 pole 1 HPM1200L - 72 72 pole 1 HPM1200L - 84 84 poleWith 250A Main Switch 1 HPM0800L2425F 24 pole 1 HPM0800L3625F 36 pole 1 HPM1000L4825F 48 pole 1 HPM1000L6025F 60 pole 1 HPM1200L7225F 72 pole 1 HPM1200L8425F 84 pole For orange colour, please add O at end of part no. Chassis – 3 Pole (red, white, blue) 250A Chassis for 17.5mm module MCB’s – 20kA 0.1s 1 6022 10 24 Pole 1 6022 11 36 Pole 1 6022 12 48 Pole 1 6022 13 60 Pole 1 6022 14 72 Pole 1 6022 15 84 Pole Main Switch 1 2046 39 3 Pole 250A Emergency Lighting Test Switch 1 6820 84 Modular E/L test switch (contactor not included) 1 04129 Modular contactor 2pn/c 25A 1 04132 Modular contactor 4pn/c 25A External Dimensions No Poles Distribution Board Height (mm) Width (mm) Depth (mm) Without Main Switch Cat. No With Main Switch Cat. No With Main Switch Cat. No (orange) 800 600 200 24 HPM0800L - 24 HPM0800L2425F HPM0800L2425FO 800 600 200 36 HPM0800L - 36 HPM0800L3625F HPM0800L3625FO 1 000 600 200 48 HPM1000L - 48 HPM1000L4825F HPM1000L4825FO 1 000 600 200 60 HPM1000L - 60 HPM1000L6025F HPM1000L6025FO 1 200 600 200 72 HPM1200L - 72 HPM1200L7225F HPM1200L7225FO 1 200 600 200 84 HPM1200L - 84 HPM1200L8425F HPM1200L8425FO H D W For other pole capacity and 400A Distribution Boards Please consult us Ample space: - space for additional din rail equipment - extra space for cabling - full accessibility from top and bottom Ready to use: - equipped with standard 250A main switch Chassis: - type tested up to 250A (for 400A please consult us) - complete solutions from 24 poles to 84 poles Designed and manufactured in Australia DISTRIBUTION BOARDS Spacious design Legrand Distribution Boards are spacious and expandable for control wiring. They are designed to suit Commercial and Industrial.
From this document
DISTRIBUTION BOARDS >>> Distribution Boards IP55 and accessories Spacious design W H Legrand Distribution Boards are spacious and expandable for control wiring. They are designed to suit Commercial and Industrial. D Pack Distribtution Boards Cat. No. 250 A Distribution Boards with 250A chassis for 17.5mm module MCBs Escutcheon included Grey RAL7035 Without Main Switch 1 1 1 1 1 1 HPM0800L - 24 HPM0800L - 36 HPM1000L - 48 HPM1000L - 60 HPM1200L - 72 HPM1200L - 84 24 pole 36 pole 48 pole 60 pole 72 pole 84 pole With 250A Main Switch* 1 1 1 1 1 1 HPM0800L2425F HPM0800L3625F HPM1000L4825F HPM1000L6025F HPM1200L7225F HPM1200L8425F 24 pole 36 pole 48 pole 60 pole 72 pole 84 pole *For orange colour, please add O at end of part no. Chassis 3 Pole 1 1 1 1 1 1 6022 10 6022 11 6022 12 6022 13 6022 14 6022 15 1 2046 39 1 1 1 6820 84 04129 04132 (red, white, blue) 250A Chassis for 17.5mm module MCBs 20kA 0.1s 24 Pole 36 Pole 48 Pole 60 Pole 72 Pole 84 Pole Main Switch 3 Pole 250A Emergency Lighting Test Switch Ample space: - space for additional din rail equipment - extra space for cabling - full accessibility from top and bottom Ready to use: - equipped with standard 250A main switch Chassis: - type tested up to 250A (for 400A please consult us) - complete solutions from 24 poles to 84 poles Designed and manufactured in Australia Modular E/L test switch (contactor not included) Modular contactor 2pn/c 25A Modular contactor 4pn/c 25A No External Dimensions Poles Height Width Depth (mm)...
