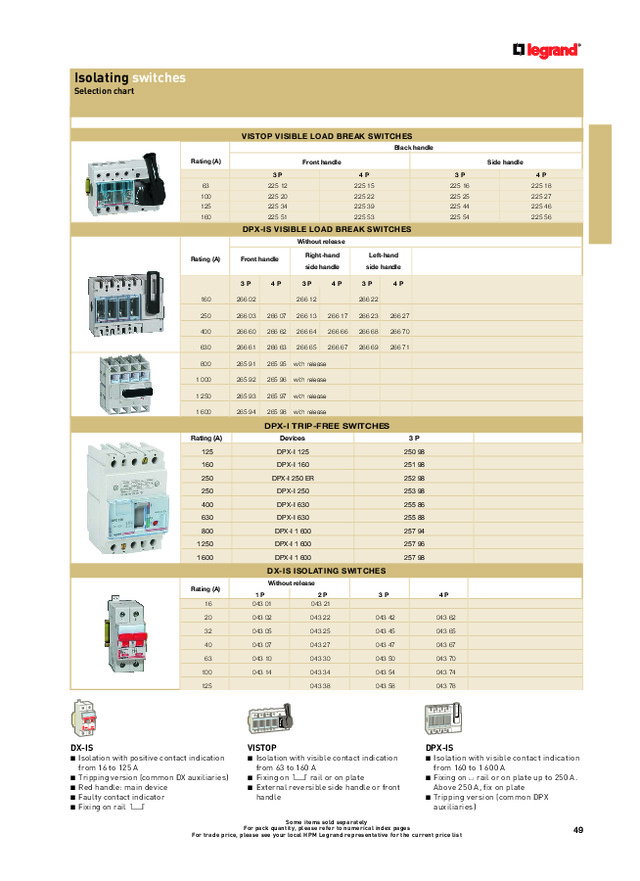

Isolating switches Selection chart VISTOP VISIBLE LOAD BREAK SWITCHES Rating (A) Black handle Front handle Side handle 3 P 4 P 3 P 4P 63 225 12 225 15 225 16 225 18 100 225 20 225 22 225 25 225 27 125 225 34 225 39 225 44 225 46 160 225 51 225 53 225 54 225 56 DPX-IS VISIBLE LOAD BREAK SWITCHES Without release Right-hand Left-hand side handle side handle 3P 3P Rating (A) Front handle 3P 160 266 02 266 12 266 22 250 266 03 266 07 266 13 266 17 266 23 266 27 400 266 60 266 62 266 64 266 66 266 68 266 70 630 266 61 266 63 266 65 266 67 266 69 266 71 800 265 91 265 95 with release 1 000 265 92 265 96 with release 1 250 265 93 265 97 with release 1 600 265 94 265 98 with release 4P 4P 4P DPX-I TRIP-FREE SWITCHES Rating (A) Devices 3P 125 DPX-I 125 250 98 160 DPX-I 160 251 98 250 DPX-I 250 ER 252 98 250 DPX-I 250 253 98 400 DPX-I 630 255 86 630 DPX-I 630 255 88 800 DPX-I 1 600 257 94 1 250 DPX-I 1 600 257 96 1 600 DPX-I 1 600 257 98 DX-IS ISOLATING SWITCHES Rating (A) Without release 16 1P 043 01 2P 3P 043 21 4P 20 043 02 043 22 043 42 043 62 32 043 05 043 25 043 45 043 65 40 043 07 043 27 043 47 043 67 63 043 10 043 30 043 50 043 70 100 043 14 043 34 043 54 043 74 125 043 38 043 58 043 78 DX-IS VISTOP DPX-IS n I solation with positive contact indication n I solation with visible contact indication n I solation with visible contact indication from 16 to 125 A n T ripping version (common DX auxiliaries) n R ed handle: main device n F aulty contact indicator n Fixing on rail...
