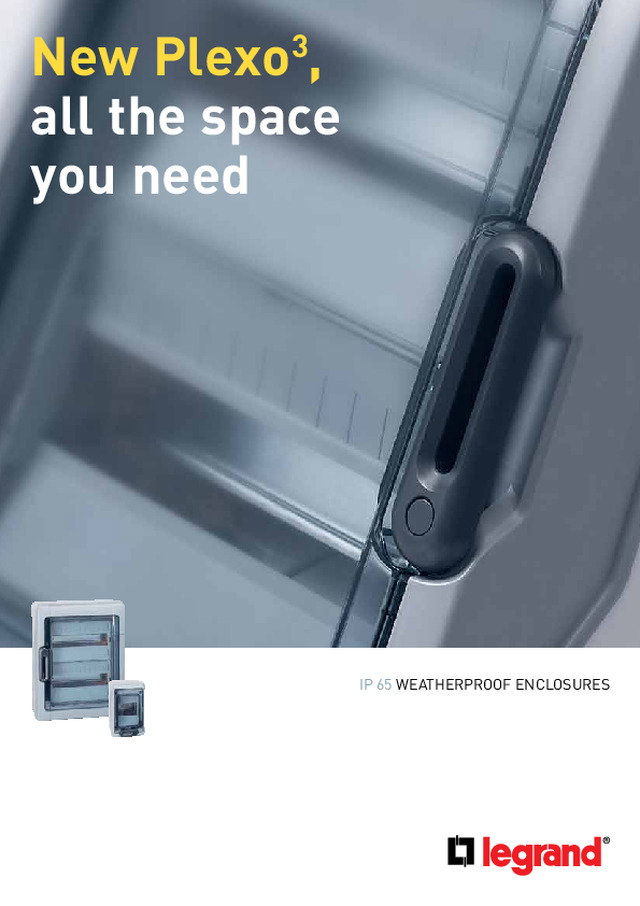

New Plexo , all the space you need 3 IP 65 WEATHERPROOF ENCLOSURES No constraints on your wiring: plenty of space inside the box PLEXO3 - PLENTY OF SPACE FOR YOUR CONVENIENCE 2 A wide range of enclosures 6 sizes of cabinets 4 to 36 modules 12 modules with 1 to 3 rows Optimised cable runs 45 mm 150 mm Space behind the rails (2-position rail with depth adjustment) 38 mm Space at the side Space between the rails (allowing cables to run easily) PLEXO - PLENTY OF SPACE FOR YOUR CONVENIENCE 3 Maximum convenience through modularity PLEXO3 - PLENTY OF SPACE FOR YOUR CONVENIENCE 4 Fixing the cabinet Each enclosure is equipped with knockout entries for 2 wall-fixing methods: Hanging method - 1 point in the middle, 2 points at the bottom. Speed and ease of installation Removable faceplate: easier maintenance of individual rows Rails can be removed one by one Removable chassis for wiring outside the enlosure Enclosures can be fitted with terminal blocks, which can easily be repositioned, at the top and bottom of the box on the wall Adjustable peripheral method 4 fixing points. PLEXO - PLENTY OF SPACE FOR YOUR CONVENIENCE 5 Fully reversible PLEXO3 - PLENTY OF SPACE FOR YOUR CONVENIENCE 6 36 modules 4 modules Available for the whole range Door and cabinet are both fully reversible It makes no difference whether the wiring runs from the top or the bottom. Stronger and with better weatherproofing, you can use them on any of your projects IP 65: Weatherproofing and UV treatment guaranteed for...
