Lovato electric: contactors

Published: 23 May 2013 · Category: Product Catalogues

From this document

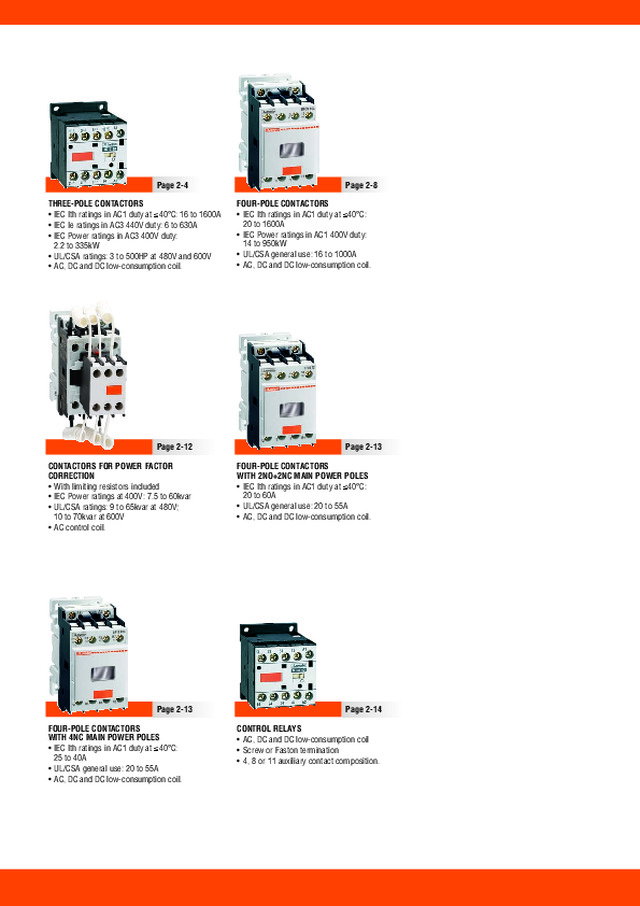

Page 2-4 THREE-POLE CONTACTORS • IEC Ith ratings in AC1 duty at ≤40°C: 16 to 1600A • IEC Ie ratings in AC3 440V duty: 6 to 630A • IEC Power ratings in AC3 400V duty: 2.2 to 335kW • UL/CSA ratings: 3 to 500HP at 480V and 600V • AC, DC and DC low-consumption coil. Page 2-12 CONTACTORS FOR POWER FACTOR CORRECTION • With limiting resistors included • IEC Power ratings at 400V: 7.5 to 60kvar • UL/CSA ratings: 9 to 65kvar at 480V; 10 to 70kvar at 600V • AC control coil. Page 2-13 FOUR-POLE CONTACTORS WITH 4NC MAIN POWER POLES • IEC Ith ratings in AC1 duty at ≤40°C: 25 to 40A • UL/CSA general use: 20 to 55A • AC, DC and DC low-consumption coil. Page 2-8 FOUR-POLE CONTACTORS • IEC Ith ratings in AC1 duty at ≤40°C: 20 to 1600A • IEC Power ratings in AC1 400V duty: 14 to 950kW • UL/CSA general use: 16 to 1000A • AC, DC and DC low-consumption coil. Page 2-13 FOUR-POLE CONTACTORS WITH 2NO+2NC MAIN POWER POLES • IEC Ith ratings in AC1 duty at ≤40°C: 20 to 60A • UL/CSA general use: 20 to 55A • AC, DC and DC low-consumption coil. Page 2-14 CONTROL RELAYS • AC, DC and DC low-consumption coil • Screw or Faston termination • 4, 8 or 11 auxiliary contact composition. 2 CONTACTORS Three-pole versions up to 630A in IEC AC3 duty Four-pole versions up to 1600A in IEC AC1 duty Versions for power factor correction up to 60kvar at 400VAC Four-pole versions with 2NO+2NC or 4NC main poles Low-consumption versions with DC control circuit for control relays and 9-38A contactors in IEC AC3 duty Versions...
