Lovato electric: earth leakage relays

Legrand

Lovato electric: earth leakage relays

Published: 23 May 2013 · Category: Product Catalogues

From this document

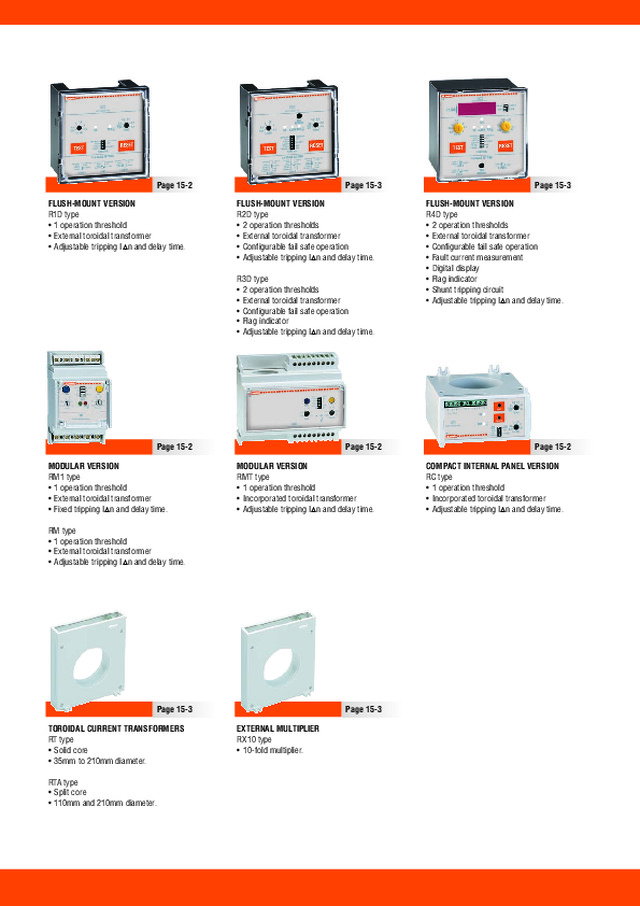

Page 15-3 Page 15-2 FLUSH-MOUNT VERSION R1D type 1 operation threshold External toroidal transformer Adjustable tripping IDn and delay time. FLUSH-MOUNT VERSION R2D type 2 operation thresholds External toroidal transformer Configurable fail safe operation Adjustable tripping IDn and delay time. R3D type 2 operation thresholds External toroidal transformer Configurable fail safe operation Flag indicator Adjustable tripping IDn and delay time. Page 15-2 MODULAR VERSION RM1 type 1 operation threshold External toroidal transformer Fixed tripping IDn and delay time. Page 15-2 MODULAR VERSION RMT type 1 operation threshold Incorporated toroidal transformer Adjustable tripping IDn and delay time. RM type 1 operation threshold External toroidal transformer Adjustable tripping IDn and delay time. Page 15-3 TOROIDAL CURRENT TRANSFORMERS RT type Solid core 35mm to 210mm diameter. RTA type Split core 110mm and 210mm diameter. Page 15-3 EXTERNAL MULTIPLIER RX10 type 10-fold multiplier. Page 15-3 FLUSH-MOUNT VERSION R4D type 2 operation thresholds External toroidal transformer Configurable fail safe operation Fault current measurement Digital display Flag indicator Shunt tripping circuit Adjustable tripping IDn and delay time. Page 15-2 COMPACT INTERNAL PANEL VERSION RC type 1 operation threshold Incorporated toroidal transformer Adjustable tripping IDn and delay time. 15 EARTH LEAKAGE RELAYS Modular, flush and internal panel mount version, with or without flag indicator, configurable...
