Lovato electric: Electromechanical Starters

Published: 23 May 2013 · Category: Product Catalogues

From this document

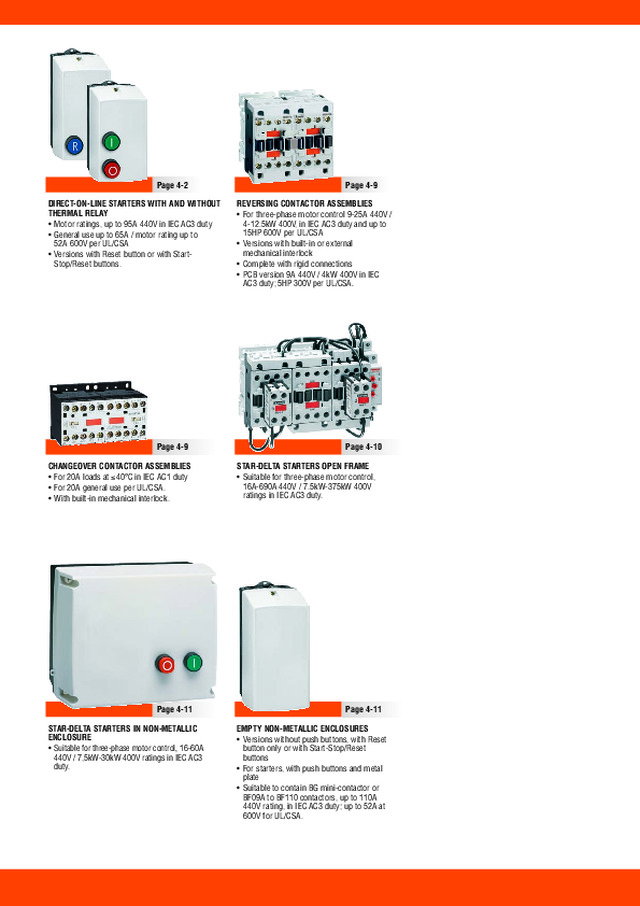

Page 4-2 DIRECT-ON-LINE STARTERS WITH AND WITHOUT THERMAL RELAY Motor ratings, up to 95A 440V in IEC AC3 duty General use up to 65A / motor rating up to 52A 600V per UL/CSA Versions with Reset button or with StartStop/Reset buttons. Page 4-9 CHANGEOVER CONTACTOR ASSEMBLIES For 20A loads at 40C in IEC AC1 duty For 20A general use per UL/CSA. With built-in mechanical interlock. Page 4-11 STAR-DELTA STARTERS IN NON-METALLIC ENCLOSURE Suitable for three-phase motor control, 16-60A 440V / 7,5kW-30kW 400V ratings in IEC AC3 duty. Page 4-9 REVERSING CONTACTOR ASSEMBLIES For three-phase motor control 9-25A 440V / 4-12.5kW 400V, in IEC AC3 duty and up to 15HP 600V per UL/CSA Versions with built-in or external mechanical interlock Complete with rigid connections PCB version 9A 440V / 4kW 400V in IEC AC3 duty; 5HP 300V per UL/CSA. Page 4-10 STAR-DELTA STARTERS OPEN FRAME Suitable for three-phase motor control, 16A-690A 440V / 7.5kW-375kW 400V ratings in IEC AC3 duty. Page 4-11 EMPTY NON-METALLIC ENCLOSURES Versions without push buttons, with Reset button only or with Start-Stop/Reset buttons For starters, with push buttons and metal plate Suitable to contain BG mini-contactor or BF09A to BF110 contactors, up to 110A 440V rating, in IEC AC3 duty; up to 52A at 600V for UL/CSA. 4 ELECTROMECHANICAL STARTERS Direct-on-line starters in non-metallic enclosure complete with or without thermal relay Versions with RESET or START/STOP push buttons Non-metallic enclosures for customer-assembled...
