Lovato electric: fuse holders and fuses

Published: 23 May 2013 Category: Product Catalogues

Topics

Control

Legrand

Lovato electric: fuse holders and fuses

Published: 23 May 2013 · Category: Product Catalogues

From this document

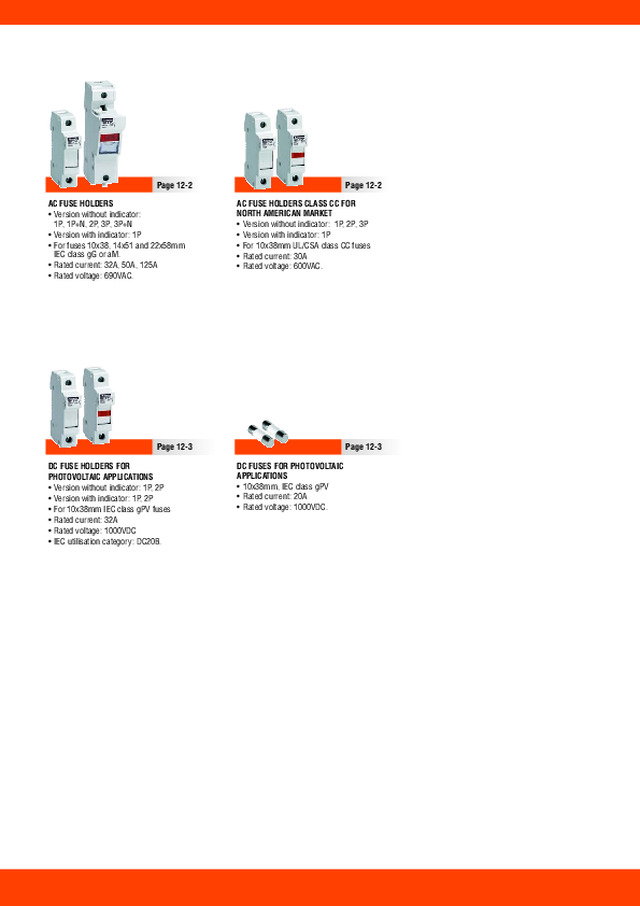

Page 12-2 Page 12-2 AC FUSE HOLDERS • Version without indicator: 1P, 1P+N, 2P, 3P, 3P+N • Version with indicator: 1P • For fuses 10x38, 14x51 and 22x58mm IEC class gG or aM. • Rated current: 32A, 50A, 125A • Rated voltage: 690VAC. AC FUSE HOLDERS CLASS CC FOR NORTH AMERICAN MARKET • Version without indicator: 1P, 2P, 3P • Version with indicator: 1P • For 10x38mm UL/CSA class CC fuses • Rated current: 30A • Rated voltage: 600VAC. Page 12-3 Page 12-3 DC FUSE HOLDERS FOR PHOTOVOLTAIC APPLICATIONS • Version without indicator: 1P, 2P • Version with indicator: 1P, 2P • For 10x38mm IEC class gPV fuses • Rated current: 32A • Rated voltage: 1000VDC • IEC utilisation category: DC20B. DC FUSES FOR PHOTOVOLTAIC APPLICATIONS • 10x38mm, IEC class gPV • Rated current: 20A • Rated voltage: 1000VDC. 12 FUSE HOLDERS Modular size for 10x38, 14x51 and 22x58mm fuses Finger safe - IP20 IEC degree of protection against accidental contact with live parts and with sealable cover for operators’ safety Version with status indicator to quickly determine if the fuse is still operative or needs to be replaced UL and CSA certified versions. Fuse holders AC fuse holders................................................................................................................................................................. DC fuse holders for photovoltaic applications .................................................................................................................. SEC. - PAGE 12 - 2 12...
