Lovato electric: Limit, Micro and Foot Switches

Published: 23 May 2013 · Category: Product Catalogues

From this document

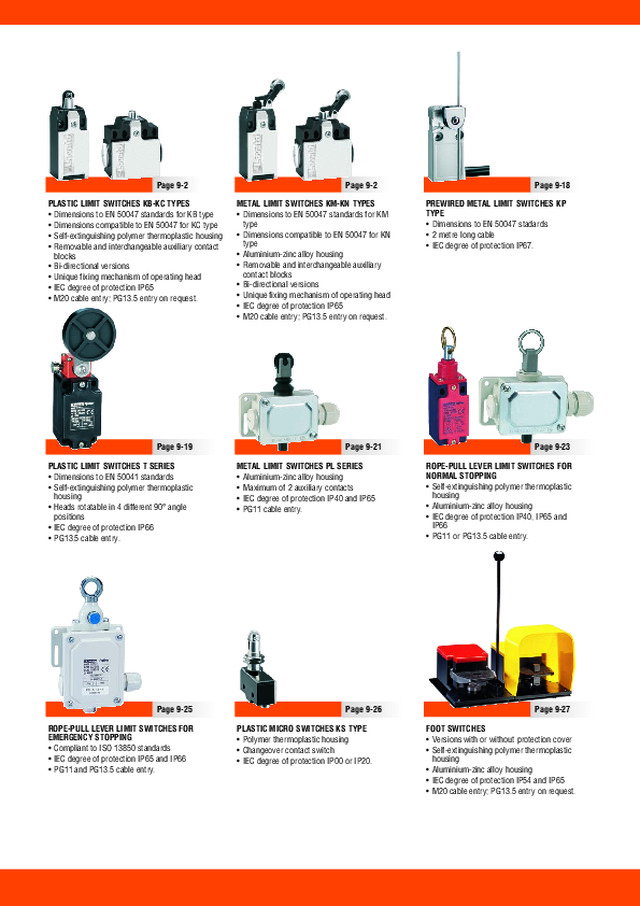

Page 9-2 PLASTIC LIMIT SWITCHES KB-KC TYPES • Dimensions to EN 50047 standards for KB type • Dimensions compatible to EN 50047 for KC type • Self-extinguishing polymer thermoplastic housing • Removable and interchangeable auxiliary contact blocks • Bi-directional versions • Unique fixing mechanism of operating head • IEC degree of protection IP65 • M20 cable entry; PG13.5 entry on request. Page 9-19 PLASTIC LIMIT SWITCHES T SERIES • Dimensions to EN 50041 standards • Self-extinguishing polymer thermoplastic housing • Heads rotatable in 4 different 90° angle positions • IEC degree of protection IP66 • PG13.5 cable entry. Page 9-25 ROPE-PULL LEVER LIMIT SWITCHES FOR EMERGENCY STOPPING • Compliant to ISO 13850 standards • IEC degree of protection IP65 and IP66 • PG11 and PG13.5 cable entry. Page 9-2 METAL LIMIT SWITCHES KM-KN TYPES • Dimensions to EN 50047 standards for KM type • Dimensions compatible to EN 50047 for KN type • Aluminium-zinc alloy housing • Removable and interchangeable auxiliary contact blocks • Bi-directional versions • Unique fixing mechanism of operating head • IEC degree of protection IP65 • M20 cable entry; PG13.5 entry on request. Page 9-21 METAL LIMIT SWITCHES PL SERIES • Aluminium-zinc alloy housing • Maximum of 2 auxiliary contacts • IEC degree of protection IP40 and IP65 • PG11 cable entry. Page 9-26 PLASTIC MICRO SWITCHES KS TYPE • Polymer thermoplastic housing • Changeover contact switch • IEC degree of protection IP00 or IP20. Page 9-18 PREWIRED...
