Lovato electric: modular contactors

Published: 23 May 2013 · Category: Product Catalogues

From this document

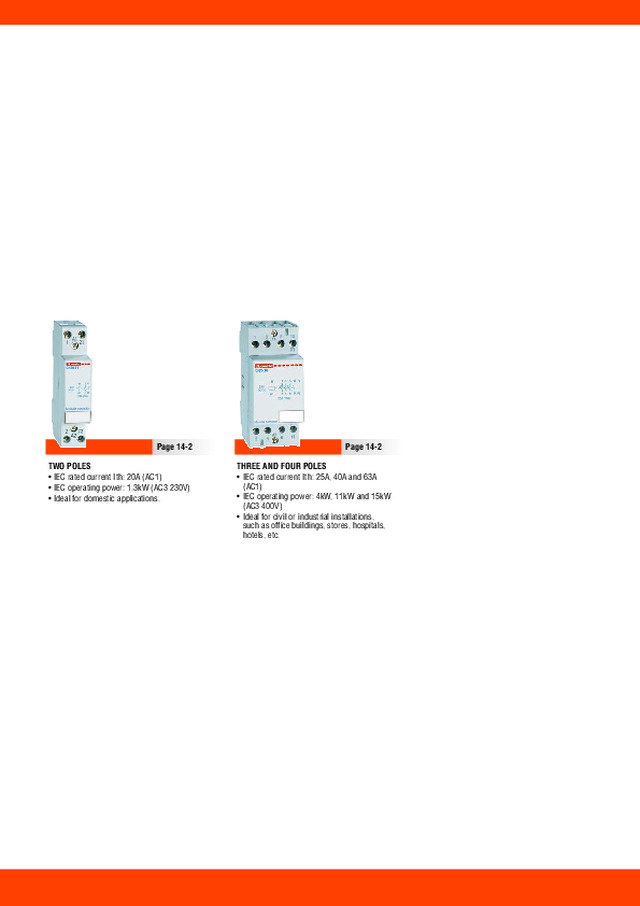

Page 14-2 TWO POLES IEC rated current Ith: 20A (AC1) IEC operating power: 1.3kW (AC3 230V) Ideal for domestic applications. Page 14-2 THREE AND FOUR POLES IEC rated current Ith: 25A, 40A and 63A (AC1) IEC operating power: 4kW, 11kW and 15kW (AC3 400V) Ideal for civil or industrial installations, such as office buildings, stores, hospitals, hotels, etc. 14 MODULAR CONTACTORS Two, three and four-pole versions, 20A to 63A Very silent during operation or control stage Operation flag indicator Add-on auxiliary contacts. Modular contactors Contactors ........................................................................................................................................................................ Add-on blocks and accessories .......................................................................................................................................... SEC. - PAGE 14 - 2 14 - 3 C IRCUIT PROTECTION AND I SOLATION Dimensions ................................................................................................................. 14 - 4 Wiring diagrams ........................................................................................................... 14 - 4 Technical characteristics ................................................................................................. 14 - 5 Modular contactors CN contactors Order code Rated auxiliary supply voltage Configura- Qty tion and n per of contacts pkg [V] NO NC n Wt [kg] One or...
