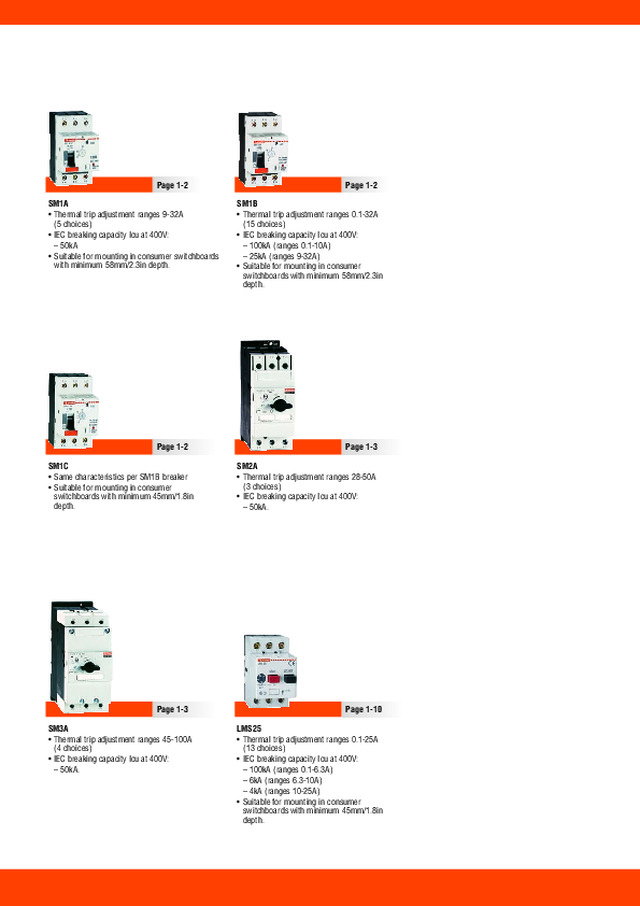

Page 1-2 SM1A Thermal trip adjustment ranges 9-32A (5 choices) IEC breaking capacity Icu at 400V: 50kA Suitable for mounting in consumer switchboards with minimum 58mm/2.3in depth. Page 1-2 SM1B Thermal trip adjustment ranges 0.1-32A (15 choices) IEC breaking capacity Icu at 400V: 100kA (ranges 0.1-10A) 25kA (ranges 9-32A) Suitable for mounting in consumer switchboards with minimum 58mm/2.3in depth. Page 1-2 Page 1-3 SM1C Same characteristics per SM1B breaker Suitable for mounting in consumer switchboards with minimum 45mm/1.8in depth. SM2A Thermal trip adjustment ranges 28-50A (3 choices) IEC breaking capacity Icu at 400V: 50kA. Page 1-3 Page 1-10 SM3A Thermal trip adjustment ranges 45-100A (4 choices) IEC breaking capacity Icu at 400V: 50kA. LMS25 Thermal trip adjustment ranges 0.1-25A (13 choices) IEC breaking capacity Icu at 400V: 100kA (ranges 0.1-6.3A) 6kA (ranges 6.3-10A) 4kA (ranges 10-25A) Suitable for mounting in consumer switchboards with minimum 45mm/1.8in depth. 1 MOTOR PROTECTION CIRCUIT BREAKERS Wide adjustment range 0.1 to 100A IEC breaking capacity Icu 50kA (400V) up to 100A Suitable for isolation Comprehensive line of accessories Front mount contacts Automatic trip indicators High reliability and accuracy of tripping. Breakers SM1A, SM1B and SM1C ...................................................................................................................................... Breakers SM2A and SM3A...
