Lovato electric: pushbuttons and selector switches

Published: 23 May 2013 Category: Product Catalogues

Topics

Control

Legrand

Lovato electric: pushbuttons and selector switches

Published: 23 May 2013 · Category: Product Catalogues

From this document

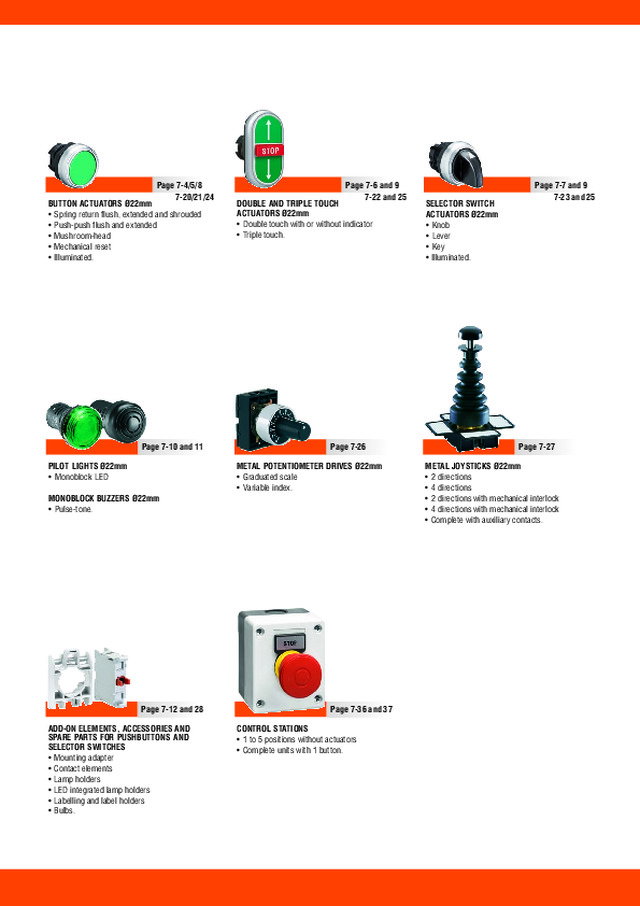

Page 7-4/5/8 7-20/21/24 BUTTON ACTUATORS Ø22mm • Spring return flush, extended and shrouded • Push-push flush and extended • Mushroom-head • Mechanical reset • Illuminated. Page 7-10 and 11 Page 7-6 and 9 7-22 and 25 DOUBLE AND TRIPLE TOUCH ACTUATORS Ø22mm • Double touch with or without indicator • Triple touch. Page 7-26 METAL POTENTIOMETER DRIVES Ø22mm • Graduated scale • Variable index. PILOT LIGHTS Ø22mm • Monoblock LED MONOBLOCK BUZZERS Ø22mm • Pulse-tone. Page 7-12 and 28 ADD-ON ELEMENTS, ACCESSORIES AND SPARE PARTS FOR PUSHBUTTONS AND SELECTOR SWITCHES • Mounting adapter • Contact elements • Lamp holders • LED integrated lamp holders • Labelling and label holders • Bulbs. Page 7-36 and 37 CONTROL STATIONS • 1 to 5 positions without actuators • Complete units with 1 button. SELECTOR SWITCH ACTUATORS Ø22mm • Knob • Lever • Key • Illuminated. Page 7-7 and 9 7-23 and 25 Page 7-27 METAL JOYSTICKS Ø22mm • 2 directions • 4 directions • 2 directions with mechanical interlock • 4 directions with mechanical interlock • Complete with auxiliary contacts. 7 PUSHBUTTONS AND SELECTOR SWITCHES Simple and snap on installation Highly conductive contacts High degree of protection per IEC IP66, IP67, IP69K and UL type 4X Contact operation: double breaking action, direct opening operation and self cleaning. series Pushbutton actuators, spring return ................................................................................................................................ Push-push...
