Lovato electric: rotary cam switches

Published: 23 May 2013 · Category: Product Catalogues

From this document

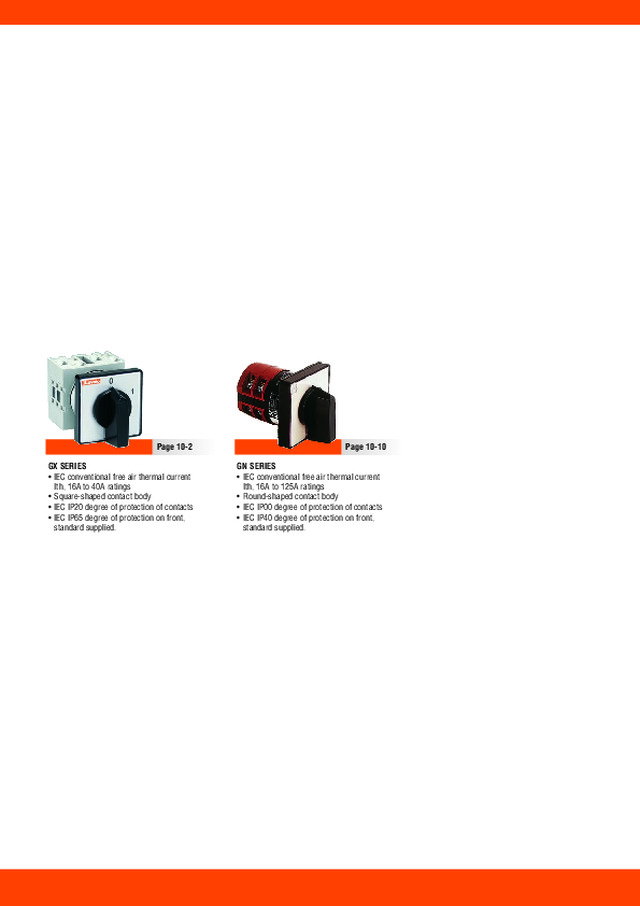

Page 10-2 Page 10-10 GX SERIES IEC conventional free air thermal current Ith, 16A to 40A ratings Square-shaped contact body IEC IP20 degree of protection of contacts IEC IP65 degree of protection on front, standard supplied. GN SERIES IEC conventional free air thermal current Ith, 16A to 125A ratings Round-shaped contact body IEC IP00 degree of protection of contacts IEC IP40 degree of protection on front, standard supplied. 10 ROTARY CAM SWITCHES Suitable for circuit connection, changeover, switching on and off as well as motor starting Possibility of special circuit schemes IEC IP40 or IP65 front degree of protection 2-screw fixing Wide range of features. Front mount versions On/Off switches. U version, front mount .................................................................................................................. Changeover switches with or without O (OFF). U version, front mount ..................................................................... Motor switches. U version, front mount .................................................................................................................. Voltemeter switches. Ammeter switches. U version, front mount ............................................................................. On/Off switches. U11 version, front mount with handle operation for 22mm central fixing ........................................ On/Off switches. U12 version, front mount with key operation for 22mm central fixing...
