Lovato electric: signal towers and beacons

Published: 23 May 2013 · Category: Product Catalogues

From this document

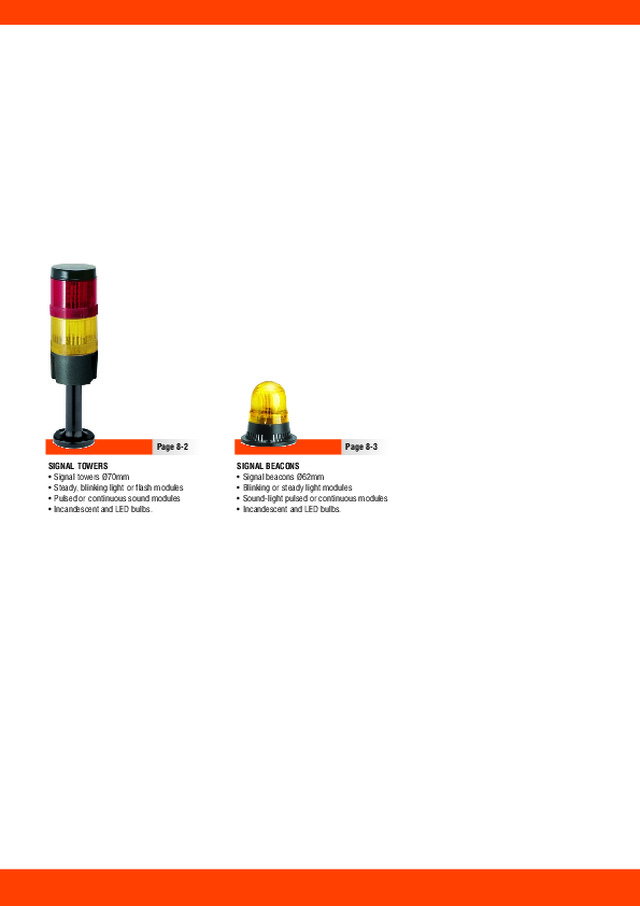

Page 8-2 SIGNAL TOWERS • Signal towers Ø70mm • Steady, blinking light or flash modules • Pulsed or continuous sound modules • Incandescent and LED bulbs. Page 8-3 SIGNAL BEACONS • Signal beacons Ø62mm • Blinking or steady light modules • Sound-light pulsed or continuous modules • Incandescent and LED bulbs. 8 SIGNAL TOWERS AND BEACONS Signal towers Ø70mm Modular and combinations up to 7 modules Steady or blinking light, pulsed or continuous sound modules. Signal beacons Ø62mm Steady or blinking light, pulsed or continuous sound modules. SEC. - PAGE Signal towers Ø70mm .................................................................................................................................................... Signal beacons Ø62mm ................................................................................................................................................... Accessorios ..................................................................................................................................................................... 8 - 2 8 - 3 8 - 4 Dimensions ................................................................................................................. Wiring diagrams ........................................................................................................... 8 - 6 8 - 7 C ONTROL AND S IGNALLING Signal towers and beacons Signal towers and beacons Signal towers Ø70mm Order code Description Qty per Wt pkg n° [kg]...
