Lovato electric: Soft starters

Published: 23 May 2013 · Category: Product Catalogues

From this document

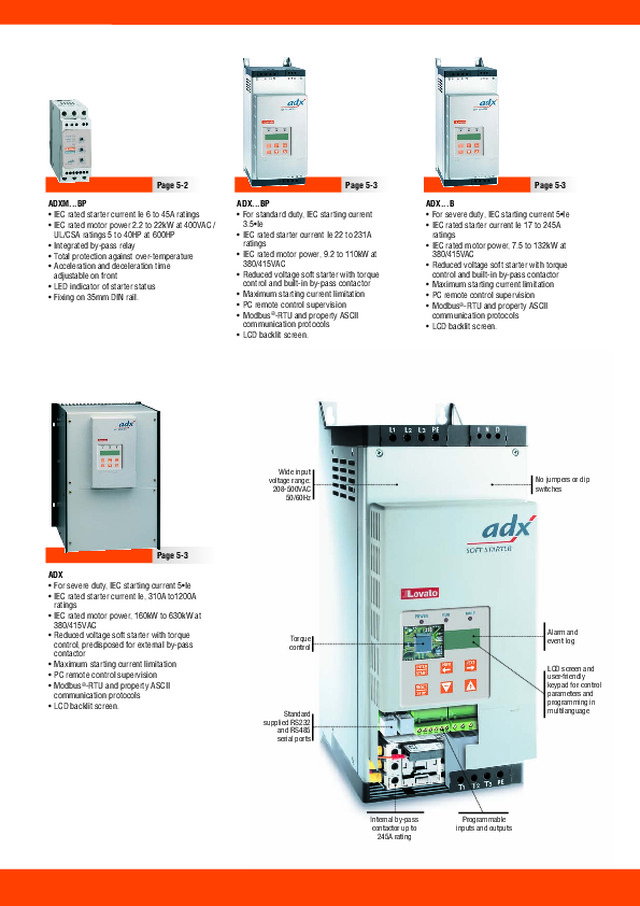

Page 5-3 Page 5-3 ADX...BP • For standard duty, IEC starting current 3.5•Ie • IEC rated starter current Ie 22 to 231A ratings • IEC rated motor power, 9.2 to 110kW at 380/415VAC • Reduced voltage soft starter with torque control and built-in by-pass contactor • Maximum starting current limitation • PC remote control supervision • Modbus®-RTU and property ASCII communication protocols • LCD backlit screen. ADX...B • For severe duty, IEC starting current 5•Ie • IEC rated starter current Ie 17 to 245A ratings • IEC rated motor power, 7.5 to 132kW at 380/415VAC • Reduced voltage soft starter with torque control and built-in by-pass contactor • Maximum starting current limitation • PC remote control supervision • Modbus®-RTU and property ASCII communication protocols • LCD backlit screen. Page 5-2 ADXM...BP • IEC rated starter current Ie 6 to 45A ratings • IEC rated motor power 2.2 to 22kW at 400VAC / UL/CSA ratings 5 to 40HP at 600HP • Integrated by-pass relay • Total protection against over-temperature • Acceleration and deceleration time adjustable on front • LED indicator of starter status • Fixing on 35mm DIN rail. Wide input voltage range: 208-500VAC 50/60Hz No jumpers or dip switches Page 5-3 ADX • For severe duty, IEC starting current 5•Ie • IEC rated starter current Ie, 310A to1200A ratings • IEC rated motor power, 160kW to 630kW at 380/415VAC • Reduced voltage soft starter with torque control, predisposed for external by-pass contactor • Maximum starting current...
