Lovato electric: surge protection devices

Published: 23 May 2013 · Category: Product Catalogues

From this document

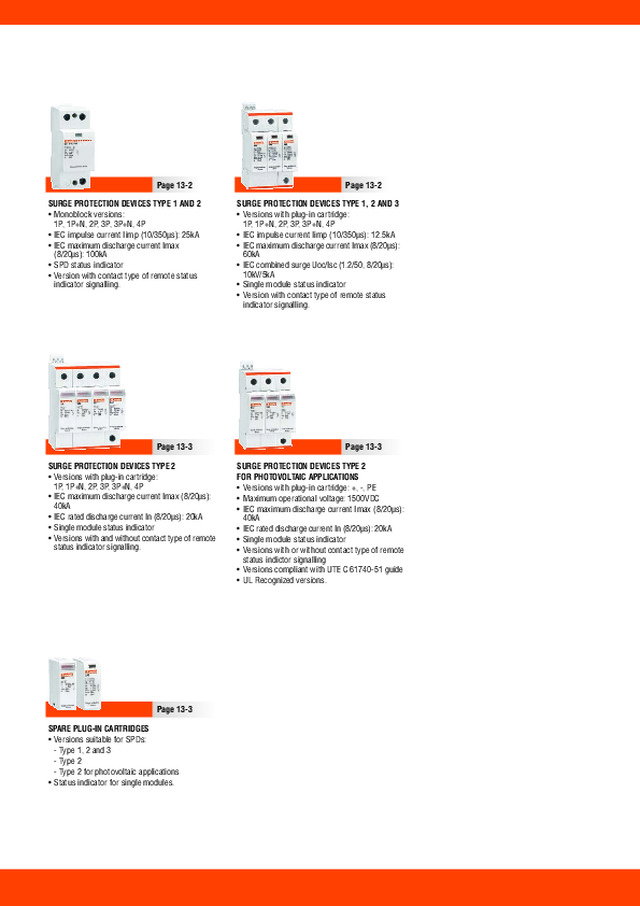

Page 13-2 SURGE PROTECTION DEVICES TYPE 1 AND 2 • Monoblock versions: 1P, 1P+N, 2P, 3P, 3P+N, 4P • IEC impulse current Iimp (10/350µs): 25kA • IEC maximum discharge current Imax (8/20µs): 100kA • SPD status indicator • Version with contact type of remote status indicator signalling. Page 13-3 SURGE PROTECTION DEVICES TYPE 2 • Versions with plug-in cartridge: 1P, 1P+N, 2P, 3P, 3P+N, 4P • IEC maximum discharge current Imax (8/20µs): 40kA • IEC rated discharge current In (8/20µs): 20kA • Single module status indicator • Versions with and without contact type of remote status indicator signalling. Page 13-3 SPARE PLUG-IN CARTRIDGES • Versions suitable for SPDs: - Type 1, 2 and 3 - Type 2 - Type 2 for photovoltaic applications • Status indicator for single modules. Page 13-2 SURGE PROTECTION DEVICES TYPE 1, 2 AND 3 • Versions with plug-in cartridge: 1P, 1P+N, 2P, 3P, 3P+N, 4P • IEC impulse current Iimp (10/350µs): 12.5kA • IEC maximum discharge current Imax (8/20µs): 60kA • IEC combined surge Uoc/Isc (1.2/50, 8/20µs): 10kV/5kA • Single module status indicator • Version with contact type of remote status indicator signalling. Page 13-3 SURGE PROTECTION DEVICES TYPE 2 FOR PHOTOVOLTAIC APPLICATIONS • Versions with plug-in cartridge: +, -, PE • Maximum operational voltage: 1500VDC • IEC maximum discharge current Imax (8/20µs): 40kA • IEC rated discharge current In (8/20µs): 20kA • Single module status indicator • Versions with or without contact type of remote status indictor...

Open the PDF
