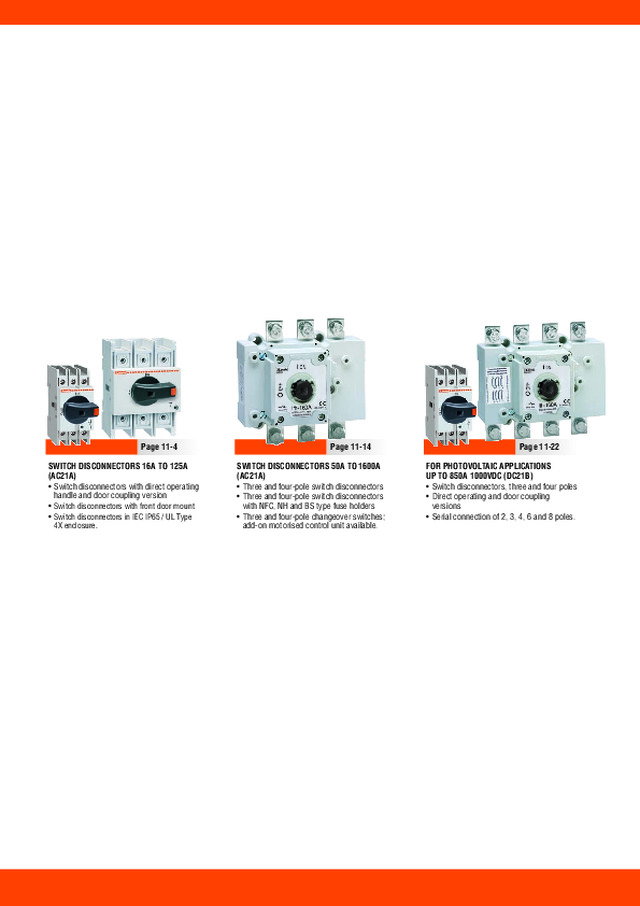

Page 11-4 SWITCH DISCONNECTORS 16A TO 125A (AC21A) Switch disconnectors with direct operating handle and door coupling version Switch disconnectors with front door mount Switch disconnectors in IEC IP65 / UL Type 4X enclosure. Page 11-14 SWITCH DISCONNECTORS 50A TO 1600A (AC21A) Three and four-pole switch disconnectors Three and four-pole switch disconnectors with NFC, NH and BS type fuse holders Three and four-pole changeover switches; add-on motorised control unit available. Page 11-22 FOR PHOTOVOLTAIC APPLICATIONS UP TO 850A 1000VDC (DC21B) Switch disconnectors, three and four poles Direct operating and door coupling versions Serial connection of 2, 3, 4, 6 and 8 poles. 11 SWITCH DISCONNECTORS 16A to 1600A ratings Versions: direct operating handle, door coupling and in housing Wide range of accessories Types for photovoltaic applications up to 1250A. GA series 16A to 125A Three-pole switch disconnectors ............................................................................................................................................ Fourth pole add on..................................................................................................................................................................... Add-on blocks and accessories ............................................................................................................................................... Switch disconnectors in enclosure...
