Lovato electric: switching power supplies

Published: 23 May 2013 · Category: Product Catalogues

From this document

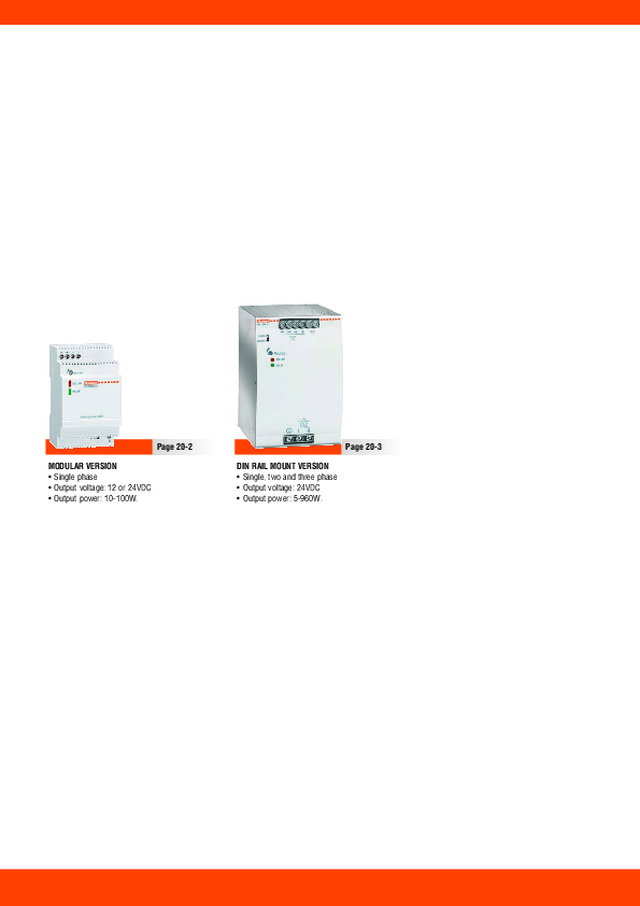

Page 20-2 MODULAR VERSION • Single phase • Output voltage: 12 or 24VDC • Output power: 10-100W. Page 20-3 DIN RAIL MOUNT VERSION • Single, two and three phase • Output voltage: 24VDC • Output power: 5-960W. 20 SWITCHING POWER SUPPLIES Versions: modular and 35mm DIN rail mount Output voltage adjustment by front potentiometer Short-circuit protection Built-in input voltage surge suppressor Used as power supply for DC electromechanical and electronic equipment. Modular switching power supplies Single phase ...................................................................................................................................................................... SEC. - PAGE 20 - 2 Switching power supplies Single phase ...................................................................................................................................................................... Two phase ......................................................................................................................................................................... Three phase ...................................................................................................................................................................... 20 - 3 20 - 3 20 - 3 A UTOMATION AND C ONTROL Dimensions ................................................................................................................. 20 - 4 Wiring diagrams...
