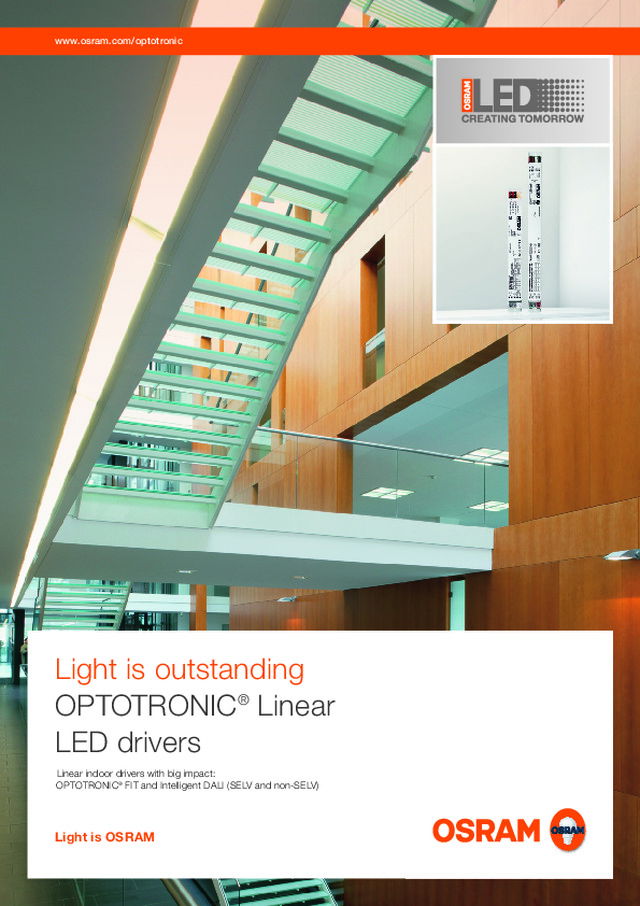

Light is outstanding OPTOTRONIC® Linear LED drivers

Linear indoor drivers with big impact: OPTOTRONIC® FIT and Intelligent DALI (SELV and non-SELV)

www.osram.com/optotronic Light is outstanding OPTOTRONIC ® Linear LED drivers Linear indoor drivers with big impact: OPTOTRONIC ® FIT and Intelligent DALI (SELV and non-SELV) Light is OSRAM

Excellent reasons to chooseOPTOTRONIC ® drivers With our OPTOTRONIC ® drivers, users beneﬁ t from high-performance products that are characterized by high quality, ﬂ exibility, reliability and efﬁ ciency: 1. Maximum reliability thanks to long experience: Re-use of know-how from well-proven OSRAM ECGs (electronic control gears) such as HALOTRONIC ® , POWERTRONIC ® and QUICKTRONIC ® . 2. High energy efﬁ ciency: Up to 92 % (full load) and further energy saving with proprietary OSRAM light management systems (LMS). 3. Freedom of design: Small form factors similar to ECGs for traditional lamps, SELV and non-SELV drivers for maxi-mum ﬂ exibility in luminaire design. 4. Flexibility of application: Suitable for PrevaLED ® modules and other modules available in the market. 5. Wide product portfolio: Various product families, win- dow drivers, dimmable products and different wattages. Future-proof solutionsUsing OPTOTRONIC ® drivers not only means using durable, high-performance products but also staying ﬂ exible in terms of future application: OPTOTRONIC ® drivers can be perfectly adjusted for their respective tasks and, if required, also be optimized by means of top-quality additional components such as OSRAM LMS. OPTOTRONIC ® Linear | Introduction 2

OPTOTRONIC ® Linear LED drivers OPTOTRONIC ® Linear drivers are the perfect solution for a wide variety of luminaire types and applications. Developed for linear light applications such as ofﬁ ce or industry lighting, the OPTOTRONIC ® Linear drivers offer you maximum ﬂ exibility in the design of all your LED-based luminaires – no matter if you need SELV or non-SELV drivers. Designed for the needs of your customer! Main beneﬁ ts at a glance — Extensive portfolio of easy-to-use solutions: two product families with wide dimming range or on/off with selectable output current — SELV and non-SELV versions: many possible combinations with any LED module — Easy LED retroﬁ t of traditional luminaires as well as integra-tion into new LED luminaires thanks to the 30 x 21 mm housing of all devices — High level of efﬁ ciency, reliability and safety — Fully programmable and digital platform – see OPTOTRONIC ® Intelligent DALI on pages 8 ff. OPTOTRONIC ® Linear | Introduction 3 OPTOTRONIC ® Linear driver portfolio Fixed output: OPTOTRONIC ® FIT Dimmable (DALI): OPTOTRONIC ® Intelligent (SELV) Dimmable (DALI): OPTOTRONIC ® Intelligent (non-SELV) Dimming Comfort dimming AM+PWM Lowest dimming level 1 % 1 % DALI DT6 Touch DIM ® /Touch DIM ® Sensor Corridor function DC operation Emergency lighting Fixed DC level Adjustable DC level (by software) (by software) Output Fixed output value Adjustable (LEDset2) Via resistor Current tolerances [%] ≤ 20 ≤ 5 ≤ 5 Maximum output voltage [V] ≤ 60, isolated ≤ 60, isolated 250 Function and performances Overtemperature protection Energy efficiency up to 87 % up to 90 % up to 92 % CLO Stand-by losses [W] 0.5 0.3 Input voltage range [V] 220–240 220–240 220–240 Lifetime [h] 100000 100000 100000 T a range [°C] -25…+50 -25…+50 -25…+50 Suitable for luminaire class I I I According to IEC 61347-2-3 Operating at 10 °C lower than max. T c , maximum failure rate of 10 % AM = Amplitude Modulation PWM = Pulse Width Modulation DT6 = DALI Device Type 6 CS = Current Setting CLO = Constant Lumen Output

OPTOTRONIC ® Linear | Introduction 4 OPTOTRONIC ® FIT High reliability and innovative features for cost-effective solutions OPTOTRONIC ® Intelligent DALI Maximum performance and ﬂ exibility (SELV and non-SELV) for energy-saving applications OTi DALI OT FIT Our OPTOTRONIC ® Linear portfolio OSRAM is proud to present: Linear drivers that meet all your requirements

OPTOTRONIC ® Linear | Introduction 5 Where can OPTOTRONIC ® Linear drivers be used? Floor-standing uplights (free-standing) Recessed luminaires Suspended luminaires Wall and ceiling luminaires (linear) Trunking systems and batten luminaires Damp- and water-proof luminaires Surface-mounted luminaires Application areas — Ofﬁ ces, e.g. small or open-plan ofﬁ ces, meeting rooms, reception areas — Public buildings, e.g. hospitals, universities, schools and gyms — Industry, e.g. production or logistics areas — Retail, e.g. big retail outlets, food and non-food areas

OPTOTRONIC ® Linear | Introduction 6 Product family and dimmingOT FIT: OPTOTRONIC ® FIT OTi DALI: OPTOTRONIC ® Intelligent DALI Nomenclature and marking (example) OTi DALI 90/ 220-240 / 1A0 LT2 L Form factorL: Linear Control (current)CS: Current settingLT2: LEDset2 Output current (max.)700: 700 mA1A0: 1000 mA1A4: 1400 mA1A6: 1600 mA2A1: 2100 mA Supply voltage220-240: 220-240 V Power (out) 35: 35 W50: 50 W80: 80 W90: 90 W GuaranteeOSRAM is committed to the high quality of its products. Therefore, OSRAM offers a guarantee for dedicated OPTOTRONIC ® drivers, replacing drivers that fail during the guarantee period. The following guarantee periods apply to the OPTOTRONIC ® Linear drivers: OPTOTRONIC ® FIT 5 years OPTOTRONIC ® Intelligent DALI 5 years All details on relevant guarantees and the general requirements can be found at: www.osram.com/guarantee Guarantee and product identiﬁ cation Applicable guarantee periods and OSRAM nomenclature/marking 5 Year OSRAM Guarantee Annual operating time of no more than 5 000 hours per year, not exceeding max. allowed T c temperature For detailed power values, please see product data sheet (www.osram.com)

7 OPTOTRONIC ® Linear | OT FIT Multiple current settingEach OPTOTRONIC ® FIT driver offers three selectable currents. The main advantage of multiple current setting is the reduction of the number of different product versions in the warehouse. Furthermore, steps between currents are kept small, avoiding any need for LED drivers with intermediate currents. Features of the current setting — CS (current setting) of OT FIT offers the easiest way to choose the output currents without the need for resistors and to avoid typical mistakes when using dip switches — Each product offers at least one typical current used in the market and will give you the possibility to reduce the current when LEDs will become even more efﬁ cient OPTOTRONIC ® FIT High reliability and innovative features for cost-effective solutions Technical data Product reference Product number LxWxH (mm) I out (mA) V out P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation OT FIT 80/220- 240/1A6 CS L 4052899032781 360x30x21 1200/1400/ 1550 27-54 32-83 ≥ 87 -25…50 75/65 50k/100k 10 SELV OT FIT 50/220- 240/1A0 CS L 4052899032804 280x30x21 800/925/ 1050 27-54 23-55 ≥ 86 -25…50 75/65 50k/100k 10 SELV OT FIT 35/220- 240/700 CS L 4052899032828 280x30x21 500/600/ 700 27-54 13-35 ≥ 86 -25…50 75/65 50k/100k 10 SELV Product features — Three selectable output currents (CS = current setting), double output connector for simpliﬁ ed wiring — Suitable for class I luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50 °C — Overtemperature, overload, short/open circuit and wrong-mains protection — Low ripple of output current ( 10 at 100 Hz (%)) for a higher quality of light (e.g. no ﬂ ickering on video recording) — Suitable for emergency lighting systems with central battery according to IEC 61347-2-3 OPTOTRONIC ® FIT (OT FIT) driver OT FIT 1000 1500 2000 Current [mA] 500 OPTOTRONIC ® FIT operating range Voltage [V] 0 10 40 25 OT FIT 80/220-240/1A6 CS L OT FIT 50/220-240/1A0 CS L OT FIT 35/220-240/700 CS L Example: OT FIT 50/220-240/1A0 CS L: Voltage: 27–54 VCurrent: 800/925/1050 mA EL Operating at 10 °C lower than max. T c , maximum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 % For detailed data, please see product data sheet (www.osram.com)

OPTOTRONIC ® Linear | OTi DALI 8 Product features — Window driver with adjustable output current via resistor, DALI or self-setting in combination with LEDset2 — Suitable for class I luminaires — Lifetime of up to 100 000 hours and high ambient temperature of up to +50 °C — Overtemperature, overload, short/open circuit and wrong-mains protection — Stepless and color-consistent dimming with DALI (from 100 % to 1 %, hybrid dimming) — Programmable features: CLO (constant lumen output), corridor function, Touch DIM ® (Sensor), emergency lighting — Suitable for emergency lighting systems with central battery according to IEC 61347-2-3 OPTOTRONIC ® Intelligent DALI Maximum performance and ﬂ exibility (SELV and non-SELV) for energy-saving applications OPTOTRONIC ® Intelligent (OTi) DALI driver OTi DALI Technical data Product reference Product number LxWxH (mm) I out (mA) V out P out (W) Eff. max. (%) T a (°C) T c (°C) Lifetime (h) I out accur. (%) Isolation OTi DALI 80/220- 240/2A1 LT2 L 4052899028050 360x30x21 1000-2100 27-54 32-80 ≥ 90 -25…50 80/70 50k/100k 5 SELV OTi DALI 80/220- 240/1A6 LT2 L 4052899028074 360x30x21 600-1600 27-54 32-80 ≥ 90 -25…50 80/70 50k/100k 5 SELV OTi DALI 50/220- 240/1A4 LT2 L 4052899028098 360x30x21 600-1400 27-54 20-54 ≥ 88 -25…50 75/65 50k/100k 5 SELV OTi DALI 90/220- 240/1A0 LT2 L 4008321867568 280x30x21 250-1000 54-240 1.5-90 ≥ 92 -25…50 75/65 50k/100k 5 Non-SELV EL DALI DALI DALI DALI CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID Operating at 10 °C lower than max. T c , maxi- mum failure rate of 10 % At corresponding T c temperature, maximum failure rate of 10 %

OPTOTRONIC ® Linear | OTi DALI 9 1000 400 600 800 1000 1500 2000 Current [mA] Current [mA] 500 200 0 OPTOTRONIC ® Intelligent operating range (SELV) OPTOTRONIC ® Intelligent operating range (non-SELV) Voltage [V] 20 0 50 100 150 200 250 Voltage [V] 30 40 50 OTi DALI 80/220-240/2A1 LT2 L OTi DALI 80/220-240/1A6 LT2 L OTi DALI 50/220-240/1A4 LT2 L OTi DALI 90/220-240/1A0 LT2 L Example: OTi DALI 80/220-240/2A1 LT2 L: Voltage: 27–54 VCurrent: 1000 –2100 mA Example: OTi DALI 90/220-240/1A0 LT2 L: Voltage: 54–240 VCurrent: 250–1000 mA Individual DALI programmingOTi DALI Linear drivers offer wide operating windows and thus ensure a high degree of ﬂ exibility. Therefore, LED gener-ation upgrades can be easily managed, allowing for future-proof solutions, and the number of different product versions in the warehouse can be reduced. Adjustment of the current is possible in three different ways: — Programming by OSRAM software — Use of a simple resistor (LEDset2) — Automatic recognition via the LEDset2 interface when connected to PrevaLED ® or other LED modules Various operating windows are optimized for different general lighting applications and target lumen packages. Please ﬁ nd out more about the programming feature on page 10. For detailed data, please see product data sheet (www.osram.com) For detailed data, please see product data sheet (www.osram.com)

OPTOTRONIC ® Linear | OTi DALI 10 New ﬂ exibility thanks to programmable DALI LED driversThe DALI LED drivers of the second generation (DALI GII) allow for full digital programming via the DALI magic hard-ware and a speciﬁ c free OEM software: — OPTOTRONIC ® tool (for OEMs): Output current and constant lumen output — No need for an external resistor to set the current in case of digital programming — Settings can be locked to prevent unauthorized changes — DALI Wizard 2.1 software: All DALI settings plus the GII features (corridor function, Touch DIM ® conﬁ guration, “Fit for emergency”, monitoring etc.) For download of DALI Wizard 2.1, please go to: www.osram.com/software Fit for SMART GRIDThe DALI GII drivers can monitor the power consumption, the lamp operating hours (resettable) and the operating tem-perature of the driver. Additional advantage: “Fit for SMART GRID” can also provide better analysis of the lighting, thus ensuring safe operation of the system. Touch DIM ® function The Touch DIM ® function offers simple and cost-effective dimming of up to 20 drivers via commercially available switches or sensors. This allows free parameterization of the light value and the switch-on time via DALI Wizard 2.1 and DALI magic. Advantage: Dimming is cost-effective be-cause of the small number of components and can easily be implemented. In addition to the dimming effect, the Touch DIM ® Sensor function can automatically switch off the LED modules at a sufﬁ cient lighting level. This is controlled via light or presence detection and leads to a further increase of the energy savings. Corridor functionThe corridor function provides direct connection to commer-cially available motion sensors. A pre-installed program runs “out of the box” in the device. It can be individually adjusted via DALI magic and DALI Wizard 2.1. Three dimming levels and the associated overrun times can be adjusted individually as required. Advantage: Simple and energy-efﬁ cient lighting in application areas such as stairwells, corridors and parking blocks. Fit for emergency (according to IEC 61347-2-3)The driver can automatically switch to the emergency lighting mode. Alongside the system failure level (fractionation of the control line), used in accordance with the DALI standard, there is an optional automatic detection of the DC supply that sets a luminous ﬂ ux between 0 and 100 %. This variably adjustable luminous ﬂ ux value is protected from inadvertent overwriting by a locking bit. The operating range is 176–276 V with 0 Hz DC (pulsating). In DC mode, the thermal manage-ment can be disabled, i.e. the full power of lamps/LED mod-ules is available in case of an emergency. The DC mode also has higher priority than the system failure level. The setting can be carried out either via DALI Wizard 2.1 and DALI magic or within the Building Management System (BMS). The emergency mode can be switched on and off. If it is switched on, the AC mode will automatically be reimplemented without any additional device. CLO (constant lumen output)The CLO functionality is an essential part of OSRAM DALI LED drivers. Activating this function provides stable lighting conditions over the entire lifetime of LED modules. Year by year, the lumen output of LED modules decreases due to the loss of phosphoric components. In order to balance this out, the CLO function increases the output current smoothly over the entire lifetime of the modules – it typically starts with 85 % of the LED power. This not only ensures stable lighting but also saves energy and increases the lifetime of the LEDs. OPTOTRONIC ® Intelligent DALI Special OTi features go way beyond the normal DALI standard OTi DALI EL CLO CORRIDOR FUNCTION TOUCH DIM SENSOR SMART GRID

OPTOTRONIC ® Linear | OTi DALI 11 25 100 PWM 1 Luminous ﬂ ux [%] Amplitude modulation Hybrid dimming Output current [%] 0 50 Integral current value (PWM with ~ 500 Hz) LEDset 2nd Generation licensing programWith the experience gained from the LEDset technology and as a reaction to the growing demand of OEMs to introduce a standardized multi-vendor electrical interface for SSL sys-tems, OSRAM now presents an enhanced version of LEDset with plenty of new features: LEDset 2nd Generation. A smart electrical interface between the LED driver and the LED modules is the missing link essential to the maturity of the SSL components business. With the new licensing pro-gram for the LEDset 2nd Generation standardized electrical interface for SSL systems, OSRAM offers a technology that closes this link and fully matches the requirements: — Cost-efﬁ cient — Reliable — Easy and ready to use LEDset 2nd Generation is an analog 3-wire interface, includ-ing LED supply, allowing basic communication between an LED driver and one or more LED modules. The interface supports the following main functions: — Output current setting of constant-current drivers to sin-gle LED modules as well as to series/parallel-connected LED modules — Best matching of driver and modules working point (e.g. lm/W) — Self-conﬁ guration according to system structure, auto-matic tracking of technology development (future-proof) — Easy mode of operation (plug & play) — Additional monitoring and protection features (e.g. ther-mal protection of the LED modules) — Added value for OEMs: reliable TCO proposition, reduced structural costs Hybrid (comfort) dimming technologyOPTOTRONIC ® Intelligent DALI LED drivers are dimmable from 100 % to 1 %. In order to achieve optimum dimming, e.g. by ensuring that it is not visible and by avoiding strobo-scopic effects, OSRAM combines two dimming methods: amplitude modulation and pulse width modulation (PWM). From 100 % to 25 %, the drivers are dimmed by amplitude modulation. This is done by the adjustment of the current amplitude: the amplitude is decreased to dim the lighting down. The dimming levels between 1 % and 25 % are con-trolled by pulse width modulation (PWM). This combination offers the best way to ensure a smooth, non-ﬂ icker dimming behavior. For detailed data, please see product data sheet (www.osram.com)

OPTOTRONIC ® Linear | System solutions 12 System solutions with OSRAM OPTOTRONIC ® drivers and LED modules OSRAM always offers you the perfect match of light source and driver Optimum lighting does not only depend on the performance of the single components but also on the clever combination of these components to create a unique system solution. By combining OPTOTRONIC ® Linear drivers with PrevaLED ® modules from OSRAM, you can rest assured that you have found the perfect match for your lighting solution. OSRAM OPTOTRONIC ® drivers in combination with OSRAM LED modules offer you unique added value: — Perfect system match, tested by OSRAM — Simpliﬁ ed claim management thanks to just one provider for your system solution For further details regarding driver and module compatibility, please contact your local OSRAM sales representative. PrevaLED ® Linear Value PrevaLED ® Bar Value PrevaLED ® Area Value

OPTOTRONIC ® Linear | System solutions 13 Driver compatibility – PrevaLED ® Linear Value Drivers Modules Linear V alue 650 lm Linear V alue 1100 lm Linear V alue 1300 lm Linear V alue 2200 lm OT FIT 80 1A6 CS L 10 5 5 3 OT FIT 50 1A0 CS L 6, 8 3, 4 3, 4 2 OT FIT 35 700 CS L 4, 5 2, 3 2, 3 1 OTi DALI 80 2A1 LT2 L 8–10 4–6 4–6 2–4 OTi DALI 80 1A6 LT2 L 5–10 3–5 3–5 2 OTi DALI 50 1A4 LT2 L 5–10 3–5 3–5 2 OTi DALI 90 1A0 LT2 L 4, 8, 10 2, 4, 5, 8, 10 2, 4, 8 2, 4 Driver compatibility – PrevaLED ® Bar Value Drivers Modules Bar V alue 590 lm Bar V alue 845 lm Bar V alue 1100 lm Bar V alue 2200 lm OT FIT 80 1A6 CS L 5 3, 4 OT FIT 50 1A0 CS L 3, 4 OT FIT 35 700 CS L 2, 3 OTi DALI 80 2A1 LT2 L 4–5, 8 3–5 OTi DALI 80 1A6 LT2 L 3–5 2–4 OTi DALI 50 1A4 LT2 L 3–5 2–3 OTi DALI 90 1A0 LT2 L 4, 8, 10 2, 3, 4, 5, 8, 10 4 2–5 Driver compatibility – PrevaLED ® Area Value Drivers Modules Ar ea V alue 1100 lm Ar ea V alue 4500 lm OT FIT 80 1A6 CS L 5, 6 OT FIT 50 1A0 CS L 3, 4 1 OT FIT 35 700 CS L 2, 3 OTi DALI 80 2A1 LT2 L 4–8 1–2 OTi DALI 80 1A6 LT2 L 3–6 1 OTi DALI 50 1A4 LT2 L 3–6 1 Number of modules that can be operated with one driver Number of modules that can be operated with one driver Number of modules that can be operated with one driver

OPTOTRONIC ® Linear | System solutions 14 System solutions with OSRAM OPTOTRONIC ® drivers and light management systems (LMS) For higher levels of efﬁ ciency, ﬂ exibility and customization Combining OSRAM OPTOTRONIC ® LED drivers and light management systems (LMS) allows you to create unique lighting solutions that offer plenty of beneﬁ ts to your custom-ers. Your ﬂ exibility during projects is increased tremendously as the LMS provide a simple way to address OTi DALI LED drivers for easy dimming and setting of the desired lighting level. And the best thing about it: You also save huge amounts of energy. With LMS from OSRAM, you will always ﬁ nd the ideal solution – for various applications, luminaires and customer demands. OPTOTRONIC ® and Touch DIM ® The Touch DIM ® functionality, integrated in all OTi DALI LED drivers, is as easy as it gets. Just use your existing pushbuttons to dim your light up and down, store one scene and use sensors for additional convenience. With the new Touch DIM ® version, you can control up to 20 OTi DALI LED drivers simultaneously without any hassle. Touch DIM ® LS LI and LS/PD LI (sensors)

OPTOTRONIC ® Linear | System solutions 15 OPTOTRONIC ® and DALIeco ® When used together with OTi DALI LED drivers, DALIeco ® offers the most simple way to achieve high energy savings in combination with ﬂ exible control. Via two DALI lines and with an intuitive remote control, you can control up to 32 OTi DALI LED drivers and six sensors or pushbutton couplers – ideal for ofﬁ ces, classrooms and meeting rooms. OPTOTRONIC ® and EASY Color Control This intuitive system has been developed particularly for the control and integration of all common control signals (DALI, 1...10 V and DMX). Controlling one room (e.g. a meeting room) by just one device, combined with OTi DALI or OT FIT LED drivers in a single system, has never been that easy. OPTOTRONIC ® and DALI Professional The combination of OPTOTRONIC ® LED drivers and DALI Professional is the perfect choice for anyone looking for maximum ﬂ exibility in the control of multiple luminaires, groups or scenes. Via 4 DALI lines and with one controller, you can directly address and control up to 256 OTi DALI LED drivers in 4 x 16 groups and up to 50 sensors or pushbutton couplers. Via the DALI switch, OT FIT LED drivers can also be controlled. Dedicated to ﬂ oors, open-plan ofﬁ ces or industrial areas, DALI Professional offers you a wide selection of sensors, user interfaces and software, making it ideal for larger DALI-controlled areas. DALIeco ® Control DALI PRO CONT-4 (controller) DALI PRO Touch Panel LS/PD MULTI3 (sensor) Master Remote EASY Touch Panel

400W049GB 01/14 Subject to change without notice. Err ors and omissions expected. www.osram.com/optotronic OSRAM GmbH Head ofﬁ ce: Marcel-Breuer-Strasse 6 80807 Munich, Germany Phone +49 89 6213-0 Fax +49 89 6213-2020 www.osram.com For more product-speciﬁ c information, please go to: — OPTOTRONIC ® : www.osram.com/optotronic — Light management systems: www.osram.com/lms — PrevaLED ® : www.osram.com/prevaled
