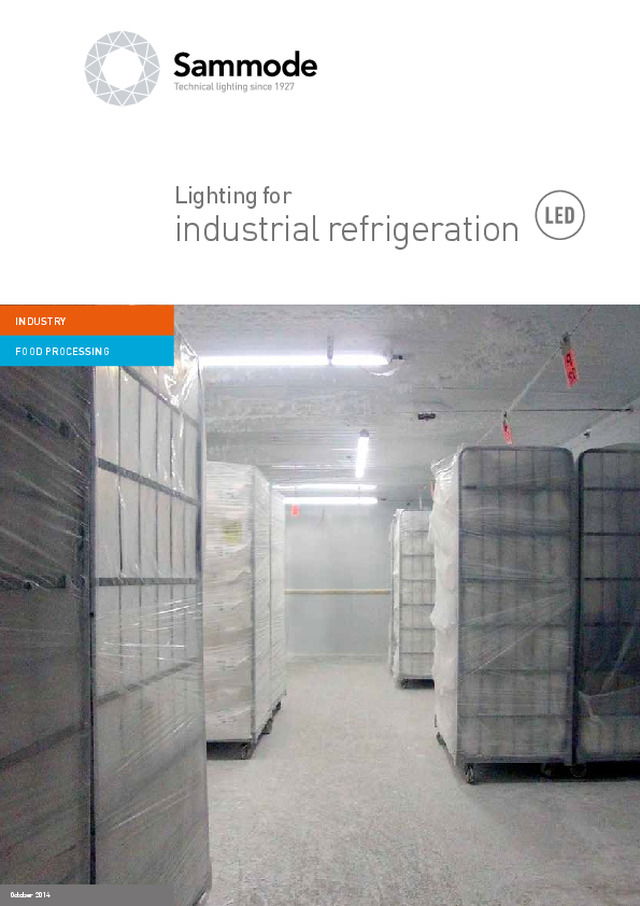

Lighting for industrial refrigeration

October 2014 INDUSTRY FOOD PROCESSING Lighting for industrial refrigeration

2  Sammode   |   October 2014 Sammode Long-lasting  lighting EXPERTISE AND RELIABILITY  Sammode is an industrial business, independent and family-run. For four generations, we have been building up unique know-how on how to provide light in the harshest environments, in the most demanding conditions and in the most difficult places. Since its creation in 1927, Sammode has been synonymous with technical, durable and reliable lighting.   INTEGRATED PRODUCTION Historically, at Sammode, we design and manufacture functional luminaires that are renowned for their performance, quality and low cost of ownership. We are constantly perfecting them, improving their design, selecting the best materials and integrating new technologies after testing them in our laboratory. Because we control the entire production chain, without using any subcontractors, we ensure flawless quality. Our luminaires are characterised by strength, durability, reliability and adaptability. This is what gives us our reputation. LISTENING AND COMMITMENT As a personal business we place a high value on individual commitment. We demonstrate our commitment to our customers by listening and analysing their needs, developing relevant solutions, making the right choices and minimising the cost of ownership. We advise them and find appropriate solutions to their problems, while taking account of their technical and budgetary constraints.  RESPECT FOR THE ENVIRONMENT Historically, our environmental policy is as simple as it is unsurprising: we choose recyclable materials, reject throwaways and planned obsolescence, maintain and repair our luminaires piece by piece, reduce waste, manufacture in Europe and minimise transport. For each project, we help our customers to reduce their energy consumption and use of resources. Functional and aesthetic, durable and economical, efficient and reliable, Sammode luminaires are made to last. Optimised down to the last detail, they offer users durability and exceptional resistance at minimal operating cost.

Sammode   |   October 2014  3 Sammode 8 reasons  for choosing   our luminaires ECONOMY Our luminaires for industrial refrigeration lighting are fitted with the latest generation LED modules. They have reduced operating costs and a lower cost of ownership, with maximum light output from the moment they are switched on, an exceptionally long service life and low power consumption. IK10 STRENGTH Our luminaires are designed to provide Shock resistance IK10 and to withstand vibration. This is the guarantee of a profitable long-term investment. SEALING Most of our fixtures are sealed to IP68 and IP69K standards, i.e. they are sealed against dust, vapours and liquids. Their tubular shape prevents the build up of dirt on their exteriors. The lack of the build up of dirt internally ensures maximum light output over time. Fittings to IP69K resist high-pressure jetting. RESISTANCE  Our luminaires are resistant to chemicals (detergents, fats and hydrocarbons) and corrosion thanks to a choice of durable materials: stainless steel and co-extruded polycarbonate/methacrylate.  PERFORMANCE  Our luminaires are equipped with light sources that offer the best performance for any given temperature range. This provides optimal illumination while reducing the total number of luminaires needed and the energy consumed. MAINTENANCE  Our luminaires are fitted with quick-release systems that facilitate assembly, disassembly and off-site maintenance. Interruptions to production and the risk of falling objects are reduced, maintenance is simplified and speeded up.  WARRANTY  All our luminaires are guaranteed for 5 years, a sign of our confidence in the quality of our products. DURABILITY  Our lights are made to last, unlike throwaways. Whether it is the light source, the electronic circuits or the mechanical structure, each piece is built to last and can be replaced.

Methacrylate  Polycarbonate 4  Sammode   |   October 2014 Industrial refrigeration lighting requires special precautions, especially in the food processing industry. We offer luminaires that are ideal for cold storage rooms and other refrigerated areas. Lighting in  the cold ENERGY EFFICIENCY  Light generates heat which must be removed by the refrigeration system. Particular attention has to be paid to the energy efficiency of the light source, because losses count double; heat generated during the production of light and the energy needed for its removal by the refrigeration system.We have selected high-efficiency LED modules to reduce the energy consumption associated with lighting. Unlike fluorescent tubes, they reach maximum light output immediately. It is therefore not necessary to overspecify their size to reach the required light output. ON/OFF CYCLES Access to cold storage rooms and other chilled areas is usually for short periods, with frequent on/off cycles, often controlled by motion sensors. Maximum immediate light output and tolerance to repeated cycling are thus essential. Today’s LED technology provides better tolerance to repeated cycling and thus significantly reduces maintenance costs. Maximum light output is available immediately, so that the installation can be sized for the minimum power that is needed. HYGIENE Industrial refrigeration lighting is often found in the food processing industry. Therefore, hygiene requirements add to the physical demands for operation in the cold: resistance to cleaning agents and corrosion, easy to clean, anti-condensation design, etc. Sammode sealed tube luminaires reduce dirt deposition and the use of resistive materials (stainless steel and co-extruded polycarbonate/methacrylate) are highly resistant to cleaning agents and cleaning with a high pressure jet. Sammode luminaires are suitable for the storage of food and comply the following standards: 2002/72/EC, 2004/1/EC, 2004/19/EC, 2005/79/EC, 2007/19/EC. Craftsmanship THE MEANING OF CO-EXTRUSION

Sammode   |   October 2014  5 MAINTENANCE Maintenance, robustness and service life are important cost factors that must be considered in the economic analysis of the lifecycle of a luminaire. In the cold storage of food, it is also necessary to avoid contamination by falling objects. Sammode has optimised the maintenance of its luminaires through the use of spring-loaded fixing straps and disconnectable plugs. Installation and replacement are quick and easy. In addition, all Sammode luminaires are shock-resistant to IK10. They incorporate LED modules which, thanks to their long service life ( 50,000 h), lengthen service intervals, thus reducing operating costs. Craftsmanship SPRING-LOADED FIXING STRAPS DISCONNECTABLE PLUGS SERVICE LIFE Our corporate culture has always been rooted in a quest for uncompromising quality. We design our luminaires for exceptionally long service life. We strive for excellence and for that we rely on a full understanding of our materials and manufacturing processes, advanced technology and rejection of throwaways and planned obsolescence. Each luminaire is easily removable for maintenance in a workshop. Spare parts are available for all the items in our catalogue.

Lighting 6  Sammode   |   October 2014 The various types  of lighting GENERAL LIGHTING General lighting relates to cold storage rooms ■ covering a large floor area ( 20 m²) ■ having a high ceiling ( 7 m) ■ needing significant illumination ( 150 lx) Suitable lighting can contribute to employees’ well-being as well as reducing fatigue and increasing staff efficiency. Luminaires suitable for use in the cold reduce the power consumption of the installation and the operating costs. The details of the luminaires to be used must be appropriate to the type of installation being planned. Installation at a height, emergency lighting, task lighting, general lighting: Sammode offers luminaires to meet regulatory and business requirements for every application. RECOMMENDED LIGHTINGZONE   LIGHTING (LX) WarehousesStores and warehouses 100 Handling, packaging and shipping zones 300 Storage and shelvingUnoccupied central aisle 20 Occupied central aisles 150 Command or control centre 150 TASK LIGHTING Task lighting is characterised by small areas to be illuminated ( 20 m²) and low height ( 3 m). This is usually lighting that is in addition to the general lighting, suitable for small cold rooms or confined spaces, such as tunnel freezers. Task lighting is often subject to frequent on/off cycles. Luminaires must quickly reach the necessary light output and tolerate many on/off cycles. LED Light sources meet these requirements and are therefore particularly suitable for task lighting in cold environments. LUMINOUS FLUX AT -30 °C 0 0:00 0:10 0:20 0:30 Time (h:min) 0:40 0:50 1:00 20 40 60 80 100 120 LED FLUORESCENT   light fittings with  gear units and tubes  suitable for freezing  environments Luminous flux relative to the ambient temperature 20 °C  (%)

Lighting Sammode   |   October 2014  7 PROVIDE LIGHT WHERE IT IS NEEDED   AND MINIMISE LOSSES HIGH-CEILING LIGHTING High storage rooms (7-15 m) with a large floor area ( 20 m 2 ), equipped with high shelves (racked  cold stores) require specialised lighting in order to limit light losses and provide illumination where necessary. These luminaires must have optimized photometric polar diagrams to limit the number of luminaires needed to achieve a given illumination, thus reducing the lighting’s energy consumption. EMERGENCY LIGHTING Emergency lighting is mandatory and must meet current standards. In cold rooms, the following points should be considered: ■ Emergency lighting should reach 50% of its nominal output within 5 seconds (EN 60598-2-22). Therefore, the use of fluorescent tubes is banned. On the other hand, LED Light sources are well suited to the cold with an output that increases as the temperature decreases. ■ Batteries in stand-alone emergency lights do not operate below 0°C. A Central battery system is needed.

8  Sammode   |   October 2014 Sammode offers a complete range of luminaires for industrial refrigeration lighting down to -60 °C. For each application we have designed ranges of LED fittings which are the most effective over  a given temperature range. Optimum operating  temperature Usable operating  temperature Product  guide Amundsen 100/133 Bering 100/133 Celsius 70 SA  (1613 mm) 25°C -35°C -60°C 0°C -20°C Celsius 70 SA  (613 mm) Amundsen 100 Bering 100 25°C 0°C -20°C -35°C -60°C GENERAL LIGHTING General lighting solutions for:   ■ floor areas greater than 20 m²   ■ ceiling heights less than 7 m Our range TASK LIGHTING Ranges of compact luminaires to achieve:   ■ lighting small cold rooms (below 20 m 2  floor area)   ■ lighting tunnel freezers   ■ lighting supplementary working areas

Sammode   |   October 2014  9 Celsius 70 W Hudson -20°C 25°C 0°C -35°C -60°C Maxwell 100  LSC AMB Maxwell 100  LSC EVAC  Maxwell 100  LSC BT -20°C 25°C 0°C -35°C -60°C Our range HIGH-CEILING LIGHTING Lighting solutions at height for:   ■ floor areas greater than 20 m²   ■ heights from 7 to 15 m EMERGENCY LIGHTING For central battery systems, compliant with EN 60 598-2-22   ■ open area or escape route lighting   ■ maintained or non-maintained CONTENTS GENERAL LIGHTINGAmundsen 100 12 Amundsen 133 13 Bering 100 14 Bering 133 15 Celsius 70 SA (1613 mm) 16 TASK LIGHTINGAmundsen 100 18 Bering 100 19 Celsius 70 SA (613 mm) 20 HIGH-CEILING LIGHTINGHudson 22 Celsius 70 W 23 EMERGENCY LIGHTINGMaxwell 100 LSC AMB 26 Maxwell 100 LSC EVAC 27 Maxwell 100 LSC BT 28 OPTIONS AND ACCESSORIES 30 PHOTOMETRIC POLAR DIAGRAMS 32

10  Sammode   |   October 2014

Sammode   |   October 2014  11 General  lighting

12  Sammode   |   October 2014 GENERAL LIGHTING Amundsen 100 Optimum temp.  -20°C to +0 °C Technology LED Light output 2775 to 5550 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel  MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) NEW INSTALLATION VERSIONS 3700 AMU100 14H830 POME PS3 SA 4170 0010 35 3000 1318 AMU100 14H840 POME PS3 SA 4170 0020 4000 5550 AMU100 16H830 POME PS3 SA 4170 0030 52 3000 1850 AMU100 16H840 POME PS3 SA 4170 0040 4000 LIKE FOR LIKE REPLACEMENT VERSIONSEquivalent to 1 x 36 W T8 2775 AMU100 13H830 POME PS3 SA 4170 0050 26 3000 1018 AMU100 13H840 POME PS3 SA 4170 0060 4000 Equivalent to 1 x 58 W T8 4625 AMU100 15H830 POME PS3 SA 4170 0070 44 3000 1618 AMU100 15H840 POME PS3 SA 4170 0080 4000 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ High efficiency LED modules (133 lm/W) ■ 50 000H L80/B50 ■ Replaceable modules ■ CRI 80 Optics  ■ Light mixing chamber ■ Special satinised LED diffuser Thermal management  Aluminium heat sink Electronic equipment  Constant current output driver, non-dimmable Power supply  220-240 V 50/60 Hz Electrical class Class I Operating temperature  -25  °C to +35  °C Connection  Disconnectable plug, cable Ø 8-10 mm (3 x 1.5 mm²) Fixing  2 spring-loaded stainless steel fixing straps Method of construction  ■ Single-piece housing with reinforced seal ■ Patented drawer opening system MATERIALS Diffuser  Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc.  304L stainless steel Gaskets  EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance  650 °C Variable centre distance  L  123 360° 80 Ø100 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires

Sammode   |   October 2014  13 GENERAL LIGHTING Amundsen 133 PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) NEW INSTALLATION VERSIONS 7400 AMU133 24H830 POME PS3 SA 2270 0010 70 3000 1295 AMU133 24H840 POME PS3 SA 2270 0020 4000 11100 AMU133 26H830 POME PS3 SA 2270 0030 104 3000 1850 AMU133 26H840 POME PS3 SA 2270 0040 4000 LIKE FOR LIKE REPLACEMENT VERSIONSEquivalent to 2 x 36 W T8 5550 AMU133 23H830 POME PS3 SA 2270 0050 52 3000 995 AMU133 23H840 POME PS3 SA 2270 0060 4000 Equivalent to 2 x 58 W T8 9250 AMU133 25H830 POME PS3 SA 2270 0070 88 3000 1595 AMU133 25H840 POME PS3 SA 2270 0080 4000 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ High efficiency LED modules (133 lm/W) ■ 50 000H L80/B50 ■ Replaceable modules ■ CRI 80 Optics ■ Light mixing chamber ■ Special satinised LED diffuser Thermal management Aluminium heat sink Electronic equipment Constant current output driver, non-dimmable Power supply 220-240 V 50/60 Hz Electrical class Class I Operating temperature -25 °C to +35 °C Connection Disconnectable plug, cable Ø 8-10 mm (3 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with reinforced seal ■ Patented drawer opening system MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance  L  158 360° 80 Ø133 Optimum temp.  -20°C to +0 °C Technology LED Light output 5550 to 11100 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel  MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires

14  Sammode   |   October 2014 GENERAL LIGHTING Bering 100 Optimum temp.  -35 °C to -20 °C Technology LED Light output 2775 to 4625 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) NEW INSTALLATION VERSIONS 3700 BER100 14H830 POME PS3 SA 1560 0050 35 3000 1307 BER100 14H840 POME PS3 SA 1560 0060 4000 LIKE FOR LIKE REPLACEMENT VERSIONSEquivalent to 1 x 36 W T8 2775 BER100 13H830 POME PS3 SA 1560 0030 26 3000 1007 BER100 13H840 POME PS3 SA 1560 0040 4000 Equivalent to 1 x 58 W T8 4625 BER100 15H830 POME PS3 SA 1560 0070 44 3000 1607 BER100 15H840 POME PS3 SA 1560 0080 4000 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ High efficiency LED modules (133 lm/W) ■ 50 000h L80/B50 ■ Replaceable modules ■ CRI 80 Optics ■ Light mixing chamber ■ Special satinised LED diffuser Thermal management Aluminium heat sink Electronic equipment Special cold operation constant current output driver, non-dimmable Power supply 220-240V 50/60 Hz Electrical class Class I Operating temperature  -40 °C to +35 °C Connection Disconnectable plug, cable Ø 8-10 mm (3 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical and chemical resistance ■ Long-term sealing maintained by axial screwing MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets Silicone STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance L  123 360° Ø100 80 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires

Sammode   |   October 2014  15 GENERAL LIGHTING Bering 133 Optimum temp.  -35 °C to -20 °C Technology LED Light output 5550 to 9250 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) NEW INSTALLATION VERSIONS 7400 BER133 24H830 POME PS3 SA 1660 0010 70 3000 1287 BER133 24H840 POME PS3 SA 1660 0030 4000 LIKE FOR LIKE REPLACEMENT VERSIONSEquivalent to 2 x 36 W T8 5550 BER133 23H830 POME PS3 SA 1660 0050 52 3000 987 BER133 23H840 POME PS3 SA 1660 0060 4000 Equivalent to 2 x 58 W T8 9250 BER133 25H830 POME PS3 SA 1660 0020 88 3000 1587 BER133 25H840 POME PS3 SA 1660 0040 4000 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ High efficiency LED modules (133 lm/W) ■ 50 000h L80/B50 ■ Replaceable modules ■ CRI 80 Optics ■ Light mixing chamber ■ Special satinised LED diffuser Thermal management Aluminium heat sink Electronic equipment Special cold operation constant current output driver, non-dimmable Power supply 220-240V 50/60 Hz Electrical class Class I Operating temperature -40 °C to +35 °C Connection Disconnectable plug, cable Ø 8-10 mm (3 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical and chemical resistance ■ Long-term sealing maintained by axial screwing MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer of co- extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets Silicone STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance L  158 360° Ø133 80 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires

16  Sammode   |   October 2014 Celsius 70 SA  1613 mm Optimum temp.  -60 °C to -35°C Technology LED Light output 2224 lm Power supply 24V DC OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards SPECIFICATIONS TECHNICAL FEATURES Light source ■ LED modules for extreme cold developed by Sammode ■ 50 000H L80/B50 ■ Replaceable modules Optics Special satinised LED diffuser Thermal management Aluminium heat sink Power supply 24V DC min 26V DC max Electrical class Class III Operating temperature -60 °C to +25 °C Connection Disconnectable plug, cable Ø 8-10 mm (2 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with reinforced sealing through radial expansion of the gasket ■ Closure by tightening the nut under the cable gland MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance  1613  110 90 360° Ø70 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) 2224 CEL70 24DC 6M6L10 POME PS2 SA 6430 0060 55 4100 1613 Flux leaving the luminaire GENERAL LIGHTING

Sammode   |   October 2014  17 Task  lighting

18  Sammode   |   October 2014 Amundsen 100 OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) 1850 AMU100 12H830 POME PS3 SA 4170 0090 18 3000 708 AMU100 12H840 POME PS3 SA 4170 0100 4000 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ High efficiency LED modules (133 lm/W) ■ 50 000H L80/B50 ■ Replaceable modules ■ CRI 80 Optics ■ Light mixing chamber ■ Special satinised LED diffuser Thermal management Aluminium heat sink Electronic equipment Driver à sortie en courant constant, non gradable Power supply 220-240 V 50/60 Hz Electrical class Class I Operating temperature -25 °C to +35 °C Connection Disconnectable plug, cable Ø 8-10 mm (3 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with reinforced seal ■ Patented drawer opening system MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance  708  123 360° Ø100 80 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires Optimum temp.  -20 °C to +0 °C Technology LED Light output 1850 lm TASK LIGHTING

Sammode   |   October 2014  19 PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) 1850 BER100 12H830 POME PS3 SA 1560 0010 21 3000 697 BER100 12H840 POME PS3 SA 1560 0020 4000 Flux leaving the luminaire Bering 100 Optimum temp.  -35 °C  to -20 °C Technology LED Light output 1850 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards SPECIFICATIONS TECHNICAL FEATURES Light source ■ High efficiency LED modules (133 lm/W) ■ 50 000H L80/B50 ■ Replaceable modules ■ CRI 80 Optics ■ Light mixing chamber ■ Special satinised LED diffuser Thermal management Aluminium heat sink Electronic equipment Special cold operation constant current output driver, non-dimmable Power supply 220-240 V 50/60 Hz Electrical class Class I Operating temperature -40 °C to +35 °C Connection Disconnectable plug, cable Ø 8-10 mm (3 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical and chemical resistance ■ Long-term sealing maintained by axial screwing MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets Silicone  STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance  697   123 360° 80 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires TASK LIGHTING

20  Sammode   |   October 2014 Celsius 70 SA  613 mm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards Optimum temp.  -60 °C to -35°C Technology LED Light output 741 lm Power supply 24V DC PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) 741 CEL70 24DC 2M6L10 POME PS2 SA 6430 0050 18 4000 613 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ LED modules for extreme cold developed by Sammode ■ 50 000H L80/B50 ■ Replaceable modules Optics Special satinised LED diffuser Thermal management Aluminium heat sink Power supply 24V DC min 26V DC max Electrical class Class III Operating temperature -60 °C to +25 °C Connection Disconnectable plug, cable Ø 8-10 mm (2 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with reinforced sealing through radial expansion of the gasket ■ Closure by tightening the nut under the cable gland MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance  613  110 90 360° Ø70 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires TASK LIGHTING

Sammode   |   October 2014  21 High-ceiling  lighting

22  Sammode   |   October 2014 Hudson Optimum temp.  -35 °C to +0°C Technology LED Light output 7520 to 7990 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR ACCESSORIESSpacers (5 or 20 cm) for fire safety  standardsKit for loop in / loop out wiring:   1 WIELAND IP68 3-pole male plug PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) FOR RACK AISLES 7990 HUDSON P1 1215 0010   100 4000 861 FOR MAIN AISLES 7520 HUDSON P2 1215 0020 100 4000 861 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ LED modules for extreme cold developed by Sammode ■ 50 000H L80/B50 ■ Replaceable modules Optics ■ P1 Version: Special elliptical lenses for rack aisles ■ P2 Version: Special elliptical lenses for main aisles Thermal management Aluminium heat sink Electronic equipment Special cold operation constant current output driver, non-dimmable Power supply 110-240 V 50/60 Hz  Electrical class Class I Operating temperature -40 °C to +25 °C Connection Disconnectable plug, cable Ø 10-14 mm (3 x 4 mm²) Fixing 4-point fixing (Ø 8 mm) Principe de construction  2 detachable optical blocks connected by disconnectable plugs on the support  block MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer  of co-extruded methacrylate End caps and support block 304L stainless steel Gaskets EPDM STANDARDSSealing IP67 Shock resistance IK10 Fire resistance 650°C  861  575   304  861  575    100  Ø70   113  KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires HIGH-CEILING LIGHTING

Sammode   |   October 2014  23 Celsius 70 W Optimum temp.  -60 °C to -35 °C Technology LED Light output 2514 lm Power supply 24 V DC OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) Optics T (°K)  L (mm) 2514 CEL70 24DC 6M6L10 POME PS2 W 6430 0080 55 4000 1613 Flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ LED modules for extreme cold developed by Sammode ■ 50 000H L80/B50 ■ Replaceable modules Optics Elliptical lenses Thermal management Aluminium heat sink Power supply 24V DC min 26V DC max Electrical class Class III Operating temperature -60 °C to +25 °C Connection Disconnectable plug, cable Ø 8-10 mm (2 x 1.5 mm²) Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with reinforced sealing through radial expansion of the gasket ■ Closure by tightening the nut under the cable gland MATERIALS Diffuser Special food processing housing in polycarbonate protected with a layer   of co-extruded methacrylate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 650 °C Variable centre distance  1613  110 90 360° Ø70 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Designed for frequent on/off  cycles ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires HIGH-CEILING LIGHTING

24  Sammode   |   October 2014

Sammode   |   October 2014  25 Emergency  lighting

26  Sammode   |   October 2014 Maxwell 100  LSC AMB  PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) / (VA) T (°K) L (mm) WITH CABLE GLAND330 MAX100 LSC AMB SA 113LN 1840 0020 7,9 / 16 4000 357 WITH DISCONNECTABLE PLUG330 MAX100 LSC AMB SA PS3 1840 0040 7,9 / 16 4000 357 Rated flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES  Light source ■ LED modules developed by Sammode ■ L80 ■ Replaceable modules Optics ■ Optimum light uniformity: 18 LEDs regularly distributed ■ Special satinised LED diffuser Electronic equipment Constant voltage output driver Power supply 180-254 V 0/50/60 Hz Electrical class Class I Operating temperature -20 °C to +40°C  Connection Nickel-plated brass cable gland  Disconnectable plug Cable Ø  5-14 mm  8-10 mm Terminal block  3 x 2,5 mm² 3 x 1,5 mm² Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical resistance ■ Long-term sealing maintained by axial screwing MATERIALSDiffuser Polycarbonate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 960 °C Compliant with  EN 60 598-1, EN 60598-2-22 Type Maintained and non-maintained Variable centre distance  357   123 360° Ø100 Optimum temp.  -20 °C to +0°C Application Open area Power supply Central battery  system Technology LED Emergency output 330 lm OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires EMERGENCY LIGHTING

Sammode   |   October 2014  27 OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards Optimum temp.  -20 °C +0 °C Application Escape route Power supply Central battery  system Technology LED Emergency output 75 lm Maxwell 100  LSC EVAC PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) / (VA) T (°K) L (mm) WITH CABLE GLAND75 MAX100 LSC EVAC SA 113 LN 1840 0010 2 / 4 4000 357 WITH DISCONNECTABLE PLUG75 MAX100 LSC EVAC SA PS3 1840 0030 2 / 4 4000 357 Rated flux leaving the luminaire SPECIFICATIONS TECHNICAL FEATURES Light source ■ LED modules developed by Sammode ■ L80 ■ Replaceable modules Optics ■ Optimum light uniformity: 6 LEDs regularly distributed ■ Special satinised LED diffuser Electronic equipment Constant current output driver Power supply Central battery system 220-240 V 0/50 Hz Electrical class Class I Operating temperature -20 °C to +40°C Connection Nickel-plated brass cable gland  Disconnectable plug Cable Ø  5-14 mm 8-10 mm Terminal block  3 x 2,5 mm² 3 x 1,5 mm² Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical resistance ■ Long-term sealing maintained by axial screwing MATERIALSDiffuser Polycarbonate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 960 °C Compliant with  EN 60 598-1, EN 60598-2-22 Type Maintained and non-maintained Variable centre distance  357   123 360° Ø100 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires EMERGENCY LIGHTING

28  Sammode   |   October 2014 PRINCIPAL PART NUMBERS Light output  (lm)  Designation Part No.  Cons. (W) T (°K) L (mm) WITH CABLE GLAND 400 MAX100 LSC BT 24DC SA 113LN 1836 0010 10 4000 380 WITH DISCONNECTABLE PLUG400 MAX100 LSC BT 24DC SA PS2 1836 0020 10 4000 380 Rated flux leaving the luminaire Maxwell 100  LSC BT OPTIONS FINISHINGSEnd caps and fixing straps in 316L  stainless steel MR FIXINGSReinforced spring-loaded fixing  straps BRS ACCESSORIESSpacers (5 or 20 cm) for fire safety  standards Optimum  temp.  -60 °C to -20 °C Application Open area and  escape route Power  supply Central battery  system Technology LED Emergency  output 400 lm SPECIFICATIONS TECHNICAL FEATURES Light source ■ LED modules for cold operation developed by Sammode ■ L80 ■ Replaceable modules Optics Special satinised LED diffuser Thermal management Aluminium heat sink Power supply 24 V DC Electrical class Class III Operating temperature -60 °C to +25 °C Connection Nickel-plated brass cable gland   Disconnectable plug Cable Ø  5-14 mm  8-10mm Terminal block  2 x 4 mm² 2 x 1,5mm² Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical resistance ■ Long-term sealing maintained by axial screwing MATERIALSDiffuser Polycarbonate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDSSealing IP68 and IP69K Shock resistance IK10 Fire resistance 960 °C Compliant with EN 60 598-1, EN 60598-2-22 Type Maintained and non-maintained Variable centre distance  380   123 360° Ø100 KEY FEATURES ■ Plug and Play installation with  disconnectable plug ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable  luminaires EMERGENCY LIGHTING

Sammode   |   October 2014  29 Options and  accessories

30  Sammode   |   October 2014 Simplifying the mounting, adapting and making an installation safe, Sammode offers all the options and accessories you need to complete the installation of the luminaire. FINISHINGS MARINE 316L STAINLESS STEEL COMPATIBILITY  CODE ■ External metal parts for luminaires in 316L stainless steel and  A4 stainless steel screws (base models have these made in 304L  stainless steel and A2 stainless steel screws). ■ Excellent resistance to pitting corrosion, especially  recommended for marine applications. All tubular  ranges and  floodlights MR FIXINGS REINFORCED FIXING STRAPS COMPATIBILITY  CODE ■ Set of two reinforced spring-loaded stainless steel fixing straps  for fast opening and closing. ■ Essential for fixing borosilicate glass luminaires ■ Recommended for fixing wall-mounted fixtures ■ Recommended when the fixture is mechanically stressed Ø100 and Ø133  tubular ranges BRS Options and accessories

Sammode   |   October 2014  31 ACCESSORIES SPACERS FOR CEILING MOUNTING OF FIXING STRAPS COMPATIBILITY  CODE ■ Kit consists of 2 x 304L stainless steel spacers to fix luminaires  to ceilings in accordance with fire safety standards, i.e. a  minimum distance of 20 cm between the equipment and the  facing of the sandwich panel. ■ Hardware supplied for attaching the fixing straps. ■ Stainless steel 316L on request. All tubular  ranges and the  Hudson range PU44277 SPACERS FOR WALL MOUNTING OF FIXING STRAPS  COMPATIBILITY CODE ■ Kit consists of 2 x 304L stainless steel spacers to fix luminaires  to the surfaces of walls in accordance with fire safety standards,  i.e. a minimum distance of 5 cm between the equipment and the  facing of the sandwich panel. ■ Hardware supplied for attaching the fixing straps. ■ Stainless steel 316L on request. All tubular  ranges PU44278 KIT FOR LOOP IN / LOOP OUT WIRING COMPATIBILITY CODE ■ 1 x 3-pole male plug Hudson range PU43735 Options and accessories SPARE PARTS Spare parts are available for all our luminaires. For orders or information, please contact us by phone at +33 (0)1 43 14 84 90 or by email to enquiry @ sammode.com.

32  Sammode   |   October 2014 Photometric polar diagrams AMUNDSEN 133 BERING 133 GENERAL LIGHTING AMUNDSEN 100 BERING 100 CELSIUS 70 SA  (1613 MM)

Sammode   |   October 2014  33 Photometric polar diagrams TASK LIGHTING AMUNDSEN 100 BERING 100 CELSIUS 70 SA  (613 MM) HIGH-CEILING LIGHTING HUDSON P1 HUDSON P2 CELSIUS 70 W

34  Sammode   |   October 2014

Sammode   |   October 2014  35 Notes

Design: bb&b | Pho to: Jean Ber, Alain Cast e, Rodrigo Rojas | S ubject t o err ors and t echnic al changes | © S ammode - 10/2014 Sammode is a family business established in 1927, specialising in professional lighting. For four generations we have been designing and manufacturing luminaires for architecture and industry in our factory in the French Vosges. Our lighting solutions are renowned for their quality, performance and durability. 24 rue des Amandiers F-75020 Paris T +33 (0)1 43 14 84 90 F +33 (0)1 43 14 31 46 enquiry @ sammode.com www.sammode.com
