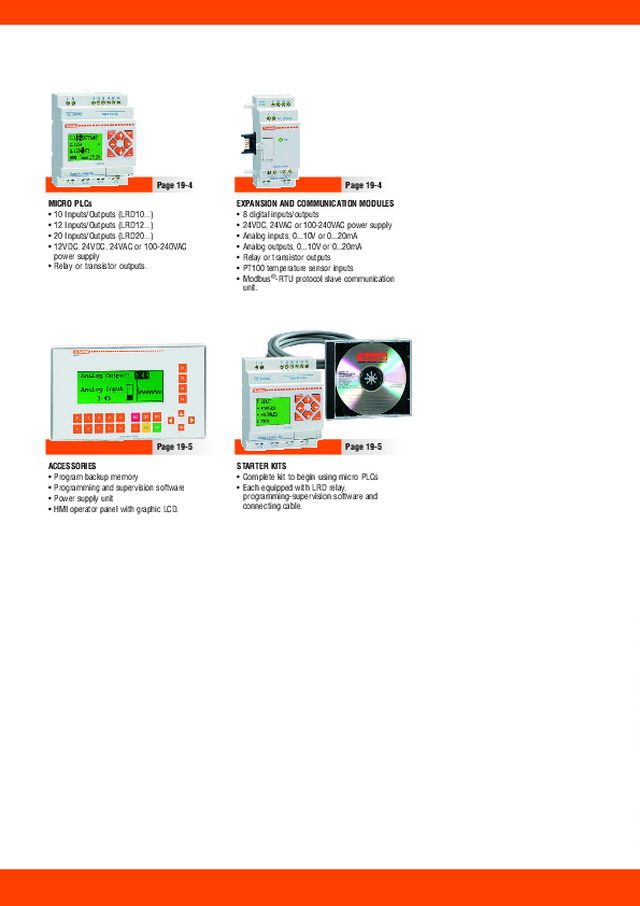

MICRO PLCs • 10 Inputs/Outputs (LRD10...) • 12 Inputs/Outputs (LRD12...) • 20 Inputs/Outputs (LRD20...) • 12VDC, 24VDC, 24VAC or 100-240VAC power supply • Relay or transistor outputs. Page 19-4 Page 19-4 EXPANSION AND COMMUNICATION MODULES • 8 digital inputs/outputs • 24VDC, 24VAC or 100-240VAC power supply • Analog inputs, 0...10V or 0...20mA • Analog outputs, 0...10V or 0...20mA • Relay or transistor outputs • PT100 temperature sensor inputs • Modbus ® -RTU protocol slave communication unit. ACCESSORIES • Program backup memory • Programming and supervision software • Power supply unit • HMI operator panel with graphic LCD. Page 19-5 STARTER KITS • Complete kit to begin using micro PLCs • Each equipped with LRD relay, programming-supervision software andconnecting cable. Page 19-5
10, 12 and 20 Input-Output baseunits Expansion modules with 4 digitalInputs and 4 digital Outputs Expansion modules with analogInputs-Outputs Modbus®-RTU communication module RS232 serial interface port for PC,HMI operator panel or programbackup memory connection On-board programming languages:Italian, English, Spanish, French,German, Portuguese and Chinese PC programming languages:Italian, English and Spanish. S EC . - P AGE Micro PLCs Base modules .................................................................................................................................................................. 19 - 4 Expansion and communication modules.......................................................................................................................... 19 - 4 Accessories ................................................................................................................. 19 - 5 Starter kits .................................................................................................................. 19 - 5 Dimensions ................................................................................................................. 19 - 6 Wiring diagrams ........................................................................................................... 19 - 6 Technical characteristics ................................................................................................. 19 - 6 Micro PLCs 19 A U T O M A T I O N A N D C O N T R O L
SYSTEM CONTROL AND SUPERVISION- Contact status viewing in simple and small screen display - Faculty to add the micro PLC to systems integrated on data netwoks. QUICK CONTROL BOARD INSTALLATION- Fewer number of components - Less wiring with minor number of connections. REPETITIVENESS- Less errors during panel building - Considerable time saving. FLEXIBILITY- Quick correction of abnormal conditions at final testing - Fast changes on control boards. 19 19-2 Micro PLCs FUNCTIONS PWM OUTPUTPulse train generation with programmable pulse time and frequency Position and speed detection SHIFT FUNCTION - activation of pulsed outputs in sequence MULTIPLEXER Selection of 1 of 4 values basedon the combination of two digital signals BOOLEAN LOGIC BLOCKSOutput activation based on a series of digital signals Out 1 2 3 4 In 1 In 2 In 3 In 4 Out ... ... ... ... PID IN: Heating switch on and requiredtemperature setting OUT: Current room temperature INc: Measured room temperature in anexact spot OUTc: Temperature adjusting and controlling. HIGH SPEED INPUT ABCD B FUNCTION BLOCKS AND MEMORY Timer (T) 31 (delay on/off, recycle, pulsing, ...) Real Time Clock (RTC) 31 (daily, weekly, monthly and yearly mode) Counter (C) 31 Analog comparator (G) 31 User’s pages (H) - 16 characters - 4 lines 31 Auxiliary relay - Scratchpad (M + N memory types) 63 + 63 Data register (DR) 240 Saving can be in memory storage of: - Auxiliary relay- Counter value- Data register. PROGRAM SIZE Language LADDER (contact scheme) 300 lines FBD (function blocks) 260 blocks M ICRO PLC
HMI INTERFACELRX P01 is an HMI operator panel, used with many types of PLCs or other intelligent controllers equipped with communication port. By using the HMI, the values of both PLC inner registers and relay status can be monitored and changed with the keys or LEDs. In this way, machinery and equipment functioning results to be simple and direct. The LRX SW P01 editor software permits to make dedicated screens by taking advantage of the graphic display to view bitmaps, bar graphs and trend lines. 19-3 Micro PLCs 19 O PERATOR PANEL COMMUNICATION MODES BACKLIGHT 192x64 PIXEL GRAPGIC LCD LRX P01 supports Modbus®-RTU protocol and different communication modescan be chosen, such as RS232 and RS485. RS232 RS485 Read numericalvalues Static text Images Display bar graphs and trend lines Write numerical values Dynamictext Read status (bits) Commands Soft starters Motor drives Power factor controllers Transfer switch controllers Power analyzers Generating set controllers Micro PLCs Micro PLCs
19 19-4 Dimensionspage 19-6 Wiring diagramspage 19-6 Technical characteristicspage 19-7 Micro PLCs General characteristicsFUNCTIONS– Addition-Subtraction on variables– Multiplication-Division on variables– Comparator on variables– HMI display for parameter viewing and programming– PWM output– High speed input (1kHz)– PID function– Multiplexer– Analog ramp– Register transfer (numerical variables and status)– Shift function– Boolean logic blocks. Operational characteristics– 8A Ith current relay outputs for AC and DC versions– 0.3A 24VDC transistor outputs for DC version– 0-10V analog inputs for DC version– Version: modular for mounting on 35mm DIN rail (IEC/EN 60715) or M4x15mm screw fixing – Type of terminal: Screw– IEC degree of protection: IP20. Certifications and complianceCertifications obtained: UL Listed, for USA and Canada(File E300049), as Programmable Controllers.Compliant with standards: IEC/EN 61131-2, UL508, CSAC22.2 n°142. Order Auxiliary In/Out ∂ Qty Wt code supply per voltage pkg n° [kg] Base modules. LRD12R D024 24VDC 8/4 relay 1 0.241 LRD12T D024 24VDC 8/4 transistor 1 0.220 LRD20R D024 24VDC 12/8 relay 1 0.360 LRD20T D024 24VDC 12/8 transistor 1 0.318 LRD12R A024 24VAC 8/4 relay 1 0.250 LRD20R A024 24VAC 12/8 relay 1 0.368 LRD10R A240 100-240VAC 6/4 relay 1 0.242 LRD20R A240 100-240VAC 12/8 relay 1 0.367 LRD20R D012 12VDC 12/8 relay 1 0.252 ∂ Inputs/Outputs. LRD10... LRD12... LRD20... LRE... Base modules Order Auxiliary In/Out ∂ Qty Wt code supply per voltage pkg n° [kg] Expansion and communication modules ∑. LRE02A D024 24VDC 2 analog outputs 1 0.160 0...10V/0...20mA LRE04A D024 24VDC 4 analog outputs 1 0.160 0...10V/0...20mA LRE04P D024 24VDC 4 PT100 temp. 1 0.160 sensor inputs LRE08R D024 24VDC 4/4relay 1 0.171 LRE08T D024 24VDC 4/4 transistor 1 0.151 LRE08R A024 24VAC 4/4 relay 1 0.180 LRE08R A240 100-240VAC 4/4 relay 1 0.180 LRE P00 Modbus ® -RTU protocol 1 0.134 communication unit ∂ Inputs/Outputs. ∑ The expansion modules are supplied with connector for base module. Expansion andcommunication modules INPUTS/OUTPUTS REFERENCE TABLE BASE MODULES BASE + DIGITAL EXPANSIONS Type Power supply Inputs Outputs Max I/O LRD12RD012 12VDC 8 digitals + 4 digital/analog 8 relay 20 + 24 ∏ LRD12RD024 24VDC 6 digitals + 2 digital/analog 4 relay 12 + 24 LRD12TD024 24VDC 6 digitals + 2 digital/analog 4 transistor 12 + 24 LRD20RD024 24VDC 8 digitals + 4 digital/analog 8 relay 20 + 24 LRD20TD024 24VDC 8 digitals + 4 digital/analog 8 transistor 20 + 24 LRD10RA240 100-240VAC 6 digital 4 relay 10 + 24 LRD20RA240 100-240VAC 12 digital 8 relay 20 + 24 LRD12RA024 24VAC 8 digital 4 relay 12 + 24 LRD20RA024 24VAC 12 digital 8 relay 20 + 24 EXPANSION AND COMMUNICATION MODULES LRE02AD024 24VDC –– 2 analog –– LRE04AD024 24VDC 4 analog –– –– LRE04PD024 24VDC 4 PT100 –– –– LRE08RD024 24VDC 4 digital 4 relay –– LRE08TD024 24VDC 4 digital 4 transistor –– LRE08RA240 100-240VAC 4 digital 4 relay –– LRE08RA024 24VAC 4 digital 4 relay –– LREP00 24VDC RS485 Modbus ® -RTU protocol slave communication unit ∏ Expansion modules supplied at 24VDC.
19-5 Dimensionspage 19-6 Wiring diagramspage 19-6 Technical characteristicspage 19-7 Micro PLCs 19 Power supply unit and backup memory caracteristics– The LRX 1V3 D024 power supply produces a direct-current voltage to power the base and expansion modules in circumstances when 24VDC isnot available in the application. The power supply canalso be used to power eventual 24VDC auxiliarycircuits. – The LRX M00 backup memory allows to save the user’s program and to simply and quickly transfer itto the base modules. LRX P01 panel general characteristics– 24VDC power supply– RS232 communication port: • Direct connection to using LRX C00 • Connection to other devices using a standard D-SUB 9 serial cable – RS485 communication port– LRX SW P01 editor software for specific pages and easy use. FUNCTIONS– Send commands– Read status– Provide static and dynamic texts– Write variables– Read variables: • Numerical value• Bar graph• Trend line. ProgrammingAt any time and with extreme simplicity, can be set up and reprogrammed to satisfy new requirementsand improve the operation of a system.Programming is simple and intuitive and can be donedirectly on the base module keypad or by personalcomputer, connected by LRX C00 interface and using therelative LRX SW software.With a personal computer, two programming languagelocs can be used: FBD (Function Block Diagrams) andLADDER (contact scheme).Both of the following can be accomplieshed:– Simulate the program directly “off-line” on a personal computer to test if it runs correctly. – Use the supervision mode to check the project “on-line”. There are 8 function keys on front, dedicated to on-board adjustment, control and supervision of digitalinput and output status, analog input values, time anddate entry and the operation status of the itself. Certifications and complianceCertifications obtained: UL Listed, for USA and Canada(File E300049), as Programmable Controllers for powersupply and HMI units anbd base module of kits.Compliant with standards: IEC/EN 61131-2, UL508, CSAC22.2 n°142. Order Description Qty Wt code perpkg n° [kg] Accessories. LRX M00 Program backup 1 0.011 memory LRX C00 PC-LRD connecting cable, 1 0.083 1.5m/5ft long LRX SW Programming and 1 0.057 supervision software(CD-ROM) LRX 1V3 D024 Power supply unit, 1 0.220 100-240VAC/24VDC, 1.3A LRX D00 User’s manual Italian 1 0.400 edition (paper) LRX D01 User’s manual English 1 0.400 edition (paper) LRX D02 User’s manual Spanish 1 0.400 edition (paper) LRX D03 User’s manual French 1 0.400 edition (paper) LRX P01 HMI operator panel, 1 0.200 24VDC, RS232, RS485(Modbus ® -RTU Master) LRX C02 PC-LRX P01 connecting 1 0.180 cable LRX SW P01 LRX P01 editor software 1 0.057 (CD-ROM) LRX 1V3 D024 LRX C00 LRX P01 LRX C02 Accessories Starter kits Starter kits. LRDKIT 12R D024 LRD starter kit complete 1 0.424 with LRD12R D024 base module, LRX SW softwareand LRX C00 cable LRDKIT 12R A024 LRD starter kit complete 1 0.424 with LRD12R A024 base module, LRX SW softwareand LRX C00 cable LRDKIT 10R A240 LRD starter kit complete 1 0.424 with LRD10R A240 base module, LRX SW softwareand LRX C00 cable Q2 Q1 Q4 Q3 - I1 + I6 I3 I2 I4 I5 A1 A2 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 AC 1 00~2 40V X3 Run Y2 Y3 Y1 Ou tp ut 4 x Re lay / 8A In pu t 4x AC L N X1 X2 Y4 X4 Maximum combinations Base relay unit 12 inputs + 8 outputs 4 inputs + 4 outputs 4 inputs + 4 outputs 4 inputs + 4 outputs 2 outputs, 0...10V or 0...20mA 2 outputs, 0...10V or 0...20mA 4 inputs, 0...10V or 0...20mA RS485 Modbus ® -RTU 4 PT100 temperature sensor inputs • 24 digital inputs (4 configurable as analog 0-10V input)• 20 digital outputs (relay, transistor or mixed)• 4 analog inputs for PT100 temperature sensors • 4 analog outputs configurable as 0...10V or 0/4...20mA• 4 analog inputs configurable as 0...10V or 0/4...20mA• 1 RS485 slave communication module. N.B. The sequence of the products given above must be respected for correct operation.
19-6 Micro PLCs Dimensions [mm (in)] Wiring diagrams 19 72 (2.83”) 90 (3.54”) 98 (3.86”) 106 (4.17”) 54.6 (2.15”) 44.3 (1.74”) Ø4.5(0.18”) 5 (0.20”) 45 (1.77”) 68 (2.68”) BASE MODULES LRD10... - LRD12... Ø4.5(0.18”) 90 (3.54”) 98 (3.86”) 80 (3.15”) 126 (4.96”) 45 (1.77”) 68 (2.68”) 54.6 (2.15”) 44.3 (1.74”) 5 (0.20”) 106 (4.17”) LRD20... LRX P01 HMI operator panel 90 (3.54”) 98 (3.86”) Ø4.5(0.18”) 5 (0.20”) 106 (4.17”) 45 (1.77”) 68 (2.68”) 54.3 (2.14”) 44.3 (1.74”) 8 (0.31”) 38 (1.50”) LRE... expansion/communication module 90 (3.54”) 97.9 (3.85”) Ø4.5(0.18”) 72 (2.83”)60 (2.36”) 106 (4.17”) 5 (0.20”) 45 (1.77”) 68 (2.68”) 52.3 (2.06”) 44.3 (1.74”) 179.5 (7.07”) 163.5 (6.44”) 101.5(4.00”) 85.5 (3.37”) 33 (1.30”) 5.5 (0.22”) Cutout 165 (6.50”) 87 (3.42”) LRX1V3 D024 power supply unit BASE MODULES LRD12R D024 – + A2 A1 Q1 Q2 Q3 Q4 I2 I3 I1 I5 I4 I6 24VDC 24VDC 0...10VDC ANALOG 24VDC DIGITAL RELAY OUTPUT DIGITAL/ANALOG INPUT DIGITAL INPUT LRD12T D024 0...10VDC ANALOG 24VDC DIGITAL – + – + – + – + – + A2 A1 Q1 Q2 Q3 Q4 I2 I3 I1 I5 I4 I6 24VDC 24VDC 24VDC TRANSISTOR OUTPUT DIGITAL/ANALOG INPUT DIGITAL INPUT LRD12R A024 Q1 Q2 Q3 Q4 I2 I3 I1 N L I5 I4 I6 I7 I8 24VAC 24VAC RELAY OUTPUT DIGITAL INPUT LRD10R A240 Q1 Q2 Q3 Q4 I2 I3 I1 N L I5 I4 I6 100...240VAC 100...240VAC RELAY OUTPUT DIGITAL INPUT LRD20R D012 - LRD20R D024 LRD20T D024 LRD20R A024 IA I9 IC IB Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 I2 I3 I1 N L I5 I4 I6 I7 I8 24VAC 24VAC RELAY OUTPUT DIGITAL INPUT LRD20R A240 IA I9 IC IB Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 I2 I3 I1 N L I5 I4 I6 I7 I8 100...240VAC 100...240VAC RELAY OUTPUT DIGITAL INPUT – + A2 A1 A4 A3 Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 I2 I3 I1 I5 I4 I6 I7 I8 24VDC 24VDC RELAY OUTPUT DIGITAL/ANALOG INPUT DIGITAL INPUT 0...10VDC ANALOG 24VDC DIGITAL Expansion and communication modules LRE02A D024 – + C1 V1 I1 C2 V2 I2 24VDC ANALOG OUTPUT Accessories LRX 1V3 D024 – – + + N L 100...240VAC 24VDC - 1.3A OUTPUT LRE P00 - LRX P01 B S A – + 24VDC RS485 OUTPUT LRE04A D024 – + C1 V1 I1 C2 V2 I2 C3 V3 I3 C4 V4 I4 24VDC ANALOG INPUT LRE04P D024 – + A1 B1 b1 A2 B2 b2 A3 B3 b3 A4 B4 b4 24VDC PT100 TEMPERATURE SENSOR LRE08R D024 – + Y1 Y2 Y3 Y4 X2 X3 X1 X4 24VDC 24VDC RELAY OUTPUT DIGITAL INPUT LRE08T D024 – + – + – + – + – + Y1 Y2 Y3 Y4 X2 X3 X1 X4 24VDC 24VDC 24VDC TRANSISTOR OUTPUT DIGITAL INPUT LRE08R A024 Y1 Y2 Y3 Y4 X2 X3 X1 N L X4 24VAC 24VAC RELAY OUTPUT DIGITAL INPUT LRE08R A240 Y1 Y2 Y3 Y4 X2 X3 X1 N L X4 100...240VAC 100...240VAC RELAY OUTPUT DIGITAL INPUT – + A2 A1 A4 A3 Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 I2 I3 I1 I5 I4 I6 I7 I8 24VDC 24VDC TRANSISTOR OUTPUT DIGITAL/ANALOG INPUT DIGITAL INPUT – + – + – + – + – + – + – + – + 0...10VDC ANALOG 24VDC DIGITAL 24VDC ∂ 12VDC for LRD20R D012.
19-7 Micro PLCs Technical characteristics 19 BASE MODULE TYPE LRD... D012 LRD... D024 LRD... A024 LRD... A240 POWER SUPPLY IEC rated voltage Ue (frequency range) 12VDC 24VDC 24VAC (50-60Hz) 100-240VAC (50-60Hz) Operating limits 10.4-14.4VDC 20.4-28.8VDC 20.4-28.8VAC (47-63Hz) 85-265VAC (47-63Hz) Average current consumption 265mA 125mA (LRD12...) 290mA 100mA 185mA (LRD20...) DIGITAL INPUTS Rated voltage 12VDC 24VDC 24VAC (50-60Hz) 100-240VAC (50-60Hz) Input voltage State 0 2.5VDC 5VDC 6VAC 40VAC State 1 7.5VDC 15VDC 14VAC 79VAC Delay time 0 to 1 5ms 5ms 90ms 50/45ms (Ue=120VAC) - (0.5ms for high speed) (0.5ms for high speed) 22/18ms (Ue=240VAC) 1 to 0 5ms 3ms 90ms 50/45ms (Ue=120VAC) - (0.3ms for high speed) (0.3ms for high speed) 90/85ms (Ue=240VAC) ANALOG INPUTS FOR DC VERSIONS ONLY Input signal range 0-10V –– –– Display resolution 0.01V –– –– Conversion 12bit –– –– Current cunsumption at 10VDC 0.17mA –– –– Input impedance 1k Ω –– –– Admissible overload 14VDC 28VDC –– –– Sampling time 5-20ms (LADDER); 2-10ms (FBD) Maximum cable length ≤ 30m/98ft of screened type –– –– DIGITAL OUTPUTS Type of output / IEC rated current Ith Relay / 8A (LDR...R... / LRE08R... only) Transistor / 0.3A 24VDC (LRD...T... / LRE08T... only) Applied voltage 12-24VAC / 12-125VDC (LDR...R... / LRE08R... only) 10-28.8VDC (LRD...T... / LRE08T... only) AMBIENT CONDITIONS Operating temperature -20...+55°C Storage temperature -40...+70°C Relative humidity 20-90% without condensation HOUSING Version Modular for mounting on 35mm DIN rail (IEC/EN 60715) or M4x15mm screw fixing Connections Type of terminal Screw Conductor section 0.14-2.5mm 2 / 26-14AWG Tightening torque 0.6Nm / 0.4lbft Maximum cable length ≤ 100m/328ft IEC degree of protection IP20 EXPANSION MODULE TYPE LRE02A D024 LRE04P D024 POWER SUPPLY IEC rated voltage Ue 24VDC 24VDC Operating limits 20.4-28.8VDC 20.4-28.8VDC ANALOGIC INPUTS/OUTPUTS Type of channels 2 outputs configurable 4 inputs for for voltage or current PT100 temperature sensors Operating limits 0-10V 0-20mA -100...+600°C Digital output 0.00-10.00V 0.00-20.00mA -100.0...+600.0°C Resolution 10mV 40µA 0.1°C Accuracy ±2.5% ±1% Power consumption 70mA 70mA
