New Circuit Protection Range
Legrand

New Circuit Protection Range

Trusted Protection for your Residential and Commercial Installations

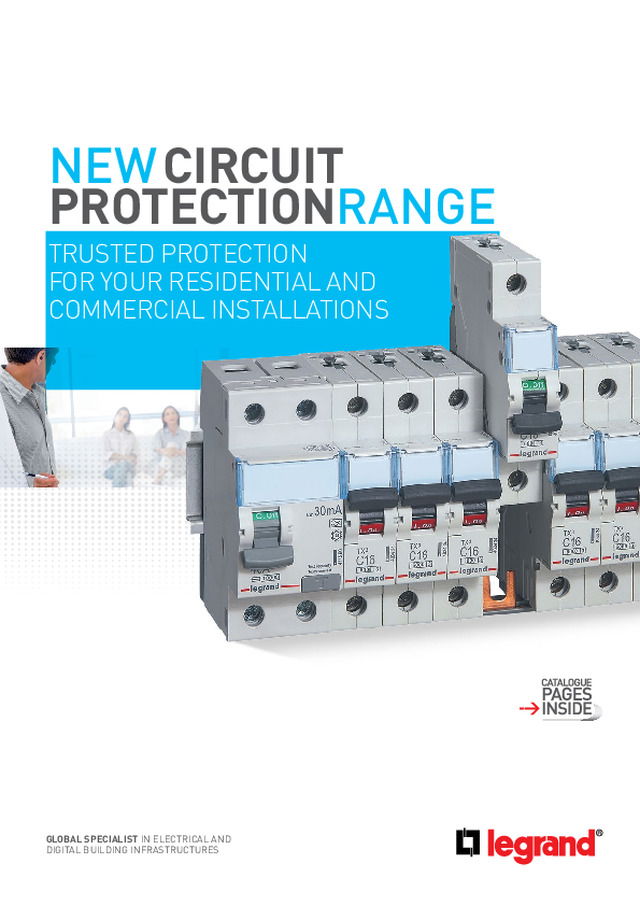

NEW   CIRCUIT  PROTECTION RANGE   TRUSTED PROTECTION   FOR YOUR RESIDENTIAL AND  COMMERCIAL INSTALLATIONS GLOBAL SPECIALIST IN ELECTRICAL AND DIGITAL BUILDING INFRASTRUCTURES

1 Designed to meet   the requirements   of modern installations   in residential and commercial  applications, The new range  from Legrand provides  effective protection against  short circuits, overloads and  residual current faults. The  range, comprises of thermal  magnetic circuit breakers  and residual current devices.   It ensures safety, ruggedness  and a high build quality   for your installations. TX 3  RCCBs • In = from 16 to 80A  • 2P and 4P  • Type AC and A  • Sensitivity: 30, 100, 300 mA  • Compliant with AS/NZS 61 008-1 DX 3  RCBOs • In = from 6 to 45A  • Compact 1P + N, 2P  • Type AC and A  • Sensitivity: 30mA  • Compliant with AS/NZS 61 009-1 NEW  RCBO, RCCB AND MCB  RANGE PROTECTION YOU CAN RELY ON

NEW CIRCUIT PROTECTION RANGE WWW.LEGRAND.COM.AU 2 NEW  RCBO, RCCB AND MCB  RANGE PROTECTION YOU CAN RELY ON TX 3  MCB • In = 2 to 63A  • 1P to 3P  • C curves  • Breaking capacity: 6 000 A and 6KA at 230/400V a.c.• Compliant with AS/NZS 60 898-1 - AS/NZS 60947-2 Rugged reliability 10,000  operations with load  Electrical endurance

3  The new TX³ range  ensures safe installation  and operation   for maximum protection   of people and property. WIRE GUIDE FLAP Avoids connection errors   for an increased safety level,   by preventing insertion of the   wire behind the terminal.  RISING CAGE CLAMP  TERMINALS The shape of the screws and   terminals ensures a high quality,  durable connection of the wires   and limits contact impedance,  temperature rise and heat loss. TX³ RCCB AND MCB  SAFETY ON ALL LEVELS For ease of installation,  wiring and maintenance,  the new TX³ range has   a number of features which help save time   at each stage   of a project. BISTABLE CLAMP For easy positioning or removal   of the product on the DIN rail.  Compatible with flat-blade or pozidriv  screwdrivers. Several additional  functions of the DX³ range, such   as isolating switches or single   pole + neutral RCBOs, are also  equipped with this clamp.

NEW CIRCUIT PROTECTION RANGE WWW.LEGRAND.COM.AU 4 Limitation class 3 Circuit breakers with class 3  limitation provide excellent short  circuit protection. They limit the  short circuit energy released in  cables and hence help to extend  the service life of an installation. RELIABLE CONNECTIONSProng and fork type comb busbars  guarantee connection quality by  eliminating the risk of short circuits  and ensuring a reliable connection   via the top or bottom of the device. INCREASED SAFETYIP 2x terminals - no direct contact  with live parts, even with the  faceplate open. Clamping screw for  flat-blade or Pozidriv screwdriver.  Reinforced terminals allowing  tightening torques higher than those  recommended by the standard. Bottom terminals are compatible with  fork or prong type comb busbars. ERGONOMIC LABEL HOLDERFor custom labels. These holders  provide effective, durable  protection for the labels which   are used to identify circuits clearly   for the purposes of rapid intervention  in the event of an error. THE EXTRA SPACE CLAMPEnsures more comfort during  installation and allows independent  MCB or RCCB  removal with supply  busbar in place  (without removing the  other devices on the  same row).

5 Pack Cat.Nos Compact RCBO 1P+N - 6KA  A type M Sensitivity (mA) In (A) Number of modules  1 602780  30 6 1 1 602782 30 10 1 1 602783  30 16 1 1 602784  30 20 1 1 602785  30 25 1 1 602786  30 32 1 DX 3  RCBO Single pole + neutral - 230 V a.c. Neutral on right-hand sideAC type  ? Sensitivity (mA) In (A) Number of modules  1 410999 30 6 2 1 411000 30 10 2 1 411002 30 16 2 1 411003 30 20 2 1 411004 30 25 2 1 411005 30 32 2 1 411006 30 40 2 A type M 1 411047 30 6 2 1 411048 30 10 2 1 411050 30 16 2 1 411051 30 20 2 1 411052 30 25 2 1 411053 30 32 2 1 411054 30 40 2 Compact RCBO and DX 3  RCBO  residual current circuit breakers   from 6A to 40A DX3 RCBO 1P+N - 10KA 602786 411002 RCCBs  residual current circuit breakers   from 16A to 80A - AC and A types Pack Cat.Nos TX 3  RCCB 2 pole - 230 V a.c. AC type  ? Sensitivity (mA) In (A) Number of modules  1 411502  10 16 2 1 411509  30 25 2 1 411510  30 40 2 1 411511  30 63 2 1 411512  30 80 2 1 411519  100 25 2 1 411520  100 40 2 1 411521  100 63 2 1 411522  100 80 2 1 411529  300 25 2 1 411530  300 40 2 1 411531  300 63 2 1 411532  300 80 2 A type M 1 411552  10 16 2 1 411559  30 25 2 1 411560  30 40 2 1 411561  30 63 2 1 411562  30 80 2 1 411564  100 25 2 1 411565  100 40 2 1 411566  100 63 2 1 411567  100 80 2 1 411574  300 25 2 1 411575  300 40 2 1 411576  300 63 2 1 411577  300 80 2 TX 3  RCCB 4 pole 400 V a.c. Neutral on right-hand sideAC type  ? Sensitivity (mA) In (A) Number of modules  1 411707  30 25 2 1 411708  30 40 2 1 411709  30 63 2 1 411710  30 80 2 1 411717  100 25 2 1 411718  100 40 2 1 411719  100 63 2 1 411720  100 80 2 1 411727  300 25 2 1 411728  300 40 2 1 411729  300 63 2 1 411730  300 80 2 A type M 1 411764  30 25 2 1 411765  30 40 2 1 411766  30 63 2 1 411767  30 80 2 1 411774  100 25 2 1 411775  100 40 2 1 411776  100 63 2 1 411777  100 80 2 1 411784  300 25 2 1 411785  300 40 2 1 411786  300 63 2 1 411787  300 80 2 Conform to AS/NZS 61008-1 Compatible with prong type and fork type supply busbars • AC type  ?: detect AC component faults • A type  M: detect AC and DC component faults Conform to AS/NZS 61009-1 Compatible with prong type and fork type supply busbars • Breaking capacity: 10KA  • AC type  ?: detect AC component faults • A type  M: detect AC and DC component faults Confirm to AS/NZS 61009-1 Not compatible with fork type busbars • Breaking capacity: 6000A • A type  M: detect AC and DC component faults 411510 411709

NEW CIRCUIT PROTECTION RANGE WWW.LEGRAND.COM.AU 6 Supply busbars, entry terminals distribution 404944 404926 404905 404914 Pack Cat.Nos Prong type supply busbars Universal single pole + neutralReversible: blue for neutral, black for live Length Max. number of  devices connected 20 404926 1 row 13 10 404937 Meter 57 Double pole 50 404938 1 1 row 6 10 404939 Meter 28 Double pole balanced on 3 phases 3 404940 1 1 row 6 10 404941 Meter 28 Triple pole 40 404942 1 1 row 4 10 404943 Meter 19 Four pole 30 404944 1 row 3 10 404945 Meter 14 Fork type supply busbars Single pole Length Max. number of  devices connected 20 404911 1 row 12 10 404912 Meter 57 Double pole 10 404914 Meter 28 Triple pole 5 404917 1 row 4 10 404918 Meter 19 Four pole 10 404920 Meter 14 Protection Protection of prongs 20 404988 12 modules  Can be cut to lengthProtection of supply busbar ends 40 404989 For single pole/single pole + neutral 20 404990 For double pole length 1 m and triple pole 20 404991 For four pole Entry terminals 20 404905 For universal single pole + neutral  or single pole supply busbars  Cross section: 4 to 25mm 2  - IP 2X 20 404906 For all supply busbars  Cross section: 6 to 35mm 2 1: Filled with end protection MCBs  6000    thermal magnetic MCBs from 2A to 63A - C curve Pack Cat.Nos TX 3  MCB Single pole 230/400 V a.c. C curve Nominal rating In (A) Number of modules 10 403427  2 1 10 403430  6 1 10 403432  10 1 10 403433  13 1 10 403434  16 1 10 403435  20 1 10 403436  25 1 10 403437  32 1 10 403438  40 1 10 403439  50 1 10 403440  63 1 TX 3  MCB 2 pole 230/400 V a.c. C curve Nominal rating In (A) Number of modules 5 403521  2 2 5 403524  6 2 5 403526  10 2 5 403527  13 2 5 403528  16 2 5 403529  20 2 5 403530  25 2 5 403531  32 2 5 403532  40 2 5 403533  50 2 5 403534  63 2 TX 3  MCB 3 pole 400 V a.c. C curve Nominal rating In (A) Number of modules 1 403538  2 3 1 403541  6 3 1 403543  10 3 1 403544  13 3 1 403545  16 3 1 403546  20 3 1 403547  25 3 1 403548  32 3 1 403549  40 3 1 403550  50 3 1 403551  63 3 Conform to AS/NZS 60898-1 Compatible with prong type and fork type supply busbars  Breaking capacity: 6000 - AS/NZS 60898-1 - 230/400 V a.c. 6 kA - AS/NZS 60947-2 - 230/400 V a.c. 403434 403532 403551

HPML0465 - No v 2015 HPM Legrand AustraliaBuilding 4, Nexus Industry Park 43-47 Lyn Parade, Prestons NSW 2170 Tel.: 1300 369 777 www.legrand.com.au www.hpm.com.au
