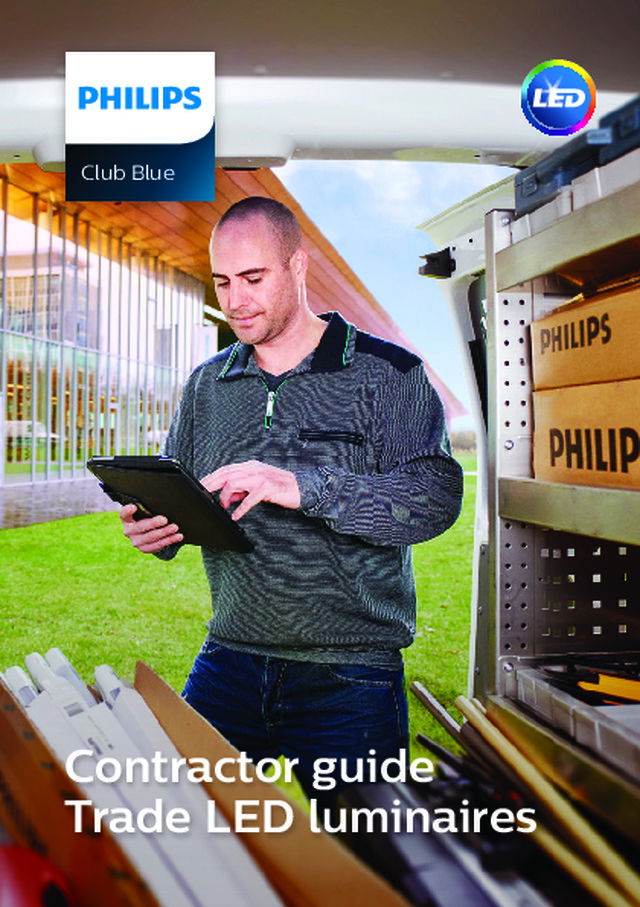

Contractor guide – Trade LED luminaires  1 Contractor guide  Trade LED luminaires Club Blue

2 Long-lasting, and low maintenance, LED lighting is here to support businesses of the world. Philips range of LED trade luminaires is an affordable, versatile range of LED lighting for the market. Offering you the quality and reliability that you are looking for. Our LED trade luminaires range comprises of products to cover your key  applications – downlights, floodlights, troffers and battens, all boasting high  performance and cost efficiency. Designed to serve a comprehensive range  of spaces – whether for residential or business, hotel or retail shops, indoor  spaces or outdoor areas, the portfolio of our LED trade luminaires will be   able to meet your diverse needs. Our range of LED trade luminaires have long lifetimes, which means less  maintenance and fewer replacements. The range also brings you significant  energy savings compared with traditional lighting fixtures – making this a more  sustainable lighting solution for you and your clients. Switching to Philips LED trade luminaires is a breeze. Every product in the  range is designed to enable hassle-free, ‘hole-for-hole’ retrofit replacement of  similar conventional lighting fixtures without time consuming re-working. Quality meets   versatility    for your key spaces   and applications

Club Blue  is here Club Blue is a contractor programme created by Philips Lighting Australia, for Australian electricians.  Club Blue will keep you up-to-date with the latest in LED and connected lighting technology and guide you to the right lighting solution, for whatever job you are working on. •    Free product offers   and information • Promotions •  Project case studies. •  Opportunity for free   face-to-face LED training. •  Online training modules. •  Monthly newsletter Get Educated JOIN TODAY.  IT’S FREE We don’t want to exclude anyone. That’s why Club Blue costs nothing to join. Go to  www.philips.com.au/ ClubBlue to sign up today. Although LED technology has been around for a while, it’s only recently started to transform the lighting industry in Australia. With the opportunity for regular free face-to-face training events for Club Blue members, you will be able to keep up-to-date with the latest developments for you and your customers.   3 Contractor guide – Trade LED luminaires

4 Contractor guide – Trade LED luminaires  There are many benefits to using LED lighting, but there are also numerous  misconceptions about it. We help to separate the facts from fiction by busting some  of the common myths. Myth 1   LEDs last forever  LEDs have a long source life but they do still slowly fade over  time. Ambient temperatures, electrical drive currents, and the  effectiveness of cooling systems are all factors that contribute to this phenomenon called lumen depreciation. While LEDs typically do not catastrophically fail, lumen depreciation is a critical factor  in determining useful lifetimes.  Philips designs our white light LED products to sustain 70% of initial lumen output (L70) Myth 2 White LEDs produce over 180 lumens per watt These results are often obtained in labs where LED chips are tested at room temperature conditions with short “pulse” tests that produce a high lumen output. While the results are not necessarily “wrong,” they do not reflect the typical expected output of LEDs in practical use. When used in lighting fixtures, LED output often decrease by 30-40%.  Philips does not use raw LED specifications or “instant on” output testing. Instead, we use independent testing labs to validate the output of our fixtures at constant,  realistic thermally-stable operating temperatures in  rated, ambient environments. Myth 3 3 Watt LEDs are brighter than 1 Watt LEDs The wattage of a LED is not directly comparable to the wattage  of a traditional light source or even from one LED to another.  Two different LEDs can consume the same power but differ  noticeably in light output. Thus, when selecting LEDs or LED  fixtures, it is more about a quality and consistent light output  rather than absolute power.  Philips develops solutions based on the light output, distribution and quality needed for the application and not based on the particular wattage of LEDs. Myth 4 LED light quality is poor The Colour Rendering Index (CRI) is the prevalent method used  to judge light quality, though there are known deficiencies and  limitations associated with it, especially for LED-based light sources. Research in at least one study found participants preferring LED sources over halogen and incandescent because of overall colour appearance, not a CRI value. The International Commission on  Illumination (CIE) has proposed a new metric called Colour Quality Scale (CQS), which will incorporate colour rendering, chromatic  discrimination and observer preferences into the measure of  Colour Quality.  Philips works to design high quality and consistent light output. We measure our colour consistency in SDCM (Standard Deviation of Colour Matching). Myth 5 LEDs generate no heat When used in lighting applications, LEDs do not radiate infrared heat, only visible light. However, waste heat is produced during the conversion of electricity into light. If not properly removed from the lighting system, this may potentially damage the LEDs. Heat removal can be accomplished through heat sinks that draws heat away from the LED and dissipate it into the surrounding air.  Philips designs, simulates and tests our products for high thermal efficiency to ensure optimal performance and maximise the lifetime of our LEDs. Myth 6 LEDs are not resistant to vibration  There are no moving parts, filaments or fragile glass enclosures with LED lighting. LEDs are therefore very suitable for use in a wide range of applications. Philips designs products that must pass vibration tests according to IEC standards. In some cases, we use  military standards for higher grade of assurance.  Common   LED myths

Myth 7 LED systems cost too much The initial investment of LED systems is higher than that of  conventional systems, but due to the long life of the LED and energy savings ranging between 50%-70% compared to  conventional light sources, the economic payback can typically  be seen in less than two years. Additionally, the upfront cost of  LED systems is also dropping rapidly. Philips provides cost-effective solutions that have a proven and compelling return on investment (ROI).   Myth 8   LEDs are not bright enough LED traffic lights are already common and are certainly a sign  that LEDs are bright enough to be seen even in daylight. Outdoor roads, tunnels and entire building façades are being lit entirely with LEDs today. By any measure, LEDs have enough light output for use even in very large outdoor daylight-visible installations. Philips products have been used in more than 20,000 installations worldwide, including large exterior   projects such as the Stamford Bridge Stadium (Chelsea Football Club), Al Saad Stadium (Doha, Qatar) and Federal Highway (Malaysia). Myth 9 LED lights are dangerous to our eyes There is a small amount of blue light generated by LED but it is a tiny fraction of the emissions from natural daylight, and similar to emissions from other artificial light sources like incandescent, halogen and energy savers or fluorescent lamps. Typical daily exposure to natural blue light is at least 1,000 times stronger compared to artificial light indoors Philips LED products comply with all the relevant  regulations and legislation, ensuring products are safe to use. This means that being exposed to a LED    light is as safe as being exposed to any other artificial light source, and safer than being exposed to natural lighting conditions – such as walking in the open air.  See how Philips LED trade luminaires range can  flexibly address your business needs.    Contact your local Philips sales Representative for more information or call 1300 304 404 Take the next step Contractor guide – Trade LED luminaires  5

6 Contractor guide – Trade LED luminaires  Brighter illumination  Philips LED provides greater energy efficiency when compared to similar LED lights with the same wattage and colour temperature, ensuring you brighter illumination for the same consumption. Lumen determines the overall brightness of the bulb.  Therefore, the bigger the lumen  value the brighter the light. Even and comfortable light Why Philips downlights? Anti-glare diffuser Gives a soft, even glow Wide beam angle More coverage, better illumination A downlight provides general and even lighting with a wide beam angle. It can play a primary or secondary role in your lighting design, and is suitable for places such as living room, bedroom, study room, corridor and kitchen. Beam angle 100 o 1 2

Contractor guide – Trade LED luminaires  7 Reliable quality  Though LEDs generally have a long lifespan, they are sensitive to heat, and may reduce in lifespan if overheated. Philips lights are designed to counter the heat generated from the driver, as well as the heat emitted from the light source. Natural colours Better quality lights are able to reproduce colours naturally. The Colour Rendering Index (CRI) is a gauge that ranges from 1  - 100, and a higher value provides better colour quality. Philips LED downlights have a CRI value above 70. CRI chart Some LEDs may boast of a long lifespan but as time passes it may lose its brightness and effectiveness. Philips ensures that our lights last at least up to 15,000 hours (at L70) to maintain brightness. CRI 60 CRI 70 CRI 80 Philips heat management design HEAT PRODUCED  BY LED HEAT PRODUCED  BY DRIVER Cold air  enter Hot air exit Interchange  of temperature through smart heat  management  design Good CRI Low CRI Up to 15,000 hours long life Quality light for natural colours

8 Contractor guide – Trade LED luminaires  16 SmartBright  LED Batten (BN012C) 19 Coreline  Waterproof Batten (WT120C) Trade LED luminaires 11 12 13 14 15 17 10 Essential SmartBright Downlight (DN024B) GreenSpace Gen 4 Downlight  (DN29X series) GreenSpace Surface Mounted Downlight (SM29X series) CoreRange  Batten - Trunkable (BN189C) Essential  SmartBright Slim Batten (BN068C) 18 Vandalite Vandal and Waterproof Batten (BCW098) GreenSpace Power Downlight  (DN28X-8 series) CoreRange Batten - Standalone (BN188C)

Contractor guide – Trade LED luminaires  9 22 21 GreenPerform Highbay Gen3 (BY698P) Green-Up Highbay (BY550P) 20 26 24 25 27 23 Twin Motion Sensor (EH313L) Essential  SmartBright  LED Floodlight (BVP161)  Metro LED (BGS007) Coreline 2.5  LED Troffer (RC100C, SM100C) Tango Gen2 LED Floodlight (BVP281/ BVP282)    LED Slimline Oyster (3181X)

10 Contractor guide – Trade LED luminaires  GreenSpace Gen 4    Downlight Family Name GreenSpace Gen 4 LED Downlights Model DN290B – Micro DN291B – Mini DN292B – Compact DN293B –   Compact Power Lumen/Watt DN290B Fixed – 7W  @ 650lm, 93lm/W DN291B Fixed – 11.5W  @ 1100lm, 95lm/WDN291B DALI – 12.4W  @ 1100lm, 88lm/W DN292B Fixed –  16.4W @ 1600lm,  97lm/WDN292B DALI –  15.4W @ 1600lm,  103lm/W DN293B Fixed –  22.3W @ 2300lm,  103lm/WDN293B DALI –  20.8W @ 2200lm,  105lm/W CCT 3000K, 4000K CRI 83 Flex and Plug Yes Lifetime (L70@25°C) 50,000hrs Unified Glare Ratio  (UGR) ≥23-25 Material WH - PC diffuser with white reflector & trimALU - PC diffuser with aluminium reflector, temper glass front cover & white trim Driver PSU - Integrated fixed output driverPSD - External DALI-compatible driver Installation Recessed mounting with flexible spring clips IP Rating IP20, IP54 (WP) AS/NZS classification IC rated (Abutted & Covered) Colour of Housing White White Reflector Range Model Cut-out (mm) Diameter (B) (mm) Height (A) (mm) Weight  (kg) DN290B WH (WP) 105 122 95 (99) 0.28 (0.46) DN291B WH (WP) 150 167 105 (109) 0.38 (0.5) DN292B/DN293B WH (WP) 200 218 114 (118) 0.5 (0.63) Aluminium Reflector Range Model Cut-out (mm) Diameter (B) (mm) Height (A) (mm) Weight  (kg) DN290B ALU and WP 105 122 95 0.46 DN291B ALU and WP 150 167 109 0.6 DN292B/DN293B ALU and WP 200 218 118 0.85 Benefits • Energy-efficient. Up to 105lm/W•   Comprehensive range. From 650lm – 2300lm, three   cut-out sizes and two colour temperatures  • Available in white and aluminium reflector When the fitting reaches 70% of full potential (new)   IP54 available for selected range only  Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

Contractor guide – Trade LED luminaires  11 Essential SmartBright   Downlight Benefits • Compact design for greater functionality and versatility • Integrated design, lightweight and easy to install • Multiple output options for various applications • IC-4 rated - ideal for residential/ domestic applications Model Essential SmartBright Downlight (DN024B) Cut-out sizes 90-95mm 133-138mm 158-163mm 183-188mm Power 10W 15W 20W 20W Lumen 600lm 900lm 1200lm 1200lm IP rating IP20 IP20 IP20 IP20 Beam angle 110° CCT 3000K (WW) / 4000K (NW) CRI 80 SDCM ≤7 Operating   temperature -20˚C  ta 40˚C Lifetime  (L70@25°C) 15000hrs Type Fixed Output Power factor 0.75 Electrical class Class II Mounting type Recessed Wiring 1.2m pre-wired AU flex & plug Housing colour White (RAL9003) Material Optics: Semi-transparent PMMA diffuserHousing: Aluminium die cast ring, polycarbonate back cover Applications Residential Model Cut-out (mm) Diameter (B) (mm) Height (A) (mm) Weight  (kg) DN024B10WWWF90 90-95 106 33 0.23 DN024B10WNWF90 90-95 106 33 0.23 DN024B15WWWF133 133-138 147 33 0.30 DN024B15WNWF133 133-138 147 33 0.30 DN024B20WWWF158 158-163 173 33 0.38 DN024B20WNWF158 158-163 173 33 0.38 DN024B20WWWF183 183-188 198 33 0.45 DN024B20WNWF183 183-188 198 33 0.45 When the fitting reaches 70% of full potential (new)   Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production. 33 A B

12 Contractor guide – Trade LED luminaires  Family name GreenSpace Power 2 LED Downlight Model DN284B-8 DN285B-8 Cut-out 200˜205mm 200˜205mm Replacement 2x18W PLC Downlights 2x26W PLC Downlights Power 34W 41W System lumen & Efficacy 3000K: 3450lm/ 101lm/W 3000K: 4250lm/ 104lm/W 4000K: 3650lm/ 107lm/W 4000K: 4500lm/ 110lm/W Power factor 0.9 CCT 3000K / 4000K CRI 80 Driver type Fixed output Beam angle 100° SDCM ≤4 Operating temperature -20°C  ta 40°C Lifetime (L70@25°C) 50,000hrs IP rating IP20 UGR ≤24 Mounting type Recessed, fixed by spring tension clips Housing colour White Material Optics: MCPET high reflectance film, PMMA diffuser with high haze  and light transmissionReflector: High purity aluminium, high reflectance coatingDriver box: PC plasticsClips: Piano wire spring clip, PC plastic clip GreenSpace Power   Downlight Model Cut-out (mm) Diameter (B) (mm) Height (A) (mm) Weight  (kg) DN284B-8 200˜205mm 234 117 0.5 DN285B-8 200˜205mm 234 117 0.5 Benefits •  Ideal replacement for 2x18W and 2x26W PLC •   Downlights suitable for high ceiling applications - up to 4500lm •  Significant system efficacy at up to 95lm/W A B When the fitting reaches 70% of full potential (new)Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

Contractor guide – Trade LED luminaires  13 Model SM291C SM293C SM294C SM295C SM294C WP SM295C WP Replacement 1x26W CFL 2x26W CFL/35W CDM 70W CDM 150W CDM 70W CDM 150W CDM Power 10W 20W 38W 66W 38W 66W System lumen & efficacy 3000K:930lm/ 93lm/W 4000K:1000lm/ 100lm/W 3000K:1860lm/ 93lm/W 4000K:2000lm/ 100lm/W 3000K:3470lm/ 91lm/W 4000K:3800lm/ 100lm/W 3000K:6600lm/ 100lm/W 4000K:6600lm/ 100lm/W 3000K:3800lm/ 100lm/W 4000K: 3800lm/ 100lm/W 3000K:6600lm/ 100lm/W 4000K: 6600lm/ 100lm/W Beam angle 90° 90° 60° 60° 60° 60° IP Rating IP20 IP20 IP20 IP20 IP65 IP65 CCT 3000K / 4000K CRI 80 SDCM 5 Operating temp. -20°C  ta 40°C Lifetime (L70@25°C) 50,000hrs Type Fixed Output UGR ≤ 24   Power factor 0.90 Electrical class Class I Mounting type Surface Mounted Housing colour White Material Optics: MCPET high reflectance film, PC diffuser with high haze and light transmissionReflector: High purity aluminium, high reflectance coatingFront Housing: PC,  Rear Housing: Aluminium   GreenSpace Surface Mounted  Downlight Model Cut-out (mm) Diameter (B) (mm) Height (A) (mm) Weight  (kg) SM291C LED10 200˜205mm 160 135 0.6 SM293C LED20 200˜205mm 160 135 0.6 SM294C LED40 200˜205mm 160 170 0.8 SM295C LED70 200˜205mm 200 239 2.2 SM294C LED40 WP 200˜205mm 200 239 0.8 SM295C LED70 WP 200˜205mm 200 239 2.2 Benefits •   Energy efficient (up to 100lm/W) solution compared to CFL/CDM equivalent •  Integrated design, lightweight and easy to install •  Multiple output options for various applications When the fitting reaches 70% of full potential (new)   Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production. B A

14 Contractor guide – Trade LED luminaires  CoreRange     Batten – Standalone Family name CoreRange LED Batten - Standalone (BN188C) Model type BN188C LED20 L600 BN188C LED40 L1200 Equivalent of 2x18W 2x36W Power 22W 37W Lumen 2100lm 4000lm Power factor 0.95 0.95 Beam angle 120° CCT 4000K (NW)/ 6500K (CW) CRI 80 SDCM ≤5 Operatingtemperature Ta:25˚C (-20˚C  ta 40˚C) Lifetime (L70@25°C) 50,000hrs Type Fixed Output IP rating IP20 Electrical class Class I Input voltage 220V-240V, 50/60Hz Mounting type Surface mount (brackets included), Suspended (accessories to be purchased separately) Housing colour White (RAL9010) Material Frosted cover: PMMA Housing: 0.6mm SPCC Mounting  accessories Surface mount brackets for asymmetric Installation, 2x pcs (BY208Z MB-A) Surface mount brackets for symmetric installation, 2x pcs (BY208Z MB-S) Suspension brackets for asymmetric Installation, 2x pcs (BY209Z MB-A) Suspension brackets for symmetric Installation, 2x pcs (BY209Z MB-S) Suspension pole 1.5m, 2x pcs (BY208Z SP) - suspension brackets required, please order separately Application Warehouses, back of house areas, indoor car parks, factories Benefits •   Ideal as a T8 batten replacement •  Integrated design, lightweight and easy to install •  Multiple output options for various applications Model Height (A)  (mm) Width (B)   (mm) Length (C)  (mm) Weight   (kg) BN188C LED20 L600 58 573 57 0.8 BN188C LED40 L1200 58 1135 57 1.7 When the fitting reaches 70% of full potential (new)Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production. C A B

Contractor guide – Trade LED luminaires  15 CoreRange   Batten – Trunkable Family name CoreRange LED Batten - Trunkable (BN189C) Model type BN189C LED40 L1200 Equivalent of 2x36W Power 37W Lumen 4000lm Power factor 0.95 Beam angle 120° CCT 4000K (NW)/ 6500K (CW) CRI 80 SDCM ≤5 Operatingtemperature Ta:25˚C (-20˚C  ta 40˚C) Lifetime (L70@25°C) 50,000hrs Type Fixed Output IP rating IP20 Electrical class Class I Input voltage 220V-240V, 50/60Hz Mounting type Surface mount (brackets included), Suspended (accessories to be purchased separately) Housing colour White (RAL9010) Material Frosted cover: PMMA Housing: 0.6mm SPCC Trunking accessories Connection block (BY208Z TB) Connecting cable 0.6m (BY208Z C600-P) Connecting cable 0.2m (BY208Z C200-P) Power cable 0.2m (BY208Z C-2) Mounting  accessories Surface mount brackets for asymmetric Installation, 2x pcs (BY208Z MB-A) Surface mount brackets for symmetric installation, 2x pcs (BY208Z MB-S) Suspension brackets for asymmetric Installation, 2x pcs (BY209Z MB-A) Suspension brackets for symmetric Installation, 2x pcs (BY209Z MB-S) Suspension pole 1.5m, 2x pcs (BY208Z SP) - suspension brackets required, please order separately Application Warehouses, back of house areas, indoor car parks, factories Benefits •   Ideal as a T8 batten replacement •  Integrated design, lightweight and easy to install Model Height (A)  (mm) Width (B)   (mm) Length (C)  (mm) Weight   (kg) BN189C LED40 L1200 57 58 1135 1.8 When the fitting reaches 70% of full potential (new)   Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production. C A B

16 Contractor guide – Trade LED luminaires  SmartBright    LED Batten Benefits •   Ideal replacement for 1x36W and 1x18W T8 batten •  High system efficacy of up to 90lm/w •  Central and side cable entry with pre-wired 1.5m cable •  Low maintenance with lifetime up to 25,000 hours at L70  Family name SmartBright LED Batten Model type BN012C Lumen/Watt LED10 - 11W/ 1000lm/ 90lm/W LED20 - 21W/ 2000lm/ 90lm/W CCT 4000K (NW), 6500K (CW) CRI 80 Flex Pre-wired 1.5m flex Lifetime (L70@25°C) 25,000hrs SDCM ≤6 Power factor 0.8 Operating temperature 25°C Driver Integrated fixed driver Dimmable Non dimmable Installation Surface mounted, Suspended IP rating IP20 Material Housing and diffuser: PC Brackets: Stainless steel Application Stairwells, back of house areas, garages Model Width (A)  (mm) Height (B)  (mm) Length (C)  (mm) Weight   (kg) LED10 30 37 600 0.19 LED20 30 37 1200 0.29 When the fitting reaches 70% of full potential (new) Suspension kit not included, to be purchased externallyDimensions shown are nominal measurement. Slight variation in dimensions may occur in production. C B A

Contractor guide – Trade LED luminaires  17 Essential SmartBright   Slim Batten Benefits •  Uniform light quality •  Integrated design, lightweight and easy to install •  Ideal for cove, under cabinet/ panels application •   Semi-transparent end caps - no dark spots when linking up to 10 pieces Family name Essential SmartBright LED Batten (BN068C) Model type BN068C LED5 BN068C LED11 Power 7W 14W Lumen 600lm 1200lm Power factor 0.5 0.5 Beam angle 140° CCT 3000K (WW)/ 4000K (NW)/ 6500K (CW) CRI 80 SDCM ≤7 Operating temperature Ta:25˚C (-20˚C  ta 40˚C) Lifetime (L70) 15,000 hours Type Fixed Output IP rating IP20 Electrical class Class II Input voltage 220V-240V, 50/60Hz Mounting type Surface mount (brackets included) Housing colour White Material One piece PC extrusion housing Linkable Maximum 10 pcs Accessories 1.2m cable with plug (ZCH068 L1200 AU) 265mm connecting cable (ZCH068 C-2 AU) Application Residential application such as cove lighting, under cabinet, panels etc Model Width (A)  (mm) Height (B)  (mm) Length (C)  (mm) Weight   (kg) BN068C LED5 21 596 34 0.12 BN068C LED11 21 1196 34 0.21 C A B Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

18 Contractor guide – Trade LED luminaires  Vandalite  Vandal and Waterproof Batten Benefits •  Robust design and vandal-proofness •  Reliable system performance •  Comfortable light quality Family name  BCW098 Lumen 4000lm 2000lm Power 38W 19W CCT NW (4000K) CRI 80 SDCM 5 SDCM Optic Matt Material UV resistance PC housing / UL Yellow Card certificate -F1 IP rating IP65 IK rating IK10 Surge protection 2KV Classification Class I Input voltage 220-240V, 50/60 Hz Power factor 0.9 Mounting Surface/Wall mounted Operating temperature -20˚C to + 45˚C Lifetime 50,000hrs (L70B50) @Ta 35˚C C B A Model Width (A)  (mm) Height (B)  (mm) Length (C)  (mm) BC W098 LED20 100 85 617 BCW098 LED40 100 85 1169 Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

Contractor guide – Trade LED luminaires  19 Coreline     Waterproof Batten Benefits •  Reliable LED technology – low maintenance •  Sleek design to create traditional look and feel •   Wide-beam light distribution Family name WT120C Lumen 6000lm 4000lm 3400lm 2200lm 1800lm Power 57W 41W 29W 23W 19W CCT 4000K CRI 80 Flex and Plug No Lifetime 50,000hrs Unified Glare Ratio (UGR)  UGR23 Dimmable PSU (Fixed) IP rating IP65 IK rating IK08 Housing colour Light Grey Application Industry, Parking, Semi Outdoor, Under Canopy Accessories Mounting bracket (2pcs), suspension hook (2pcs), anti-vandal screws (2pcs), grommet (2pcs),  cable gland (2pcs) Model Width (A)  (mm) Height (B)  (mm) Length (C)  (mm) 19W 87 82 661 23W/41W 87 82 1223 29W/57W 87 82 1523 Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production. A B C

20 Contractor guide – Trade LED luminaires  Coreline 2.5  LED Troffer Model Width (A)  (mm) Height (B)  (mm) Length (C)  (mm) Weight   (kg) RC100C - Rectangle 297 30 1197 2.8 RC100C - Square 597 30 597 2.8 SM100C - Rectangle 197 36 1197 3.7 SM100C - Square 597 36 597 4.4 Benefits •    Affordable LED office compliant lighting •    High system efficacy of up to 112lm/w •    Comfortable light with minimal glare creates an improved working environment Model type RC100C  (recessed)  SM100C  (surface mounted, suspended) Lumen 2700lm 3900lm 2700lm 3900lm Power 24W LED25S 37W LED35S 24W LED25S 37W LED35S  UGR UGR18 (600x600)  UGR20 (300x1200)  UGR19 (600x600) UGR18 (300x1200) UGR18  (600x600)  UGR20 (200x1200) UGR19  (600x600) UGR21  (200x1200) Lifetime 50,000hrs CCT 4000K CRI 80 SDCM ≤4 Power factor 0.9 Operating temperature 25°C Optics PMMA optical lens Driver Integrated fixed driver (DALI version available on request) Installation T-Bar and Plaster Recessed, Surface Mounted and Suspended IP rating IP20 Material Housing: SPCC (0.5mm), White powder coat finishing (RAL9016) Diffuser: PC, PMMA optical lens (for UGR19 option only) Colour White Application Commercial buildings, Open office, Cell office, Hospital Accessories Suspension kit and Plaster recessed kit sold separately When the fitting reaches 70% of full potential (new) Plaster trim kit to be purchased separately. Suspension kit sold separately and to be used  on surface mounted version only.Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.  B B A A C C

Contractor guide – Trade LED luminaires  21 Green-up   Highbay Benefits •  Long lifetime of 70,000 hours at L70 •  Ideal replacement for HID high-bays •  Comfortable light with low glare and accurate colour Model type BY550P Lumen 10500lm 13650lm 21000lm Power 80W 105W 160W Lifetime 70,000hrs CCT CW (6500K)/ NW (4000K) CRI 85 SDCM 3.5 SDCM Optic WB Wide Beam, NB Narrow Beam, HRO High Rack Optic Temperature -20°C to +40°C Driver Philips Xitanium driver Materials Body: steel  End caps: plastic Lens: optic PMMA Colour White with silver end caps IP rating IP20 Classification Class I Input voltage 220-240V, 50/60 Hz Power factor 0.90 Installation Suspended Model Width (A)  (mm) Height (B)  (mm) Length (C)  (mm) BY550P LED200 380 77 720 BY550P LED140 380 77 720 BY550P LED100 380 77 440 B C A Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

22 Contractor guide – Trade LED luminaires  GreenPerform  Highbay Gen3 Benefits •  System efficacy of 130lm/W •  Superb light quality •   Safe and reliable – IP65/IK07 rating  •   Lifetime of 50,000 hours at L70B50 Model type BY698P (LED110/160/200/300) Lifetime L70B50 50,000hrs@Ta35°C OperationTemperature -30°C to +50°C IP/IK rating IP65 / IK07 Installation Hook (included) or bracket, 3m flying lead Lumen 11000lm 16000lm 20000lm 29000lm Power 85W 120W 155W 225W CCT NW, 4000K (CW, 6500K available on request) CRI 80 Beam Angle NB Narrow Beam, WB Wide Beam, E-NB Extreme Narrow Beam Input Voltage 220-240V, 50/60 Hz Driver PSU (Fixed Output)  Power factor PF 0.95 Surge L,N 2KV; L,N-GND 4KV Housing material Aluminium Die-cast Optical material Lens Cover: Optical PC Applications Production areas, warehouses, and open spaces Model Depth (A)  (mm) Height (B)  (mm) Width (C)  (mm) BY698P LED110 379 96 382 BY698P LED160 417 105 418 BY698P LED200 452 107 454 BY698P LED300 530 120 534 C B   A Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

Contractor guide – Trade LED luminaires  23 Tango Gen2   LED Floodlight Benefits •  Ideal replacement for conventional HID floodlights •    Lifetime of up to 50,000 hours at L70 •  Low maintenance Model type BVP281 BVP282 Voltage 220-240V 50/60Hz 220-240V 50/60Hz Power factor 0.95 0.95 Power 40W 80W 120W 160W 200W Lumen 4400lm 8800lm 13200lm 17600lm 22000lm CRI Min. 80 Min. 80 CCT NW Neutral White, CW Cool White Optics SWB Symmetric Wide Beam, AMB Asymmetry Medium Beam Materials and finishing Housing: Die-cast aluminium Gasket: Heat resistant silicone rubber Lens: Tempered glass Colour: Grey Aluminium RAL9007 Lifetime 50,000hrs (70% lumen maintenance @ Ta =35˚C) Installation Universal Bracket Weight 6.0 - 6.5kg 11.8 Kg Classification IP65; IK07; Class I Operating Temperature -40˚C to +45˚C (Outdoor) Surge protection 10KV Model Depth (A)  (mm) Height (B)  (mm) Width (C)  (mm) BVP281 60 370 360 BVP282 60 420 650 B C A C B A BVP281 BVP282 Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

24 Contractor guide – Trade LED luminaires  Essential SmartBright   LED Floodlight Benefits •    Long lasting performance of up to  30,000 hours at L70 •    Pressure die-cast housing offers excellent  corrosion-resistance and robustness •  600mm flying lead for ease of installation Model Type      BVP161  Power 30W 50W 70W 100W Lumen 2700lm 4500lm 6300lm 9000lm CCT 4000k CRI 70 SDCM 5 Volt/Frequency 220-240V/50 ~60Hz Power factor 0.9 IP rating IP65 IK rating IK07 Lifetime 30,000hrs @ Ta 35˚C Ambient temperature -40˚C to +45˚C Colour Grey Model Depth (A)  (mm) Height (B)  (mm) Width (C)  (mm) 30W 34 143 194 50W 38 202 270 70W/100W 41 234 234 B A C Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

Contractor guide – Trade LED luminaires  25 Metro   LED Benefits •   Solid die-cast housing design ensures long fixture lifetime •   Excellent thermal management ensures long system lifetime •   Reliable and quality components Family Name Metro LED Model BGS007 Light source 16xLED Power requirement 220-240V 50/60Hz Power factor 0.90 (nominal power) LED driver & driving current Constant current or programmable driver options 350mA – 700mA Power 20W Lumen 2000lm CRI 70 ± 5 CCT 4000K ± 500K Optics Symmetrical Beam Materials and finishing Housing: Die-cast aluminium Gasket: Heat resistant silicone rubber Cover: Polycarbonate Grey Paint RAL7040 Lifetime  50,000hrs (70% lumen maintenance @ Ta = 35°C) Working Temperature -40°C  Ta 55°C Installation  34mm pole, 80mm depth, side entry A standard mounting bracket is supplied for mounting flexibility Windage area 0.134m 2 Recommended mounting height 6 - 12m Classifications IP65; IK06; Class I Surge protection 10KV Certifications CB IEC60598, AS/NZ60598, RoHS Applications General Mining Areas, conveyor belts, small roads Model Depth (A)  (mm) Height (B)  (mm) Width (C)  (mm) Weight   (kg) BGS007 16 LED 350 ~ 700 515 90 223 3.5 A B C A B C Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

26 Contractor guide – Trade LED luminaires  LED Slimline   Oyster Benefits •  Durable, yellowing resistant acrylic diffusers •   Available in 3 sizes and warm white or daylight colour temperatures •  IP65 version also available Family name LED Slimline Oyster Model 31814 31815 31816 IP65 31817 Power 12W 17W 20W 12W CCT 2700/6500K CRI/SDCM 80/4 Power factor 0.85+ Mounting Surface Mount Lifetime (hours) 15,000hrs Model Width (B)   (mm) Height (C)   (mm) 31814 290 70 31815 350 60 31816 380 75 31817 290 66 B C Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.

Contractor guide – Trade LED luminaires  27 Twin motion  Sensor Benefits •  Low 2 x 7.5W LED adjustable beam angles •   Bright 5,000K colour temperature •  Up to 30,000 hours lifetime at L70 •  IP44 rated for outdoor use •   Powerful 1,000 lumens light output Model EH313L Lumen 1000lm Power 15W CCT 5000K CRI 80 Flex and Plug Not included Lifetime (L70) 30,000hrs Unified Glare Ratio (UGR) n/a Optics 110D Driver Integrated driver Dimmable PSU (Fixed output) Installation Wall Mounted IP rating IP44 Application Residential Security Casing colour Grey Model Depth (A)  (mm) Height (B)  (mm) Width (C)   (mm) Weight  (kg) EH313L 164 198 185 0.80kg C A B Dimensions shown are nominal measurement. Slight variation in dimensions may occur in production.
