Pierlite 2012 Architectural Lighting catalogue

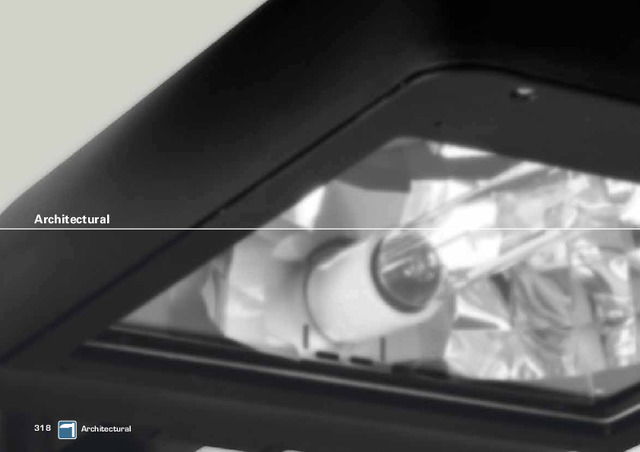

318 Architectural Architectural

319 Architectural A colourful range of exterior bollards, post tops, inground luminaires, bricklights, bulkheads and decorative ﬂoodlights.

320 Architectural Architectural Microﬂoor 324 Miniﬂoor 325 Floor 326 Maxiﬂoor 327 Grand Lite 330 Lite Tiger 334 Sicura 338 Sicura Wall T5 339 Avoca 342 Umina 343 Inoxxa 344 Inoxxa Plus 345

321 Architectural A colourful range of exterior bollards, post tops, inground luminaires, bricklights, bulkheads and decorative ﬂoodlights. Pane 346 Elevator 347 Split 350 Sentry 351 Hemi 352 Mini Mule 353 Musa Wall 354 Ratchet 355 Tone 356 Two Tone 357 Tone SS 358 Opus 359

322 Architectural Architectural Aurora 364 Comet 365 Nova 366 Musa Bollard 367 Nebular 370 Nebular Slim 371 Lunar Minor 372 Lunar Major 373 Central 374 Hyde 375

323 Architectural A colourful range of exterior bollards, post tops, inground luminaires, bricklights, bulkheads and decorative ﬂoodlights. Centenial 378 Mini 300 Pole 379 Aeris 380 Torcia 381 Montecarlo 382 Monza 384 Clima 388 Vista 392 Genesis I ® 396 Genesis II ® 398

Performance 324 Architectural Microﬂoor Microﬂoor is a range of recessed luminaires with low voltage halogen or LED light sources. Design Applications Wall or ﬂoor mount around stairs, entrances, lobbies, foyers and aisle lighting. Ideal for outside pathways and landscape features. Quick Spec Disano Microﬂoor IP67 uplight moulded from glass ﬁlled nylon with a 316 stainless steel trim for low power halogen or LED lamps. Etched glass lens rated IK08. Wall or ground mounting accessories available. Speciﬁcations corrosion resistance and securing screws ordered separately LED sources LED options available ﬁlled nylon, to be ordered separately 0.4kg IP67 Max Dim(mm) 120 x 86 Light output ratio 0.62 Service upward 0.00 Service downward 0.62 Imax 102 cd BS ( 1 / 2 I max ) o 2 x 29 BS ( 1 / 2 E 0 ) o 2 x 27 Polar intensity diagram (cd) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 25 50 75 100 125 150 25 50 75 10 5 0 5 0 Beam diagram h (m) (lx) VBA 1 / 2 I max 1 / 2 E 0 E 0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 102 1.11 1.02 1.5 46 1.66 1.53 2.0 26 2.22 2.04 2.5 16 2.77 2.55 3.0 11 3.33 3.06 3.5 8 3.88 3.57 4.0 6 4.43 4.08 4.5 5 4.99 4.59 o 2 x 29 max I 2 / 1 1650 Microfloor - 1 x OSP Product Codes Accessories 993925 Well for inground installation 993926 997663-00 Power supply for maximum 9 LED units Code Version Dim (mm) Mass (kg) 530750-00 20W 12V G4 halogen asymmetric 120 x 86 0.4 530760-00 120 x 86 0.4 530761-00 20W 12V G4 halogen symmetric 120 x 86 0.4 530810-00 LED white 6000K 120 x 86 0.4

Performance 325 Architectural High quality, IP67 compact size inground luminaire with corrosion resistant stainless steel trims. Miniﬂoor Design Applications Ideal for landscape projects such as civic parks and garden beds or for accent lighting on to features and walls. Quick Spec Disano Miniﬂoor IP67 uplight in aluminium or moulded glass ﬁlled nylon body with 316 stainless steel trim for various lamps. Tempered glass cover rated IK08 and twin cable entry glands. Speciﬁcations silver grey polyester powder coat ﬁnish securing screws and maintenance of the power supply cable Polar intensity diagram (cd) L.O.R.= 1.00 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 250 500 750 1000 1250 1500 50 00 50 00 25 50 75 10 Cartesian intensity diagram (cd) 0 300 600 900 1200 1500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o Visual impact diagram Accent factor 2 5 10 15 30 50 100 E h (lx) 25 50 100 250 500 1000 4m 3m 2m 1m 4m 3m 2m Minifloor 530748-00 1xReb4100-20g Light output ratio 1.00 Service upward 0.00 Service downward 1.00 max 1152 cd VBA o 2 x 19 BS ( 1 / 2 I max ) o 2 x 10 BS ( 1 / 2 E 0 ) o 2 x 10 Beam diagram h h(m) (m) (lx) VBA 1 / 2 I max 1 / 2 E 0 E 0 d(m) K5 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 1152 0.69 0.35 0.34 1.5 512 1.03 0.53 0.51 2.0 288 1.38 0.71 0.68 2.5 184 1.72 0.88 0.85 3.0 128 2.07 1.06 1.03 3.5 94 2.41 1.23 1.20 4.0 72 2.75 1.41 1.37 4.5 57 3.10 1.59 1.54 o 2 x 10 max I 2 / 1 VBA 2 x 19 o No visible spot Product Codes 5.8kg IP67 Max Dim(mm) 235 x 330 Code Version Dim (mm) Mass (kg) 530720-01 75W Par 30 adjustable 235 x 330 4.5 530721-01 235 x 330 5.5 530723-01 235 x 330 5.5 530732-01 35W MH G12 ﬁxed 235 x 330 5.8 530740-01 2 x 7W PL ﬁxed 235 x 330 2.5 530748-00 LED White 4 x 4, 2W 25 degrees 235 x 330 3.3

Performance 326 Architectural Floor with light controlling options. Design Applications General landscaping for civic parks and commercial projects or accent lighting on to building facades and architectural features. Quick Spec with powdercoat paint ﬁnish. Tempered clear glass cover for various HID lamps. Including recessing well and twin cable glands. Speciﬁcations stainless steel securing screws UV stabilised primer and ﬁnal graphite coloured textured powder coat paint in a range of light distributions maintenance power cables saving lamps 12.5kg IP67 Max Dim(mm) 360 x 445 530592-01 26W PLT Wide diffused Product Codes Code Version Dim (mm) Mass (kg) 530506-01 286 x 360 6.0 530530-01 360 x 445 12.5 530531-01 360 x 445 12.5 530534-01 360 x 445 10.5 530536-01 360 x 445 12.5 530582-01 286 x 360 6.0 530583-01 286 x 360 6.0 530592-01 26W PLT Wide diffused 286 x 360 5.0 530594-01 286 x 360 5.5 530595-01 35W MH G12 Wide diffused 286 x 360 5.5

Performance 327 Architectural 11kg IP67 Max Dim(mm) 336 x 381 Large inground uplights offering an array of beam spreads from high output lamps. Maxiﬂoor Design Applications Ideal for the illumination of civic parks and gardens, larger trees or tall structures. Large commercial buildings and public landmarks. Quick Spec Disano Maxiﬂoor IP67 in-ground uplight in die-cast aluminium with various HID lamps. Speciﬁcations pre-treatment for higher resistance to harsh environments with anodised protection double ended lamp mounting installation and easy access for maintenance maintenance protection Light output ratio 0.72 Service upward 0.00 Service downward 0.72 Imax 29318 cd BS ( 1 / 2 I max ) o 2 x 14 BS ( 1 / 2 E 0 ) o 2 x 13 Polar intensity diagram (cd) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 5000 10000 15000 20000 25000 30000 5 10 1 20 25000 00 000 500 000 500 0 00 00 00 00 00 0 Beam diagram h h(m) (m) (lx) VBA 1 / 2 I max 1 / 2 E 0 E 0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 29318 0.50 0.46 1.5 13030 0.75 0.69 2.0 7329 1.00 0.92 2.5 4691 1.25 1.15 3.0 3258 1.50 1.39 3.5 2393 1.75 1.62 4.0 1832 1.99 1.85 4.5 1448 2.24 2.08 o 2 x 14 max I 2 / 1 Product Codes Code Version Dim (mm) Mass (kg) 530822-01 336 x 381 11.0 530823-01 336 x 381 11.0 530832-01 336 x 381 11.0 530833-01 336 x 381 11.0 530842-01 336 x 381 11.0 530843-01 336 x 381 11.0 Accessories 991355-00 Internal louvred baffle in aluminium finish

LITE 3000k designed with a durable low proﬁle stainless steel face trim. The luminaire choice not only enhanced the impressive design features of functional energy efﬁcient solution. City of Canning, Western Australia 328 Architectural

329 Architectural

Performance 330 Architectural Grand Lite providing energy efﬁciency and extended maintenance. Design Applications Ideal for both interior and exterior accent lighting applications, especially in difﬁcult access sites where maintenance is an issue. Quick Spec Pierlite Grand Lite IP67 uplight with moulded polymer base and stainless steel trim with various LED options. Speciﬁcations efﬁciencies in excess of 60 lm/W of 50,000 hrs recessing well included for easy installation power supplies to be ordered separately Product Codes with efﬁciencies in excess of 60 lm/W 2.5kg IP65/67 Max Dim(mm) 180 x 75 Code Version Dim (mm) Mass (kg) 115 x 105 2.0 115 x 105 2.0 115 x 105 2.0 115 x 105 2.0 180 x 75 2.5 180 x 75 2.5 180 x 75 2.5 180 x 75 2.5 180 x 75 2.5 180 x 75 2.5

Polymer recessing well included for easy installation 331 Architectural IP 67

City of Canning, Western Australia 332 Architectural

333 Architectural

Performance 334 Architectural Lite Tiger both interior and exterior applications. Design Applications Ideal for accent or low level task lighting along stairs, pathways, exterior columns and entrances. Quick Spec Pierlite Lite Tiger IP65/67 miniature uplight in stainless steel with LED source and power cable. Glass lens and beam Speciﬁcations efﬁciencies in excess of 60 lm/W life of 50,000 hrs, in operating temperatures from amber or blue stainless clip for mounting in to sheet lined walls or ceilings rated IP65 0.3kg IP65/67 Max Dim(mm) 46 x 87 Product Codes Accessories LVL10-2-22 240/12V Transformer in IP65 box lead as standard and up to a maximum 24m to special order Code Version Dim (mm) Mass (kg) LTE3W310 46 x 87 0.3 LTE3W322 46 x 87 0.3 LTE3W342 46 x 87 0.3 Domed 3W 3000K 46 x 87 0.3

domed lens version rated IP65 335 Architectural IP 67 ta40

336 Architectural Brisbane - Australia

337 Architectural

Performance 338 Architectural Sicura Linear inground uplights in both symmetrical or asymmetrical distributions, using energy efﬁcient T5 and LED light sources. Design Applications Ideal for the uniform illumination of walls and signage where the luminaire needs to be positioned close to the vertical plane. Quick Spec aluminium with 316 stainless steel frame for T5 or LED 2000kg static load IK08 and recessing well. Speciﬁcations aluminium end caps in graphite colour polyester powder coat stainless steel securing screws tray module for easy installation and maintenance asymmetric reﬂector systems options available Light output ratio 0.44 Service upward 0.00 Service downward 0.44 Imax 384 cd BS ( 1 / 2 I max ) o 2 x 45 BS ( 1 / 2 E 0 ) o 2 x 32 Polar intensity diagram (cd) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 100 200 300 400 Beam diagram h h(m) (m) (lx) VBA 1 / 2 I max 1 / 2 E 0 E 0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 384 2.00 1.25 1.5 171 3.00 1.87 2.0 96 4.00 2.50 2.5 61 5.00 3.12 3.0 43 6.00 3.75 3.5 31 7.00 4.37 4.0 24 8.00 5.00 4.5 19 9.00 5.62 o 2 x 45 max I 2 / 1 10 20 30 0 0 0 Product Codes Code Version Dim (mm) Mass (kg) 414250-00 674 x 176 x 107 3.4 414251-00 974 x 176 x 107 4.5 414350-00 674 x 176 x 107 3.4 414351-00 974 x 176 x 107 4.5 414460-00 14W LED tilt adjustable 764 x 176 x 107 8.7 8.7kg IP67 Max Dim(mm) 974 x 176 x 107 frame with stainless steel securing screws 12mm thick glass is resistant to thermal shock and impact IP 67

Performance 339 Architectural Product Codes Code Version Dim (mm) Mass (kg) 414210-00 24W T5 646 x 140 x 104 3.4 414211-00 39W T5 946 x 140 x 104 4.5 414212-00 49W T5 1246 x 140 x 104 7.0 414213-00 54W T5 1546 x 140 x 104 5.8 993922 993923 Energy efﬁcient T5 wall mount luminaire for architectural applications. Sicura Wall T5 Design Applications signage where the luminaire is sited close to the work plane. Quick Spec in aluminium with IK08 5mm glass cover, rated IP65. Powdercoat paint ﬁnish and optional ﬁxed or adjustable mounting brackets. Speciﬁcations caps in graphite colour, polyester powder coat and impact, rated IK08 brackets available electronic ballast circuits on modular gear trays anodised protection 7.0kg IP65 Max Dim(mm) 1546 x 140 x 104 Accessories Extruded aluminium housing with die-cast aluminium end caps IP 65

340 Architectural Wagga Wagga - Australia

341 Architectural

Performance 342 Architectural options. Avoca Design Applications along paths and corridors. Quick Spec aluminium with polycarbonate lens. Polyester powdercoat diffuser. Speciﬁcations aluminium alloy 9005 black standard request integral modular gear trays 1.5kg IP55 Max Dim(mm) 260 x 100 x 135 Product Codes Code Version Dim (mm) Mass (kg) 260 x 100 x 135 1.5 260 x 100 x 135 1.5 260 x 100 x 135 1.5 260 x 100 x 135 1.5 260 x 100 x 135 1.5 260 x 100 x 135 1.5 Accessories

Performance 343 Architectural ﬂuorescent lamps. Umina Design Applications to entrances, stairways and along pathways. Quick Spec Pierlite Umina IP55 larger recessed wall light in die-cast LM6 aluminium with polycarbonate lens. Polyester well or glass diffuser. Speciﬁcations aluminium alloy 9005 black Product Codes 2kg IP55 Max Dim(mm) 300 x 130 x 135 Code Version Dim (mm) Mass (kg) 300 x 130 x 135 2.0 300 x 130 x 135 2.0 300 x 130 x 135 2.0 300 x 130 x 135 2.0 300 x 130 x 135 2.0 300 x 130 x 135 2.0 Accessories Installation blockout

Performance 344 Architectural trim frame. Inoxxa Design Applications Provides ambient lighting along walkways or esplanades, docks and marinas. Quick Spec Pierlite Inoxxa IP55 recessed wall light in die-cast LM6 aluminium body with 316 stainless steel frame. recessing well. Speciﬁcations aluminium alloy stainless steel with brushed ﬁnish integrated modular gear trays for easy installation 2.1kg IP55 Max Dim(mm) 260 x 100 x 135 Product Codes Code Version Dim (mm) Mass (kg) 260 x 100 x 135 2.1 260 x 100 x 135 2.1 260 x 100 x 135 2.1 260 x 100 x 135 2.1 260 x 100 x 135 2.1 260 x 100 x 135 2.1 Accessories Installation blockout

Performance 345 Architectural Inoxxa Plus Design Applications Provides ambient lighting on to boardwalks or around for civic areas and exposed applications. Quick Spec Pierlite Inoxxa Plus IP55 larger recessed wall light in die-cast LM6 aluminium body and 316 stainless steel frame. recessing well. Speciﬁcations alloy with white polyester powder coat paint ﬁnish with brushed ﬁnish and stainless steel exposed fasteners maintenance 2.8kg IP55 Max Dim(mm) 300 x 130 x 135 Product Codes Code Version Dim (mm) Mass (kg) 300 x 130 x 135 2.8 300 x 130 x 135 2.8 300 x 130 x 135 2.8 300 x 130 x 135 2.8 300 x 130 x 135 2.8 300 x 130 x 135 2.8 Accessories Installation blockout

Performance 346 Architectural Pane Design Applications Wall or ceiling mount around building perimeters or corridors and stairways. Quick Spec Pierlite Pane IP55 surface mount square wall light in die-cast LM6 aluminium with polycarbonate opal lens. Speciﬁcations surface or semi recessed mounting bases weather resistance Product Codes Code Version Dim (mm) Mass (kg) 265 x 265 x 95 3.0 265 x 265 x 95 3.0 265 x 265 x 95 3.0 265 x 265 x 95 3.0 265 x 265 x 95 3.0 265 x 265 x 95 3.0 265 x 265 x 95 3.0 265 x 265 x 95 3.0 3kg IP55 Max Dim(mm) 265 x 265 x 95

Performance 347 Architectural Product Codes Code Version Dim (mm) Mass (kg) 380 x 200 x 230 8.0 42W PLT electronic 380 x 200 x 230 5.7 380 x 200 x 230 7.0 Wall mounted luminaire provides both direct and indirect illumination from a single light source. Elevator Design Applications Dual light distribution provides interesting illumination on to building facades and structures or wall signage. Quick Spec Pierlite Elevator surface mount die-cast LM6 aluminium wall light with up/down distribution and integral gear. Toughened glass lens top and bottom. Polyester powdercoat paint Speciﬁcations a durable polyester powder coat paint ﬁnish internal contoured reﬂectors optimum thermal performance 8kg IP54 Max Dim(mm) 380 x 200 x 230

Sydney, Australia 348 Architectural

349 Architectural

Performance 350 Architectural Wall mounted luminaire with contemporary styling to suit stylish architectural space. Split Design Applications Provides both functional and accent lighting for building facades, awnings or columns. Quick Spec in die-cast aluminium for up or downward illumination. Tempered glass lenses, internal reﬂectors and integral paint ﬁnish in silver. Speciﬁcations reﬂector and optical window systems 35W or 70W with G12 base optimum performance looking installation a smooth silver polyester powder coat paint ﬁnish 3.8kg IP55 Max Dim(mm) 155 x 208 x 220 Product Codes Code Version Dim (mm) Mass (kg) 155 x 208 x 220 3.8 155 x 208 x 220 3.8 155 x 208 x 220 3.8 35W Wide/Wide 155 x 208 x 220 3.8 155 x 208 x 220 3.8 155 x 208 x 220 3.8 155 x 208 x 220 3.8 70W Wide/wide 155 x 208 x 220 3.8

Performance 351 Architectural Wall mounted luminaire providing low glare, vertical Sentry Design Applications Direct lighting around building perimeters and at entrances or over wall signage. Quick Spec cast LM6 aluminium with polycarbonate lens. Polyester entries for through wiring. Speciﬁcations a durable polyester powder coat paint ﬁnish to order tempered safety glass if required Product Codes Code Version Dim (mm) Mass (kg) 262 x 140 x 105 2.5 262 x 140 x 105 2.5 262 x 140 x 105 2.5 2.5kg IP55 Max Dim(mm) 262 x 140 x 105

Performance 352 Architectural provide indirect illumination. Hemi Design Applications Upward light distribution provides illumination on to facades, awnings and space frames. Glare free lighting for commercial building entrances and foyers. Quick Spec Pierlite Hemi IP55 surface mount exterior uplight in die-cast LM6 aluminium with tempered glass visor. Polyester reﬂector system. Speciﬁcations a durable polyester powder coat paint ﬁnish gear tray 5.5kg IP55 Max Dim(mm) 400 x 200 x 200 Product Codes Code Version Dim (mm) Mass (kg) HEM42404 42W PLT electronic 400 x 200 x 200 4.3 HEM70411 400 x 200 x 200 5.5

Performance 353 Architectural indirect illumination applications. Mini Mule Design Applications Wall mounted to illuminate spaces around commercial buildings and architectural features. Quick Spec Pierlite Mini Mule IP55 surface mounted wall light in die-cast LM6 aluminium with tempered glass visor.Internal reﬂector system and magnetic control gear. Speciﬁcations a durable textured powder coat paint ﬁnish provides IP55 weather protection mounting bracket system for a discreet installation 5.0kg IP55 Max Dim(mm) 200 x 200 x 200 Product Codes Code Version Dim (mm) Mass (kg) 200 x 200 x 200 5.0 200 x 200 x 200 5.0 MM35WMHW.09 35W G12 Wide, black 200 x 200 x 200 5.0

Performance 354 Architectural Wall mounted luminaire providing illumination for either direct or indirect lighting applications. Musa Wall Design Applications Ideal for lighting the facades and perimeters of onto awnings and ceilings of retail complexes. Pole top ﬁxtures and bollards can be used around car parks. Quick Spec Disano Musa IP 65 wall or pole light in die-cast aluminium LED lamp as required, plus mounting accessory to suit application. Speciﬁcations modern styling to complement any architecture extra corrosion resistance weather seals choice of reﬂector systems Dia. 60mm spigot 50 150 250 350 450 550 650 Ø 256 300 225 Ø256 7.4kg IP65 Max Dim(mm) 300 x 256 x 225 Product Codes Code Version Dim (mm) Mass (kg) 423312-01 300 x 256 x 225 6.5 423313-01 300 x 256 x 225 7.4 423411-01 70W MH E27 Wide 300 x 256 x 225 6.5 423412-01 150W MH E27 Wide 300 x 256 x 225 7.4 423420-01 300 x 256 x 225 6.0 Accessories 998020 998022 Twin ﬁtting pole top adaptor 998024 Wall bracket adaptor

Performance 355 Architectural providing low glare light distribution. Ratchet Design Applications vehicular areas around commercial buildings. Quick Spec in die-cast aluminium with integral control gear Speciﬁcations specular reﬂector system for optimum performance or other colours available to order 4.5kg IP55 Max Dim(mm) 250 x 270 x 105 Product Codes Code Version Dim (mm) Mass (kg) 250 x 270 x 105 4.0 35W G12 Metal halide 250 x 270 x 105 4.5

Performance 356 Architectural designs. Tone Design Applications Exterior lighting around commercial buildings, fast food outlets, shopping centres, schools and public buildings. Quick Spec Pierlite Tone IP55 bulkhead wall light in pressure die cast type to suit application. Speciﬁcations inhibitors optimum performance light controlling feature 2.5kg IP55 Max Dim(mm) 265 x 105 Product Codes Code Version Dim (mm) Mass (kg) 265 x 105 2.5 265 x 105 2.5 265 x 105 2.5 265 x 105 2.5 265 x 105 2.5 265 x 105 2.5

Performance 357 Architectural ambient lighting of building exteriors. Two Tone Design Applications Exterior lighting around ofﬁces, fast food outlets, shopping centres, schools, universities and any public space. Quick Spec Pierlite Two Tone IP55 bulkhead wall light in pressure die-cast LM6 aluminium with polyester powdercoat paint in type to suit application. Speciﬁcations inhibitors reﬂectors for optimum performance or light controlling features Product Codes Code Version Dim (mm) Mass (kg) 360 x 160 4.5 360 x 160 4.5 360 x 160 4.5 360 x 160 4.5 360 x 160 4.5 360 x 160 4.5 4.5kg IP55 Max Dim(mm) 360 x 160

Performance 358 Architectural resistant stainless steel face trims. Tone SS Design Applications Exterior lighting around commercial buildings, fast food outlets and shopping centres. Quick Spec aluminium base and 316 stainless steel front trim with opal face trim to suit application. Speciﬁcations inhibitors protection for easy installation height 3.5kg IP55 Max Dim(mm) 270 x 95 Product Codes Code Version Dim (mm) Mass (kg) 270 x 95 3.5 270 x 95 3.5 270 x 95 3.5 270 x 95 3.5 270 x 95 3.5 270 x 95 3.5

Performance 359 Architectural with optional trim faces. Opus Design Applications Ideal for perimeter lighting around residential buildings and commercial complexes. Quick Spec LM6 aluminium with polyester powdercoat paint in black Speciﬁcations or light control integral gear on a modular tray for easy installation 3kg IP55 Max Dim(mm) 345 x 190 x 150 Product Codes Code Version Dim (mm) Mass (kg) 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0 345 x 190 x 150 3.0

360 Architectural Melbourne - Australia

361 Architectural

362 Architectural

363 Architectural

Performance 364 Architectural Heavy duty bollard providing low glare downward illumination with optional ﬂat or domed tops. Aurora Design Applications Ideal for illuminating pathways in parks, institutional grounds, shopping centres and petrol station driveways. Quick Spec IP43, in extruded and die-cast aluminium alloy, powdercoat paint ﬁnish to selected colour. Impact resistant acrylic lens and low glare indirect reﬂector with gear tray module and selected HID lamp. Speciﬁcations designs with a heavy duty extruded aluminium body durable colours UV degradation source provide low glare illumination key lock for secure access magnetic control gear circuit, is supplied separately accommodate four ﬁxing screws or rag bolts Product Codes Code Version Dim (mm) Mass (kg) Dome top pole only 200 x 1088 8.0 200 x 1088 8.0 70W MH gear tray 157mm P.C.D. 4 holes 90° 8kg IP43 Max Dim(mm) 200 x 1088

Performance 365 Architectural Utility bollard using a highly efﬁcient optical lens with a Comet Design Applications and shopping plazas. Quick Spec with powdercoat paint ﬁnish to selected colour and vandal resistant locking screws. Polycarbonate fresnel lens with Speciﬁcations extruded aluminium pole secure access impact and diffuses the lamp image and maintenance selection of colours Product Codes Code Version Mass (kg) 6.0 35W G12 Metal halide with gear tray 6.2 120° 3 holes 95mm P.C.D. 11mmØ 6.2kg IP43 Max Dim(mm) 150 x 902

Performance 366 Architectural Heavy duty bollard designed with low glare, external optical louvres. Nova Design Applications Ideal for high trafﬁc areas and civic parks, pathways in schools and hospitals, shopping centres and service station driveways. Quick Spec heavy duty louvre head in die-cast aluminium and extrude Speciﬁcations extruded aluminium body maintenance; to be ordered separately resistant locking screws allow secure access supplied separately Product Codes Code Version Mass (kg) Inground mounting 150mm less gear 7.0 5.7 2 x 9W PL Gear tray 120° 3 holes 123mm P.C.D. 11mmØ 7kg IP43 Max Dim(mm) 150 x 883

Performance 367 Architectural Modern column mounted luminaire available in a range of energy saving lamps. Musa Bollard Design Applications commercial buildings or civic parklands. Wide beam version with a batwing distribution is ideal for illuminating cycle and walking tracks. Quick Spec Disano Musa IP65 bollard in die-cast and extruded or HID lamp option with relative light distribution to suit application. Speciﬁcations durable powder coat, two tone paint ﬁnish stability and security IP65 weather protection installation and maintenance for optimum performance catalogue CF0849 Polar intensity diagram (cd) L.O.R.= 1.00 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 150 300 450 600 750 50 00 50 00 15 30 45 60 2011-05-30 Visual impact diagram Accent factor 2 5 10 15 30 50 100 E h (lx) 25 50 100 250 500 1000 2.0 0m 1.5 0m 1.0 0m 0.5 0m Beam diagram h h(m) (m) (lx) VBA 1 / 2 I max 1 / 2 E 0 E 0 d(m) K5 0.50 1.00 1.50 2.00 2.50 1.5 1.0 0.5 0.0 0.5 1.0 1.5 (m) 0.50 2668 0.53 0.35 0.32 0.75 1186 0.80 0.53 0.48 1.00 667 1.06 0.70 0.64 1.25 427 1.33 0.88 0.80 1.50 296 1.60 1.06 0.96 1.75 218 1.86 1.23 1.12 2.00 167 2.13 1.41 1.28 2.25 132 2.39 1.58 1.44 o 2 x 19 max I 2 / 1 VBA 2 x 28 o No visible spot No visible spot 1 x 310 lm Musa Power LED 423545-00 1xRGB/green-1794 12.3kg IP65 Max Dim(mm) 300 x 260 x 1290 Product Codes Code Version Dim (mm) Mass (kg) 423511-01 300 x 260 x 1290 12.3 423531-01 70W MH E27 Wide 300 x 260 x 1290 12.3 423532-01 300 x 260 x 1290 12.0 423533-01 42W PLT Wide 300 x 260 x 1290 12.0 423543-00 14W 4000K 25 DEG. LED 300 x 260 x 1290 12.0 423547-00 300 x 260 x 1290 12.0 423549-00 300 x 260 x 1290 12.0

368 Architectural

369 Architectural Sydney - Australia

Performance 370 Architectural Modern styled bollard with low glare optical louvres and optional ﬂat or domed heads. Nebular Design Applications shopping centres, plazas, forecourts and along driveways. Quick Spec aluminium alloy with powdercoat paint to selected colour. Vandal resistant locking screws on head plus select mounting type and height to suit application Speciﬁcations with powder coat paint ﬁnish in a selection of colours internal anodised aluminium louvres maintenance; to be ordered separately mounting using an integrated baseplate 7kg IP43 Max Dim(mm) 180 x 1100 120° 3 holes 95mm P.C.D. 11mmØ Polar intensity diagram 0 ) m l 0 0 0 1 / d c ( o 180 o 150 o o 0 2 1 0 5 1 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 NBD150/50MV 880 1 x MV 50W L.O.R. = 0.43 1 x 2000 lm Product Codes Code Version Dim (mm) Mass (kg) 1100mm inground mounting less gear 180 x 1100 7.0 510mm surface mount less gear 180 x 510 6.2 880mm surface mount less gear 180 x 880 6.2 1100mm inground mounting less gear 180 x 1100 7.0 510mm surface mount less gear 180 x 510 5.2 880mm surface mount less gear 180 x 880 6.2 Accessories

Performance 371 Architectural of either ﬂat or domed head assemblies. Nebular Slim Design Applications Parks, gardens, along pathways and in landscaped areas versions are ideal for ﬁxing to low height walls. Quick Spec in die-cast aluminium alloy and separate galvanised steel post, powdercoat paint to selected colour. Internal louvres E27 lampholder only. Speciﬁcations internal anodised aluminium louvres 5.5kg IP43 Max Dim(mm) 150 x 275 120° 3 holes 136mm P.C.D 8mmØ Polar intensity diagram 0 ) m l 0 0 0 1 / d c ( o 180 o 150 o o 0 2 1 0 5 1 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 NBD150/50MV 880 1 x MV 50W L.O.R. = 0.43 1 x 2000 lm Product Codes Code Version Dim (mm) Mass (kg) 150 x 275 5.5 150 x 275 5.5 150 x 275 5.5 E27 Dome head only 150 x 275 5.5 13W Dome Head only 150 x 275 5.5 18W Dome Head only 150 x 275 5.5 Accessories Pole for surface mounting P1000 Pole for inground mounting

Performance 372 Architectural Versatile post top ﬁtting with classic styling for low power, energy saving lamps. Lunar Minor Design Applications Effective on poles up to 4.5m high in civic parks, plazas, car parks and shopping malls. Quick Spec Pierlite Lunar Minor IP54 post top ﬁxture with die-cast dia.76 mm pole adaptor and formed cowling in aluminium alloy with powdercoat paint ﬁnish. Integral HID control gear and lamp with opal moulded acrylic lens diffuser. Speciﬁcations diffuses the light source for visual comfort paint ﬁnish has a discreet fastening method adaptor, for easier installation locking screws suits a dia. 76 x 80mm long spigot 5kg IP54 Max Dim(mm) 476 x 285 L124 0 o max I60 = 398 cdmax I80 = 50 cd / 1000 lmmax I90 = 40 cd / 1000 lm HorizontalIlluminance H E max (m) (lux) 3.0 6.0 8.0 58 15 8 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H 2% 5 2% 5 % Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 75 100 125 LUNA70HPS-I 1 x HPS-E/I 70W E27 L.O.R. = 0.55 1 x 5600 lm Product Codes Code Version Dim (mm) Mass (kg) 100W HQI-E27 476 x 285 5.0 476 x 285 5.0 70W HQI-E27 476 x 285 5.0 Die-cast aluminium base adaptor with stainless steel locking screws suits a dia. 76 x 80mm long spigot IP 54

Performance 373 Architectural Versatile post top ﬁtting with classic styling for high power, energy efﬁcient lamps. Lunar Major Design Applications Effective with poles up to 12m high in civic parks, plazas, open car parks and town centres. Quick Spec Pierlite Lunar Major IP54 post top ﬁxture with dia. 76 mm, die-cast pole adaptor and formed cowling in aluminium alloy and pole mounted gear tray for selected HID lamp. Speciﬁcations screws suits a dia. 76 x 80mm long spigot and even distribution paint ﬁnish and three locking clips inside the adaptor for easier installation LUNA400HPS 1 x HPS-E 400W E40 L.O.R. = 0.57 1 x 48000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 150 200 250 L95 0 o max I60 = 3700 cdmax I80 = 48 cd / 1000 lmmax I90 = 34 cd / 1000 lm HorizontalIlluminance H E max (m) (lux) 8.0 10.5 12.0 94 54 42 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H 2% 5 2% 5 6kg IP54 Max Dim(mm) 648 x 457 Product Codes Code Version Dim (mm) Mass (kg) 648 x 457 6.0 250W HQI-E40 648 x 457 6.0 648 x 457 6.0 400W HQI-E40 648 x 457 6.0 polyester powder coat paint ﬁnish and three locking clips IP 54

Performance 374 Architectural elements for coloured accent to the pole or column. Central Design Applications Ideal for the general lighting of open spaces such as parks and gardens or school and hospital grounds. LED elements can provide corporate or themed colours to business parks, stadium and sports centre forecourts. Quick Spec cast pole adaptor and formed top cowling in aluminium with powdercoat paint to selected colour. Prismatic lens in acrylic with integral HID gear or 240v E27 lampholder. Speciﬁcations and powder coat paint ﬁnish in a selection of colours illuminate the pole and base area annular reﬂector provides downward illumination control gear in the spigot housing 7kg IP54 Max Dim(mm) 550 x 500 Product Codes Code Version Dim (mm) Mass (kg) 550 x 500 7.0 70W MH E27 550 x 500 7.0 E27 550 x 500 6.0 Green LED elements

Performance 375 Architectural Modern, robust luminaire with prismatic diffuser and optional LED elements in three colour choices. Hyde Design Applications Ideal for the general lighting of open spaces such as LED elements provide corporate or themed colours to business complexes, stadiums and car parks. Quick Spec Pierlite Hyde IP54 post top ﬁxture with dia. 76 mm, die-cast pole adaptor and formed top cap in aluminium with powdercoat paint to selected colour. Prismatic lens in acrylic with integral HID gear or 240v E27 lampholder. Speciﬁcations and powder coat paint ﬁnish in a selection of colours the illumination control gear in the housing maintenance illuminate the pole and base area 6.5kg IP54 Max Dim(mm) 320 x 500 Product Codes Code Version Dim (mm) Mass (kg) 320 x 500 6.5 HYD70MH 70W MH E27 320 x 500 6.5 E27 320 x 500 5.5 Green LED elements Pressure die-cast aluminium housing with a ﬂuted design IP 54

376 Architectural Sydney - Australia

377 Architectural

Performance 378 Architectural positions and matched mounting brackets. Centenial Design Applications tourist areas, residential estates and private roads. Quick Spec mounting adaptor and formed top cowling in aluminium with powdercoat paint to selected colour. Lens in acrylic entry mounting bracket for dia. 76mm pole. Speciﬁcations spigot entries downward illumination and traditional styling colours to special order housing the lamp separately for mounting on Dia. 76mm vertical poles with Dia. 42mm spigot 6kg IP54 Max Dim(mm) 550 x 370 Product Codes Code Version Dim (mm) Mass (kg) 550 x 370 6.0 550 x 370 6.0 70W E27 Metal halide 550 x 370 6.0 70W E27 Metal halide 550 x 370 6.0 550 x 370 5.0 550 x 370 5.0 Top mounting bracket Top mounting bracket IP 54 Accessories

Performance 379 Architectural Mini 300 Pole Design Applications stations, car parks, precincts, shopping centres and vehicle dealer forecourts. Quick Spec Philips Mini 300 pole IP65 ﬁxture in aluminium alloy with powdercoat paint ﬁnish and tempered glass hinged visor. Integral HID control gear and high reﬂectivity special optics in asymmetric distribution. 60mm adaptor for horizontal or vertical spigot. Speciﬁcations reﬂective coating 60mm, vertical pole or horizontal spigot with a durable polyester powder coat paint ﬁnish securing screw system ambient rating 250W/942 high colour rendering lamp industrial section Mounting bracket can be orientated to suit vertical pole or horizontal spigot 11kg IP65 Max Dim(mm) 330 x 520 x 220 Product Codes Code Version Mass (kg) 10.0 11.0

Performance 380 Architectural medium HID lamp sources. Aeris Design Applications and transport infrastructure and applications requiring optimum lighting performance. Quick Spec aluminium with powdercoat ﬁnish and tempered glass hinged visor. Integral HID gear and lamp with concealed square poles. Speciﬁcations frame in two complementary sizes coat paint, with optional architectural colours available upon request between the housing and the lens frame permanent seal for ease of installation and maintenance ﬂat surfaces or use the optional pole adaptors 19kg IP54 Max Dim(mm) 710 x 419 x 210 Product Codes Code Version Dim (mm) Mass (kg) 100W MH Grey 564 x 330 x 159 12.0 100W MH Grey 564 x 330 x 159 12.0 250W MH Grey 710 x 419 x 210 18.0 250W MH Grey 710 x 419 x 210 18.0 400W MH Grey 710 x 419 x 210 19.0 400W MH Grey 710 x 419 x 210 19.0 Accessories

Performance 381 Architectural Unique slim line design providing low glare area lighting, using energy efﬁcient lamps and optics. Torcia Design Applications Ideal solution for exterior lighting projects where pedestrian and vehicular corridors or open areas such as civic parks and retail malls. Quick Spec Disano Torcia IP65 post top ﬁxture in die-cast LM6 aluminium with powdercoat paint ﬁnish and clear polycarbonate lens with three sided tapered proﬁle. Integral HID or LED control gear and indirect optics, with dia. 60mm pole top adaptor. Speciﬁcations seals to provide IP65 weather resistance modular trays for easy installation and maintenance steel wire, safety lanyard a polished and anodised ﬁnish blue colours to special order mounting hardware package of 3645lm Accessories 426952 426970 426972 426974 Wall plate for 426972 426976 115 ϒ 105 ϒ 95 ϒ 85 ϒ 75 ϒ 55 ϒ 45 ϒ 35 ϒ 105 ϒ 95 ϒ 85 ϒ 75 ϒ 55 ϒ 45 ϒ 35 ϒ 25 ϒ 15ϒ 25 ϒ 5 ϒ 5 ϒ 15ϒ cd/Klm 60 100 140 180 220 65 ϒ 65 ϒ 20 115 ϒ 375 375 Ø 60 765 with soft opal diffuser 9.5kg IP65 Max Dim(mm) 375 x 375 x 765 Code Version Dim (mm) Mass (kg) 423240-01 375 x 375 x 765 9.5 423242-01 375 x 375 x 765 9.5 423244-01 150W HQI-E E27 375 x 375 x 765 9.5 423250-00 49W 4000K LED 375 x 375 x 765 7.5 Product Codes

Performance 382 Architectural European styling, optical performance and versatility make the Montecarlo a unique solution for modern streetscapes. Montecarlo Design Applications Pedestrian areas around foreshore developments, city beautiﬁcation projects, retail precincts, civic plazas and where performance and aesthetics are a design criteria. Quick Spec Disano Montecarlo IP66 post or wire mounting ﬁxture in die-cast LM6 aluminium with two tone powdercoat paint ﬁnsh. Integral control gear with top access and cut-off application. Speciﬁcations lens frame with ﬂush securing clips pretreatment to resist saline environments and UV degradation of vibrant colours, subject to project quantity thermal and impact shock including, outreach arm, poles, brackets or suspension systems and adaptor to suit a dia. 60mm spigot using energy efﬁcient lamp options with integral gear access for installation and maintenance 115 ϒ 105 ϒ 95 ϒ 85 ϒ 75 ϒ 55 ϒ 45 ϒ 35 ϒ 105 ϒ 95 ϒ 85 ϒ 75 ϒ 55 ϒ 45 ϒ 35 ϒ 25 ϒ 15ϒ 25 ϒ 5 ϒ 5 ϒ 15ϒ cd/Klm 120 180 240 300 360 65 ϒ 65 ϒ 420 60 115 ϒ 90 5 270 175 180 65 65 65 5 65 65 6 6 ϒϒ 65 5 6 6 ϒ 65 5 65 65 6 6 ϒϒ 65 6 180 180 120 120 0 0 0 0 6 6 60 6 11kg IP66 Max Dim(mm) 460 x 655

Accessories 426952 426970 426972 426974 Wall plate for 426972 426978 998090 383 Architectural Product Codes Code Version Dim (mm) Mass (kg) 326580-00 460 x 277 8.0 326580-00 460 x 655 10.0 326621-01 460 x 277 9.0 326623-01 150W MH asym top mount 460 x 277 9.0 326651-01 460 x 277 9.4 326652-01 460 x 277 9.4 326667-01 460 x 655 11.0 326673-01 460 x 655 11.0 326680-01 460 x 655 10.4

Performance 384 Architectural Modern design incorporating energy efﬁcient light sources and full cut-off street optics. Monza Design Applications Ideal solution for exterior lighting projects where pedestrian and vehicular corridors or open areas such as civic parks and retail malls. Quick Spec Disano Monza IP66 pole top ﬁxture in die-cast LM6 aluminium with powdercoat paint ﬁnish and ﬂat glass visor. Integral HID or LED gear and lamp with bi-asymmetric optics and adjustable dia. 60mm spigot adaptor. Speciﬁcations for effect lighting gear to optimise performance and energy efﬁciency quick connect terminals and protected by an anti-condensation ﬁlter the gear and optical chambers polished and anodised ﬁnish for long service life spigot adaptor, pole arm set or modern wall bracket Accessories 426950 426970 991385 991412 Wall mounting arm 800mm 490 588 340 173 ø 60 15° 0° 15° +15° 0° -15° spigot adaptor, Dia. 60mm 6kg IP66 Max Dim(mm) 588 x 340 x 173 Code Version Dim (mm) Mass (kg) 423051-00 588 x 340 x 173 6.0 423052-00 588 x 340 x 173 6.0 423054-00 588 x 340 x 173 6.0 423056-00 588 x 340 x 173 6.0 423063-00 28W 4000K LED 588 x 340 x 173 6.0 Product Codes

adaptor, pole arm set or modern wall bracket Pressure die-cast aluminium housing colour, acrylic powder coat paint ﬁnish 385 Architectural IP 66

386 Architectural Sydney - Australia

387 Architectural

Performance 388 Architectural varied choice of styles, lamps and optics. Clima Design Applications Driveways, car parks, civic parks and pedestrian area. Quick Spec aluminium base and formed aluminium cowling with powdercoat paint ﬁnish. Dia. 60mm pole. Speciﬁcations powder coat paint, after chromate pre-treatment, in gear on a modular tray system louvres or indirect bafﬂe outreach arm system Accessories426953426971426973426975 Wall plate for 426973 426977 Dia. 60mm spigot for 426973 Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 75 100 125 490 65 145 ø 520 422361.00 422354 1 x HIE 100 W L.O.R. = 0.34 1 x 9000 lm 5.8kg IP65 Max Dim(mm) 520 x 490 Product Codes Code Version Dim (mm) Mass (kg) 422287-01 520 x 490 5.8 422288-00 520 x 490 5.4 422289-01 520 x 490 5.4 422342-01 520 x 490 5.4 422343-00 42W PLT Louvre, Dome top 520 x 490 5.4 422344-01 100W HQI-E Louvre, Dome top 520 x 490 5.4 422352-01 520 x 490 5.8 422353-00 520 x 490 5.4 422354-01 520 x 490 5.8 422362-01 520 x 490 5.4 422364-01 520 x 490 5.4 1 3 2 4

389 Architectural

390 Architectural

391 Architectural

Performance 392 Architectural energy efﬁcient lamps to provide stylish ambient lighting. Vista Design Applications Quick Spec Disano Vista IP65 post top ﬁxture with die-cast LM6 aluminium base, four sided frame and cowling with powdercoat paint ﬁnish. Dia. 60mm or 76mm pole. Speciﬁcations painted in graphite or satin silver colours with textured ﬁnish with low glare optical systems and for easy re-lamping maintenance Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 75 - 255 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 75 100 125 422262 422228 422257 1597 1 x SAP-T150 L.O.R. = 0.45 1 x 15000 lm 13.3kg IP65 Max Dim(mm) 585 x 585 x 550 Product Codes Code Version Mass (kg) 422228-01 150W MH E27 Internal diff/silver 12.8 422231-01 12.3 422234-01 12.3 422235-01 150W MH E27 Internal diff/graphite 12.8 422237-01 250W MH-T E40 Internal diff/graphite 13.3 422238-01 250W MH-T E40 Internal diff/silver 13.3 422241-01 12.3 422244-01 12.3 422246-01 250W MH-T E40 Louvre/graphite 12.8 422248-01 250W MH-T E40 louvre/silver 12.8 422257-01 12.8 422258-01 12.8 422262-01 12.8 422270-01 12.8 426927426952426970426974 Wall plate for 426927 426977991327 House side shield for indirect versions only

393 Architectural Sydney - Australia

394 Architectural Sydney - Australia

395 Architectural

Performance 396 Architectural Modern styled exterior luminaire designed for compact HID lamp sources. Genesis I ® Design Applications railway infrastructure, driveways and retail plazas. Perimeter lighting around commercial and civic buildings. Quick Spec Pierlite Genesis I area light, IP65 die-cast LM6 aluminium 60mm spigot. Speciﬁcations integral gear, lamp and optics face frame with stainless steel locking screws after chromate pretreatment resists thermal shock easier installation and maintenance with anodised protection to dia. 60mm spigots, square poles or singular wall plates 5.5kg IP65 Max Dim(mm) 456 x 319 x 160 Accessories WM1 Wall mount bracket Code Version Dim (mm) Mass (kg) 456 x 319 x 160 5.0 70W MH E27 Wide 456 x 319 x 160 5.0 456 x 319 x 160 5.0 100W MH E27 Wide 456 x 319 x 160 5.5 456 x 319 x 160 5.0 150W MH E27 Wide 456 x 319 x 160 5.5 456 x 319 x 160 5.5 Product Codes

397 Architectural

Performance 398 Architectural optics in a choice of optical distributions. Genesis II ® Design Applications transport infrastructure, driveways and retail or commercial precincts. Quick Spec Pierlite Genesis II area light, IP65 die-cast LM6 aluminium 60mm spigot Speciﬁcations aluminium alloy for durability toughened clear glass lens and stainless steel hardware 9005, after chromate pretreatment offering four versatile beam patterns protection quick-connect terminals to dia. 60mm spigots, square poles or singular wall plates 9kg IP65 Max Dim(mm) 570 x 405 x 205 Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 10 - 190 0 o 180 o 150 o o 150 120 o o 120 9 o 90 6 o 60 30 o o 30 300 400 500 GNS400S 2 1 x HPS-T 400W L.O.R. = 0.66 1 x 48000 lm Accessories WM2 Wall mount bracket Code Version Dim (mm) Mass (kg) 250W MH E40 Wide 570 x 405 x 205 8.5 570 x 405 x 205 8.5 400W MH E40 Wide 570 x 405 x 205 9.0 570 x 405 x 205 9.0 Product Codes

aluminium alloy for durability High quality powder coat paint ﬁnish in pre-treatment Hinged face frame with thermal shock resistant, toughened clear glass lens and stainless steel hardware Mounting options allow for multiple ﬁxture installations on to dia. 60mm spigots, square poles or singular wall plates 399 Architectural IP 65 ta40

Published: 23 May 2013 Category: Product Catalogues
