Pierlite adverse weather lighting products

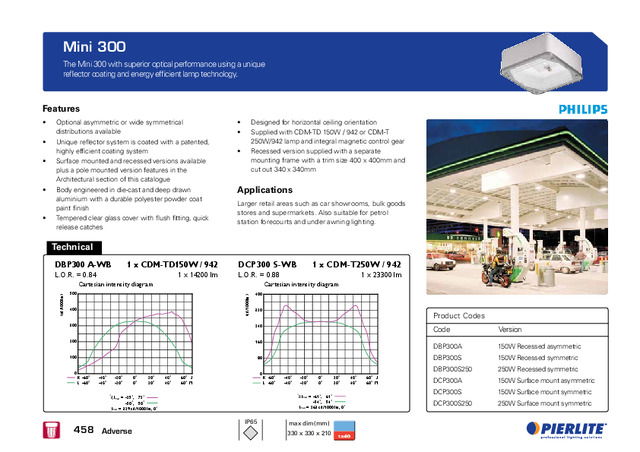

Technical 458 Adverse max dim(mm) Product CodesCode Version The Mini 300 with superior optical performance using a unique reflector coating and energy efficient lamp technology. Mini 300 Features • Optional asymmetric or wide symmetrical distributions available • Unique reflector system is coated with a patented, highly efficient coating system • Surface mounted and recessed versions available plus a pole mounted version features in the Architectural section of this catalogue • Body engineered in die-cast and deep drawn aluminium with a durable polyester powder coat paint finish • Tempered clear glass cover with flush fitting, quick release catches DBP300A 150W Recessed asymmetric DBP300S 150W Recessed symmetric DBP300S250 250W Recessed symmetric DCP300A 150W Surface mount asymmetric DCP300S 150W Surface mount symmetric DCP300S250 250W Surface mount symmetric DGP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DBP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DCP300 S-WB 1 x CDM-T250W / 942 L.O.R. = 0.88 1 x 23300 lm LVM057540C = max I 2 / 1 , o -61 o 61 , o -54 o 54 o = 263 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 80 160 240 320 400 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B4 1 x MHN-SE2000W/400V/956 L.O.R. = 0.82 1 x 200000 lm LVM0701100 = max I 2 / 1 , o -6 o 6 , o -12 o 9 o = 8049 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 2000 4000 6000 8000 10000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B7 1 x MHN-SE2000W/400V/956 L.O.R. = 0.79 1 x 200000 lm LVM0700700 = max I 2 / 1 , o -15 o 14 , o -14 o 15 o = 2367 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 600 1200 1800 2400 3000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M Flood Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 7/27 DGP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DBP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DCP300 S-WB 1 x CDM-T250W / 942 L.O.R. = 0.88 1 x 23300 lm LVM057540C = max I 2 / 1 , o -61 o 61 , o -54 o 54 o = 263 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 80 160 240 320 400 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B4 1 x MHN-SE2000W/400V/956 L.O.R. = 0.82 1 x 200000 lm LVM0701100 = max I 2 / 1 , o -6 o 6 , o -12 o 9 o = 8049 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 2000 4000 6000 8000 10000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B7 1 x MHN-SE2000W/400V/956 L.O.R. = 0.79 1 x 200000 lm LVM0700700 = max I 2 / 1 , o -15 o 14 , o -14 o 15 o = 2367 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 600 1200 1800 2400 3000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M Flood Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 7/27 DGP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DBP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DCP300 S-WB 1 x CDM-T250W / 942 L.O.R. = 0.88 1 x 23300 lm LVM057540C = max I 2 / 1 , o -61 o 61 , o -54 o 54 o = 263 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 80 160 240 320 400 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B4 1 x MHN-SE2000W/400V/956 L.O.R. = 0.82 1 x 200000 lm LVM0701100 = max I 2 / 1 , o -6 o 6 , o -12 o 9 o = 8049 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 2000 4000 6000 8000 10000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B7 1 x MHN-SE2000W/400V/956 L.O.R. = 0.79 1 x 200000 lm LVM0700700 = max I 2 / 1 , o -15 o 14 , o -14 o 15 o = 2367 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 600 1200 1800 2400 3000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M Flood Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 7/27 DGP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DBP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DCP300 S-WB 1 x CDM-T250W / 942 L.O.R. = 0.88 1 x 23300 lm LVM057540C = max I 2 / 1 , o -61 o 61 , o -54 o 54 o = 263 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 80 160 240 320 400 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B4 1 x MHN-SE2000W/400V/956 L.O.R. = 0.82 1 x 200000 lm LVM0701100 = max I 2 / 1 , o -6 o 6 , o -12 o 9 o = 8049 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 2000 4000 6000 8000 10000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B7 1 x MHN-SE2000W/400V/956 L.O.R. = 0.79 1 x 200000 lm LVM0700700 = max I 2 / 1 , o -15 o 14 , o -14 o 15 o = 2367 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 600 1200 1800 2400 3000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M Flood Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 7/27 IP65 330 x 330 x 210 • Designed for horizontal ceiling orientation • Supplied with CDM-TD 150W / 942 or CDM-T 250W/942 lamp and integral magnetic control gear • Recessed version supplied with a separate mounting frame with a trim size 400 x 400mm and cut out 340 x 340mm Applications Larger retail areas such as car showrooms, bulk goods stores and supermarkets. Also suitable for petrol station forecourts and under awning lighting. 10kg DGP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DBP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DCP300 S-WB 1 x CDM-T250W / 942 L.O.R. = 0.88 1 x 23300 lm LVM057540C = max I 2 / 1 , o -61 o 61 , o -54 o 54 o = 263 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 80 160 240 320 400 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B4 1 x MHN-SE2000W/400V/956 L.O.R. = 0.82 1 x 200000 lm LVM0701100 = max I 2 / 1 , o -6 o 6 , o -12 o 9 o = 8049 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 2000 4000 6000 8000 10000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B7 1 x MHN-SE2000W/400V/956 L.O.R. = 0.79 1 x 200000 lm LVM0700700 = max I 2 / 1 , o -15 o 14 , o -14 o 15 o = 2367 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 600 1200 1800 2400 3000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M Flood Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 7/27 DGP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DBP300 A-WB 1 x CDM-TD150W / 942 L.O.R. = 0.84 1 x 14200 lm LVE0285000 = max I 2 / 1 , o -25 o 72 , o -50 o 50 o = 329 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 100 200 300 400 500 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M DCP300 S-WB 1 x CDM-T250W / 942 L.O.R. = 0.88 1 x 23300 lm LVM057540C = max I 2 / 1 , o -61 o 61 , o -54 o 54 o = 263 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 80 160 240 320 400 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B4 1 x MHN-SE2000W/400V/956 L.O.R. = 0.82 1 x 200000 lm LVM0701100 = max I 2 / 1 , o -6 o 6 , o -12 o 9 o = 8049 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 2000 4000 6000 8000 10000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M MVF404 CAT-B7 1 x MHN-SE2000W/400V/956 L.O.R. = 0.79 1 x 200000 lm LVM0700700 = max I 2 / 1 , o -15 o 14 , o -14 o 15 o = 2367 cd/1000 lm, 0 max I Cartesian intensity diagram (cd/1000lm) 0 600 1200 1800 2400 3000 -60 o -40 o -20 o 0 o 20 o 40 o 60 o -60 o -40 o -20 o 0 o 20 o 40 o 60 o K J L M Flood Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 7/27 282

Technical 459 Adverse max dim(mm) Product CodesCode Version A versatile luminaire with universal commercial and industrial applications, utilising energy efficient lamp systems. Wall Mate Features • One piece body made from injection moulded UV stabilised, black polycarbonate • Clear prismatic, injection moulded polycarbonate diffuser • Lens is securely fixed to the body by four captive stainless steel screws and integral hinge system • The lens internal prism system affords a smooth exterior for easy cleaning while controlling light flux and glare • Replaceable sealing gasket provides IP65 weather protection • Australian designed and manufactured for local conditions UW226H 2X26W PLC UW157C 1x57W PLT UW70MH 70W MH-E27 UW100MH 100W MH-E27 UW70SI 70W HPS-I Accessories UWWG Wire guard IP65 335 x 260 x 190 • Lamps included • Designed for vertical wall mount installation Applications Suitable for general security lighting around building perimeters, car parks, pedestrian areas, forecourts, residential and industrial complexes. TONE26103 1 x TC-D 26W / 840 L.O.R. = 0.17 1 x 1800 lm 104103 0 o max I60 = 128 cdmax I80 = 70 cd / 1000 lmmax I90 = 64 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 105 - 285 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 6 4 3 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 5% 50 20 10 TTONE226303 2 x TC-D 26W / 840 L.O.R. = 0.28 2 x 1800 lm 109303 0 o max I60 = 321 cdmax I80 = 103 cd / 1000 lmmax I90 = 104 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 105 - 285 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 12 9 7 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 10% 50 20 UW100MH 1 x HIE 100W/C/U/LU/4K L.O.R. = 0.71 1 x 8500 lm 43184 0 o max I60 = 1570 cdmax I80 = 152 cd / 1000 lmmax I90 = 147 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 30 - 210 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 150 200 250 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 65 48 37 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 5% 50 20 10 Decorative Street Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 17/27 TONE26103 1 x TC-D 26W / 840 L.O.R. = 0.17 1 x 1800 lm 104103 0 o max I60 = 128 cdmax I80 = 70 cd / 1000 lmmax I90 = 64 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 105 - 285 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 6 4 3 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 5% 50 20 10 TTONE226303 2 x TC-D 26W / 840 L.O.R. = 0.28 2 x 1800 lm 109303 0 o max I60 = 321 cdmax I80 = 103 cd / 1000 lmmax I90 = 104 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 105 - 285 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 12 9 7 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 10% 50 20 UW100MH 1 x HIE 100W/C/U/LU/4K L.O.R. = 0.71 1 x 8500 lm 43184 0 o max I60 = 1570 cdmax I80 = 152 cd / 1000 lmmax I90 = 147 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 30 - 210 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 150 200 250 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 65 48 37 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 5% 50 20 10 Decorative Street Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 17/27 4.6kg TONE26103 1 x TC-D 26W / 840 L.O.R. = 0.17 1 x 1800 lm 104103 0 o max I60 = 128 cdmax I80 = 70 cd / 1000 lmmax I90 = 64 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 105 - 285 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 6 4 3 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 5% 50 20 10 TTONE226303 2 x TC-D 26W / 840 L.O.R. = 0.28 2 x 1800 lm 109303 0 o max I60 = 321 cdmax I80 = 103 cd / 1000 lmmax I90 = 104 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 105 - 285 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 100 125 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 12 9 7 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 10% 50 20 UW100MH 1 x HIE 100W/C/U/LU/4K L.O.R. = 0.71 1 x 8500 lm 43184 0 o max I60 = 1570 cdmax I80 = 152 cd / 1000 lmmax I90 = 147 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o 90 - 270 o o 30 - 210 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 150 200 250 HorizontalIlluminance H E max (m) (lux) 3.0 3.5 4.0 65 48 37 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 5% 50 20 10 Decorative Street Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 17/27 283

Technical 460 Adverse max dim(mm) Product CodesCode Version The TWP is a wall mounted, medium wattage bulkhead built for tough conditions. TWP Features • Rugged die-cast aluminium rear housing finished in dark bronze, polyester powder coat paint • One-piece, UV stabilised polycarbonate cover and refractor. Cover component finished in dark bronze, polyester enamel • Front cover hinges from top and is secured with two captive screws • Cover and refractor sealed to rear housing with a compression gasket providing IP64 rating • Lamp accessed from the front by opening the lens cover TWP157C 57W PLT TWP70MH 70W MH TWP100MH 100W MH TWP175MH 175W MH TWP70HPS 70W HPS TWP150HPS 150W HPS For Photoelectric cell add ‘PE’ to code e.g. TWP150HPSPE Accessories TWPWG Wire guard IP64 410 x 392 x 197 • Designed for vertical wall mount installation • Quality porcelain E27 or E39 / 40 lamp holders • Rear housing has a top centre 3/4 inch, plugged cable entry and centre back gasketed knockout option Applications General security lighting around building perimeters, driveways, entrances, loading docks, walkways and vehicle ramps. 6.3kg 284

Technical 461 Adverse max dim(mm) Product CodesCode Version A higher wattage bulkhead featuring a heavy duty prismatic borosilicate glass refractor. TWH Features • Rugged, die-cast aluminium rear housing and front lens frame • Finished in a matt black, polyester powder coat paint • One piece heavy duty, pressed borosilicate glass lens retained by four internal metal clamps • Front housing hinges from the top and is secured by two captive screws • Front housing and refractor sealed to the rear housing with a compression gasket providing an IP65 rating • Lamp and gear accessed from the front by removing the cover lens TWH157C 57W PLT TWH70MH 70W MH TWH100MH 100W MH TWH175MH 175W MH TWH250MH 250W MH TWH70HPS 70W HPS TWH150HPS 150W HPS TWH250HPS 250W HPS For Photoelectric cell add ‘PE’ to code e.g. TWH150HPSPE Accessories TWHWG Wire guard IP65 426 x 400 x 203 • Designed for vertical wall mount installation • Lamps included • Quality porcelain E27 or E39 / 40 lampholders • Rear housing has top centre 3/4” plugged cable entry with a 3/4” centre back gasketed knockout option Applications Used around large building perimeters or along access driveways, entrances, loading docks, walkways and vehicle ramps. 11.7kg 285

Technical 462 Adverse max dim(mm) Product CodesCode Version This versatile economic bulkhead is ideal for both interiorand exterior applications using energy efficient lamps. Maxipac Features • Heavy duty, pressure die-cast aluminium body finished with a durable white polyester powder coat paint • Clear injection moulded, high impact acrylic diffuser; fixed to the body by two captive stainless steel screws • The lens has internal prisms affording a smooth exterior for easy cleaning and optimum light distribution • A circular compression gasket can be easily replaced, ensuring the high IP65 weather proof rating is maintained • Quality E27 porcelain lamp holder for the HID models • Lamp accessed from the front by removing lens cover screws LPM70MH 70W MH LPM70HPS 70W HPS LPM70HPSI 70W HPS-I LPC118M 18W PLC Maintained LPC118NM 18W PLC Non-maintained LPC218 2x18W PLC IP65 315 x 220 x 155 • Cabling is via 1 x 20mm entry located on the top of the body • One extra knockout entry on the top and one on the back of the body • Lamp included Applications Ideal for use around industrial processing plants, heavy engineering plants, marine sites, car parks, schools, amenity blocks, general security lighting and pedestrian tunnels. 3.7kg 286

Technical 463 Adverse max dim(mm) Product CodesCode Version The Powerlite bulkhead has been designed with toughness in mind, providing a unique square lighting distribution. Powerlite Features • Corrosion resistant high pressure die-cast, marine grade aluminium body • Injection moulded high impact, UV resistant polycarbonate lens with internal prisms produce a ‘wide square’ light distribution • Silicone foam gasket system ensuring a high IP66 rating • Single piece, high purity die formed aluminium reflector is mounted into a white powder coated back plate • Lens frame is secured to the body by four captive, stainless steel screws PWR100MH 100W MH PWR150MH 150W MH PWR100HPS 100W HPS PWR150HPS 150W HPS Accessories PWRWG Wire guard PWR/BRKT Galvanised bracket IP66 410 x 270 x 198 • Control gear mounted directly onto the body to provide optimum heat dissipation • Cable entry is via 1 x M20 threaded entry at one end of the body • Dia. 20mm hole outlines provided on each side and the centre back, for drilling Applications Suitable for larger industrial installations, conveyor belt lighting, cable tunnels, perimeter lighting, under canopies, multi-level car parks, and general security lighting. 7.1kg 287

Technical 464 Adverse max dim(mm) Product CodesCode Version The NXS bulkhead offers an economical, compact and versatile solution for many adverse lighting applications. NXS Features • Pressure die-cast LM6 aluminium with chromate treatment and black epoxy powder coat • Heavy duty borosilicate glass lens with internal prisms for optimum light distribution and smooth exterior for easy cleaning • Trim secured to body by four stainless steel screws • Optional wire guard or visor faces • One piece, easy to replace silicone rubber gasket for all models • Industrial version IP65 and mining version IP66 rated protection NXS226C 2x26W PLC NXS70MH 70W MH NXS70HPS 70W HPS NXS70HPSI 70W HPS-I NXS118NM 18W PLC Non-maintained NXS70SCOM 70W HPS Mining NXS110HPS 110W HPS For external visor add ‘V’ to code e.g. NXSV70HPS Accessories NXS/NB32 Mounting adaptor plate for Dia. 32MM pipe NXS/NB40 Mounting adaptor plate for Dia. 40MM pipe NXS/WG Wire guard kit NXS70HPS Ceiling IP65/66 297 x 190 x 178 • Ex Zone rated versions available • All models with durable integral magnetic control gear • Lamp accessed through front by removing the trim and lens cover • 4 x M20 threaded cable entries for easy wiring access and looping if required Applications Industrial and heavy engineering sites, processing plants and general security lighting. Mining infrastructure, collieries, foundries and most arduous environments. NXS70HPS Ceiling 5.9kg NXS70HPS 288

max dim(mm) 465 Adverse

Technical 466 Adverse max dim(mm) Product CodesCode Version Corrosion resistant wall mount stainless steel bulkhead for extreme industrial and mining applications. NXS Stainless Steel Features • Marine grade 316 stainless steel body and visor with passivated finish • Heavy duty borosilicate glass lens with internal prisms for optimum light distribution. Smooth exterior for easy cleaning • Trim secured to body by four stainless steel screws • One piece, easy to replace silicone rubber gasket for all models • All models with durable integral magnetic control gear NXSS226C 2 x 26W PLC NXSS80MV 80W MV NXSS70MH 70W HQI-E NXSS70HPS 70W HPS NXSS70HPSI 70W HPS-I NXSS118NM 18W Non Maintained NXSS70SCOM 70W HPS Mining • 1 x 20mm cable entries for easy wiring access Applications Ideal for extreme adverse conditions especially where corrosive chemicals are present or near salt water environments. IP66 297 x 190 x 178 5.9kg NXS70HPS Ceiling NXS70HPS Ceiling 289

Technical 467 Adverse max dim(mm) Product CodesCode Version Robust utility bulkhead utilising energy efficient, compact fluorescent lamp in a corrosion resistant housing. Quasar Features • Vandal resistant construction using a clear polycarbonate prismatic diffuser and glass filled nylon body • IP65 weather protection ensures extended maintenance scheduling • Energy saving lamp and gear combination • The low profile, classic design compliments any application • Lamps included PLQUASAR 18W PLL IP65 290 x 180 x 104 Applications Ideal for security lighting around schools, construction sites, shopping centres, banks, utility buildings, marine vessels and foreshore areas. PLQUASAR 1 x PL-L18W / 84 L.O.R. = 0.57 1 x 1200 lm 1774 0 o max I60 = 145 cdmax I80 = 79 cd / 1000 lmmax I90 = 48 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 15 0 20 0 25 0 HorizontalIlluminance H E max (m) (lux) 3.0 4.0 5.0 14 8 5 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 2% 50 20 10 5 PLQUASAR 1 x PL-L18W / 84 L.O.R. = 0.57 1 x 1200 lm 1774 0 o max I60 = 145 cdmax I80 = 79 cd / 1000 lmmax I90 = 48 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 15 0 20 0 25 0 HorizontalIlluminance H E max (m) (lux) 3.0 4.0 5.0 14 8 5 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 2% 50 20 10 5 PLQUASAR 1 x PL-L18W / 84 L.O.R. = 0.57 1 x 1200 lm 1774 0 o max I60 = 145 cdmax I80 = 79 cd / 1000 lmmax I90 = 48 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o o 60 30 o o 30 15 0 20 0 25 0 HorizontalIlluminance H E max (m) (lux) 3.0 4.0 5.0 14 8 5 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 2% 50 20 10 5 1.5kg 290

Technical 468 Adverse max dim(mm) The benchmark range of fluorescent luminaires for hostile, vandal-prone environments or adverse industrial applications. Vandalux ® Features • Pressure die-cast, low copper aluminium alloy body with powder coat paint finish in RAL 8301 grey • Models can be customised to suit specific applications, environments and operational criteria • Optional prismatic, clear or opalised lens covers in polycarbonate or acrylic polymers • White powder coated gear tray has screw locators and lanyards for ease of maintenance • Replaceable single piece EPDM gasket ensures the high IP66 rating • Cable entry via 20mm threaded ports at both ends plus provision via centre of the base IP66 1310 x 140 x 120 • Various accessories allow mounting on to wall and pole brackets, supplied separately • 18W emergency versions have a thermally isolated battery housing annexed to the body • Ex Zone rated versions available Applications Heavy industrial areas, railway stations, wharves, sports grounds, car parks, construction sites, maritime areas, factories, mine sites and schools. Contact Pierlite regarding suitability for use in chemically laden environments. 9kg VP 236 2x TLD 36W/840 Secure access screws 291

Technical 473 Adverse max dim(mm) Product CodesCode Version Tough, IK10 impact resistant, energy efficient luminaire designed for adverse applications. Vandalite Features • Glass filled nylon moulded housing for strength • Optional clear cover or opal polycarbonate diffuser secured by two stainless steel screws • Modular white painted steel gear tray assemblies for easy installation • Integral moulded seals provide IP65 weather protection • Optional linear T5 electronic, linear T8 or compact PLL lamp versions with magnetic switch start gear • IK10 impact rating VL114O 14W T5 Opal VL114C 14W T5 Clear VL118HO 18W T8 Opal VL118HC 18W T8 Clear VL136HO 36W PL - L Opal VL136HC 36W PL - L Clear IP65 675 x 97 x 123 • Housing has moulded end, side and rear conduit entries to be drilled as required • Lamps included Applications Adverse applications such as in schools, railway stations, industrial sites, car parks and public buildings. 2.4kg Tough clear or opal polycarbonate lens RY136 1 x T8 36W SRS Light output ratio 0.97 Service upward 0.00 Service downward 0.97 CIE flux code 51 83 97 100 97 SHR NOM (square) 1.50 SHR MAX (square) 1.55 SHR MAX (continuous) 1.86 UGRcen (4Hx8H, 0.25H) 24 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 100 200 300 400 Utilisation factor table Ceiling mounted Reflectances Room Index C W F 0.75 1.00 1.25 1.50 2.00 2.50 3.00 4.00 5.00 0.70 0.50 0.20 0.70 0.30 0.20 0.70 0.10 0.20 0.50 0.50 0.20 0.50 0.30 0.20 0.50 0.10 0.20 0.30 0.50 0.20 0.30 0.30 0.20 0.30 0.10 0.20 0.00 0.00 0.00 615449 605349 585349 47 696257 676157 656056 54 767065 746864 726763 60 817570 787369 767268 65 888278 858076 827875 72 928783 898581 868279 76 959187 928885 888583 79 999693 959390 929087 83 102 9996 989593 949290 86 VL136HC 294

Technical 469 Adverse max dim(mm) Product CodesCode Version Dim (mm) VP118H 1x18W T8 670 x 140 x 120 VP218H 2x18W T8 670 x 140 x 120 VP136H 1x36W T8 1310 x 140 x 120 VP236H 2x36W T8 1310 x 140 x 120 VP114 1x14W T5 670 x 140 x 120 VP214 2x14W T5 670 x 140 x 120 VP128 1x28W T5 1310 x 140 x 120 VP228 2x28W T5 1310 x 140 x 120 Prismatic supplied as standard For Clear lens replace P with C For Opal lens replace P with Oe.g. VC136HSpecial lenses available for petrochemical and ammonia laden environments, upon requestAdd suffix to code for the following:‘M’ for maintained emergency‘NM’ for non-maintained emergency‘EL’ for electronic HF ballast circuit‘QS’ for Qulaity Spec version‘AV’ for anti-vibration versione.g. VP236HAVDimming and heavy duty control gear versions available, upon request. Accessories C28VANDALUX Horizontal wall bracket for 18WC29VANDALUX Horizontal wall bracket for 36WC32VANDALUX Spigot mounting kit with cable gland to suit dia.34mm pipe - FOR 18W VERSION ONLYC33VANDALUX Flat wall bracket, 5’ upcast with Dia. 34mm spigot C34VANDALUX Corner wall bracket, 5’ upcast with Dia. 34mm spigotC35VANDALUX Universal bracketC36VANDALUX Ceiling mounting bracketPMB32/VAN Single pipe mounting bracket to suit Dia. 42 - 46mm pipe PMB40/VAN Single pipe mounting bracket to suit Dia. 48 -51mm pipe 469 Adverse

Technical 470 Adverse max dim(mm) Product Codes Dim Code Version (mm) Low profile range of robust weatherproof fittings to withstand adverse or vandal prone environments. Vandaguard ® Features • Pressure die-cast, low copper aluminium alloy body with powder coat paint finish in RAL 8301 grey • Models can be customised to suit specific applications, environments and operational criteria • Optional prismatic, clear or opalised lens covers in polycarbonate or acrylic polymers • White powder coated gear tray has screw locators and lanyards for ease of maintenance • Replaceable single piece EPDM gasket ensures the high IP66 rating VPF118H 1 x 18W T8 670 x 140 x 80 VPF218H 2 x 18W T8 670 x 140 x 80 VPF136H 1 x 36W T8 1310 x 140 x 80 VPF236H 2 x 36W T8 1310 x 140 x 80 Prismatic supplied as standard, For Clear lens replace P with C For Opal lens replace P with Oe.g. VCF136H.Special lenses available for petrochemical and ammonia laden environments, upon request.Add suffix to code for the following:‘M’ for maintained emergency.‘NM’ for non-maintained emergency.‘EL’ for electronic HF ballast circuit.‘QS’ for Quality Spec version.‘AV’ for anti-vibration version.e.g. VPF236HAVDimming and heavy duty control gear versions available, upon request. IP66 1310 x 140 x 80 • Cable entry via centre of the base Applications Prison cells and associated infrastructure, railway stations and transport terminals. Subways, undercover walkways and covered car parks. Mining and industrial sites. Contact Pierlite regarding suitability for use in chemically laden environments. 8.5kg 292

Technical 474 Adverse max dim(mm) Technical Product Codes Dim Mass Code Version (mm) (kg) A versatile range of weatherproof fluorescent luminaires for adverse conditions and exposed environments. BWP/T Features • Self extinguishing and UV stabilised polycarbonate body in a neutral light grey colour • Clear prismatic polycarbonate lens resists impact and abuse. T8 4000K lamps included • Supplied with robust and lockable stainless steel clips fitted to the body, rated IK08 • 20mm cable entry with PG8.5 gland and optional knock-out at the opposite end • Clip-in modular gear tray with safety lanyards for easy installation and maintenance • Durable polyurethane foam seal ensures the IP65 weather protection; tested to 40°c ambient BWP/T118H 1 x 18W T8 670 X 98 X 104 2.5 BWP/T218H 2 x 18W T8 670 X 152 X 104 3.1 BWP/T136H 1 x 36W T8 1300 X 98 X 104 3.1 BWP/T236H 2 x 36W T8 1300 X 152 X 104 3.5 IP65 3.5kg 1300 x 152 x 104 • V90T internal wiring and 3-way terminal block with fused active • Supplied with stainless steel mounting clips for easy installation without compromising the IP integrity Applications Exposed applications around waterfront areas, car parks, industrial and construction sites and for general security. 295

max dim(mm) 471 Adverse 471 Adverse Secure access screws Tough polycarbonate lens

Technical 472 Adverse max dim(mm) Product Codes Dim Mass Code Version (mm) (kg) Compact size utility luminaire featuring an impact resistant housing and diffuser cover. Mini Vandalite Features • Housing moulded in grey filled nylon for strength • Diffuser cover in moulded opal polycarbonate with two securing screws • Internal white metal reflector • Easy to install E27 lampholder module by BJB • Supplied with PG8.5 nylon cable gland • Integral expanded foam seal provides IP54 weather protection MVL24W E27 24W CFLI maximum 245 x 120 x 114 0.50 MVL23W 1 x Tornado 23W / CDL L.O.R. = 0.31 1 x 1450 lm P200711120 0 o max I60 = 67 cdmax I80 = 34 cd / 1000 lmmax I90 = 28 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 10 0 12 5 HorizontalIlluminance H E max (m) (lux) 3.0 4.0 5.0 9 5 3 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 2% 50 20 10 5 MVL23W 1 x Tornado 23W / CDL L.O.R. = 0.31 1 x 1450 lm P200711120 0 o max I60 = 67 cdmax I80 = 34 cd / 1000 lmmax I90 = 28 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 10 0 12 5 HorizontalIlluminance H E max (m) (lux) 3.0 4.0 5.0 9 5 3 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 2% 50 20 10 5 IP54 245 x 120 x 114 • Lamps included Applications Ideal for entrances, plant rooms and around schools or public amenities.Can be mounted on walls, ceilings or under roof eaves of houses, unit complexes and commercial buildings. MVL23W 1 x Tornado 23W / CDL L.O.R. = 0.31 1 x 1450 lm P200711120 0 o max I60 = 67 cdmax I80 = 34 cd / 1000 lmmax I90 = 28 cd / 1000 lm Polar intensity diagram (cd/1000lm) 0 - 180 o o 90 - 270 0 o 180 o 150 o o 150 120 o o 120 90 o o 90 60 o 30 o o 30 75 10 0 12 5 HorizontalIlluminance H E max (m) (lux) 3.0 4.0 5.0 9 5 3 4H 3H 2H 1H 0 1H 2H 3H 4H 1H 0 1H 2H 3H 4H Emax 2% 50 20 10 5 0.5kg Tough opal polycarbonate lens MVL24W 24W 293

Stainless steel lockable clips fitted Stainless steel mounting bracket 20mm conduit entry 475 Adverse

Technical 476 Adverse max dim(mm) Energy saving weatherproof fixture using T5 lamp technology, robust enclosure and stainless steel clips. BWP/T5 Features • Self extinguishing and UV stabilized polycarbonate body in a neutral light grey colour • Efficient prismatic lenses in clear polycarbonate provide optimum lighting performance from the T5 lamps • Fitted with stainless steel, quick release diffuser retaining clips that resist corrosion and heavy operation • 20mm cable entry with PG8.5 gland and provision for entry drilling in the opposite end • Clip-in modular gear tray with safety lanyards for easy installation and maintenance IP65 3.0kg 1220 x 110 x 90 • Durable polyurethane seals provide IP65 weather protection in a tested 40c ambient • V90T internal wiring and 3 way, fused active terminal block with a quality HF electronic ballast • Supplied with 4000K lamps and stainless steel mounting clips, ready for easy installation Applications Ideal for exposed applications around buildings, undercover car parks, waterfront areas, construction sites or wherever security lighting is required and energy consumption is a criteria. Product Codes Dim Code Version (mm) BWP/T5114 1 x 14W T5 620 x 65 x 80 BWP/T5214 2 x 14W T5 620 x 110 x 80 BWP/T5128 1 x 28W T5 1220 x 65 x 90 BWP/T5228 2 x 28W T5 1220 x 110 x 90 BWP/T5228 2 x 28W T5 Quantity estimation diagram UGR diagram Polar intensity diagram Stainless steel clips 296

Stainless steel clips fitted Stainless steel mounting bracket 20mm conduit entry 477 Adverse

Technical 478 Adverse max dim(mm) Product Codes Dim Code Version (mm) A premium performance T5 weatherproof luminaire that is both functional and energy efficient. Futurix Features • Body moulded in glass reinforced polyester with neutral grey colour as standard • Optional polycarbonate body in transparent clear or selected colours, available to indent order • Injection moulded polycarbonate, prismatic diffuser cover • Stainless steel lens retaining clips are supplied fitted to the body • Can be surface mounted or suspended using the installation clip accessories FRX114 1 x 14W T5 665 x 84 x 98 FRX124 1 x 24W T5 665 x 84 x 98 FRX128 1 x 28W T5 1275 x 84 x 98 FRX135 1 x 35W T5 1575 x 84 x 98 FRX214 2 x 14W T5 665 x 134 x 98 FRX224 2 x 24W T5 665 x 134 x 98 FRX228 2 x 28W T5 1275 x 134 x 98 FRX154 1 x 54W T5 1275 x 134 x 98 FRX180 1 x 80W T5 1575 x 134 x 98 Maintained emergencyFRX228ME 2 x 28W T5 1275 x 134 x 98 IP65 1575 x 134 x 98 • Lamp included • Optional integral emergency versions available Applications Industrial areas, car parks, awnings, security lighting and general weatherproof applications where performance and energy efficiency are a criteria. 6.0kg Easy clip in installation 297

Technical 479 Adverse max dim(mm) Product Codes Dim Code Version (mm) A premium performance range of weatherproof luminaires designed for use in most adverse environments. PWP ™ & PWA ™ Features • Tough glass fibre reinforced polyester body is rustproof, weatherproof and corrosion resistant (refer to Pierlite for specific data) • UV stabilised, high impact polycarbonate or composite acrylic diffusers, both with internal prisms • Tamper resistant stainless steel (PWP) or polycarbonate (PWA) diffuser retaining clips • White powder coated gear tray suspends on lanyards for ease of installation and maintenance • Polyurethane machine-poured foam gasket guarantees high IP65 protection PWP118H 1 x 18W T8 697 x 102 x 108 PWP218H 2 x 18W T8 697 x 172 x 108 PWP136H 1 x 36W T8 1307 x 102 x 108 PWP236H 2 x 36W T8 1307 x 172 x 108 PWP158H 1 x 58W T8 1612 x 102 x 108 PWP258H 2 x 58W T8 1612 x 172 x 108 For Acrylic diffuser replace P with A e.g. PWA118HFor Electronic gear replace H with EL e.g PWP118ELFor Emergency version add suffix M or NM e.g. PWP236NMFor Quality spec add suffix QS e.g. PWP236QS Accessories PMB32/SDW Mounting bracket for 32NB Pipe (o/Dia. 42-46mm) PMB40/SDW Mounting bracket for 40NB Pipe (o/Dia. 48-51mm) IP65 1612 x 172 x 108 • 20mm grommet cable entries located at both ends • V90T internal wiring at 6mm 2 3 way terminal block • Lamps included Applications Wharves, waterfront areas, construction sites, multi-storey car parks and general lighting for areas with adverse conditions and environments. 5.4kg 298

Technical 480 Adverse max dim(mm) Product Codes Mass Code Version (mm) A special range of weatherproof luminaires engineered for use in adverse, low temperature environments. NPSK & NLT Features • Tough fibre-glass reinforced polyester body with screw lockable stainless steel diffuser clips • Polyurethane machine-poured foam gasket guarantees high IP65 protection against the environment • Polycarbonate prismatic diffuser resists impact and abuse • 20mm plugged cable entries located at both ends. Mounting holes moulded into body with rubber sealing washers included • NTL lamp holders feature additional polycarbonate inner sleeve/s to insulate the lamps. Both models use electronic starters Diffuser and sleeves for Ta -30°cNLT118H 1 x 18W T8 702 x 102 x 188 NLT218H 2 x 18W T8 702 x 172 x 108 NLT136H 1 x 36W T8 1312 x 102 x 108 NLT236H 2 x 36W T8 1312 x 172 x 108 NLT158H 1 x 58W T8 1612 x 102 x 108 NLT258H 2 x 58W T8 1612 x 172 x 108 Diffuser only for Ta -7°cNPSK118H 1 x 18W T12 702 x 102 x 188 NPSK218H 2 x 18W T12 702 x 172 x 108 NPSK136H 1 x 36W T12 1312 x 102 x 108 NPSK236H 2 x 36W T12 1312 x 172 x 108 NPSK158H 1 x 58W T12 1612 x 102 x 108 NPSK258H 2 x 58W T12 1612 x 172 x 108 For Quality spec add suffix QS e.g. NPSK236QSFor emergency version add suffix M or NM e.g Accessories PMB32/SDW Mounting bracket for 32NB Pipe (o/dia 42-46mm)PMB40/SDW Mounting bracket for 40NB Pipe (o/dia 48-51mm) IP65 1612 x 172 x 108 • Luminaire cold ambient operating temperatures. NPSK diffuser only with electronic starters and T12 Ø38mm tube is -7°c • NLT diffuser and lamp sleeve with electronic starters and T8 Ø26mm tube is - 30°c • Emergency versions and or electronic ballasts are available options with the NPSK only Applications Large and small cool rooms, cold storage areas and produce freezer rooms. Open industrial sites exposed to sub zero climates. 7.4kg 299

Technical 481 Adverse max dim(mm) Product Codes Dim Code Version (mm) A high quality range of fully moulded weatherproof and adverse location luminaires. SDW & SDWA Features • Tough fibre glass reinforced polyester body with stainless steel diffuser clips fitted • Optional polycarbonate or acrylic diffusers with internal prism patterns for easy cleaning • Single and twin lamp versions have the same body width and profile • Machine-applied polyurethane foam gasket guarantees the high IP66 rating • Twin 36W and 58W units available with 45° ‘watershed’ GRP covers for use in the food processing industry SDW118H 1 x 18W T8 662 x 188 x 115 SDW218H 2 x 18W T8 662 x 188 x 115 SDW136H 1 x 36W T8 1272 x 188 x 115 SDW236H 2 x 36W T8 1272 x 188 x 115 SDW158H 1 x 58W T8 1572 x 188 x 115 SDW258H 2 x 58W T8 1572 x 188 x 115 For Acrylic diffuser add A to the code e.g. SDWA236H For Emergency versions add suffix M or NM e.g. SDW236NMFor Electronic versions add suffix EL e.g. SDW236ELFor Quality spec versions add suffix QS e.g. SDW236HQSFor Watershed versions add suffix WS e.g. SDW236HWS (36W & 58W only) Accessories PMB32/SDW Mounting bracket for 32NB Pipe (o/dia. 42-46mm)PMB40/SDW Mounting bracket for 40NB Pipe (o/dia. 48-51mm)99018918 Eye suspension hook set IP66 1572 x 198 x 125 • 20mm grommet cable entry at one end • Double insulated version also available with GRP gear tray • Available as an EX Zone rating Applications Mines, chemical plants, abattoirs, food processing areas, dairies, agricultural plants, farm sheds, breweries and enclosed swimming pools. 6.4kg 300

Technical 482 Adverse max dim(mm) Product Codes Dim Code Version (mm) A heavy duty, corrosion resistant luminaire body formed from grade 304 stainless steel. Forma Features • 4mm tempered glass lens sealed into a one-piece, grade 304 stainless steel frame by a silicone gasket • Separate closed cell rubber gasket seals the frame to the body and ensures an IP65 rating • Frame is attached to the body by latches on one side and hinges to the other side • Cable entry via two 1/2” plugged cable glands, one at either end plus an internal modular, white paint gear tray FMA236H 2 x 36W T8 1293 x 190 x 92 FMA258H 2 x 58W T8 1593 x 190 x 92 For Electronic version add suffix EL e.g. FMA236ELFor Emergency versions add suffix M or NM e.g. FMA236NMFor Quality spec versions add suffix QS e.g FMA236QS IP65 1593 x 190 x 92 • Special brackets and custom fixings available for mounting in tunnel projects plus plug & socket power connectors Applications Arduous environments such as mines, chemical plants, construction sites, agricultural plants and commercial laundries. Especially suited to marine applications such as wharves and docks. 10.6kg 301

Technical 483 Adverse max dim(mm) Product Codes Dim Code Version (mm) Robust weatherproof fixtures for up to three lamps with a unique central locking system. KWP Features • Housing moulded in glass reinforced polyester to resist adverse environments • Prismatic hinged diffuser moulded in clear polycarbonate to resist impact • Key operated central locking system with optional power cut-off switch • Integrated silicone rubber seal ensures IP66 weather protection • Modular gear tray accessed via a hinged white internal reflector KWP118EL 1 x 18W T8 730 x 222 x 145 KWP218EL 2 x 18W T8 730 x 222 x 145 KWP318EL 3 x 18W T8 730 x 222 x 145 KWP218MEL 18W maintained emergency KWP318NMEL 18W non-maintained emergency KWP136EL 1 x 36W T8 1335 x 222 x 145 KWP236EL 2 x 36W T8 1335 x 222 x 145 KWP336EL 3 x 36W T8 1335 x 222 x 145 KWP236MEL 36W maintained emergency KWP336NMEL 36W non-maintained emergency Accessories PMB40/CLDN Dia. 40mm pipe mount kit CHS/CLDN 500mm chain suspension set PDT/CLDN Pendant mount kit CLM/CLDN Ceiling mount kit IP66 1335 x 222 x 145 • HF electronic ballast circuit as standard or optional emergency versions with inverters and battery packs • Supplied with stainless steel surface mounting brackets or install with optional mounting accessories Applications Industrial environments where maintenance down time or OH&S issues are a criteria. Generally exposed applications where secure access is required. TR_PL00014 2009-12-23 KWP336EL 3 x T8 36W / 840 3 x 3200 lm Light output ratio 0.69 Service upward 0.12 Service downward 0.57 CIE flux code 40 68 88 83 69 UGRcen (4Hx8H, 0.25H) 23 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 50 100 150 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.300.360.420.470.520.580.630.660.700.73 0.800.500.10 0.280.340.390.430.470.520.550.580.610.63 0.700.500.30 0.290.350.400.450.490.560.600.630.670.69 0.700.500.20 0.280.340.390.440.470.530.560.590.630.65 0.700.500.10 0.270.330.380.420.450.500.540.560.590.61 0.700.300.10 0.220.280.320.370.400.460.500.520.560.58 0.500.300.10 0.210.260.310.350.380.430.470.500.530.55 0.500.100.10 0.180.230.270.310.350.400.440.470.510.53 0.300.300.10 0.200.250.290.330.360.410.440.470.500.52 0.300.100.10 0.170.220.260.300.330.380.420.450.480.50 0.000.000.00 0.150.190.230.270.300.340.380.400.440.46 Quantity estimation diagram nr. of luminaires 0 4 8 12 16 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 22 19 25 19 25 22 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 4319430642874382448146424660478848525180 4258421341994265431344644462455546204891 4168408040354055406941914183428242984597 4065395137923764368037083619365036834051 4109386035833480328131782930282827293107 4348410036313427300727892318208818282332 4674450541103856315326941978170017994124 TR_PL0032 2009-12-23 BWP_T118H 1 x T8 18W / 840 1 x 1350 lm Light output ratio 0.88 Service upward 0.18 Service downward 0.70 CIE flux code 33 60 82 80 88 UGRcen (4Hx8H, 0.25H) 20 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 60 o o 60 90 o o 90 120 o o 120 150 o o 150 50 50 100 100 150 150 200 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.340.430.500.570.620.700.760.800.860.90 0.800.500.10 0.330.400.460.520.560.630.670.700.740.77 0.700.500.30 0.330.410.470.540.590.670.720.760.810.85 0.700.500.20 0.320.400.460.520.560.630.680.720.760.79 0.700.500.10 0.320.390.440.500.540.600.650.680.720.74 0.700.300.10 0.250.310.370.430.470.540.590.630.670.71 0.500.300.10 0.230.290.350.400.440.510.550.580.630.66 0.500.100.10 0.190.250.300.350.390.460.510.550.600.63 0.300.300.10 0.220.270.320.370.410.470.510.540.590.61 0.300.100.10 0.180.230.280.330.370.430.480.510.560.59 0.000.000.00 0.150.200.240.280.320.380.420.450.490.52 Quantity estimation diagram nr. of luminaires 0 20 40 60 80 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 19 16 22 16 22 19 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 1377139414531497151515591635171118201938 1340134013611411142714601519159716811755 1285126112701301132313421387145115201587 1223118911621165117011821202123313021371 1202113810821040 996979990 105211041186 1187111310611007 938915876869873965 128312051146107810741068 950921881 1181 General Uniform Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 25/27 TR_PL00014 2009-12-23 KWP336EL 3 x T8 36W / 840 3 x 3200 lm Light output ratio 0.69 Service upward 0.12 Service downward 0.57 CIE flux code 40 68 88 83 69 UGRcen (4Hx8H, 0.25H) 23 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 50 100 150 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.300.360.420.470.520.580.630.660.700.73 0.800.500.10 0.280.340.390.430.470.520.550.580.610.63 0.700.500.30 0.290.350.400.450.490.560.600.630.670.69 0.700.500.20 0.280.340.390.440.470.530.560.590.630.65 0.700.500.10 0.270.330.380.420.450.500.540.560.590.61 0.700.300.10 0.220.280.320.370.400.460.500.520.560.58 0.500.300.10 0.210.260.310.350.380.430.470.500.530.55 0.500.100.10 0.180.230.270.310.350.400.440.470.510.53 0.300.300.10 0.200.250.290.330.360.410.440.470.500.52 0.300.100.10 0.170.220.260.300.330.380.420.450.480.50 0.000.000.00 0.150.190.230.270.300.340.380.400.440.46 Quantity estimation diagram nr. of luminaires 0 4 8 12 16 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 22 19 25 19 25 22 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 4319430642874382448146424660478848525180 4258421341994265431344644462455546204891 4168408040354055406941914183428242984597 4065395137923764368037083619365036834051 4109386035833480328131782930282827293107 4348410036313427300727892318208818282332 4674450541103856315326941978170017994124 TR_PL0032 2009-12-23 BWP_T118H 1 x T8 18W / 840 1 x 1350 lm Light output ratio 0.88 Service upward 0.18 Service downward 0.70 CIE flux code 33 60 82 80 88 UGRcen (4Hx8H, 0.25H) 20 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 60 o o 60 90 o o 90 120 o o 120 150 o o 150 50 50 100 100 150 150 200 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.340.430.500.570.620.700.760.800.860.90 0.800.500.10 0.330.400.460.520.560.630.670.700.740.77 0.700.500.30 0.330.410.470.540.590.670.720.760.810.85 0.700.500.20 0.320.400.460.520.560.630.680.720.760.79 0.700.500.10 0.320.390.440.500.540.600.650.680.720.74 0.700.300.10 0.250.310.370.430.470.540.590.630.670.71 0.500.300.10 0.230.290.350.400.440.510.550.580.630.66 0.500.100.10 0.190.250.300.350.390.460.510.550.600.63 0.300.300.10 0.220.270.320.370.410.470.510.540.590.61 0.300.100.10 0.180.230.280.330.370.430.480.510.560.59 0.000.000.00 0.150.200.240.280.320.380.420.450.490.52 Quantity estimation diagram nr. of luminaires 0 20 40 60 80 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 19 16 22 16 22 19 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 1377139414531497151515591635171118201938 1340134013611411142714601519159716811755 1285126112701301132313421387145115201587 1223118911621165117011821202123313021371 1202113810821040 996979990 105211041186 1187111310611007 938915876869873965 128312051146107810741068 950921881 1181 General Uniform Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 25/27 TR_PL00014 2009-12-23 KWP336EL 3 x T8 36W / 840 3 x 3200 lm Light output ratio 0.69 Service upward 0.12 Service downward 0.57 CIE flux code 40 68 88 83 69 UGRcen (4Hx8H, 0.25H) 23 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 50 100 150 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.300.360.420.470.520.580.630.660.700.73 0.800.500.10 0.280.340.390.430.470.520.550.580.610.63 0.700.500.30 0.290.350.400.450.490.560.600.630.670.69 0.700.500.20 0.280.340.390.440.470.530.560.590.630.65 0.700.500.10 0.270.330.380.420.450.500.540.560.590.61 0.700.300.10 0.220.280.320.370.400.460.500.520.560.58 0.500.300.10 0.210.260.310.350.380.430.470.500.530.55 0.500.100.10 0.180.230.270.310.350.400.440.470.510.53 0.300.300.10 0.200.250.290.330.360.410.440.470.500.52 0.300.100.10 0.170.220.260.300.330.380.420.450.480.50 0.000.000.00 0.150.190.230.270.300.340.380.400.440.46 Quantity estimation diagram nr. of luminaires 0 4 8 12 16 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 22 19 25 19 25 22 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 4319430642874382448146424660478848525180 4258421341994265431344644462455546204891 4168408040354055406941914183428242984597 4065395137923764368037083619365036834051 4109386035833480328131782930282827293107 4348410036313427300727892318208818282332 4674450541103856315326941978170017994124 TR_PL0032 2009-12-23 BWP_T118H 1 x T8 18W / 840 1 x 1350 lm Light output ratio 0.88 Service upward 0.18 Service downward 0.70 CIE flux code 33 60 82 80 88 UGRcen (4Hx8H, 0.25H) 20 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 60 o o 60 90 o o 90 120 o o 120 150 o o 150 50 50 100 100 150 150 200 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.340.430.500.570.620.700.760.800.860.90 0.800.500.10 0.330.400.460.520.560.630.670.700.740.77 0.700.500.30 0.330.410.470.540.590.670.720.760.810.85 0.700.500.20 0.320.400.460.520.560.630.680.720.760.79 0.700.500.10 0.320.390.440.500.540.600.650.680.720.74 0.700.300.10 0.250.310.370.430.470.540.590.630.670.71 0.500.300.10 0.230.290.350.400.440.510.550.580.630.66 0.500.100.10 0.190.250.300.350.390.460.510.550.600.63 0.300.300.10 0.220.270.320.370.410.470.510.540.590.61 0.300.100.10 0.180.230.280.330.370.430.480.510.560.59 0.000.000.00 0.150.200.240.280.320.380.420.450.490.52 Quantity estimation diagram nr. of luminaires 0 20 40 60 80 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 19 16 22 16 22 19 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 1377139414531497151515591635171118201938 1340134013611411142714601519159716811755 1285126112701301132313421387145115201587 1223118911621165117011821202123313021371 1202113810821040 996979990 105211041186 1187111310611007 938915876869873965 128312051146107810741068 950921881 1181 General Uniform Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 25/27 TR_PL00014 2009-12-23 KWP336EL 3 x T8 36W / 840 3 x 3200 lm Light output ratio 0.69 Service upward 0.12 Service downward 0.57 CIE flux code 40 68 88 83 69 UGRcen (4Hx8H, 0.25H) 23 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 30 o o 30 60 o o 60 90 o o 90 120 o o 120 50 100 150 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.300.360.420.470.520.580.630.660.700.73 0.800.500.10 0.280.340.390.430.470.520.550.580.610.63 0.700.500.30 0.290.350.400.450.490.560.600.630.670.69 0.700.500.20 0.280.340.390.440.470.530.560.590.630.65 0.700.500.10 0.270.330.380.420.450.500.540.560.590.61 0.700.300.10 0.220.280.320.370.400.460.500.520.560.58 0.500.300.10 0.210.260.310.350.380.430.470.500.530.55 0.500.100.10 0.180.230.270.310.350.400.440.470.510.53 0.300.300.10 0.200.250.290.330.360.410.440.470.500.52 0.300.100.10 0.170.220.260.300.330.380.420.450.480.50 0.000.000.00 0.150.190.230.270.300.340.380.400.440.46 Quantity estimation diagram nr. of luminaires 0 4 8 12 16 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 22 19 25 19 25 22 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 4319430642874382448146424660478848525180 4258421341994265431344644462455546204891 4168408040354055406941914183428242984597 4065395137923764368037083619365036834051 4109386035833480328131782930282827293107 4348410036313427300727892318208818282332 4674450541103856315326941978170017994124 TR_PL0032 2009-12-23 BWP_T118H 1 x T8 18W / 840 1 x 1350 lm Light output ratio 0.88 Service upward 0.18 Service downward 0.70 CIE flux code 33 60 82 80 88 UGRcen (4Hx8H, 0.25H) 20 Polar intensity diagram (cd/1000lm) 0-180 o 90-270 o 0 o 180 o 60 o o 60 90 o o 90 120 o o 120 150 o o 150 50 50 100 100 150 150 200 200  Utilisation factor table Ceiling mounted RoomIndexk Reflectances (%) for ceiling, walls and working plane (CIE) 0.600.801.001.251.502.002.503.004.005.00 0.800.500.30 0.340.430.500.570.620.700.760.800.860.90 0.800.500.10 0.330.400.460.520.560.630.670.700.740.77 0.700.500.30 0.330.410.470.540.590.670.720.760.810.85 0.700.500.20 0.320.400.460.520.560.630.680.720.760.79 0.700.500.10 0.320.390.440.500.540.600.650.680.720.74 0.700.300.10 0.250.310.370.430.470.540.590.630.670.71 0.500.300.10 0.230.290.350.400.440.510.550.580.630.66 0.500.100.10 0.190.250.300.350.390.460.510.550.600.63 0.300.300.10 0.220.270.320.370.410.470.510.540.590.61 0.300.100.10 0.180.230.280.330.370.430.480.510.560.59 0.000.000.00 0.150.200.240.280.320.380.420.450.490.52 Quantity estimation diagram nr. of luminaires 0 20 40 60 80 ) 2 (m 10 30 50 70 90 300 lx 500 lx 750 lx h room : 2.8 m Reflectances: 0.70, 0.50, 0.20Maintenance factor: 1.0Ceiling mounted UGR diagram 4.0 4.0 8.0 8.0 12.0 12.0 16.0 16.0 m m X Y h room : 2.8 m Refl: 0.70 0.50 0.20Ceiling mounted : viewed endwise: viewed crosswise Y : Parallel to viewing dir. 19 16 22 16 22 19 Luminance Table ) 2 (cd/m 0.0 15.0 30.0 45.0 60.0 75.0 90.0 45.050.055.060.065.070.075.080.085.090.0 Plane Cone 1377139414531497151515591635171118201938 1340134013611411142714601519159716811755 1285126112701301132313421387145115201587 1223118911621165117011821202123313021371 1202113810821040 996979990 105211041186 1187111310611007 938915876869873965 128312051146107810741068 950921881 1181 General Uniform Lighting CalcuLuX Photometrics 4.2.1 Philips Lighting B.V. Page: 25/27 9.3kg Central locking systtem 302

Published: 23 May 2013 Category: Product Catalogues
