Pierlite Diginet Emergency Lighting Management System

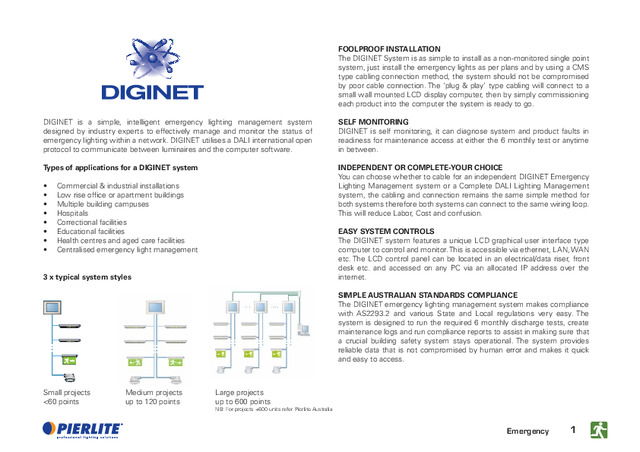

1 Emergency DIGINET is a simple, intelligent emergency lighting management system designed by industry experts to effectively manage and monitor the status of emergency lighting within a network. DIGINET utilises a DALI international open protocol to communicate between luminaires and the computer software. Types of applications for a DIGINET system • Commercial & industrial installations • Low rise office or apartment buildings • Multiple building campuses • Hospitals • Correctional facilities • Educational facilities • Health centres and aged care facilities • Centralised emergency light management 3 x typical system styles FOOLPROOF INSTALLATION The DIGINET System is as simple to install as a non-monitored single point system, just install the emergency lights as per plans and by using a CMS type cabling connection method, the system should not be compromised by poor cable connection. The ‘plug & play’ type cabling will connect to a small wall mounted LCD display computer, then by simply commissioning each product into the computer the system is ready to go. SELF MONITORING DIGINET is self monitoring, it can diagnose system and product faults in readiness for maintenance access at either the 6 monthly test or anytime in between. INDEPENDENT OR COMPLETE-YOUR CHOICE You can choose whether to cable for an independent DIGINET Emergency Lighting Management system or a Complete DALI Lighting Management system, the cabling and connection remains the same simple method for both systems therefore both systems can connect to the same wiring loop. This will reduce Labor, Cost and confusion. EASY SYSTEM CONTROLS The DIGINET system features a unique LCD graphical user interface type computer to control and monitor. This is accessible via ethernet, LAN, WAN etc. The LCD control panel can be located in an electrical/data riser, front desk etc. and accessed on any PC via an allocated IP address over the internet. SIMPLE AUSTRALIAN STANDARDS COMPLIANCE The DIGINET emergency lighting management system makes compliance with AS2293.2 and various State and Local regulations very easy. The system is designed to run the required 6 monthly discharge tests, create maintenance logs and run compliance reports to assist in making sure that a crucial building safety system stays operational. The system provides reliable data that is not compromised by human error and makes it quick and easy to access. Small projects 60 points Medium projects up to 120 points Large projects up to 600 points NB: For projects +600 units refer Pierlite Australia
1 Emergency DIGINET is a simple, intelligent emergency lighting management system designed by industry experts to effectively manage and monitor the status of emergency lighting within a network. DIGINET utilises a DALI international open protocol to communicate between luminaires and the computer software. Types of applications for a DIGINET system • Commercial & industrial installations • Low rise office or apartment buildings • Multiple building campuses • Hospitals • Correctional facilities • Educational facilities • Health centres and aged care facilities • Centralised emergency light management 3 x typical system styles FOOLPROOF INSTALLATION The DIGINET System is as simple to install as a non-monitored single point system, just install the emergency lights as per plans and by using a CMS type cabling connection method, the system should not be compromised by poor cable connection. The ‘plug & play’ type cabling will connect to a small wall mounted LCD display computer, then by simply commissioning each product into the computer the system is ready to go. SELF MONITORING DIGINET is self monitoring, it can diagnose system and product faults in readiness for maintenance access at either the 6 monthly test or anytime in between. INDEPENDENT OR COMPLETE-YOUR CHOICE You can choose whether to cable for an independent DIGINET Emergency Lighting Management system or a Complete DALI Lighting Management system, the cabling and connection remains the same simple method for both systems therefore both systems can connect to the same wiring loop. This will reduce Labor, Cost and confusion. EASY SYSTEM CONTROLS The DIGINET system features a unique LCD graphical user interface type computer to control and monitor. This is accessible via ethernet, LAN, WAN etc. The LCD control panel can be located in an electrical/data riser, front desk etc. and accessed on any PC via an allocated IP address over the internet. SIMPLE AUSTRALIAN STANDARDS COMPLIANCE The DIGINET emergency lighting management system makes compliance with AS2293.2 and various State and Local regulations very easy. The system is designed to run the required 6 monthly discharge tests, create maintenance logs and run compliance reports to assist in making sure that a crucial building safety system stays operational. The system provides reliable data that is not compromised by human error and makes it quick and easy to access. Small projects 60 points Medium projects up to 120 points Large projects up to 600 points NB: For projects +600 units refer Pierlite Australia
Technical 2 Emergency max dim(mm) Product CodesCode Version DIGINET DALI Touch Screen Control Panel DIGINET DALI Emergency Control Panel Features • Simple one touch control system • Automatic initiation and logging of tests • User friendly colour interface • On screen luminaires health status • Up to 120 emergency lighting points per panel • Interconnect up to 10 Panels using Ethernet backbone • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. 99005257 DIGINET DALI Touch Screen Control Panel Accessories Power Supply99005256 DALI PS1 Surf Remote (200MA) 99005255 PS DALI DIN Rail IP20 0.92kg 200 x 150 x 20 Applications Small to medium commercial & industrial installations, low rise office or apartment buildings, multiple building campuses, small to medium public buildings, health centres and aged care facilities. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] EXIT SIGN DALI PSU 24-48V DC 10VA DIGINET TOUCH SCREEN CONTROLLER DALI PSU EXIT SIGN EMERGENCY LIGHT N L DA DA DA DA EMERGENCY LIGHT
Technical 2 Emergency max dim(mm) Product CodesCode Version DIGINET DALI Touch Screen Control Panel DIGINET DALI Emergency Control Panel Features • Simple one touch control system • Automatic initiation and logging of tests • User friendly colour interface • On screen luminaires health status • Up to 120 emergency lighting points per panel • Interconnect up to 10 Panels using Ethernet backbone • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. 99005257 DIGINET DALI Touch Screen Control Panel Accessories Power Supply99005256 DALI PS1 Surf Remote (200MA) 99005255 PS DALI DIN Rail IP20 0.92kg 200 x 150 x 20 Applications Small to medium commercial & industrial installations, low rise office or apartment buildings, multiple building campuses, small to medium public buildings, health centres and aged care facilities. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] EXIT SIGN DALI PSU 24-48V DC 10VA DIGINET TOUCH SCREEN CONTROLLER DALI PSU EXIT SIGN EMERGENCY LIGHT N L DA DA DA DA EMERGENCY LIGHT
Technical 3 Emergency Technical 3 Emergency Cable and Connector Technical specification: Simplicity, flexibility and efficiency is the key to installation and interconnection of a DIGINET DALI management system. DIGINET Cable Management Options Features • Simplifies the wiring and provides Plug & Play connectivity • 5 way hard and soft wiring solutions available • Reduce wastage in materials • Luminaires and interconnecting cables can be installed at the same time • Combined lighting, power, control and communication wiring eliminates the need for separate Data Cabling. • Add Luminaires or Devices by simply plugging in. • Reduce the quantity and variety of wiring required in an installation. Mains 240VAC. 16A and 20A versions available 5 core wiring which typically consists of 3 x conductors for A, E, N and 2 x conductors for DALI (min 1.5mm2) allowing for up to 64 DALI Addresses over 300 metres. Contact your local Pierlite office for further details Applications 5 way soft and hard wiring connectivity solutions are available for commercial, residential, infrastructure or industrial lighting applications. It is highly recommended that in every installation, 5 core cabling such as 5 core round, 5 core flat or 5 core structured cabling solution is taken to each zone and then routed to each luminaire. This gives total flexibility and makes the project future proof. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] 5 core flat QF1 QF1 QF3 Lead hard wired to fitting. 3x2.5mm (A,N,E) & 2x1.5mm Dali.w 2 2 Light Fitting QF5 Interceptor allowing splitting of circuits/new power supply. QF3 & QFS3 hard wired to fitting. QF3a Lead hard wired to fitting. 5x1.0mm , maximum 2.5metres. 2 QF3b Lead mates with QF6 Plug in fitting. 3x2.5mm(A,N,E) & 2x1.5mm Dali. 2 2 QF3c Lead mates with Qf6 Plug in fitting. 5x1.0mmmaximum length 2.5 metres. 2 QF4 Hard wired to fitting. B5T Fits directly into QF6 B5.2 Connector - Field New power supply Plugging multiple A5T reduces the No. of QF2 leads required. QF2 A5T QF6
Technical 3 Emergency Technical 3 Emergency Cable and Connector Technical specification: Simplicity, flexibility and efficiency is the key to installation and interconnection of a DIGINET DALI management system. DIGINET Cable Management Options Features • Simplifies the wiring and provides Plug & Play connectivity • 5 way hard and soft wiring solutions available • Reduce wastage in materials • Luminaires and interconnecting cables can be installed at the same time • Combined lighting, power, control and communication wiring eliminates the need for separate Data Cabling. • Add Luminaires or Devices by simply plugging in. • Reduce the quantity and variety of wiring required in an installation. Mains 240VAC. 16A and 20A versions available 5 core wiring which typically consists of 3 x conductors for A, E, N and 2 x conductors for DALI (min 1.5mm2) allowing for up to 64 DALI Addresses over 300 metres. Contact your local Pierlite office for further details Applications 5 way soft and hard wiring connectivity solutions are available for commercial, residential, infrastructure or industrial lighting applications. It is highly recommended that in every installation, 5 core cabling such as 5 core round, 5 core flat or 5 core structured cabling solution is taken to each zone and then routed to each luminaire. This gives total flexibility and makes the project future proof. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] 5 core flat QF1 QF1 QF3 Lead hard wired to fitting. 3x2.5mm (A,N,E) & 2x1.5mm Dali.w 2 2 Light Fitting QF5 Interceptor allowing splitting of circuits/new power supply. QF3 & QFS3 hard wired to fitting. QF3a Lead hard wired to fitting. 5x1.0mm , maximum 2.5metres. 2 QF3b Lead mates with QF6 Plug in fitting. 3x2.5mm(A,N,E) & 2x1.5mm Dali. 2 2 QF3c Lead mates with Qf6 Plug in fitting. 5x1.0mmmaximum length 2.5 metres. 2 QF4 Hard wired to fitting. B5T Fits directly into QF6 B5.2 Connector - Field New power supply Plugging multiple A5T reduces the No. of QF2 leads required. QF2 A5T QF6
Technical 4 Emergency max dim(mm) Product CodesCode Version Stylish, energy efficient LED DALI exit luminaire compliant to Australian emergency lighting standards AS/NZS2293. Including DALI emergency control gear. DIGINET LED EXIT - DALI Emergency Features • Strip multiple LED lamps • Polycarbonate housing • Slimline acrylic legend blade • Fully approved to AS/NZS2293 thermal & illuminance requirements • Pictogram viewing distance is 24m • Surface & Recessed mount, swivel action of panel for use on angled ceilings • Low power consumption • A complete ‘one box’ solution including body diffuser and all pictogram inserts Blade LED Slide Connect C/W Pictogram decalsLEDXM2PTA Exit Sign DALI LEDXM2PBTA Theatre Exit Sign DALI Accessories LEDRB Recessed Bracket (cut-out: 380x88mm) EXCB Cantilever bracket LEDCM Conduit mount box SKITLED Suspension Kit RODSUSP/TLSP Rod Suspension KitDIRPPSS Pictogram inserts single sided DIRPPDS Pictogram inserts Double sided Battery 99023407 IP20 2.0kg 368 x 55 x 255 • Optional black ‘theatre’ body housing and picto inserts • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Ideal for emergency lighting application whereaesthetics are everything, commercial office areas,hotels, shopping and cinema complexes, apartments,hospitals. LED Swivel Action - Wall or Ceiling Mount Conduit Mount Box LEDCM CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] All pictogram inserts Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 LEDXM2PTA C0 E1.25 4.2 4.2 4 3.6 3 C90 E1.25 4.2 4.2 4 3.6 3
Technical 4 Emergency max dim(mm) Product CodesCode Version Stylish, energy efficient LED DALI exit luminaire compliant to Australian emergency lighting standards AS/NZS2293. Including DALI emergency control gear. DIGINET LED EXIT - DALI Emergency Features • Strip multiple LED lamps • Polycarbonate housing • Slimline acrylic legend blade • Fully approved to AS/NZS2293 thermal & illuminance requirements • Pictogram viewing distance is 24m • Surface & Recessed mount, swivel action of panel for use on angled ceilings • Low power consumption • A complete ‘one box’ solution including body diffuser and all pictogram inserts Blade LED Slide Connect C/W Pictogram decalsLEDXM2PTA Exit Sign DALI LEDXM2PBTA Theatre Exit Sign DALI Accessories LEDRB Recessed Bracket (cut-out: 380x88mm) EXCB Cantilever bracket LEDCM Conduit mount box SKITLED Suspension Kit RODSUSP/TLSP Rod Suspension KitDIRPPSS Pictogram inserts single sided DIRPPDS Pictogram inserts Double sided Battery 99023407 IP20 2.0kg 368 x 55 x 255 • Optional black ‘theatre’ body housing and picto inserts • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Ideal for emergency lighting application whereaesthetics are everything, commercial office areas,hotels, shopping and cinema complexes, apartments,hospitals. LED Swivel Action - Wall or Ceiling Mount Conduit Mount Box LEDCM CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] All pictogram inserts Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 LEDXM2PTA C0 E1.25 4.2 4.2 4 3.6 3 C90 E1.25 4.2 4.2 4 3.6 3
Technical 5 Emergency Max Dim(mm) Product CodesCode Version Stylish, energy efficient LED quick connect exit luminaire compliant to Australian emergency lighting standards AS/NZS2293. Including DALI emergency control gear. DIGINET Stingray LED - DALI Emergency Features • Strip multiple LED lamp • Polycarbonate housing • Slimline design • Fully approved to AS/NZS2293 thermal & illuminance requirements • Pictogram viewing distance is 24m • Surface mount wall or ceiling • Low power consumption • A complete ‘one box’ solution including body diffuser and all pictogram inserts Slide Connect C/W Pictogram decalsSTLEDM2PTA LED Exit Sign DALI STLEDM2PBTA LED Theatre Exit Sign DALI Accessories WGWE Wall exit wire guard WGCE Ceiling exit wire guard EXCB Cantilever bracket 99023330 Rod suspension white 99023360 Rod suspension black DIRPPDS Pictogram inserts double sided Batteries 99023407 IP20 3.0kg 395 x 81 x 240 • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Ideal for emergency lighting applications where low power consumption, flexibility and project budget is a priority. Install in commercial office areas, hotels, shopping and cinema complexes, apartments, hospitals. Picto decals included Cantilever Bracket EXCB Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 STLEDM2PTA C0 E1.25 4.2 4.2 4 3.6 3 C90 E1.25 4.2 4.2 4 3.6 3 CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected]
Technical 5 Emergency Max Dim(mm) Product CodesCode Version Stylish, energy efficient LED quick connect exit luminaire compliant to Australian emergency lighting standards AS/NZS2293. Including DALI emergency control gear. DIGINET Stingray LED - DALI Emergency Features • Strip multiple LED lamp • Polycarbonate housing • Slimline design • Fully approved to AS/NZS2293 thermal & illuminance requirements • Pictogram viewing distance is 24m • Surface mount wall or ceiling • Low power consumption • A complete ‘one box’ solution including body diffuser and all pictogram inserts Slide Connect C/W Pictogram decalsSTLEDM2PTA LED Exit Sign DALI STLEDM2PBTA LED Theatre Exit Sign DALI Accessories WGWE Wall exit wire guard WGCE Ceiling exit wire guard EXCB Cantilever bracket 99023330 Rod suspension white 99023360 Rod suspension black DIRPPDS Pictogram inserts double sided Batteries 99023407 IP20 3.0kg 395 x 81 x 240 • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Ideal for emergency lighting applications where low power consumption, flexibility and project budget is a priority. Install in commercial office areas, hotels, shopping and cinema complexes, apartments, hospitals. Picto decals included Cantilever Bracket EXCB Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 STLEDM2PTA C0 E1.25 4.2 4.2 4 3.6 3 C90 E1.25 4.2 4.2 4 3.6 3 CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected]
Technical 6 Emergency max dim(mm) 391 391 WP LED Exit 441mm 33mm 229mm 286mm 391 391 WP LED Exit 441mm 33mm 229mm 286mm DIGINET LED Firefly - DALI Emergency Product Codes Code Version Versatile non-maintained DALI LED emergency luminaries compliant to AS/NZS2293. Including DALI emergency control gear. Features • Energy efficient high output 3 watt LED • Easy installation via 3 pin flex & plug and data connection • Recessed or surface mount options • Non corrosive polycarbonate housing and reflector • High performance lens system, providing D12.5/D12.5 spacing • Low power consumption and maintenance • Suspension kit and tamper proof options available • Compliant to AS/NZS2293 3W LED DALI EmergencyFFRLEDTA Non-Maintained Recessed FFRLEDBKTA Non-Maintained Recessed Black FFSLEDAKTA Non-Maintained Surface Mount Alloy Can FFSLEDBKQKTA Non-Maintained Surface Black Accessories FFLEDVK Vandal resistant kit 99023330 White Pole Suspension kit 1600mm 99023360 Black Pole Suspension kit 1200mm FFSLEDDISC Suspension cover disc99015840 Security screws (3 pack) for alloy SM CAN Battery 99023407 IP20 0.90kg 159 x 85 • Circuit rated system life 50 000 hrs • Black theatre options available • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Commercial and interior applications, coastal environments, apartments, shopping centres, hospitality, prisons and hospitals. FFRLED C0/C90 D12.5 CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Tough polycarbonate body Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 FFRLEDTA C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 FFRLEDBKTA C0 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9 C90 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9 FFSLEDAKTA C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 FFSLEDBKQKTA C0 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9 C90 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9
Technical 6 Emergency max dim(mm) 391 391 WP LED Exit 441mm 33mm 229mm 286mm 391 391 WP LED Exit 441mm 33mm 229mm 286mm DIGINET LED Firefly - DALI Emergency Product Codes Code Version Versatile non-maintained DALI LED emergency luminaries compliant to AS/NZS2293. Including DALI emergency control gear. Features • Energy efficient high output 3 watt LED • Easy installation via 3 pin flex & plug and data connection • Recessed or surface mount options • Non corrosive polycarbonate housing and reflector • High performance lens system, providing D12.5/D12.5 spacing • Low power consumption and maintenance • Suspension kit and tamper proof options available • Compliant to AS/NZS2293 3W LED DALI EmergencyFFRLEDTA Non-Maintained Recessed FFRLEDBKTA Non-Maintained Recessed Black FFSLEDAKTA Non-Maintained Surface Mount Alloy Can FFSLEDBKQKTA Non-Maintained Surface Black Accessories FFLEDVK Vandal resistant kit 99023330 White Pole Suspension kit 1600mm 99023360 Black Pole Suspension kit 1200mm FFSLEDDISC Suspension cover disc99015840 Security screws (3 pack) for alloy SM CAN Battery 99023407 IP20 0.90kg 159 x 85 • Circuit rated system life 50 000 hrs • Black theatre options available • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Commercial and interior applications, coastal environments, apartments, shopping centres, hospitality, prisons and hospitals. FFRLED C0/C90 D12.5 CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Tough polycarbonate body Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 FFRLEDTA C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 FFRLEDBKTA C0 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9 C90 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9 FFSLEDAKTA C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 FFSLEDBKQKTA C0 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9 C90 D10 10.2 10.6 10.9 11.1 11.4 11.5 11.6 11.6 11.2 10.3 8.9
99015840 Recessed vandal option 99023330 White Pole Suspension kit 1600mm 99023360 Black Pole Suspension kit 1200mm FFRLEDBKQKTA Black surface mount 7 Emergency FFSLEDAKTA / Surface mount
99015840 Recessed vandal option 99023330 White Pole Suspension kit 1600mm 99023360 Black Pole Suspension kit 1200mm FFRLEDBKQKTA Black surface mount 7 Emergency FFSLEDAKTA / Surface mount
Technical 8 Emergency max dim(mm) Product CodesCode Version Weatherproof IP65 exit luminaire designed with energy efficient LED technology housed in a rugged vandal resistant casing, including DALI emergency control gear. DIGINET Warden - DALI Emergency Features • High performance LED strip • Ceiling or Wall mount, double or single sided • Vandal and Tamper proof • Impact resistant • Pictogram decals included • Robust steel fabrication with UV Resistant powder coating • Low power consumption and maintenance Weatherproof & Vandal Resistant C/W Bracket & Pictogram decalsWELED2VM24TA LED DALI Exit 24m WELED2VM40TA LED DALI Exit 40m Battery 99023453 IP65 3.0kg 441 x 286 x 33 • Slim, aesthetic and practical design • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Adverse environment, Industrial / Commercial, Car parks, Railway stations, Mining. 391 391 WP LED Exit 441mm 33mm 229mm 286mm Robust steel fabricated body CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] 391 391 WP LED Exit 441mm 33mm 229mm 286mm
Technical 8 Emergency max dim(mm) Product CodesCode Version Weatherproof IP65 exit luminaire designed with energy efficient LED technology housed in a rugged vandal resistant casing, including DALI emergency control gear. DIGINET Warden - DALI Emergency Features • High performance LED strip • Ceiling or Wall mount, double or single sided • Vandal and Tamper proof • Impact resistant • Pictogram decals included • Robust steel fabrication with UV Resistant powder coating • Low power consumption and maintenance Weatherproof & Vandal Resistant C/W Bracket & Pictogram decalsWELED2VM24TA LED DALI Exit 24m WELED2VM40TA LED DALI Exit 40m Battery 99023453 IP65 3.0kg 441 x 286 x 33 • Slim, aesthetic and practical design • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Adverse environment, Industrial / Commercial, Car parks, Railway stations, Mining. 391 391 WP LED Exit 441mm 33mm 229mm 286mm Robust steel fabricated body CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] 391 391 WP LED Exit 441mm 33mm 229mm 286mm
Technical 9 Emergency Max Dim(mm) Product CodesCode Version Square sided batten with energy efficient T5 lamp technology including DALI emergency control gear. DIGINET High 5 ® - DALI Emergency Features • High performing photometric distribution in either bare or diffused options • The body is a cold rolled steel channel, finished in white polyester powder coat with UV stabilised polycarbonate plastic end caps • Unique diffuser removal system for easy lamp change • Quarter turn quick release reflector • Large 3 way tunnel terminal block • Rolled cable entry no grommets required • Energy efficient T5 lamp fluorescent circuit • Wide body assembly is designed to cover flush mount junction box installations Diffused Batten HI5128D/4QA 1x28W T5 Non-Maint DALI Emerg wide body HI5128DA4PA 1x28W T5 Maint DALI Emerg wide body HI5228DA4PA 2x28W T5 Comb Maint DALI Emerg HI5228DA4RA 2x28W T5 Comb Non-Maint DALI Emerg (Sust) Bare Batten HI5128B/4QA 1x28W T5 Non-Maint DALI Emerg wide body HI5128BA4PA 1x28W T5 Maint DALI Emerg wide body HI5228BA4PA 2x28W T5 Comb Maint DALI Emerg HI5228BA4RA 2x28W T5 Comb Non-Maint DALI Emerg (Sust) Accessories Batteries 97018522 HI514WG Wire Guard T/S single/twin 14W HI528WG Wire Guard T/S single/twin 28W Optional Intergrated Auto Dim, Motion and Light Sensors available upon request. IP20 4.0kg 1229 x 102 x 101 • Optional light movement and IR sensor capabilities • True end to end mounting possible with knockouts for wiring • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General commercial interiors, factories, warehouses, shopping centres, stairwells and interior carparks. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 HI5128B C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 HI5228B C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C180 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 HI5128D C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 C63 11.9 12.8 13.5 14.2 15.5 16.2 17.1 17.9 19.2 21.2 22.5 HI5228D C0 D50 18 18.7 19.4 20.1 21.2 21.8 22.5 23.2 24.2 25.4 25.9 C90 C63 11.9 12.8 13.5 14.2 15.5 16.2 17.1 17.9 19.2 21.2 22.5 C180 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 Diffused model
Technical 9 Emergency Max Dim(mm) Product CodesCode Version Square sided batten with energy efficient T5 lamp technology including DALI emergency control gear. DIGINET High 5 ® - DALI Emergency Features • High performing photometric distribution in either bare or diffused options • The body is a cold rolled steel channel, finished in white polyester powder coat with UV stabilised polycarbonate plastic end caps • Unique diffuser removal system for easy lamp change • Quarter turn quick release reflector • Large 3 way tunnel terminal block • Rolled cable entry no grommets required • Energy efficient T5 lamp fluorescent circuit • Wide body assembly is designed to cover flush mount junction box installations Diffused Batten HI5128D/4QA 1x28W T5 Non-Maint DALI Emerg wide body HI5128DA4PA 1x28W T5 Maint DALI Emerg wide body HI5228DA4PA 2x28W T5 Comb Maint DALI Emerg HI5228DA4RA 2x28W T5 Comb Non-Maint DALI Emerg (Sust) Bare Batten HI5128B/4QA 1x28W T5 Non-Maint DALI Emerg wide body HI5128BA4PA 1x28W T5 Maint DALI Emerg wide body HI5228BA4PA 2x28W T5 Comb Maint DALI Emerg HI5228BA4RA 2x28W T5 Comb Non-Maint DALI Emerg (Sust) Accessories Batteries 97018522 HI514WG Wire Guard T/S single/twin 14W HI528WG Wire Guard T/S single/twin 28W Optional Intergrated Auto Dim, Motion and Light Sensors available upon request. IP20 4.0kg 1229 x 102 x 101 • Optional light movement and IR sensor capabilities • True end to end mounting possible with knockouts for wiring • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General commercial interiors, factories, warehouses, shopping centres, stairwells and interior carparks. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 HI5128B C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 HI5228B C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C180 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 HI5128D C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 C63 11.9 12.8 13.5 14.2 15.5 16.2 17.1 17.9 19.2 21.2 22.5 HI5228D C0 D50 18 18.7 19.4 20.1 21.2 21.8 22.5 23.2 24.2 25.4 25.9 C90 C63 11.9 12.8 13.5 14.2 15.5 16.2 17.1 17.9 19.2 21.2 22.5 C180 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 Diffused model
Technical 10 Emergency max dim(mm) Product CodesCode Version Versatile wide body diffused batten, designed for a wide variety of uses, including DALI emergency control gear. Linear diffuser provides a stylish appearance on any project. DIGINET Nipper Diffused Batten - DALI Emergency Features • Quarter turn quick release reflector • Rippled edge technology for hand installation safety • Rolled cable entry - no grommets required • Pierwhite powder coat finish • Complete with triphosphor lamp/s colour 840 • Quick release diffuser end cap • Lineal extruded diffuser • End to end mounting possible with unique end cap design Bare Batten PN118/4QA 1x18W T8 Non-Maint DALI Emerg wide bodyPN118A4PA 1x18W T8 Maint DALI Emerg wide bodyPN218A4PA 2x18W T8 Comb Maint DALI EmergPN218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)PN136/4QA 1x36W T8 Non-Maint DALI Emerg narrow body PN136A4PA 1x36W T8 Maint DALI Emerg narrow bodyPN236A4PA 2x36W T8 Comb Maint DALI EmergPN236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Diffused Batten PND218A4PA 2x18W T8 Comb Maint DALI EmergPND218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)PND136/4QA 1x36W T8 Non-Maint DALI Emerg narrow bodyPND136A4PA 1x36W T8 Maint DALI Emerg narrow bodyPND236A4PA 2x36W T8 Comb Maint DALI EmergPND236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories PHWG118 Galvanised Wire Guard T/S PN118 PHWG218 Galvanised Wire Guard T/S PN218 PHWG136 Galvanised Wire Guard T/S PN136 PHWG236 Galvanised Wire Guard T/S PN236 PHWG118WH White Powder Wire Guard T/S PN118PHWG218WH White Powder Wire Guard T/S PN218PHWG136WH White Powder Wire Guard T/S PN136PHWG236WH White Powder Wire Guard T/S PN236Batteries 97002304 IP20 3.4kg 1229 x 52 x 92 • Diffuser can be removed without removing end cap • Wide body version covers junction box • ABS fire retardant end caps • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General commercial & semi industrial interiors, Retail outlets, Factories, Warehouses, Multi-storey car parks CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 PN118 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 PN218 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 C180 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 PN136 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 PN236 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 PND218 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 C180 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 PND136 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 PND236 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1
Technical 10 Emergency max dim(mm) Product CodesCode Version Versatile wide body diffused batten, designed for a wide variety of uses, including DALI emergency control gear. Linear diffuser provides a stylish appearance on any project. DIGINET Nipper Diffused Batten - DALI Emergency Features • Quarter turn quick release reflector • Rippled edge technology for hand installation safety • Rolled cable entry - no grommets required • Pierwhite powder coat finish • Complete with triphosphor lamp/s colour 840 • Quick release diffuser end cap • Lineal extruded diffuser • End to end mounting possible with unique end cap design Bare Batten PN118/4QA 1x18W T8 Non-Maint DALI Emerg wide bodyPN118A4PA 1x18W T8 Maint DALI Emerg wide bodyPN218A4PA 2x18W T8 Comb Maint DALI EmergPN218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)PN136/4QA 1x36W T8 Non-Maint DALI Emerg narrow body PN136A4PA 1x36W T8 Maint DALI Emerg narrow bodyPN236A4PA 2x36W T8 Comb Maint DALI EmergPN236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Diffused Batten PND218A4PA 2x18W T8 Comb Maint DALI EmergPND218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)PND136/4QA 1x36W T8 Non-Maint DALI Emerg narrow bodyPND136A4PA 1x36W T8 Maint DALI Emerg narrow bodyPND236A4PA 2x36W T8 Comb Maint DALI EmergPND236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories PHWG118 Galvanised Wire Guard T/S PN118 PHWG218 Galvanised Wire Guard T/S PN218 PHWG136 Galvanised Wire Guard T/S PN136 PHWG236 Galvanised Wire Guard T/S PN236 PHWG118WH White Powder Wire Guard T/S PN118PHWG218WH White Powder Wire Guard T/S PN218PHWG136WH White Powder Wire Guard T/S PN136PHWG236WH White Powder Wire Guard T/S PN236Batteries 97002304 IP20 3.4kg 1229 x 52 x 92 • Diffuser can be removed without removing end cap • Wide body version covers junction box • ABS fire retardant end caps • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General commercial & semi industrial interiors, Retail outlets, Factories, Warehouses, Multi-storey car parks CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 PN118 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 PN218 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 C180 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 PN136 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 PN236 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 PND218 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 C180 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 PND136 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 PND236 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1
Technical 11 Emergency Max Dim(mm) Product Codes Code Version Energy efficient T5 recessed troffer including DALI emergency control gear, suitable for an array of diffuser panels enabling BCA compliant designs. DIGINET Fusion T5 Recessed - DALI Emergency Features • Body of phosphate steel with highly reflective powder coat finish • Suitable for lay in or hinged frame diffuser panels • Available with all high performance panels including Y10, Y5, Y19 and Y12 • Recess depth of 85mm providing low glare illumination in accordance with AS1680.1 • Suitable for use with Plaster Master frame for plaster mounting • Suitable for air trim kits Recessed Y12 Panel no trim FSN128P2A4ASPA 1x28W T5 C/W Maint DALI Emerg & SRS FSN228P2A4A/PA 2x28W T5 C/W Comb Maint DALI Emerg Note: For hinged frame substitute `H’ for `P’ Batteries 97018522 IP20 4.8kg • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Retail shops, office, corridors, boardrooms, common area, canteens, foyers, halls, auditoriums, hospitals, shopping centres. 1229 x 102 x 101 Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 FSN228P2A4A/PA C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C180 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 FSN128P2A4ASPA C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected]
Technical 11 Emergency Max Dim(mm) Product Codes Code Version Energy efficient T5 recessed troffer including DALI emergency control gear, suitable for an array of diffuser panels enabling BCA compliant designs. DIGINET Fusion T5 Recessed - DALI Emergency Features • Body of phosphate steel with highly reflective powder coat finish • Suitable for lay in or hinged frame diffuser panels • Available with all high performance panels including Y10, Y5, Y19 and Y12 • Recess depth of 85mm providing low glare illumination in accordance with AS1680.1 • Suitable for use with Plaster Master frame for plaster mounting • Suitable for air trim kits Recessed Y12 Panel no trim FSN128P2A4ASPA 1x28W T5 C/W Maint DALI Emerg & SRS FSN228P2A4A/PA 2x28W T5 C/W Comb Maint DALI Emerg Note: For hinged frame substitute `H’ for `P’ Batteries 97018522 IP20 4.8kg • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Retail shops, office, corridors, boardrooms, common area, canteens, foyers, halls, auditoriums, hospitals, shopping centres. 1229 x 102 x 101 Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 FSN228P2A4A/PA C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C180 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 FSN128P2A4ASPA C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected]
Technical 12 Emergency max dim(mm) Product Codes Dim Code Version (mm) The Futcha 5 is a high performance louvred luminaire for T5 lamp technology, incorporating LED DALI emergency control gear. DIGINET Futcha 5 Firefly - DALI Emergency Features • Class leading efficiency enabling BCA and Greenstar compliant designs • Suitable for Philips 25W ECO lamp • Full parabolic high purity aluminium louvres • Sturdy low profile body of phosphated steel with • high reflectivity • Electronic control gear, options for Analogue, DSI and DALI • Sensors can be housed in the luminaire • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Recessed C/W LED Firefly DALI Emerg F5128PBD4AFA 1x28W DALI T5 Miro Semi Spec ULB F5128MBD4AFA 1x28W DALI T5 Semi Spec ULB F5128SBD4AFA 1x28W DALI T5 Specular ULB F5228PBD4AFA 2x28W DALI T5 Miro Semi Spec ULB F5228MBD4AFA 2x28W DALI T5 Semi Spec ULB F5228SBD4AFA 2x28W DALI T5 Specular ULB F5214PBD4AFA 2x14W DALI T5 Miro Semi Spec ULB F5214MBD4AFA 2x14W DALI T5 Semi Spec ULB F5214SBD4AFA 2x14W DALI T5 Specular ULB F5314PBD4AFA 3x14W DALI T5 Miro Semi Spec F5314MBD4AFA 3x14W DALI T5 Semi Spec ULB F5314SBD4AFA 3x14W DALI T5 Specular ULB F5414PBD4AFA 4x14W DALI T5 Miro Semi Spec ULB F5414MBD4AFA 4x14W DALI T5 Semi Spec ULB F5414SBD4AFA 4x14W DALI T5 Specular ULB Accessories Replacement EM FFRLEDTA 3W LED DALI Emerg Non-Maint Rec Batteries 99023407 IP20 5.0kg 1189 x 590 x 60 • Energy efficient high output 3 watt LED • Options for soft wiring • Non corrosive polycarbonate housing and reflector • High performance lens system, providing D12.5/D12.5 spacing • Low power consumption and maintenance • Compliant to AS/NZS2293 Applications General commercial interiors, office, corridors, retail stores and shopping centres. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 F5128 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5228 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5214 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5314 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5414 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 Power Specifications Input voltage and tolerance 230V AC +/- 10Nominal frequency 50/60Hz Nominal power 8.3 (16hr) Consumption VA 2.9 Battery NiMH 1700mAh FFRLEDTA C0/C90 D12.5 Battery operating temp -20°C to +70°C Battery Voltage 4.8V Battery A/hr rating 1700mAhr (run time 2.5hr) Battery Charging Dual rate ~170mA then pulse 1min/30min
Technical 12 Emergency max dim(mm) Product Codes Dim Code Version (mm) The Futcha 5 is a high performance louvred luminaire for T5 lamp technology, incorporating LED DALI emergency control gear. DIGINET Futcha 5 Firefly - DALI Emergency Features • Class leading efficiency enabling BCA and Greenstar compliant designs • Suitable for Philips 25W ECO lamp • Full parabolic high purity aluminium louvres • Sturdy low profile body of phosphated steel with • high reflectivity • Electronic control gear, options for Analogue, DSI and DALI • Sensors can be housed in the luminaire • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Recessed C/W LED Firefly DALI Emerg F5128PBD4AFA 1x28W DALI T5 Miro Semi Spec ULB F5128MBD4AFA 1x28W DALI T5 Semi Spec ULB F5128SBD4AFA 1x28W DALI T5 Specular ULB F5228PBD4AFA 2x28W DALI T5 Miro Semi Spec ULB F5228MBD4AFA 2x28W DALI T5 Semi Spec ULB F5228SBD4AFA 2x28W DALI T5 Specular ULB F5214PBD4AFA 2x14W DALI T5 Miro Semi Spec ULB F5214MBD4AFA 2x14W DALI T5 Semi Spec ULB F5214SBD4AFA 2x14W DALI T5 Specular ULB F5314PBD4AFA 3x14W DALI T5 Miro Semi Spec F5314MBD4AFA 3x14W DALI T5 Semi Spec ULB F5314SBD4AFA 3x14W DALI T5 Specular ULB F5414PBD4AFA 4x14W DALI T5 Miro Semi Spec ULB F5414MBD4AFA 4x14W DALI T5 Semi Spec ULB F5414SBD4AFA 4x14W DALI T5 Specular ULB Accessories Replacement EM FFRLEDTA 3W LED DALI Emerg Non-Maint Rec Batteries 99023407 IP20 5.0kg 1189 x 590 x 60 • Energy efficient high output 3 watt LED • Options for soft wiring • Non corrosive polycarbonate housing and reflector • High performance lens system, providing D12.5/D12.5 spacing • Low power consumption and maintenance • Compliant to AS/NZS2293 Applications General commercial interiors, office, corridors, retail stores and shopping centres. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 F5128 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5228 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5214 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5314 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 F5414 C0 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 C90 D12.5 11.1 11.5 11.8 12.1 12.5 12.7 12.9 13 12.8 12.3 11.3 Power Specifications Input voltage and tolerance 230V AC +/- 10Nominal frequency 50/60Hz Nominal power 8.3 (16hr) Consumption VA 2.9 Battery NiMH 1700mAh FFRLEDTA C0/C90 D12.5 Battery operating temp -20°C to +70°C Battery Voltage 4.8V Battery A/hr rating 1700mAhr (run time 2.5hr) Battery Charging Dual rate ~170mA then pulse 1min/30min
Technical 13 Emergency Max Dim(mm) Technical Product CodesCode Version Corrosion resistant GRP weatherproof fluorescent luminaire designed with high performance T8 Optics, including DALI emergency control gear. DIGINET SDW / SDWA IP65 - DALI Emergency Features • Tough corrosion resistant glass-fibre reinforced polyester body • UV stabilised high Impact polycarbonate lens (optional acrylic) • Polyurethane machine poured foam gasket • Stainless steel diffuser clips, screw lockable • Internal ribbed prism lens • 20mm grommet cable entry at one end • IP65 • Maintained, combined maintained, sustained and non-maintained IP65 Weatherproof SDW218A4PA 2x18W T8 Comb Maint DALI Emerg SDW218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust) SDW136A4PA 1x36W T8 Maint DALI Emerg wide body SDW236A4PA 2x36W T8 Comb Maint DALI Emerg SDW236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories Batteries 97002304 For 45° watershed factory fitted to 36W and 58W acrylic models suffix ‘WS’, ie. SDW236MWS For Acrylic diffuser models suffix ‘A’ in catalogue number after ’SDW’136M ie. becomes SDWA136M IP65 6.5kg 1267 x 198 x 125 • Food industries - watershed bracket available • Compliant to AS/NZS2293 • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General weatherproof conditions, wet rooms, food processing areas, dairies, industrial plants, car park and wharves. Stainless steel clips Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 SDW218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 C180 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 SDW136 C0 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 SDW236 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 Version Dim (mm) 2 x 18W 657 x 198 x 125 2 x 36W 1267 x 198 x 125 UV stabilised high Impact polycarbonate lens CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected]
Technical 13 Emergency Max Dim(mm) Technical Product CodesCode Version Corrosion resistant GRP weatherproof fluorescent luminaire designed with high performance T8 Optics, including DALI emergency control gear. DIGINET SDW / SDWA IP65 - DALI Emergency Features • Tough corrosion resistant glass-fibre reinforced polyester body • UV stabilised high Impact polycarbonate lens (optional acrylic) • Polyurethane machine poured foam gasket • Stainless steel diffuser clips, screw lockable • Internal ribbed prism lens • 20mm grommet cable entry at one end • IP65 • Maintained, combined maintained, sustained and non-maintained IP65 Weatherproof SDW218A4PA 2x18W T8 Comb Maint DALI Emerg SDW218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust) SDW136A4PA 1x36W T8 Maint DALI Emerg wide body SDW236A4PA 2x36W T8 Comb Maint DALI Emerg SDW236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories Batteries 97002304 For 45° watershed factory fitted to 36W and 58W acrylic models suffix ‘WS’, ie. SDW236MWS For Acrylic diffuser models suffix ‘A’ in catalogue number after ’SDW’136M ie. becomes SDWA136M IP65 6.5kg 1267 x 198 x 125 • Food industries - watershed bracket available • Compliant to AS/NZS2293 • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General weatherproof conditions, wet rooms, food processing areas, dairies, industrial plants, car park and wharves. Stainless steel clips Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 SDW218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 C180 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 SDW136 C0 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 SDW236 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 Version Dim (mm) 2 x 18W 657 x 198 x 125 2 x 36W 1267 x 198 x 125 UV stabilised high Impact polycarbonate lens CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected]
Technical 14 Emergency max dim(mm) Product CodesCode Version Corrosion resistant GRP weatherproof fluorescent luminaire designed with high performance T5 and T8 optics, including DALI emergency control gear. DIGINET PWP ™ & PWA ™ IP65 - DALI Emergency Features • Lamp 18W T8, 36W T8,14W T5, 28W T5 • Tough corrosion resistant glass-fibre reinforced polyester body • UV stabilised high impact polycarbonate lens (optional acrylic) • Removable steel gear tray/reflector • Polyurethane machine poured foam gasket • Tamper resistant stainless steel (PWP) or polycarbonate (PWA) diffuser retaining clips • Internal ribbed lens prism • Optional IR and motion sensor capabilities IP65 Weatherproof PWP114/4QA 1x14W T5 Non-Maint DALI Emerg wide bodyPWP114A4PA 1x14W T5 Maint DALI Emerg wide bodyPWP214A4PA 2x14W T5 Comb Maint DALI EmergPWP214A4RA 2x14W T5 Comb Non-Maint DALI Emerg (Sust)PWP128/4QA 1x28W T5 Non-Maint DALI Emerg narrow bodyPWP128A4PA 1x28W T5 Maint DALI Emerg wide bodyPWP228A4PA 2x28W T5 Comb Maint DALI EmergPWP228A4RA 2x28W T5 Comb Non-Maint DALI Emerg (Sust)PWP118/4QA 1x18W T8 Non-Maint DALI Emerg wide bodyPWP118A4PA 1x18W DALI T8 Maint DALI Emerg wide bodyPWP218A4PA 2x18W T8 Comb Maint DALI EmergPWP218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)PWP136/4QA 1x36W T8 Non-Maint DALI Emerg narrow bodyPWP136A4PA 1x36W T8 Maint DALI Emerg wide body onlyPWP236A4PA 2x36W T8 Comb Maint DALI EmergPWP236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories For acrylic models replace ‘P’ in the catalogue with ‘A’ i.e PWP114M becomes PWA114M Batteries 114,214,118,218,136 & 236 97002304 128 & 228 97018522 Optional Intergrated Auto Dim, Motion and Light Sensors available upon request. IP65 5.4kg 1315 x 120 x 115 • Compliant to AS/NZS2293 • 20mm grommet cable entry at one end • Maintained, non-maintained, sustained and combined maintained available • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General weatherproof conditions, wet rooms, food processing areas, industrial plants, car parks CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 PWP114 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 PWP214 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 PWP118 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C20 8.9 9.4 9.9 10.3 11.1 11.5 12 12.3 12.8 13 12 PWP218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 PWP136 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 PWP236 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 PWP128 C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 C50 11.3 12 11.8 13.4 14.5 15.2 16 16.7 17.9 17.9 18.5 PWP228 C0 D50 18 18.7 19.4 20.1 21.2 21.8 22.5 23.2 24.2 25.4 25.9 C90 C50 11.3 12 11.8 13.4 14.5 15.2 16 16.7 17.9 17.9 18.5 C180 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9
Technical 14 Emergency max dim(mm) Product CodesCode Version Corrosion resistant GRP weatherproof fluorescent luminaire designed with high performance T5 and T8 optics, including DALI emergency control gear. DIGINET PWP ™ & PWA ™ IP65 - DALI Emergency Features • Lamp 18W T8, 36W T8,14W T5, 28W T5 • Tough corrosion resistant glass-fibre reinforced polyester body • UV stabilised high impact polycarbonate lens (optional acrylic) • Removable steel gear tray/reflector • Polyurethane machine poured foam gasket • Tamper resistant stainless steel (PWP) or polycarbonate (PWA) diffuser retaining clips • Internal ribbed lens prism • Optional IR and motion sensor capabilities IP65 Weatherproof PWP114/4QA 1x14W T5 Non-Maint DALI Emerg wide bodyPWP114A4PA 1x14W T5 Maint DALI Emerg wide bodyPWP214A4PA 2x14W T5 Comb Maint DALI EmergPWP214A4RA 2x14W T5 Comb Non-Maint DALI Emerg (Sust)PWP128/4QA 1x28W T5 Non-Maint DALI Emerg narrow bodyPWP128A4PA 1x28W T5 Maint DALI Emerg wide bodyPWP228A4PA 2x28W T5 Comb Maint DALI EmergPWP228A4RA 2x28W T5 Comb Non-Maint DALI Emerg (Sust)PWP118/4QA 1x18W T8 Non-Maint DALI Emerg wide bodyPWP118A4PA 1x18W DALI T8 Maint DALI Emerg wide bodyPWP218A4PA 2x18W T8 Comb Maint DALI EmergPWP218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)PWP136/4QA 1x36W T8 Non-Maint DALI Emerg narrow bodyPWP136A4PA 1x36W T8 Maint DALI Emerg wide body onlyPWP236A4PA 2x36W T8 Comb Maint DALI EmergPWP236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories For acrylic models replace ‘P’ in the catalogue with ‘A’ i.e PWP114M becomes PWA114M Batteries 114,214,118,218,136 & 236 97002304 128 & 228 97018522 Optional Intergrated Auto Dim, Motion and Light Sensors available upon request. IP65 5.4kg 1315 x 120 x 115 • Compliant to AS/NZS2293 • 20mm grommet cable entry at one end • Maintained, non-maintained, sustained and combined maintained available • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications General weatherproof conditions, wet rooms, food processing areas, industrial plants, car parks CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 PWP114 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 PWP214 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 PWP118 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C20 8.9 9.4 9.9 10.3 11.1 11.5 12 12.3 12.8 13 12 PWP218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C25 9.4 10 10.5 11 11.9 12.4 12.9 13.4 14 14.6 14.2 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 PWP136 C0 D32 15.4 16.1 16.7 17.2 18 18.5 19.1 19.5 20.2 20.7 20.3 C90 C40 10.6 11.3 11 12.6 13.6 14.3 15 15.6 16.6 17.9 18.5 PWP236 C0 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 C90 C32 10 10.7 11.3 11.8 12.8 13.4 14 14.5 15.4 16.4 16.5 C180 D40 16.7 17.4 18 18.6 19.6 20.1 20.8 21.3 22.1 23 23.1 PWP128 C0 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9 C90 C50 11.3 12 11.8 13.4 14.5 15.2 16 16.7 17.9 17.9 18.5 PWP228 C0 D50 18 18.7 19.4 20.1 21.2 21.8 22.5 23.2 24.2 25.4 25.9 C90 C50 11.3 12 11.8 13.4 14.5 15.2 16 16.7 17.9 17.9 18.5 C180 D63 19.4 20.3 21.1 21.8 23 23.7 24.5 25.2 26.4 28.1 28.9
Technical 15 Emergency Max Dim(mm) Product CodesCode Version Low profile IP66 fluorescent weatherproof luminaire designed for hostile and vandal prone environments, including DALI emergency control gear. DIGINET Vandaguard ® - DALI Emergency Features • Pressure die-cast marine grade LM20 aluminium body with separate battery compartment • Robust reeded or clear prismatic polycarbonate diffuser • Complete with security screws, removable gear tray and single one piece gasket • Low profile IP66 protection • Maintained, combined-maintained, combined non-maintained or non-maintained • Complies to AS/NZS2293 • Dual conduit access Low Profile Adverse IP66 Weatherproof VPF118/4QA 1x18W T8 Non-Maint DALI Emerg VPF118A4PA 1x18W T8 Maint DALI Emerg VPF218A4PA 2x18W T8 Comb Maint DALI Emerg VPF218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust) VPF136/4QA 1x36W T8 Non-Maint DALI Emerg VPF136A4PA 1x36W T8 Maint DALI Emerg VPF236A4PA 2x36W T8 Comb Maint DALI Emerg VPF236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories Battery 97002304 Optional Intergrated Auto Dim, Motion and Light Sensors available upon request. IP66 8.5kg 1310 x 140 x 80 • Optional motion and IR sensor capabilities • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Prisons, subways, railway stations and underground carparks CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Secure access screws Tough polycarbonate lens Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 VPF118 C0 D16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C90 C16 8.3 8.8 9.3 9.7 10.3 10.7 11 11.3 11.6 11.3 9.6 VPF218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C180 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 VPF136 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 VPF236 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C20 8.9 9.4 9.9 10.3 11.1 11.5 12 12.3 12.8 13 12 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3
Technical 15 Emergency Max Dim(mm) Product CodesCode Version Low profile IP66 fluorescent weatherproof luminaire designed for hostile and vandal prone environments, including DALI emergency control gear. DIGINET Vandaguard ® - DALI Emergency Features • Pressure die-cast marine grade LM20 aluminium body with separate battery compartment • Robust reeded or clear prismatic polycarbonate diffuser • Complete with security screws, removable gear tray and single one piece gasket • Low profile IP66 protection • Maintained, combined-maintained, combined non-maintained or non-maintained • Complies to AS/NZS2293 • Dual conduit access Low Profile Adverse IP66 Weatherproof VPF118/4QA 1x18W T8 Non-Maint DALI Emerg VPF118A4PA 1x18W T8 Maint DALI Emerg VPF218A4PA 2x18W T8 Comb Maint DALI Emerg VPF218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust) VPF136/4QA 1x36W T8 Non-Maint DALI Emerg VPF136A4PA 1x36W T8 Maint DALI Emerg VPF236A4PA 2x36W T8 Comb Maint DALI Emerg VPF236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories Battery 97002304 Optional Intergrated Auto Dim, Motion and Light Sensors available upon request. IP66 8.5kg 1310 x 140 x 80 • Optional motion and IR sensor capabilities • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Prisons, subways, railway stations and underground carparks CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Secure access screws Tough polycarbonate lens Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 VPF118 C0 D16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C90 C16 8.3 8.8 9.3 9.7 10.3 10.7 11 11.3 11.6 11.3 9.6 VPF218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C180 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 VPF136 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 VPF236 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C20 8.9 9.4 9.9 10.3 11.1 11.5 12 12.3 12.8 13 12 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3
Technical 16 Emergency max dim(mm) Product CodesCode Version Adverse and weatherproof IP66 fluorescent luminaire designed for hostile, industrial and vandal prone environments, including DALI emergency control gear. DIGINET VANDALUX ® - DALI EMERGENCY Features • Pressure die-cast marine grade LM20 aluminium body with (separate battery compartment,18W only) • Heavy-duty reeded or clear prismatic polycarbonate diffuser • Removable gear tray • Maintained, combined-maintained, combined non-maintained or non maintained • Complete with security screws and single piece gasket • IP66 protection • Standard finished chromate treated APO grey epoxy powder coat Adverse IP66 Weatherproof VP118/4QA 1x18W T8 Non-Maint DALI Emerg VP118A4PA 1x18W T8 Maint DALI Emerg VP218A4PA 2x18W T8 Comb Maint DALI Emerg VP218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)VP136/4QA 1x36W T8 Non-Maint DALI Emerg VP136A4PA 1x36W T8 Maint DALI Emerg VP236A4PA 2x36W T8 Comb Maint DALI Emerg VP236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories C28VANDALUX Horizontal wall bracket for 18WC29VANDALUX Horizontal wall bracket for 36WC32VANDALUX Mounting kit for 18W to suit dia.34mm pipeC33VANDALUX Flat wall bracket, 5’ upcast, Dia. 34mm spigotC34VANDALUX Corner wall bracket, 5’ upcast, Dia. 34mm spigotC35VANDALUX Universal bracketC36VANDALUX Ceiling mounting bracketPMB32/VAN Single pipe bracket to suit Dia. 42 - 46mm pipe PMB40/VAN Single pipe bracket to suit Dia. 48 -51mm pipe Battery 97002304 Optional: Intergrated Auto Dim, Motion and Light Sensors available upon request. IP66 6.3kg 1310 x 140 x 120 • Dual conduit access • Option safety orange body finish available • Complies to AS/NZS2293 • Optional motion and IR sensor capabilities • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Weatherproof for hostile, industrial and vandal prone environments, railway stations, subways and car parks. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Version Dim (mm) 1x18W T8 670 x 140 x 120 2x18W T8 670 x 140 x 120 1x36W T8 1310 x 140 x 120 2x36W T8 1310 x 140 x 120 Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 VP118 C0 D16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C90 C16 8.3 8.8 9.3 9.7 10.3 10.7 11 11.3 11.6 11.3 9.6 VP218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C180 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 VP136 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 VP236 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C20 8.9 9.4 9.9 10.3 11.1 11.5 12 12.3 12.8 13 12 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 The sun and the moon, two dominant sources of light control. The third is Pierlite.
Technical 16 Emergency max dim(mm) Product CodesCode Version Adverse and weatherproof IP66 fluorescent luminaire designed for hostile, industrial and vandal prone environments, including DALI emergency control gear. DIGINET VANDALUX ® - DALI EMERGENCY Features • Pressure die-cast marine grade LM20 aluminium body with (separate battery compartment,18W only) • Heavy-duty reeded or clear prismatic polycarbonate diffuser • Removable gear tray • Maintained, combined-maintained, combined non-maintained or non maintained • Complete with security screws and single piece gasket • IP66 protection • Standard finished chromate treated APO grey epoxy powder coat Adverse IP66 Weatherproof VP118/4QA 1x18W T8 Non-Maint DALI Emerg VP118A4PA 1x18W T8 Maint DALI Emerg VP218A4PA 2x18W T8 Comb Maint DALI Emerg VP218A4RA 2x18W T8 Comb Non-Maint DALI Emerg (Sust)VP136/4QA 1x36W T8 Non-Maint DALI Emerg VP136A4PA 1x36W T8 Maint DALI Emerg VP236A4PA 2x36W T8 Comb Maint DALI Emerg VP236A4RA 2x36W T8 Comb Non-Maint DALI Emerg (Sust) Accessories C28VANDALUX Horizontal wall bracket for 18WC29VANDALUX Horizontal wall bracket for 36WC32VANDALUX Mounting kit for 18W to suit dia.34mm pipeC33VANDALUX Flat wall bracket, 5’ upcast, Dia. 34mm spigotC34VANDALUX Corner wall bracket, 5’ upcast, Dia. 34mm spigotC35VANDALUX Universal bracketC36VANDALUX Ceiling mounting bracketPMB32/VAN Single pipe bracket to suit Dia. 42 - 46mm pipe PMB40/VAN Single pipe bracket to suit Dia. 48 -51mm pipe Battery 97002304 Optional: Intergrated Auto Dim, Motion and Light Sensors available upon request. IP66 6.3kg 1310 x 140 x 120 • Dual conduit access • Option safety orange body finish available • Complies to AS/NZS2293 • Optional motion and IR sensor capabilities • Available with DALI dimming and emergency • The DIGINET product has been designed in accordance with International DALI standard IEC 62386. Applications Weatherproof for hostile, industrial and vandal prone environments, railway stations, subways and car parks. CLIENT: GERARD LIGHTING CONCEPT: 02.09.09 BRAND: iLP- INTELLIGENT LIGHTING SOLUTIONSPRODUCT: iLP LOGO R CONTACT: Vanessa CottonCustom Cartons19 East StreetBrompton SA 5007 Tel: 08 8348 2967 Fax: 08 8348 2977 Email: [email protected] Version Dim (mm) 1x18W T8 670 x 140 x 120 2x18W T8 670 x 140 x 120 1x36W T8 1310 x 140 x 120 2x36W T8 1310 x 140 x 120 Product Code Classification Mounting Height in Metres 2.1 2.4 2.7 3 3.6 4 4.5 5 6 8 10 VP118 C0 D16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C90 C16 8.3 8.8 9.3 9.7 10.3 10.7 11 11.3 11.6 11.3 9.6 VP218 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 C180 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 VP136 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C16 12.1 12.6 13.4 13.1 13.9 14.1 14.6 14.6 14.6 13.8 11.5 VP236 C0 D20 13.1 13.6 14.1 14.5 15.1 15.5 15.8 16.1 16.4 16 14.5 C90 C20 8.9 9.4 9.9 10.3 11.1 11.5 12 12.3 12.8 13 12 C180 D25 14.2 14.7 15.3 15.7 16.5 16.9 17.3 17.7 18.1 18.2 17.3 The sun and the moon, two dominant sources of light control. The third is Pierlite.
