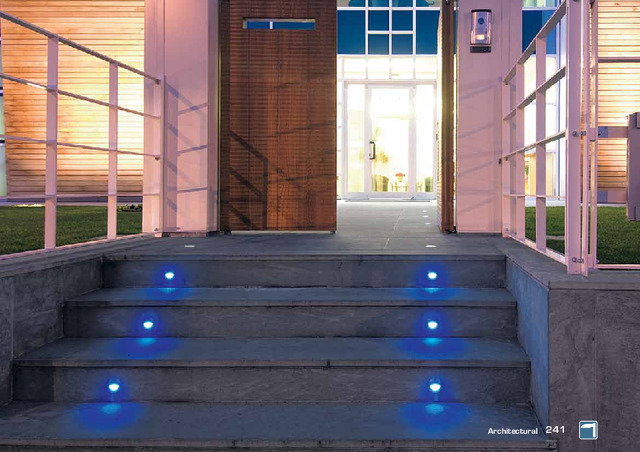

Pierlite architectural lighting catalogue

Published: 23 May 2013 Category: Product Catalogues

Topics

Lighting

Pierlite

Pierlite architectural lighting catalogue

Published: 23 May 2013 · Category: Product Catalogues

From this document

Architectural 241 Minizip Miniature inground uplights using dichroic halogen lamps with tilt adjustment. Features • • • • • • • Pressure die-cast, low copper aluminium alloy housings with a durable powder coat paint finish in silver 8mm thick, toughened and etched glass cover with a low profile for discreet installation Optional round or square trim versions Uses MR16 IRC type lamps for low energy consumption, in a +/-15° tilt adjustable mount Supplied with power cable for direct connection to a remote transformer (to be ordered separately) Maximum static load 1000kg Supplied with a polypropylene recessing well and cable fast connector kit Also available with various LED or T2 fluorescent light sources, upon request Impact rating IK09 • • Applications For uplighting of internal or external features and walls where size and space restrictions apply. Technical S.7848 - IRC 20W 12V h(m) 2.5 2 1.5 1 0.5 0.05 m E(lx) 0 1 1 4 21 0 0 1 3 9 0 0 1 2 2 0 0 0 1 0 0 0.2 0.4 0.6 (m) Product Codes S.7868 Code Version S7848.14 S7868.14 20W IRC MR16 round trim 20W IRC MR16 square trim Accessories S.78802 LVL48A-2-01 240/12V 50Va IP67 transformer with F&P and supply cable for maximum two units 242 Architectural IP67 Max Dim(mm) 1.4 kg 135 x 135 x 140 135 ZIP Plus Shallow inground uplights utilising energy saving compact fluorescent lamps. Features • • • • • • Pressure die-cast, low copper aluminium alloy housing with a durable powder coat paint finish in silver colour 10mm thick, toughened...
